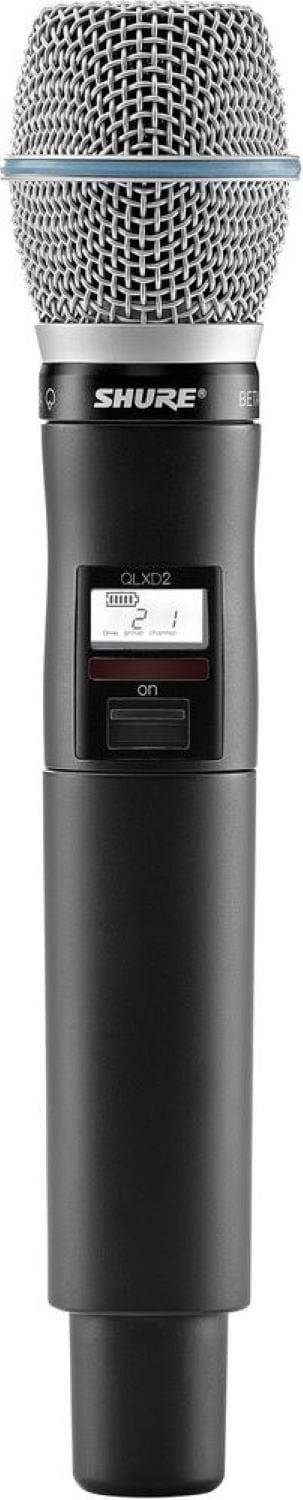

Shure QLXD2/B87A X52 Band Handheld Transmitter with Beta 87A Capsule - Unleash Your Voice
The Shure QLXD2/B87A is a digital handheld wireless microphone transmitter that pairs seamlessly with QLX-D receivers. Here's why it's a must-have:
- Exceptional Sound Quality: Equipped with the Beta 87A supercardioid condenser capsule, it can handle extreme sound pressure levels while delivering a smooth frequency response for vocalists and presenters. The supercardioid polar pattern reduces off-axis background noise, minimizing feedback.
- Versatile Features: With 1040 selectable frequencies, interchangeable capsule design, 1/10mW RF output power, backlit LCD, adjustable gain control, secure AES-256 encryption, networked intelligent charging, and 9-hr AA batteries, it offers everything you need for a seamless performance.
- Wide Compatibility: Specifically designed for QLX-D receivers, ensuring a reliable and high-quality connection.
Technical Specifications
- RF Frequency Band: X52 (902 to 928 MHz)
- RF Bandwidth: 26 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 330' / 100.6 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 mW
- Audio I/O: No
- Gain Range: 0 to 21 dB (3 dB Steps)
- Frequency Response: 30 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1x 1/4 Wave
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life: 9 Hours (Alkaline)
- Display & Indicators: 1x Backlit LCD (Channel, Group, RF Output Power)
- Housing: Aluminum
- Dimensions: 2 x 10.1' / 51 x 256 mm
- Weight: 12.2 oz / 347 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: 140.5 dB SPL
- Sensitivity: -52.5 dBV/Pa
- Dynamic Range: 117 dB
The Shure QLXD2/B87A handheld wireless microphone transmitter is perfect for vocal performers and presenters. It's designed to work with QLX-D receivers. With its compact size of 2 x 10.1' / 51 x 256 mm and weighing 12.2 oz / 347 g (without batteries), it's easy to carry around. Whether you're on stage, at a conference, or hosting an event, this transmitter ensures clear and reliable audio transmission.
