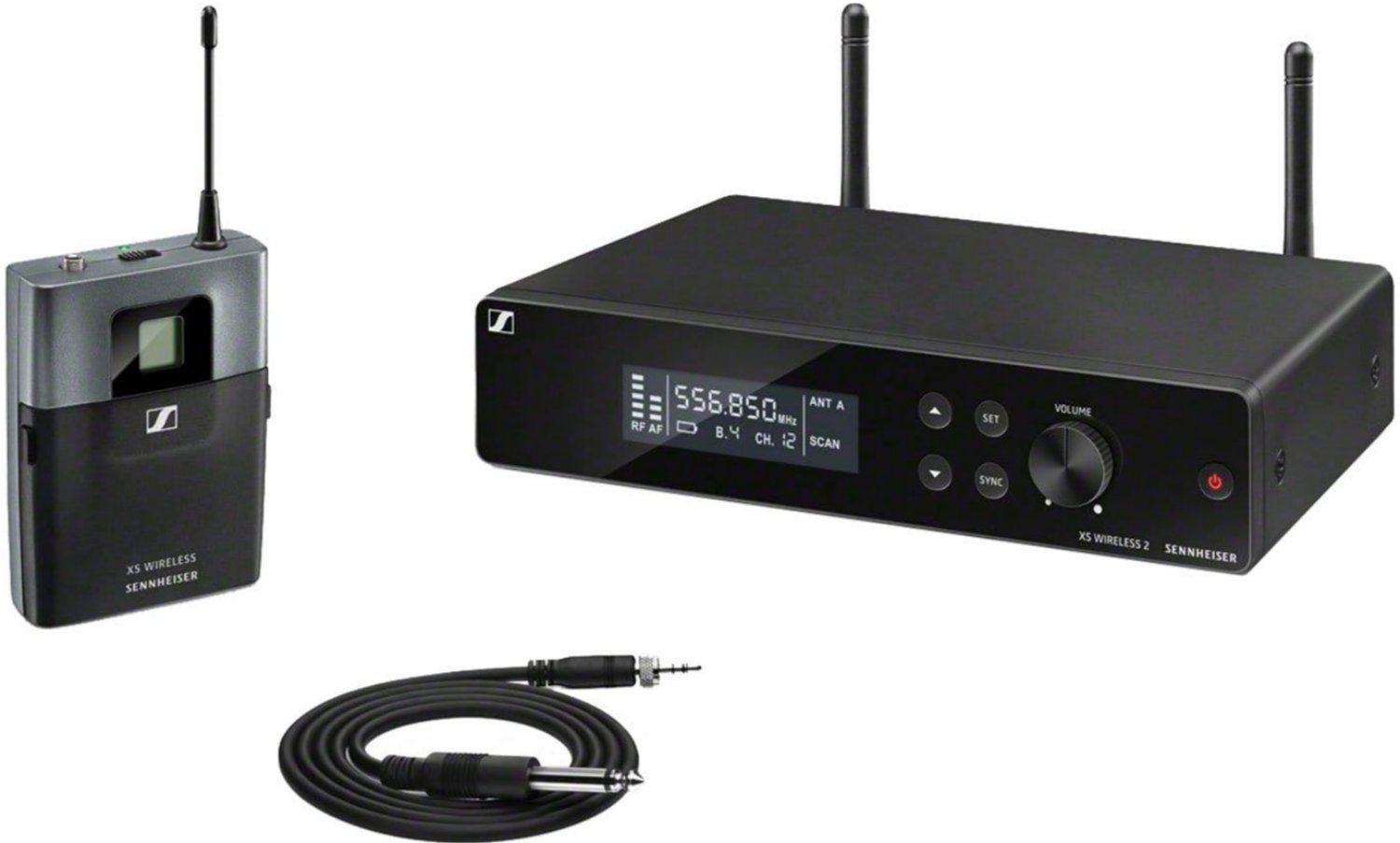

Sennheiser XSW 2-CI1 Wireless Instrument Mic Set

Sennheiser XSW 2-CI1 Wireless Instrument Mic - Boost Your Sound

Get ready to amplify your tunes like never before! This wireless instrument mic set offers high flexibility for those looking to take their sound to the next level. With an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, it can handle even the toughest live stage conditions.

The XS Wireless 2 Instrument Set is perfect for guitarists and bassists. It's an easy-to-use all-in-one wireless system that delivers excellent live sound. The set includes a stationary receiver for quick setup and hassle-free handling, a compact bodypack transmitter, and a robust instrument cable. A metal receiver housing and rackmount kit are also included.

Features:

• • Robust instrument cable and compact bodypack transmitter
• • True diversity receiver with metal housing
• • Automatic frequency management and synchronization via remote channel for easy setup
• • Fully tunable over a wide range of UHF frequencies
• • Rackmount kit included
• • Up to 12 compatible channels

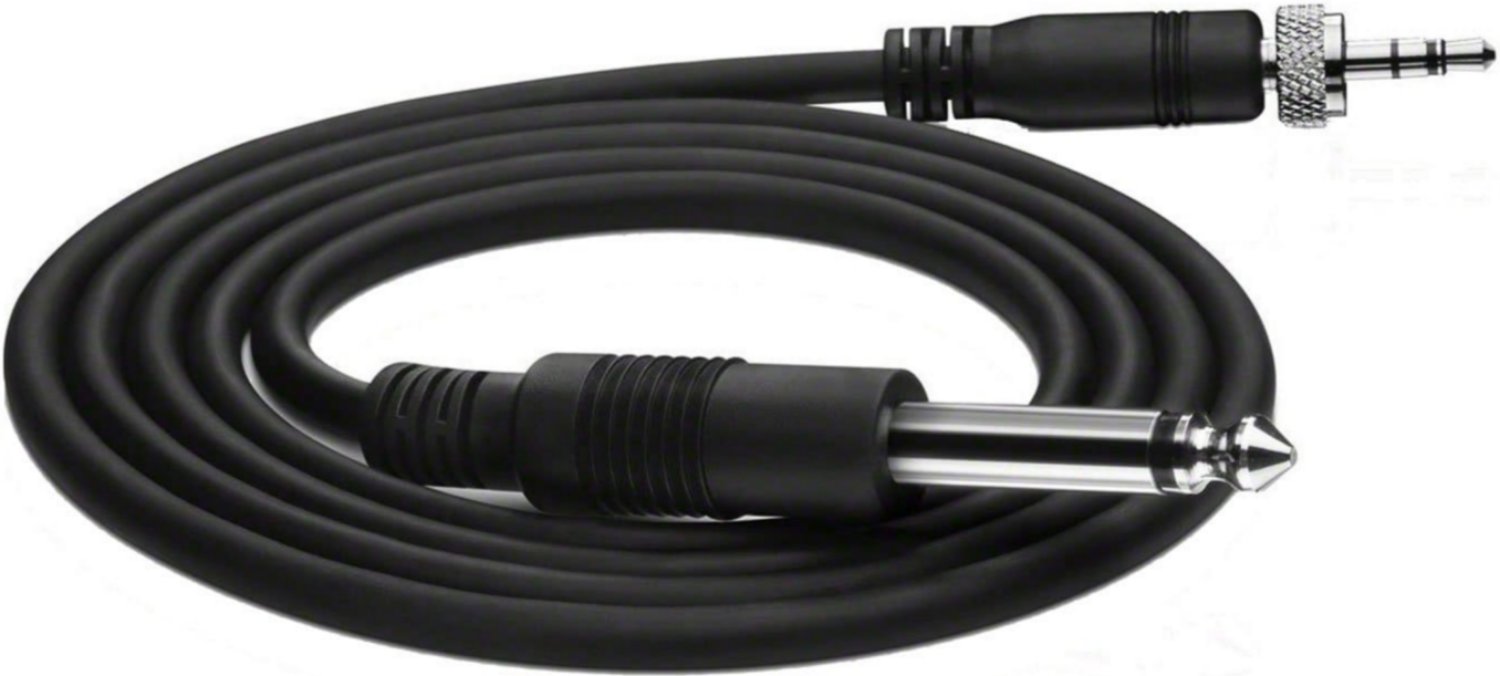

• What's included: 1 receiver EM-XSW 2; 1 bodypack transmitter SK-XSW; 1 instrument cable Cl1; 1 power supply NT 12-5 CW; 2 AA batteries; 1 rackmount kit; 1 pouch; user manual

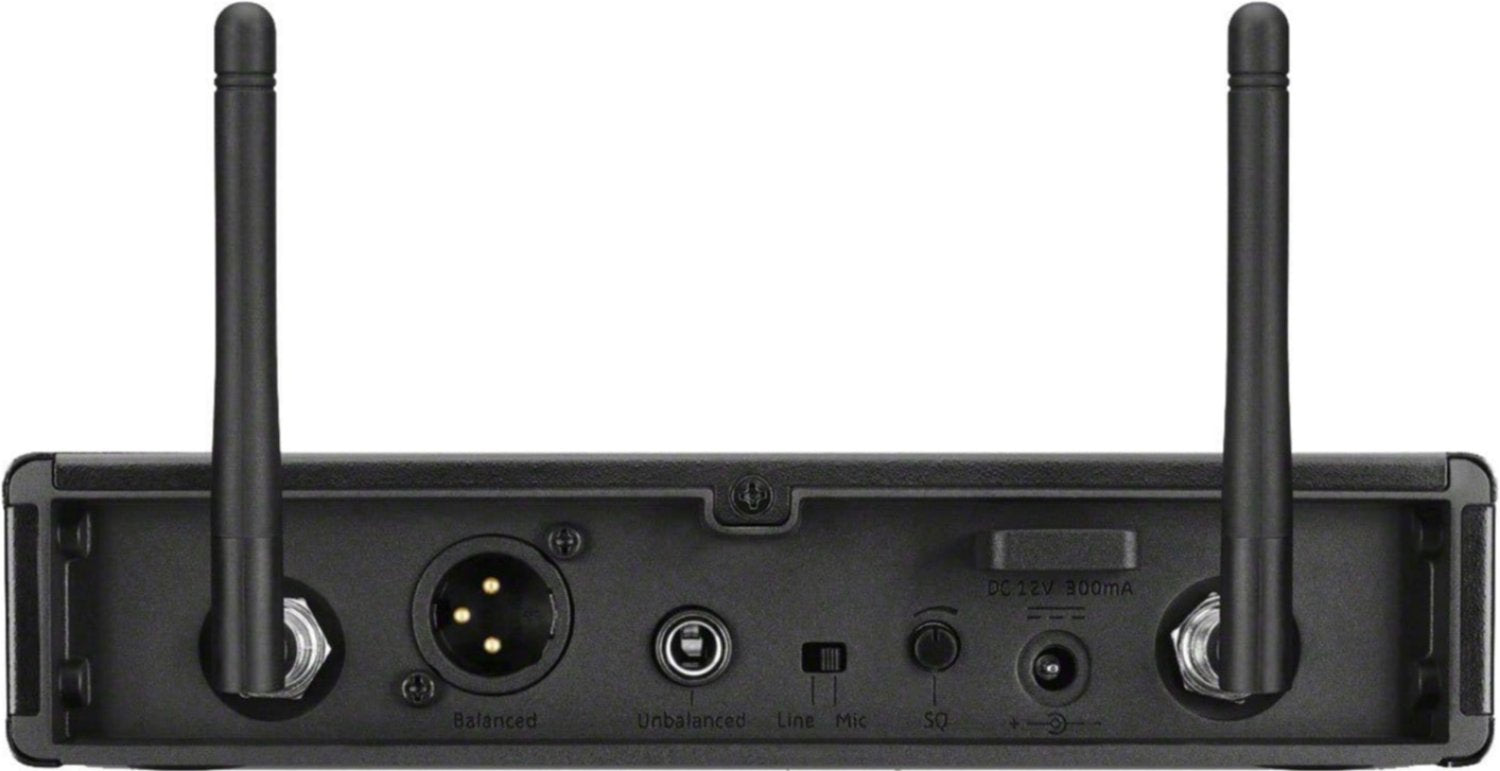

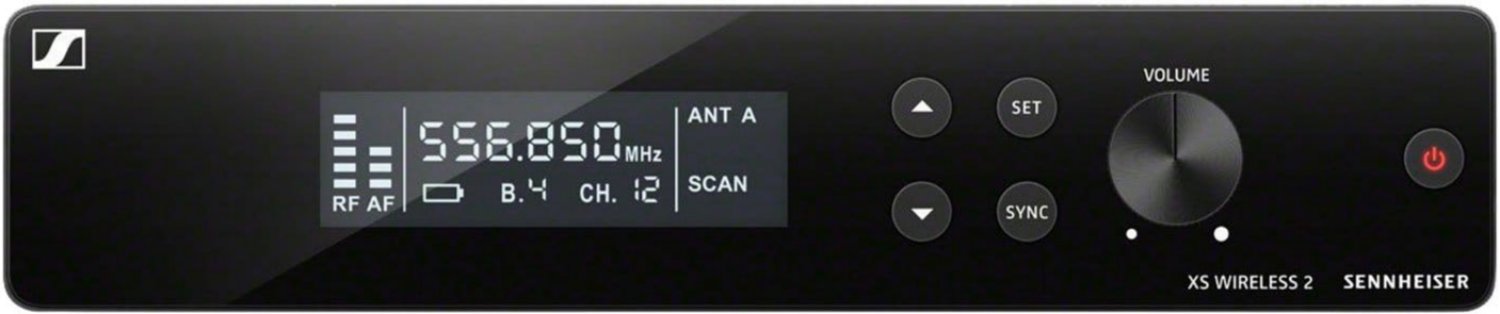

EM-XSW Receiver Specifications:

• • Dimensions approx. 200 x 42 x 127 mm
• • Weight approx. 680g
• • Power supply 12 V DC nom. / 300 mA
• • Housing metal
• • AF frequency response 50 to 16,000 Hz (–3 dB)

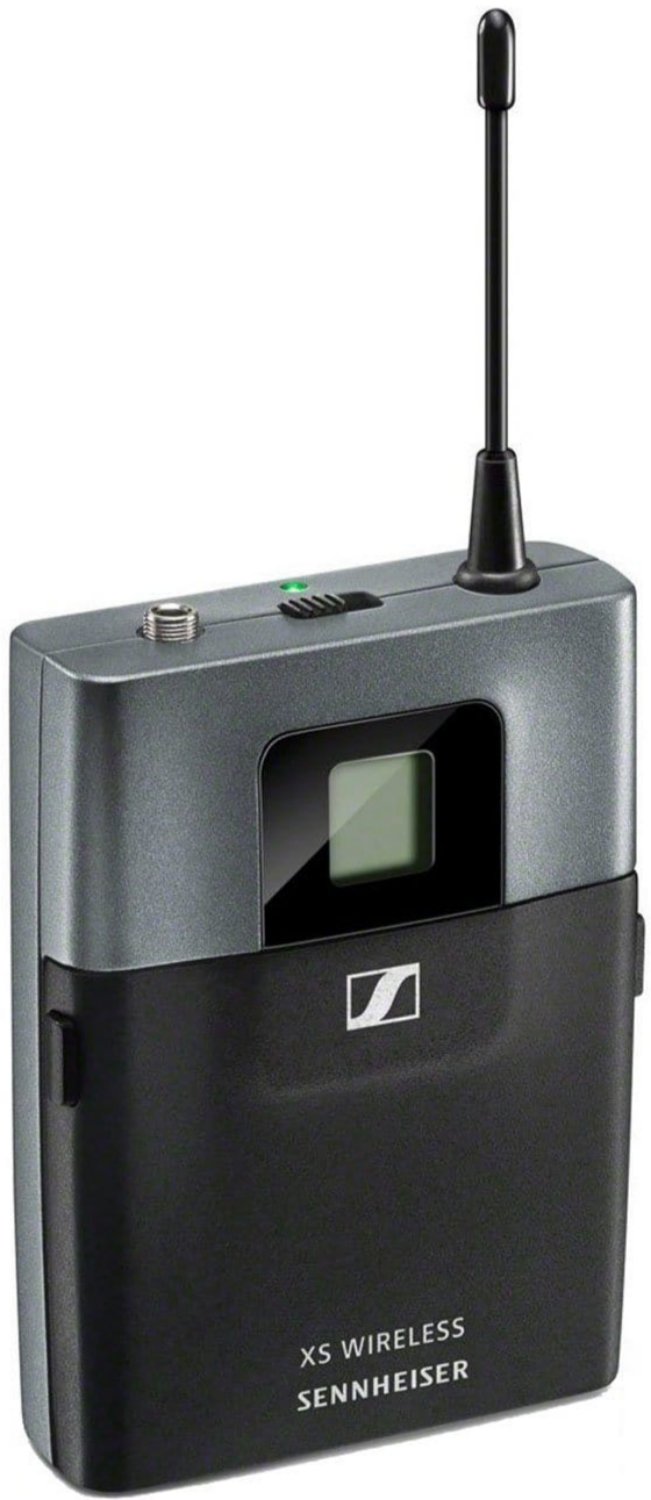

SK-XSW Bodypack Transmitter:

• • Dimensions approx. 71 x 96 x 28 mm
• • Weight approx. 95g
• • Operating time approx. 10 hrs
• • Power supply 2 AA size batteries, 1.5 V
• • Housing robust ABS
• • AF frequency response 50/16000Hz

XSW 2-CI1 Specifications:

• • Frequency response 50 to 16,000 Hz (–3 dB)
• • THD, total harmonic distortion 0.9%
• • Signal-to-noise ratio 103 dBA
• • RF output power 10 mW
• • Switching bandwidth up to 24 MHz
• • Modulation wideband FM
• • Output voltage 1/4' (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• • Diversity reception True Diversity
• • Frequency 8 frequency banks, each with up to 12 factory-preset channels
• • Frequency range A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
• • Sensitivity < 3 V at 52 dB(A)rms S/N
• • Squelch switchable from 3 dB V to 28 dB V (via Pilot Tone)
• • Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)'
• • Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
• • Audio adjustment range 40 dB, adjustable in 5-dB steps
• • Line / Mic level 20 dB, switchable
• • Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
• • Receiver Principle double superheterodyne

This Sennheiser XSW 2-CI1 Wireless Instrument Mic Set is designed for guitarists and bassists. It's great for live performances. The receiver has dimensions of approximately 200 x 42 x 127 mm and weighs around 680g. The bodypack transmitter is about 71 x 96 x 28 mm and weighs approximately 95g. It offers high flexibility, with features like an intuitive LCD display, 12 compatible channels in a stable UHF band, and automatic frequency management for easy setup.
