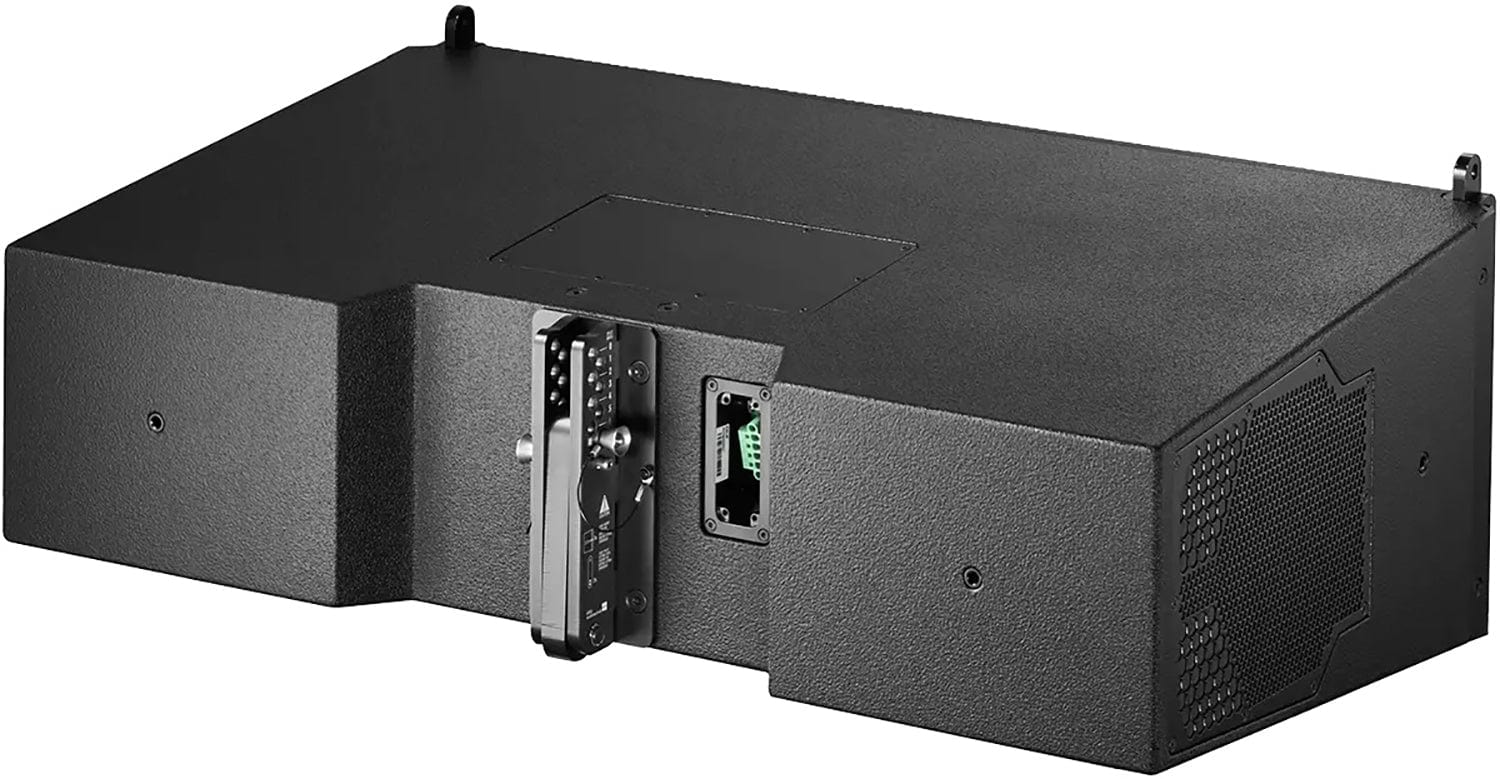

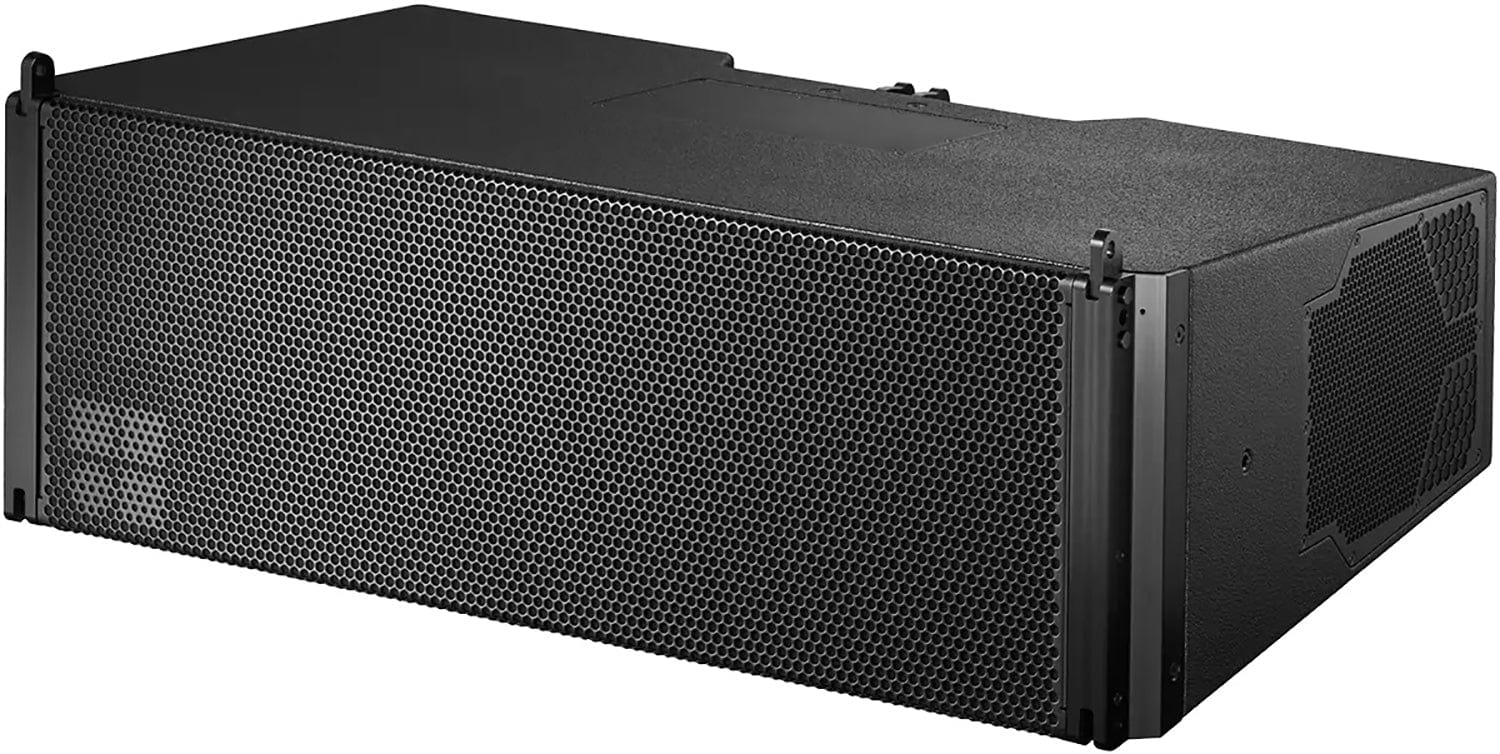

D&B Audiotechnik XSLi12: The Ultimate Sound Solution for Medium-Sized Venues
The XSLi12 is a purpose-built installation line array module, perfect for small to medium sound reinforcement projects. It can also be used as fill or delay in KSLi Systems. The specialized XSLi12 SVS version is designed for stadium use with custom rigging options, offering the same great performance in a weatherproof IP55-rated enclosure. Available in Special Color (SC) and Weather Resistant (WR) versions.
Features:
- • Ideal for small to medium sound reinforcement or as fill/delay in larger systems
- • SVS version with IP55 enclosure for outdoor stadiums
- • Flexible flying options: Up to 24 cabinets with XSLi Flying Frame or 12 cabinets with XSLi Mounting Frame
- • Two 8” neodymium forward-facing LF drivers, two 6.5” side-firing LF drivers, one 6.5” MF driver, and two 1” HF compression drivers
- • Patented arrangement for seamless directivity control from low frequencies to above 18 kHz
- • Can link two cabinets in Line or Arc mode for smaller arrays without Array Processing
- • Weather-protected, impact-resistant 2K finish with metal grills backed by acoustically transparent water-repellent fabric
- • Dedicated d&b amplifier channels for active driving and precise processing functions
Specifications:
- • LF Nominal Diameter: 2x 8' + 2x 6.5'
- • MF Nominal Diameter: 6.5'
- • HF Nominal Diameter: 2x 1'
- • Loudspeaker Nominal Impedance: Front LF: 8 Ohms, Side LF/MF/HF: 8 Ohms
- • Loudspeaker Power Capacity (RMS/peak 10 ms): Front LF: 400/1200 W, Side LF/MF/HF: 300/850 W
- • Frequency Range: 60 Hz - 18 kHz
- • Dispersion Angle: 120°
- • Maximum SPL: 140 dB
The D&B Audiotechnik XSLi12 is a top-of-the-line line array loudspeaker designed for small to medium-sized sound reinforcement projects. It's also great for use as fill or delay in larger KSLi systems. The specialized XSLi12 SVS version is perfect for stadiums, with custom rigging options and a weatherproof IP55-rated enclosure. The XSLi12 features two 8” neodymium forward-facing LF drivers, two 6.5” side-firing LF drivers, one 6.5” MF driver, and two 1” HF compression drivers, providing seamless directivity control from low frequencies to above 18 kHz. It also offers flexible flying options, with up to 24 cabinets with the XSLi Flying Frame or 12 cabinets with the XSLi Mounting Frame. The XSLi12 is weather-protected and impact-resistant, with a 2K finish and metal grills backed by acoustically transparent water-repellent fabric. It comes with dedicated d&b amplifier channels for active driving and precise processing functions. Technical specs include an LF nominal diameter of 2x 8' + 2x 6.5', an MF nominal diameter of 6.5', an HF nominal diameter of 2x 1', a loudspeaker nominal impedance of Front LF: 8 Ohms, Side LF/MF/HF: 8 Ohms, a loudspeaker power capacity of Front LF: 400/1200 W, Side LF/MF/HF: 300/850 W, a frequency range of 60 Hz - 18 kHz, a dispersion angle of 120°, and a maximum SPL of 140 dB.
