Q-SYS DCIO-H Digital Cinema Audio Processor: Your Gateway to Immersive Cinema Sound
Unleash the full potential of your Q-SYS enabled cinema with the Q-SYS DCIO-H Digital Cinema Input/Output Audio Processor. This cinema-specific interface serves as the audio I/O for each screen, delivering a seamless and immersive audio experience for your audience.
Key Features:
- • Digital Cinema Inputs/Outputs: Connect to Q-SYS enabled cinemas and complexes with ease.
- • Network Distribution: Route inputs/outputs from projector IMB and alternate content sources to Q-SYS Core over Q-LAN.
- • Versatile Connectivity: Mic/line input, line level monitor output, powered monitor output to passive speaker, HDMI input/output (DCIO-H version only), and more.
Benefits:
- • Cost-Effective Solution: Realize the full benefits of a Q-SYS enabled cinema for every room in a multiplex with a cost-effective approach.
- • Seamless System Integration: Configure, control, and monitor your theatre audio equipment through a seamless system view using Q-SYS Designer and custom UCIs, touchpanels, and mobile apps.
- • High-Quality Audio: Enjoy Dolby Audio (featuring Dolby Digital Plus and Dolby Surround 7.1) and DTS-HD decoding (DCIO-H version only) for exceptional sound quality.
Specifications:
- • General: Dimensions (H x W x D): 1.75 (2 RU) x 19 x 11.2 inches (44 x 483 x 282.5 mm), Line Voltage Requirements: 100 VAC – 240 VAC, 50/60 Hz, Accessories Included: 1m UL/CSA line cord, Euro-style connectors for outputs and relay connections

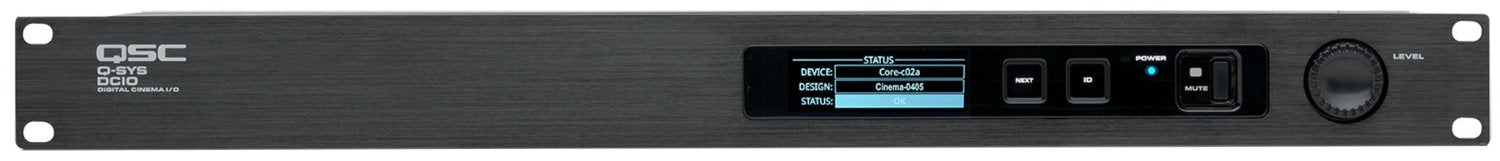

- • Front Panel Controls and Indicators: Parameter Adjust: Rotary encoder, Power On Indicator: Blue LED, Display: Monochrome 304x96 blue OLED graphics display, Other: Momentary mute button, Mute LED (red), Screen Navigation (Next) and ID buttons

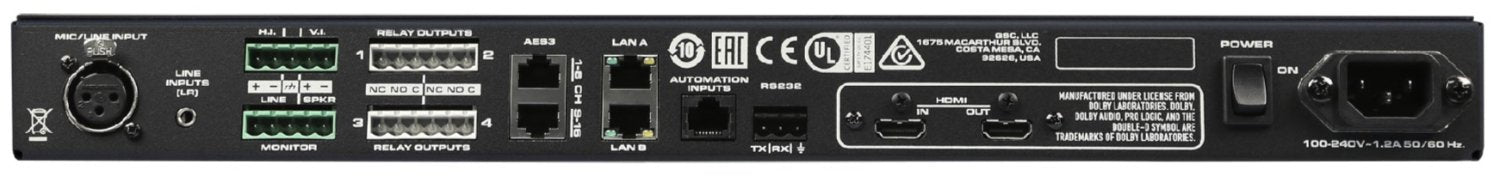

- • Rear Panel Connectors: Mic/Line Input: XLR Mic (+ phantom power) or line level, Line Input: 3.5 mm TRS, unbalanced, H.I./V.I. Output: 5-pin Euro-style (x1) – common GND, Monitor Line/Speaker Outputs: Line: 3-pin Euro-style, Speaker: 2-pin Euro-style, 10 W max output
- • Audio Performance: A/D Conversion: 32-bit delta-sigma, 48 kHz, Frequency Response: 20 Hz to 20 kHz (+/- .5dB)
- • Stereo Line Inputs: Connector: 3.5mm TRS mini jack, Input Stage Type: Unbalanced input, Input Impedance (4dBu Sens): > 10k Ohms, Max Analog Input Level (4dBu Sens): 15 dBu (4.4 Vrms), Input Impedance (-10dBV Sens): 2.7k Ohms, Max Analog Input Level (-10dBV Sens): 1 dBV (1.2 Vrms)
- • Other: Relay Outputs (4): 3-pin Euro-style, Normally Open (NO), Normally Closed (NC), and Common, Max 30 VDC @ 1A, Automation Inputs (RJ45 - 6 GPI): Max input voltage 5V (3.3V typical), TTL Compatible Dry Contact Closure, AES3/EBU Inputs: Ch. 1-8, 15-16 (RJ45 x2), Automation Inputs: RJ45, RS-232, Dual Gigabit Ethernet Q-LAN Ports: LAN A, LAN B (RJ45 x2), HDMI Input/Output (DCIO-H only): HDMI 2.0, Type A female connectors, Power Switch: Rocker switch, IEC Power Connector
- • AES/EBU Digital Inputs (RJ45): Input Stage Type: Balanced input, Input Impedance: 110 ohms, Input Sample Rate: 48 kHz or 96 kHz
- • Mic/Line Input (XLR): Input Stage Type: Active balanced input, Input Impedance: 2.2k Ohms, Max Analog Input Level: 26 dBu, Phantom Power Voltage: 15V
The Q-SYS DCIO-H Digital Cinema Input/Output Audio Processor is designed for cinema owners and operators who want to enhance the audio experience in their multiplexes. With its cinema-specific interface, it serves as the audio I/O for each screen, delivering a seamless and immersive audio experience for your audience. The processor is compatible with Q-SYS enabled cinemas and complexes, and features digital cinema inputs/outputs, network distribution, and versatile connectivity options. It also offers cost-effective solutions, seamless system integration, and high-quality audio. The processor has a compact design with dimensions of 1.75 (2 RU) x 19 x 11.2 inches (44 x 483 x 282.5 mm), and operates on a line voltage of 100 VAC – 240 VAC, 50/60 Hz.
