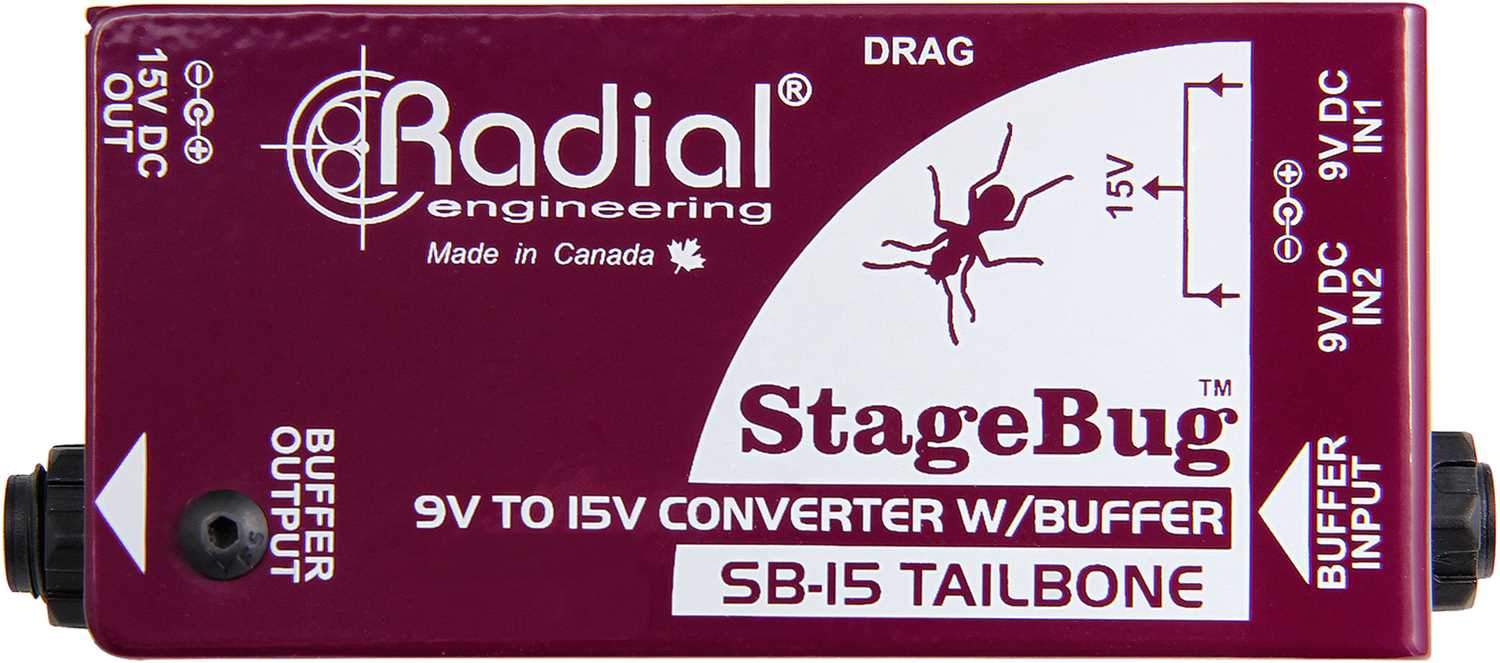

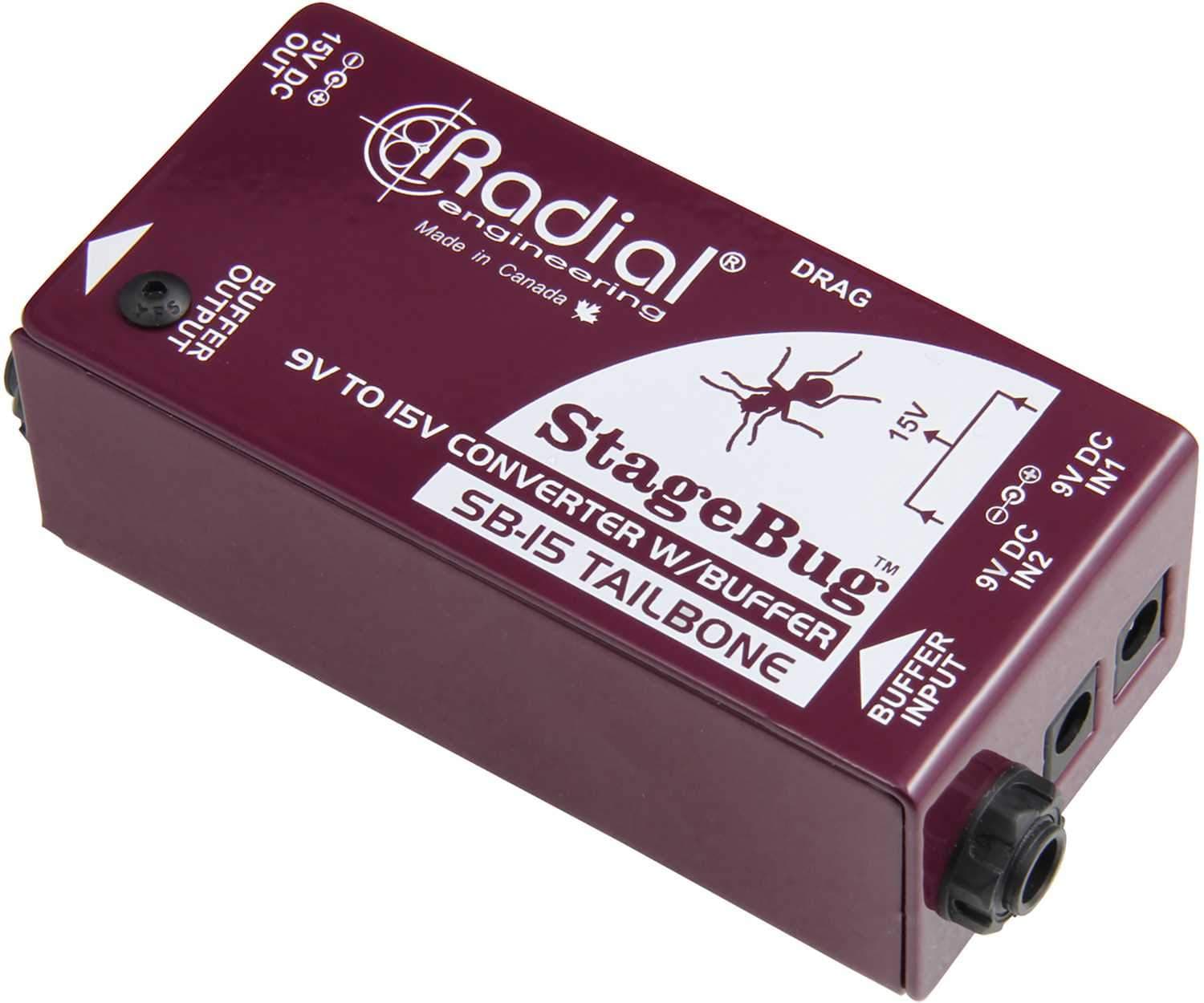

Radial SB-15 Tailbone: The Ultimate Signal Buffer & Converter
• Signal Buffer & 9V to 15V Converter •
The Stagebug SB-15 is a class-A signal buffer that sits at the start of your signal chain, driving multiple pedals without noise or signal loss. It also converts two 9V power outputs to 15V, powering Radial and Tonebone 15V products.
Effortlessly Drive Pedal Chains
The ultra-compact SB-15 is pedalboard-friendly with transparent operation, preserving your instrument's natural tone. Its 100% discrete class-A design reduces the need for phase-cancelling negative feedback, delivering a more natural and pleasing tone. A Drag control load correction circuit replicates the tone and feel of direct amplifier connection. Buffered signals are less susceptible to interference, driving multiple pedals up to 15 meters (50') without noise.
Power Your 15V Radial and Tonebone Pedals
The SB-15 Tailbone runs on a standard 9V supply (not included). Combine two 9V outputs from your power brick, and the SB-15 converts them to 15VDC with the right polarity, making it easy to add high-end Tonebone or Radial devices to your pedalboard.
Use the SB-15 as a Signal Buffer
The SB-15 corrects load and reduces noise susceptibility when driving multiple pedals and a distant amp, making it the ideal front end for your pedalboard and guitar setup.
Use the SB-15 with a Power Brick
Most power bricks have only 9V outputs. The SB-15 simplifies powering your 15V Tonebone by converting two 9V outputs to the right voltage and polarity.
Use the SB-15 on Your Pedalboard
Make the SB-15 the ultimate front-end for your pedalboard. Connect it to your pedals and amp for less noise and a more natural tone.
Features:
- 100% discrete class-A signal buffer
- Drag control load correction for natural tone
- Drives pedal chains up to 15 meters (50ft)
- Converts two 9V supplies to 15V output

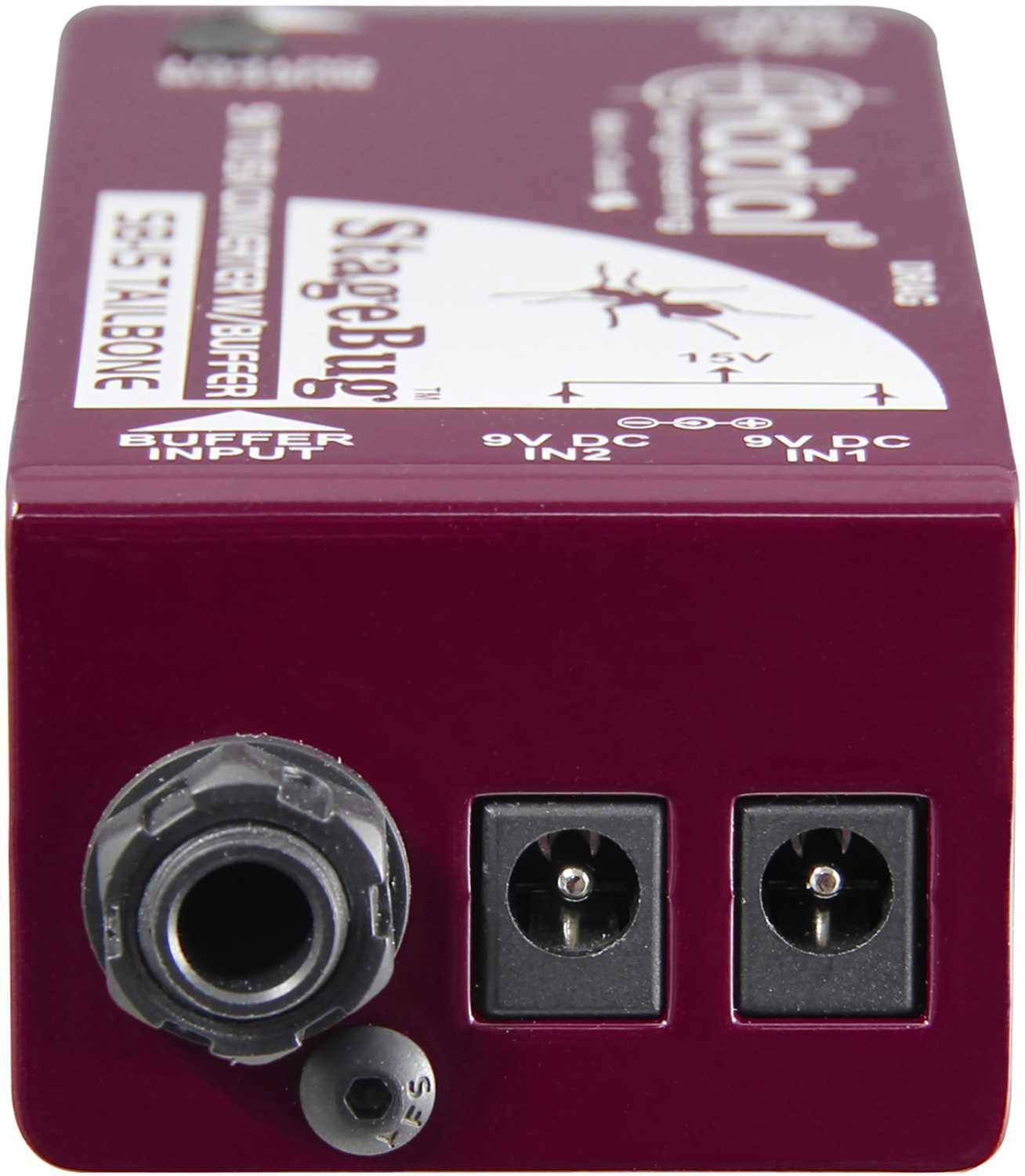

- Buffer Input
Hi-Z ' guitar connection to the class-A buffer circuit. - 9VDC In-1
Used to provide power to the Tailbone class-A active buffer circuit. - 9VDC In-2
Used with 9VDC IN-1 to increase input power so that the Tailbone can deliver 15 volts to a Tonebone pedal. - Enclosure

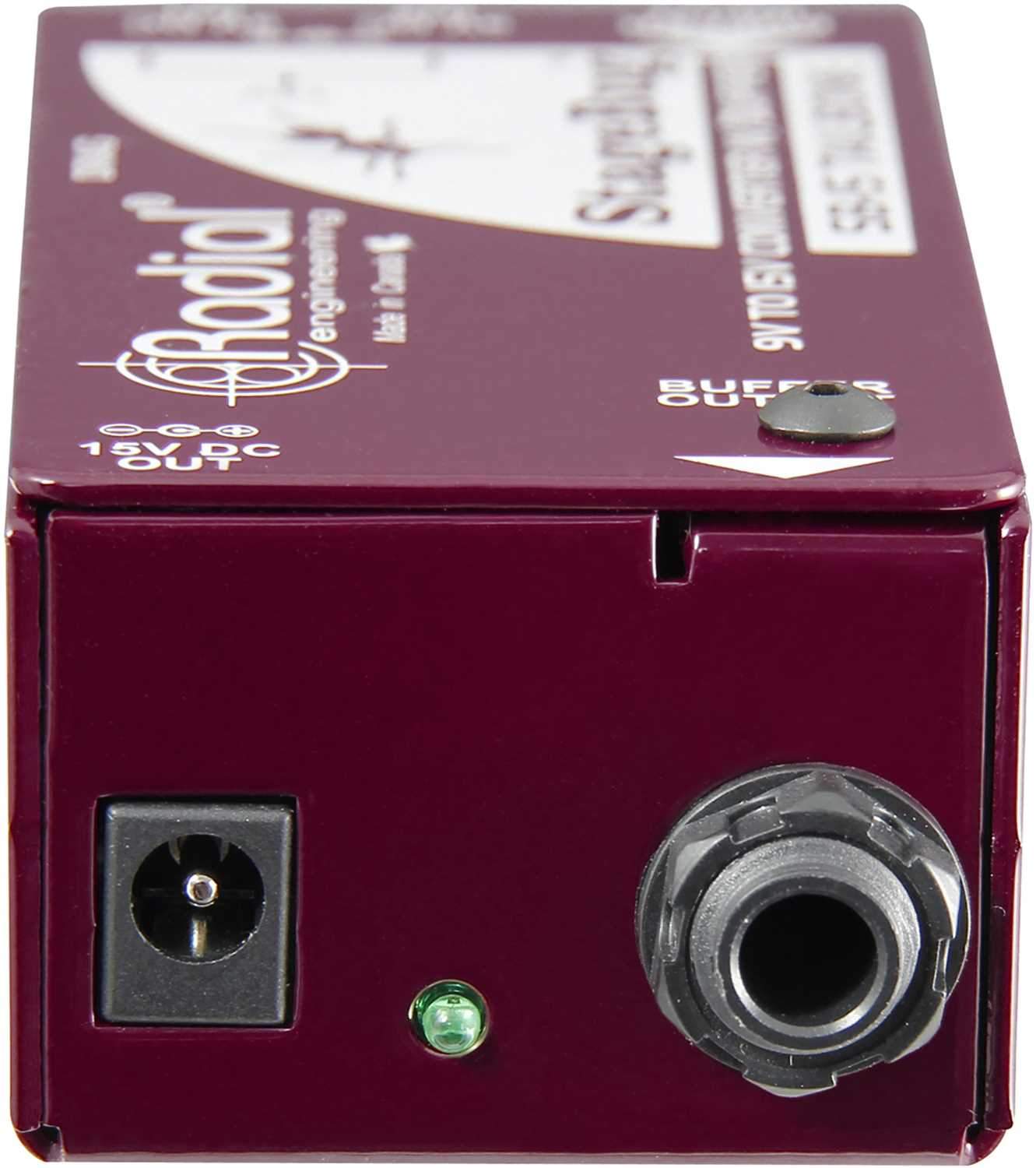

Made from 14 gauge steel to protect sensitive electronics inside while shielding against magnetic fields. - 15VDC Out
Special 15 volt 400 milliamp output designed to supply Tonebone pedals using two 9V DC supplies as the power source. - Buffer Output
' output connects to pedals and amp, allows longer cable run without noise. - Powder Coat

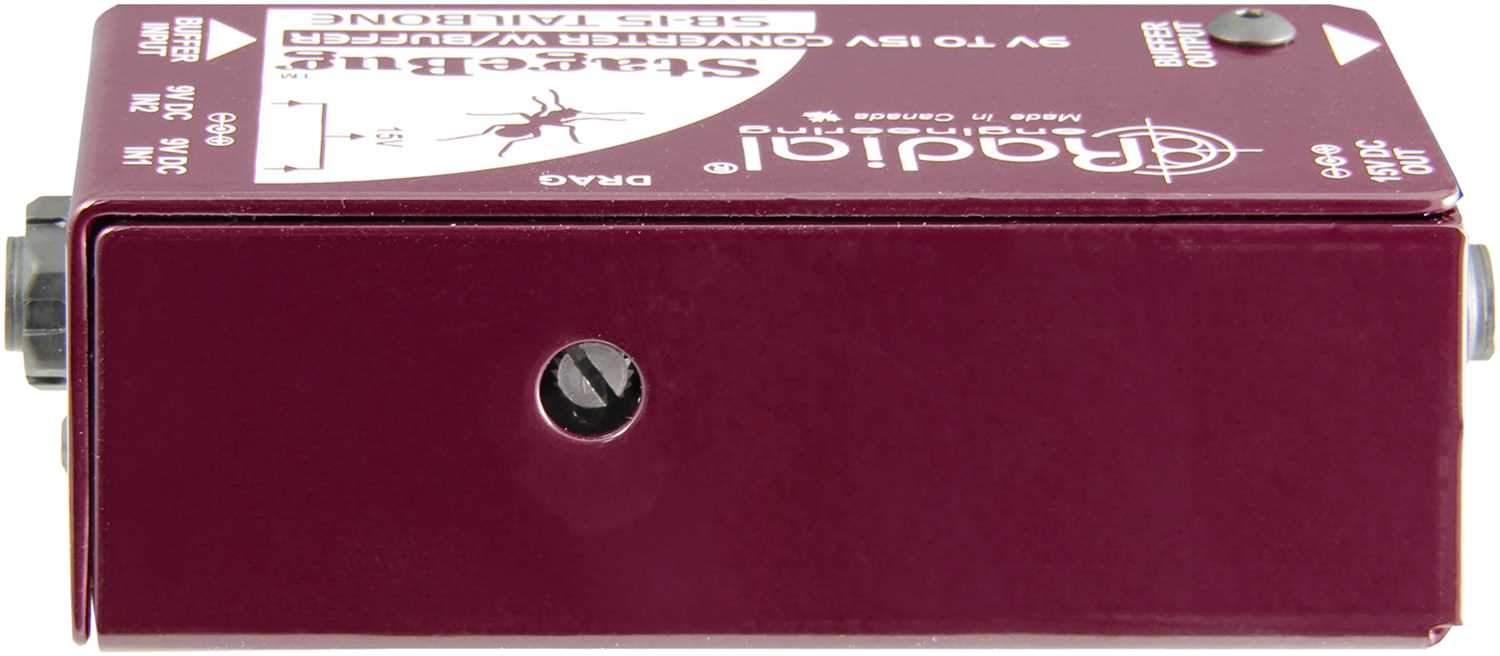

Keeps your StageBug SB-15 looking good for years. - Drag Control
Adjust the load on the pickup for more natural sound and feel. - Warranty: Radial 3-year, transferable
Specifications:
- Audio circuit type: Class A FET buffer
- Frequency response: 20Hz to 30Khz
- Dynamic range:104dB with dual 9V supply; 98dB with single 9V supply
- Gain: 0dB (unity gain)
- Clip Level: +16dBu
- Total harmonic distortion:0.01% @ 1kHz
- Intermodulation Distortion: 0.004%
- Phase Deviation: <5° at 20Hz
- Input Impedance: 22K to 500K
- Output Impedance: 4.7K
- Noise:-88dBu
- Maximum Input: +16dBu
- Features
- Drag Control
- Input Connectors: Standard 2.1mm barrel with center negative (-)
- Output Connectors:Standard 2.1mm barrel with center positive (+)
- Extras: Dual 9VDC 200mA for optimal performance – May be used with single 9VDC supply to power buffer only
- General
- Construction: 14-gauge steel
- Size (L x W x D):4.5' x 1.85' x 1.35' (114mm x 47mm x 34mm)
- Weight: 0.55lb (0.25kg)
- Shipping size (L x W x D):8' x 5' x 3' (203mm x 127mm x 76mm)
- Shipping weight: 0.65 lbs (0.3kg)
- Power:+15V DC 400mA
- Conditions: For use in dry locations only between 5°C and 40°C
The Radial SB-15 Tailbone is a must-have for guitarists looking to enhance their pedalboard setup. This compact device serves as a signal buffer and 9V to 15V converter, ensuring optimal performance. Ideal for both beginners and seasoned players, it effortlessly drives pedal chains, powers 15V Radial and Tonebone pedals, and provides a natural tone. With its 100% discrete class-A signal buffer and Drag control load correction, the SB-15 delivers exceptional sound quality. Measuring 4.5' x 1.85' x 1.35' (114mm x 47mm x 34mm) and weighing 0.55lb (0.25kg), it's easy to install and carry. Get the Radial SB-15 Tailbone today and take your guitar playing to the next level!
