Sennheiser SKM100 G4-S Mic Transmitter w Switch A1
Choose from Sennheiser's renowned e 835, e 845, e 865, e 935, e 945 capsules for exceptional sound quality.

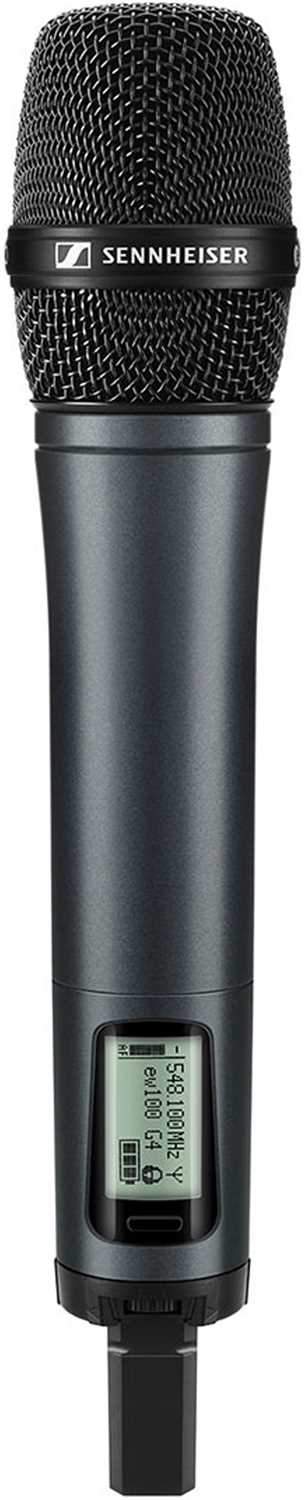

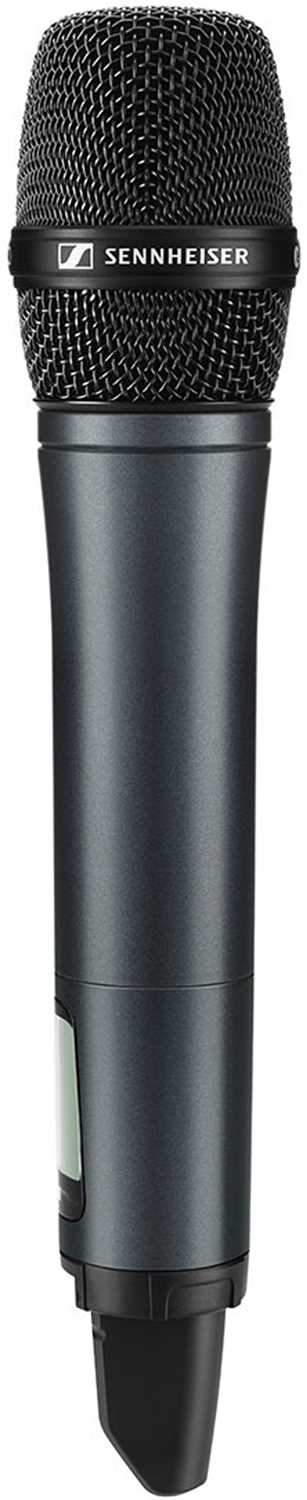

This powerful handheld transmitter features a lightweight aluminum housing and an integrated mute switch for the evolution wireless G4 100 Series systems.
What's in the box
- SKM 100 G4-S handheld transmitter
- MZQ 1 microphone clamp
- 2 AA batteries
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Exceptional Capsule Options: Select from Sennheiser's top - notch e 835, e 845, e 865, e 935, e 945 capsules for outstanding audio.
- • Easy Wireless Sync: Effortlessly synchronize the transmitter and receiver via infrared for seamless operation.
- • High - Performance Linking: Benefit from fast frequency allocation for up to 12 receivers with the new linking functionality.
Specifications:
- Frequency range: A1: 470 - 516 MHz
- Dimensions: Approx. 50 x 265 mm
- Compander:Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 450 g
- Signal-to-noise ratio: 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 A
- Input impedance: 40 k
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm
This Sennheiser SKM100 G4-S Handheld Mic Transmitter is perfect for musicians, presenters, and event organizers. With its lightweight aluminum housing (approx. 50 x 265 mm and weighing about 450 g with batteries), it's easy to carry around. It offers a frequency range of A1: 470 - 516 MHz, ensuring reliable signal transmission. Choose from different capsules like e 835, e 845, etc. for great sound. Sync it easily with receivers via infrared and enjoy features like fast frequency allocation for multiple receivers.
