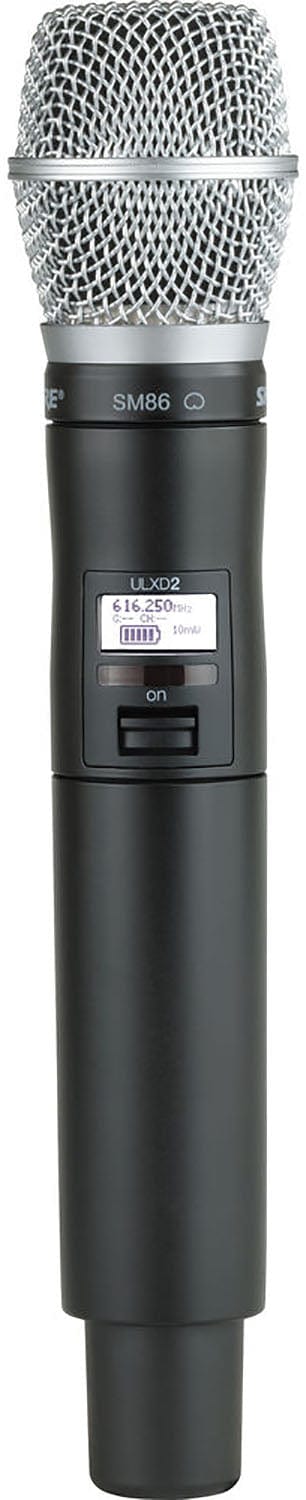

Shure ULXD2/SM86 Digital Handheld Transmitter - Crystal Clear Vocals, J50A Band
The Shure ULXD2/SM86 is a top-notch digital handheld wireless microphone transmitter for ULX-D receivers. It's perfect for live performances, presentations, and more. With its SM86 cardioid condenser capsule, it delivers crystal-clear vocals. The cardioid polar pattern isolates the main sound source, minimizing background noise.
Key Features:
- • Crystal-clear vocals reproduction
- • Isolates main sound source, reduces background noise
- • Compatible with ULX-D receivers
Technical Details:
- RF Frequency Band: J50A (572 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth: 44 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 / 20 mW (Switchable)
- Audio I/O: No
- Muting: Off/On Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)
- Display & Indicators: 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.1 x 2' / 256 x 51 mm
- Weight: 12 oz / 340 g
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 18 kHz
- SNR: 71 dB
- Maximum SPL: 147 dB SPL
- Sensitivity: -50 dBV/Pa
- Dynamic Range: 124 dB A-Weighted
- Packaging Info:
- Package Weight: 1.45 lb
- Box Dimensions (LxWxH): 12.7 x 4.9 x 3.4'
This Shure ULXD2/SM86 Digital Handheld Transmitter is perfect for live performers, presenters, and anyone needing clear audio on the go. With its sleek aluminum housing, it's easy to hold and use. Measuring 10.1 x 2' / 256 x 51 mm and weighing 12 oz / 340 g, it's lightweight and portable. Ideal for indoor and outdoor events, it offers a max operating range of 328.1' / 100 m, ensuring you can be heard clearly from a distance.
