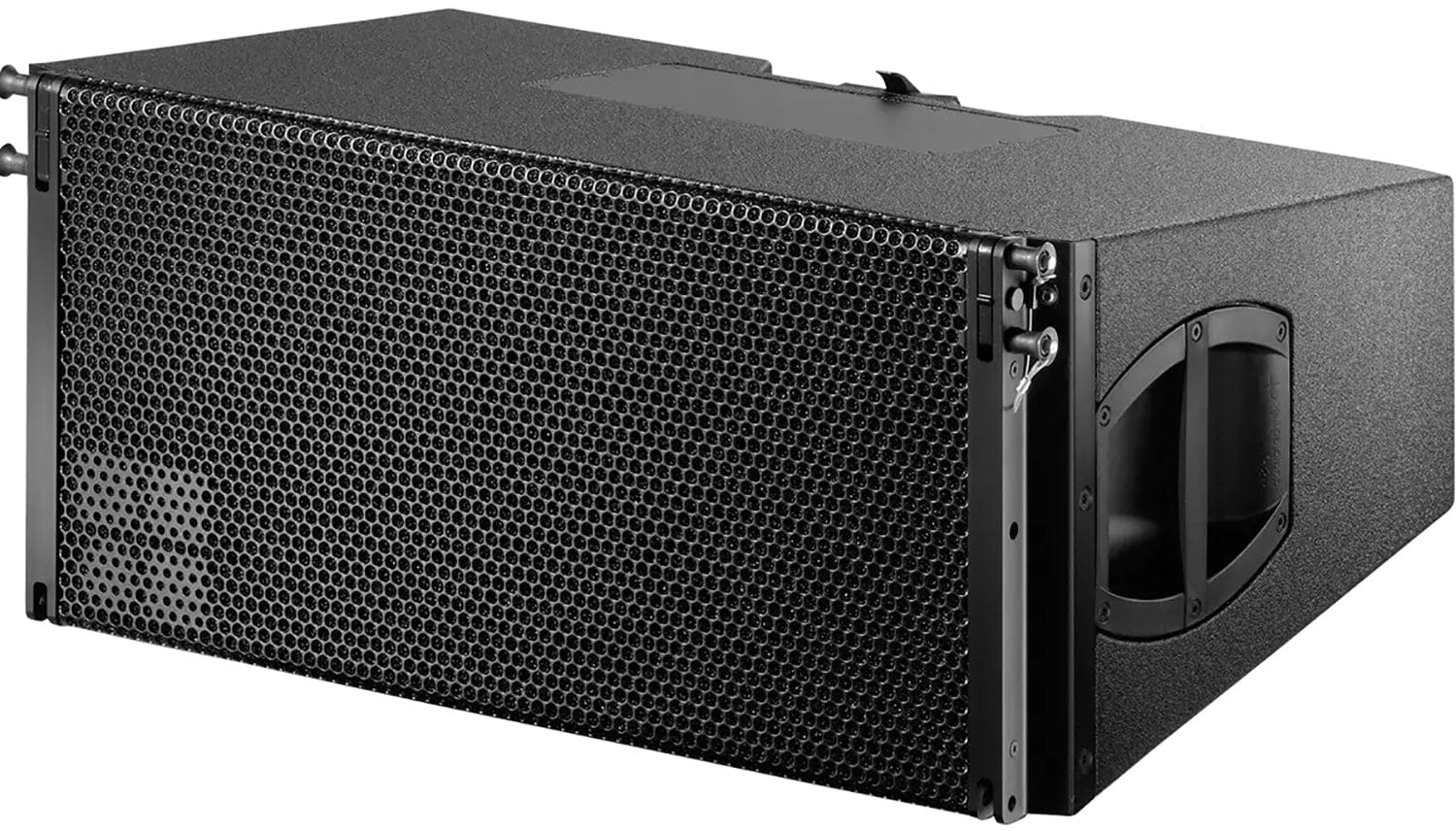

D&B Audiotechnik Z0516.001 V12 High-Performance Loudspeaker with NL4 Connections

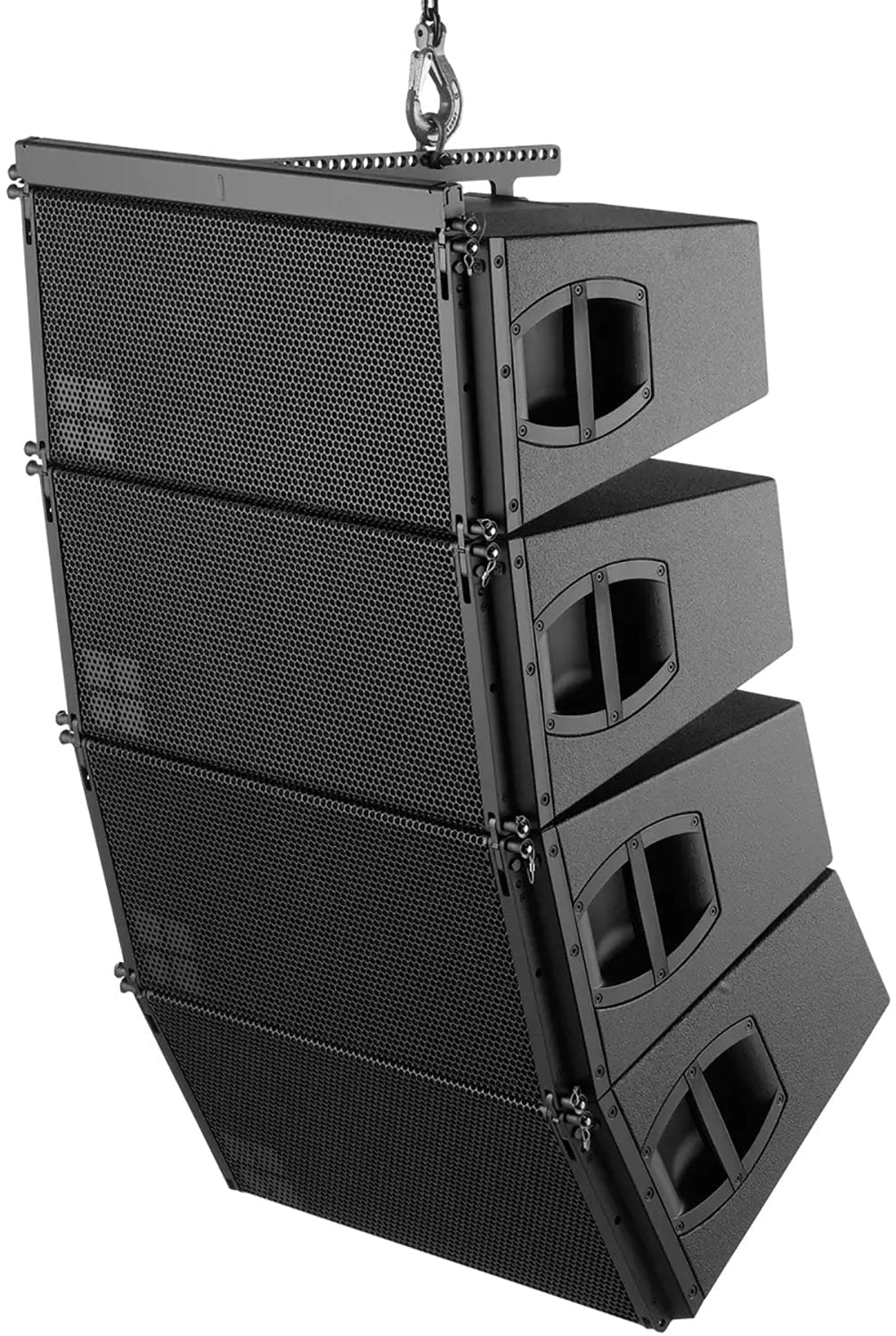

• Exceptional Sound Quality: The V12 offers a smooth overlap of adjacent frequency bands, delivering outstanding sound. • Versatile Setup: Can be used in columns of V12s or combined with V8s and V-SUBs. • Durable Design: Constructed from marine plywood with a protected finish.
Specifications:
- System data:
- Frequency response (-5 dB standard): 67 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
- Max. sound pressure:
- with D20/30D: 139 dB
- with D40/D80/40D: 142 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: High performance 3-way passive line array loudspeaker
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 500/2000 W
- Nominal dispersion angle (horizontal): 120°
- Splay angle settings: 0° - 14° (1° increment)
- Components:
- 2 x 10' driver / 1 x 8' driver
- 2 x 1.4' exit compression driver
- passive crossover network
- Connections: 2 x NL4
- Dimensions / weight:
- Dimensions (H x W x D): 310 x 700 x 460 mm (12.2 x 27.5 x 18')
- Weight: 34 kg (75 lb)
This D&B Audiotechnik Z0516.001 V12 loudspeaker is perfect for professional sound setups. It's great for events, concerts, and installations. The dimensions are 310 x 700 x 460 mm (12.2 x 27.5 x 18') and it weighs 34 kg (75 lb). It has a frequency response of 67 Hz - 18 kHz (-5 dB standard) and can be used in various configurations.
