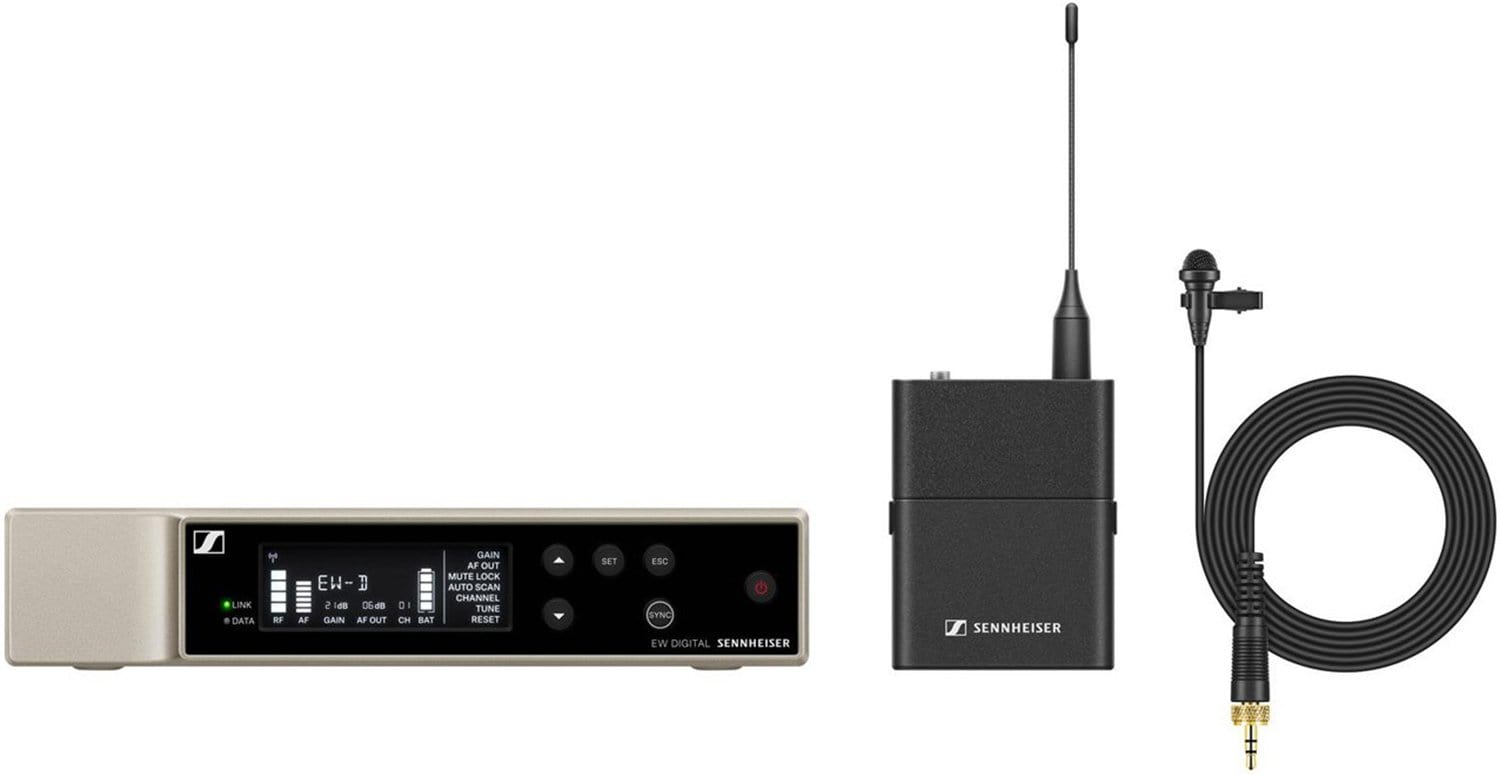

Sennheiser EW-D ME2 SET Digital Wireless Lavalier System (Q1-6)

Sennheiser EW-D ME2 SET Digital Lavalier System Q1

Unleash your potential with this versatile and feature-rich digital wireless system! Ideal for speakers and presenters, it offers seamless product pairing and management via the EW-D Smart Assist App. The robust bodypack transmitter with a metal housing and the unobtrusive clip-on microphone ME 2 (omni-directional) ensure high speech intelligibility, making it perfect for daily stage use.

Key Features:

• • Enhanced Range: Digital transmission in the UHF spectrum boosts range, reliability, and scalability.
• • Effortless Setup: Connect via Bluetooth Low Energy with the Smart Assist App for a streamlined setup and operation from afar.
• • Auto Scan: Creates reliable connections quickly and easily.

Technical Specifications:

• Frequency range: 470.2 - 526 MHz
• THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Cable length: approx. 1.60 m

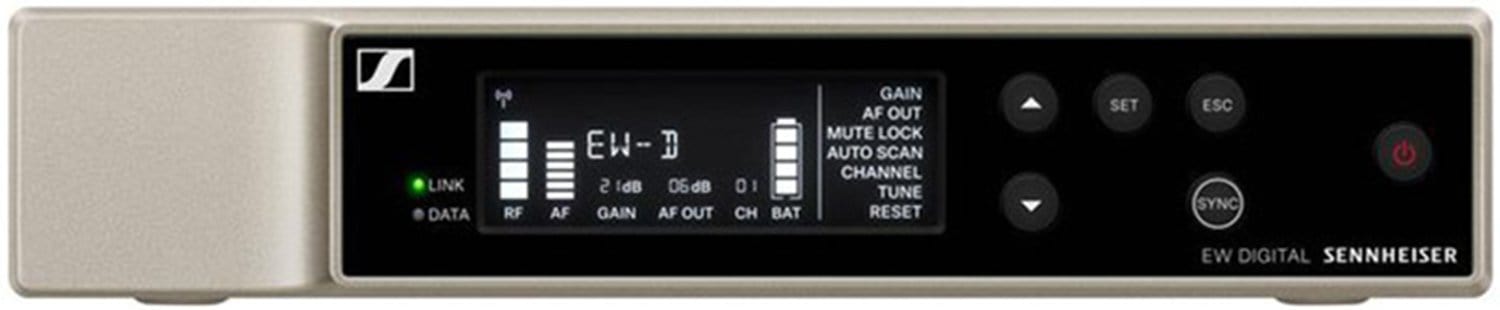

• EW-D EM:
  • Dimensions: 212 x 44 x 189 mm
  • Weight: approx. 1000 g (without antennas and power supply)
  • Current consumption: ≤ 300 mA
  • Input voltage range: 11 - 13 V
  • Audio output level: 18 dBu max.
  • Transmission power: BLE: max. 10 mW EIRP

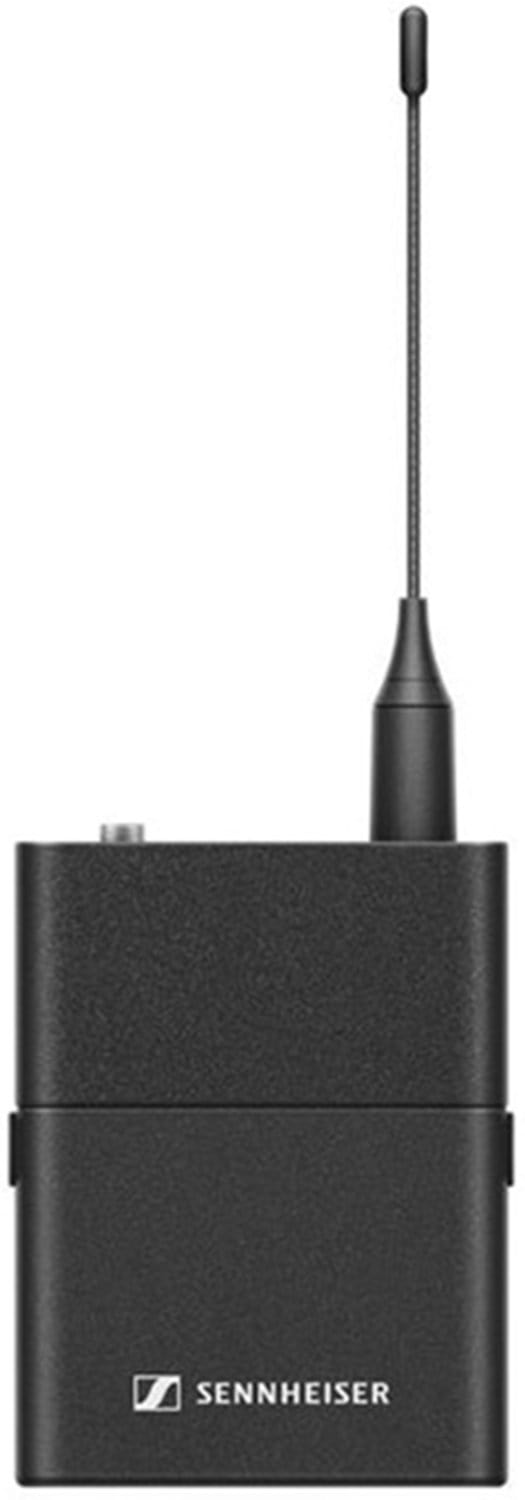

• EW-D SK:
  • Dimensions: 63 x 80 x 20 mm (without antenna)
  • Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
  • Current consumption: < 300 mA
  • Input voltage range: 2.0 - 4.35 V
  • Transmission power:
    • Audio link: 10 mW
    • ERP (Range Y1-3: 12 mW ERP)
    • BLE: max. 10 mW EIRP
  • Weight: approx. 120 g

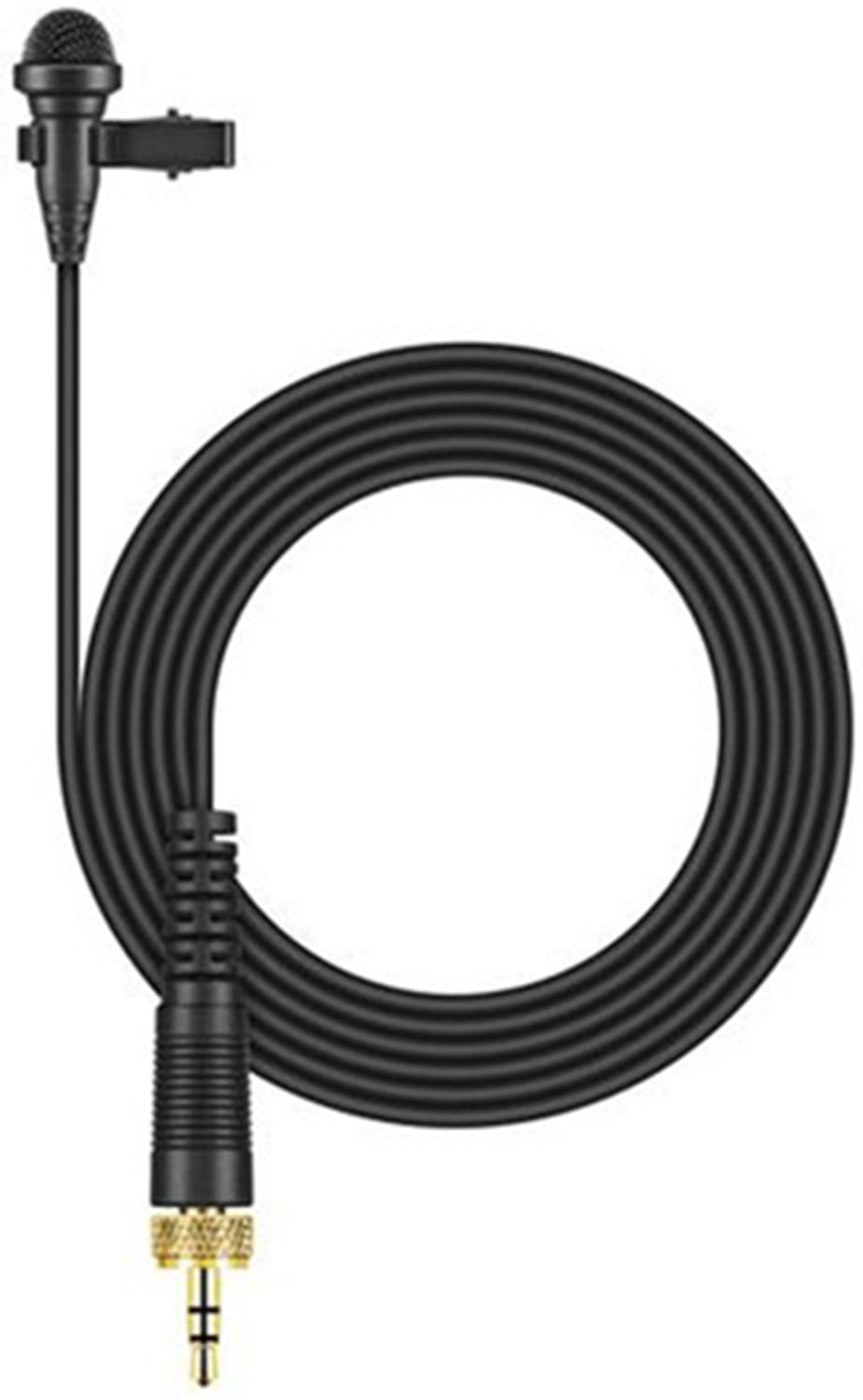

• ME 2 :
  • Cable length: approx. 1.60 m
  • Connector: 3.5 mm jack
  • Frequency response: 50 to 18,000 Hz
  • Max. sound pressure level: 130 dB
  • Transducer principle: pre-polarized condensor microphone
  • Pick-up pattern: omni-directional
  • Sensitivity in free field, no load (1kHz): 17 mV/Pa
  • Equivalent noise level: 32 dB
  • Power supply: 7.5 V

This Sennheiser EW-D ME2 SET Digital Wireless Lavalier System is perfect for speakers and presenters. The bodypack transmitter has a metal housing and is paired with the clip-on microphone ME 2. It operates in the 470.2 - 526 MHz frequency range. The EW-D EM unit has dimensions of 212 x 44 x 189 mm and weighs about 1000 g (without antennas and power supply). The EW-D SK unit (without antenna) is 63 x 80 x 20 mm and weighs around 120 g. The ME 2 microphone has a cable length of about 1.60 m, a 3.5 mm jack connector, and is omni-directional. It's great for daily use on stage and offers features like enhanced range through digital UHF transmission, easy setup via the Smart Assist App using Bluetooth Low Energy, and auto scan for reliable connections.
