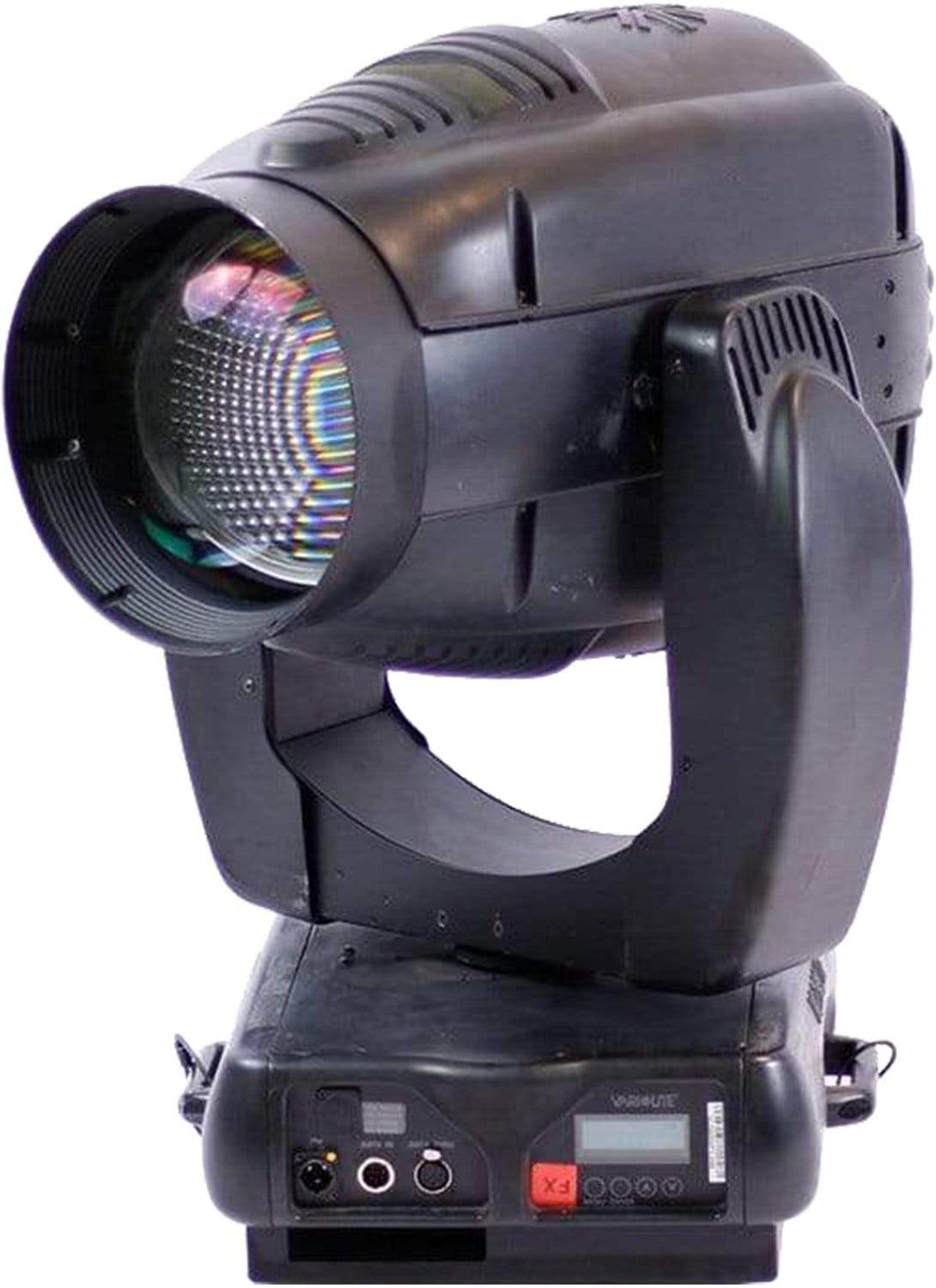

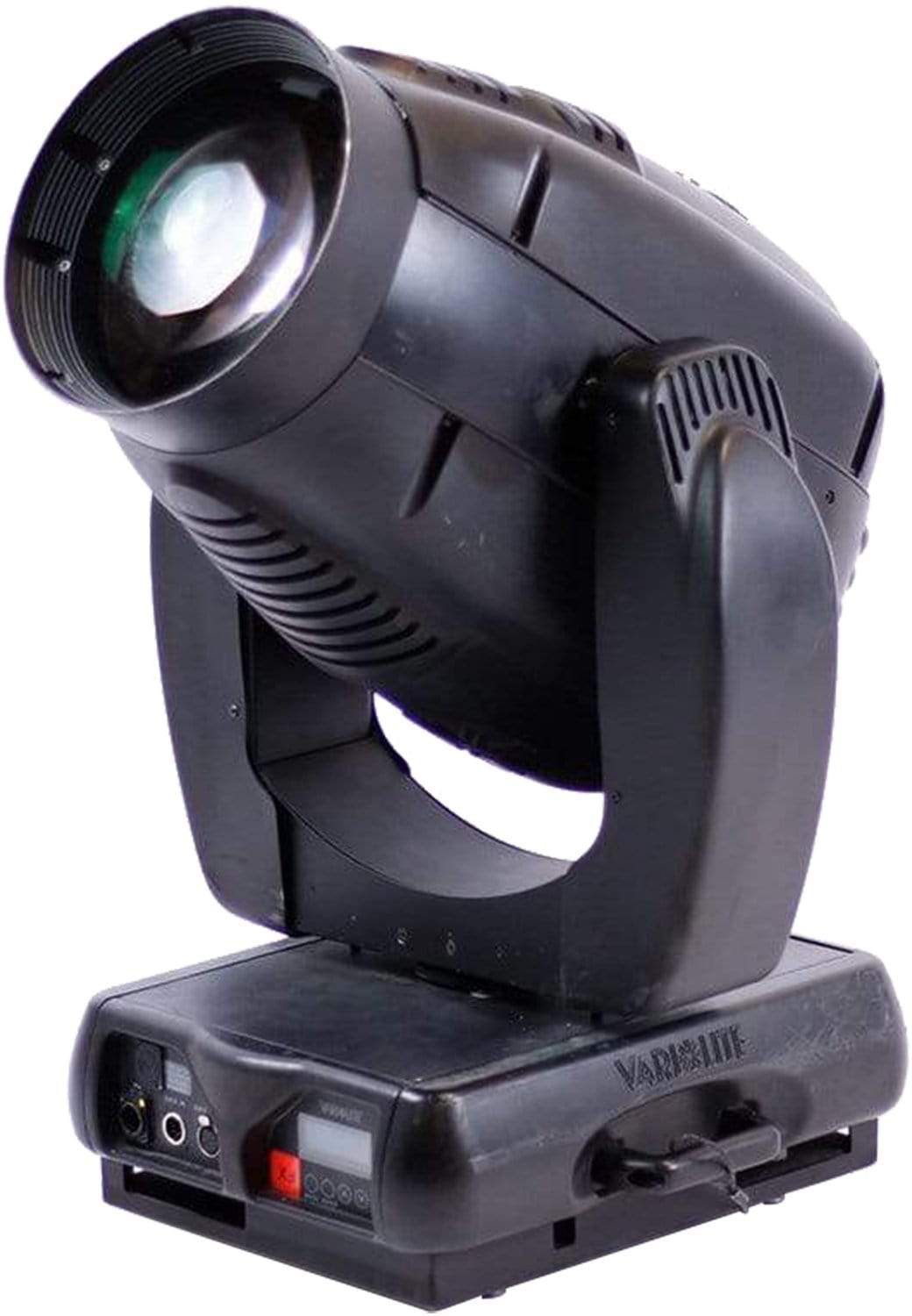

Vari-Lite VL3500 WASH FX Wash Arc Moving Light

Dynamic Vari-Lite VL3500 WASH FX Wash Arc Moving Light

• Unleash stunning visual effects with internal zoomable beam optics and interchangeable front lens system.
• Enjoy versatile color mixing with CYM and dual five-position color wheels.
• Experience high-performance strobe and smooth motion control.

Specifications:

• Programmable Functions
  • Color System: Six color control wheels total. A three filter CYM cross fading system, two fixed color wheels with five interchangeable color filters each capable of continuous wheel rotation for additional effects, and a variable CTO color temperature correction wheel. High search volume keywords: color mixing, color wheels, color temperature correction.
  • Beam Control: A zoomable beam spreader mechanism provides continuous beam size control for rapid or smooth timed changes. The VARI-BRITE mode, accessible from all zoom positions, lenses: Plano Convex-ULTRA Clear, Plano Convex-Stipple, and Fresnel – all three included. All front lens assemblies have mounting points to allow for attachment of after market accessory hardware. One rotating FX pattern wheel provides four rotatable and indexable positions and one open position. Additional catalog and custom FX Patterns available upon request. High search volume keywords: beam control, zoomable beam, FX patterns.
  • Intensity Control: Full field dimming designed for both smooth timed fades as well as quick dimming effects. High search volume keyword: intensity control.
  • Strobe: High-performance dual blade strobe system independent of dimmer wheel and capable of ultra-fast operation. High search volume keyword: strobe system.
  • Pan and Tilt: Smooth, time-controlled continuous motion by way of three-phase stepper motor systems. High search volume keywords: pan and tilt, smooth motion.
  • Range: Pan - 540°, Tilt - 270°. High search volume keywords: pan range, tilt range.
  • Accuracy: 0.3° resolution. High search volume keyword: accuracy resolution.
• Description
  • Source: Triple wattage, double-ended lamp. The lamp is capable of operation at 900W, 1200W or 1650W - mode selectable from fixture or console. High search volume keywords: triple wattage lamp, lamp modes.
  • Color Temperature: 6000K at 1650 Watts and 6300K at 900W and 1200 Watts High search volume keyword: color temperature.
  • Fixture Output: >70,000 lumens in 1650 Watt mode. High search volume keyword: fixture output.
  • Power Requirements: Standard AC power distribution from 200– 264 VAC, 50/60 HZ. The unit requires 7 to 12 A depending on the AC supply voltage. High search volume keywords: power requirements, AC power.
  • Reflector: Precision glass reflector system with dichroic cold mirror coating. High search volume keyword: reflector system.
  • Operational Temperature: -20° to 104°F (-29° to 40°C). High search volume keyword: operational temperature.
  • Cooling: Forced air cooling. High search volume keyword: forced air cooling.
  • Control: Completely compatible with a wide variety of DMX512 consoles. High search volume keyword: DMX consoles.
  • DMX Channels: 22 High search volume keyword: DMX channels.
  • Mounting Position: The VL3500 Wash FX luminaire can be mounted and operated in any orientation. High search volume keyword: mounting position.
  • Spacing: Hangs on 28 in. (71.2 cm) centers. High search volume keyword: spacing.
  • Weight: Approximately 97 lbs (44 kg). High search volume keyword: weight.

This Vari-Lite VL3500 WASH FX Wash Arc Moving Light is perfect for stage shows, concerts, and events. It's designed for lighting professionals who want to create dynamic visual effects. With features like internal zoomable beam optics, interchangeable front lens system, and versatile color mixing, it offers endless creative possibilities. The light can be mounted and operated in any orientation, hangs on 28 in. (71.2 cm) centers, and weighs approximately 97 lbs (44 kg). It requires standard AC power distribution from 200– 264 VAC, 50/60 HZ, with power consumption depending on the lamp mode (900W, 1200W, or 1650W). Color temperature varies by lamp mode, and it has a high output of >70,000 lumens in 1650 Watt mode.
