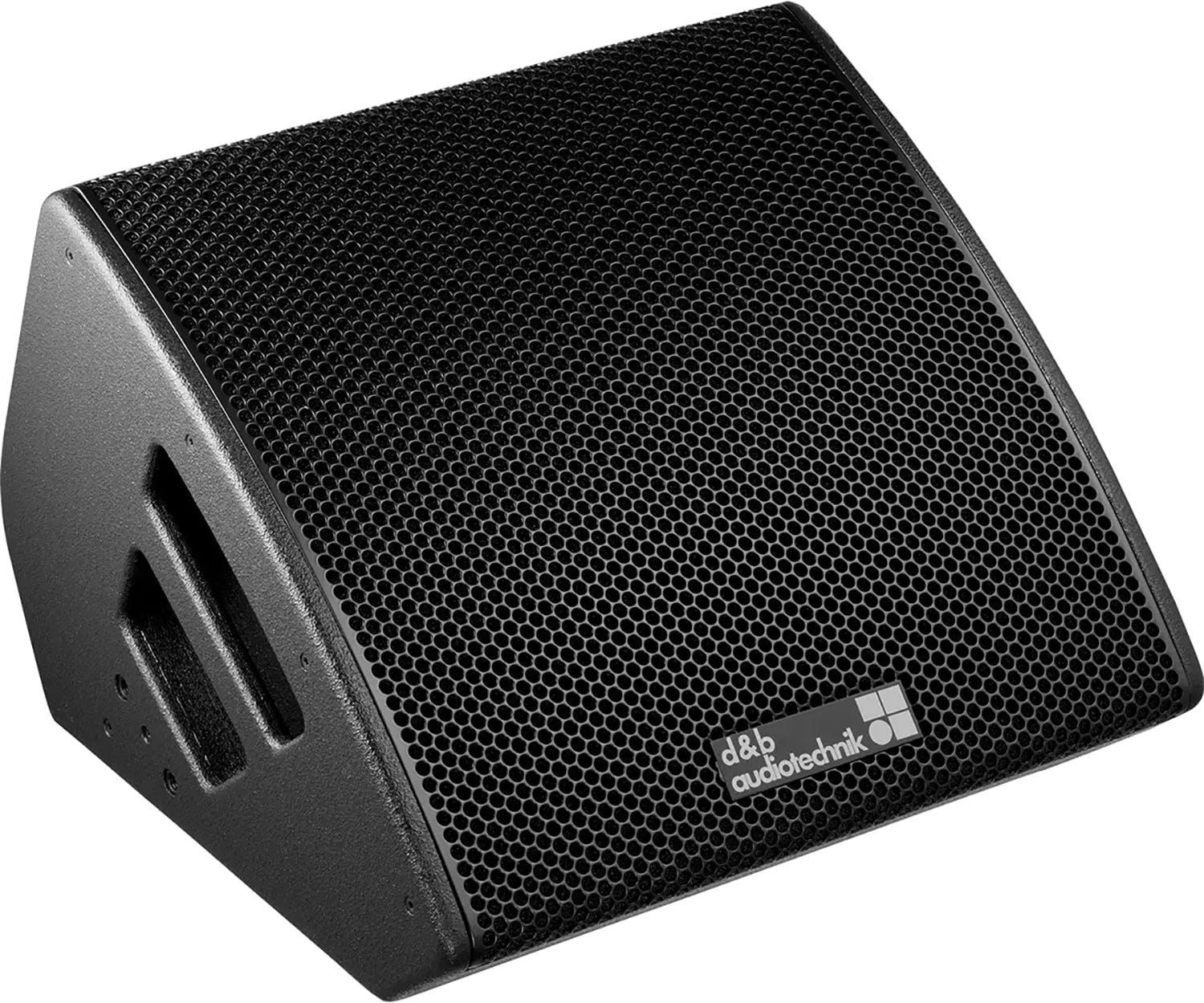

D&B Audiotechnik Z0820.002 M6 Stage Monitor with NLT4 F/M Connections
Unleash the power of sound on stage with the D&B Audiotechnik Z0820.002 M6 Stage Monitor! This high-performance monitor is a game-changer for musicians, sound engineers, and anyone who demands top-notch audio quality.
- • Immerse yourself in crystal-clear sound with the integrated 12” LF and 1.3” exit horn loaded HF coaxial driver design.
- • Enjoy precise coverage with the 50° x 80° (h x v) constant directivity dispersion.
- • Versatile operation in 2-Way Active mode or as a powerful PA loudspeaker with an 80° x 50° dispersion.
The M6 is designed to deliver an accurately defined coverage area on stage, ensuring that every note is heard clearly. Its unique horn provides a constant directivity dispersion that minimizes sound leakage and maximizes sound quality. Whether you're performing in a small club or a large arena, the M6 will help you deliver a stunning performance.
The M6 cabinet is constructed from marine plywood, which incorporates the handles, has an impact-resistant paint finish, M10 threaded inserts, and a socket to accept loudspeaker stands. The front of the loudspeaker cabinet is protected by a rigid metal grill backed with an acoustically transparent foam. Two runners recessed in the bottom panel protect the cabinet from scratching and prevent movement.
Specifications:
- System data:
- Frequency response (-5 dB standard): 65 Hz - 17 kHz
- Max. sound pressure:
- with 10D: 132 dB3 / 133 dB
- with D20/30D: 135 dB3 / 138 dB
- with D40/D80/40D: 135 dB3 / 138 dB
- Cabinets per amplifier channel (passive mode): 2
- Cabinets per D20/D80/30D (active mode): 4
- Loudspeaker data:
- Configuration: 2-way stage monitor
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 400/1600 W
- Nominal dispersion angle (h x v): 50° x 80° rotatable
- Components:
- 12' driver with neodymium magnet
- coaxial 1.3' exit compression driver with 3' coil and CD horn
- passive crossover network
- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 332 x 486 x 455 mm (13.1 x 19.1 x 18.0'6)
- Weight: 16 kg (35 lb)
The D&B Audiotechnik Z0820.002 M6 Stage Monitor is perfect for musicians, sound engineers, and live event professionals. Use it on stage for clear sound coverage. Its dimensions are 332 x 486 x 455 mm (13.1 x 19.1 x 18.0'6) and it weighs 16 kg (35 lb). Features include an integrated 12” LF and 1.3” exit horn loaded HF coaxial driver design, 50° x 80° (h x v) constant directivity dispersion, and versatile operation in 2-Way Active mode or as a PA loudspeaker with 80° x 50° dispersion.
