Revolutionize Your Guitar Performances with Audio Technica ATW-901a/G Wireless Microphone System

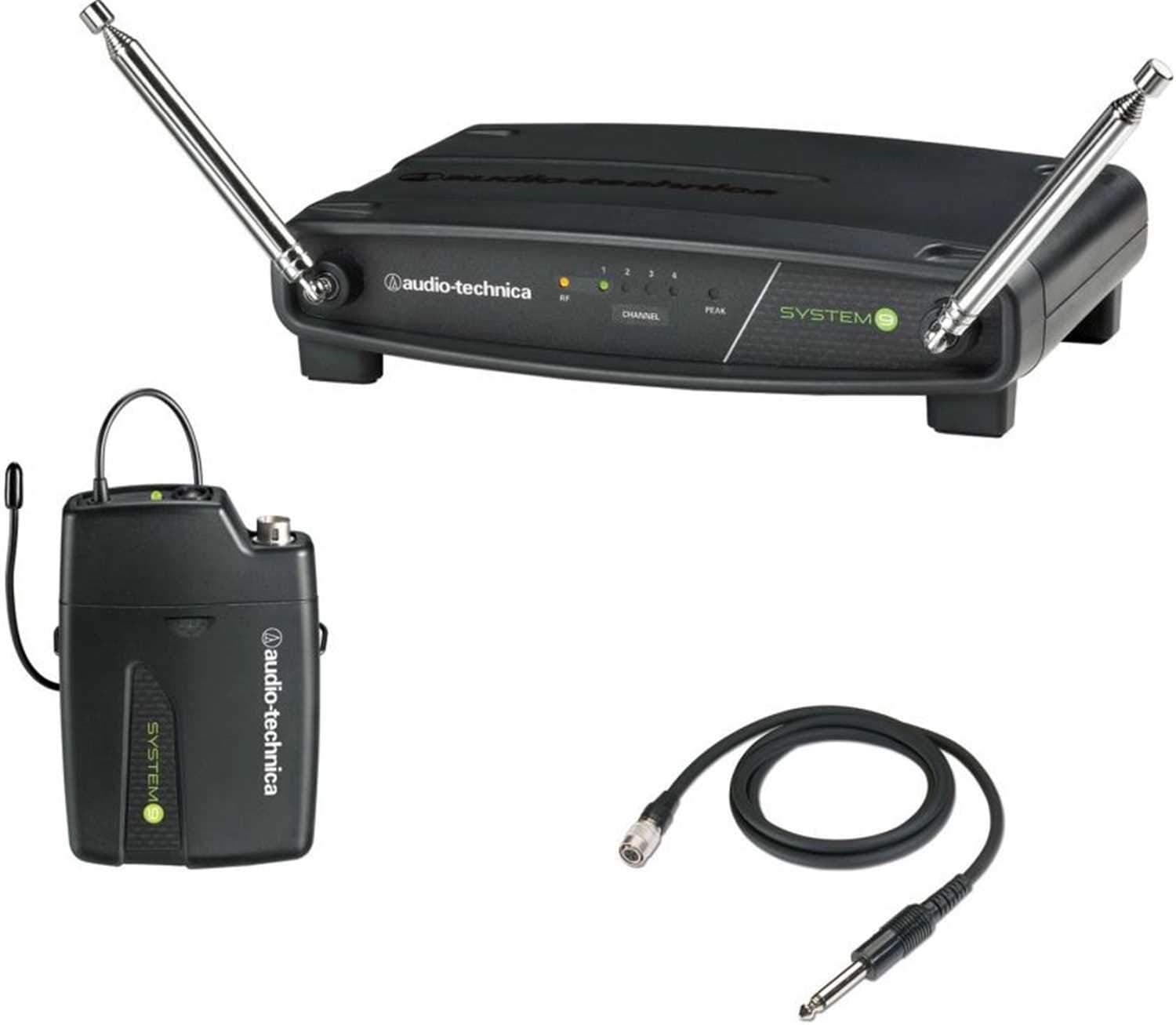

Get the ATW-R900a receiver and ATW-T901a body-pack transmitter along with the AT-GcW guitar/instrument input cable.
Audio-Technica's System 9 is a four-channel frequency-agile wireless system that offers rock-solid performance, easy setup, and clear, natural sound quality. With sleek, stackable, contemporary styling, it's available in various configurations. It has four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).
Each System 9 configuration includes the ATW-R900a receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900a has an advanced dipole antenna design for an extended operating range and offers volume control along with indicator lights.
Features:
- • Effortless operation for a seamless experience
- • 4 selectable frequency-coordinated VHF channels for interference-free use
- • Balanced XLR and unbalanced 1/4' output jacks for versatile audio gear compatibility
- • Reliable performance and durable construction for long-lasting use
- • Advanced dipole antenna system for an extended operating range
Specifications:
- • Operating Frequencies: VHF highband, 169 MHz to 172 MHz
- • Modulation Mode: FM
- • Maximum Deviation: +/-10 kHz
- • Dynamic Range: >/=90 dB (A-weighted), typical
- • Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
- • Operating Range: 200' (60 m) typical in open range with no interference
- • Operating Temperature Range: 40° F (4° C) to 110° F (43° C), battery performance may be reduced at low temps
- • Frequency Response: 80 Hz to 13 kHz
- • Receiving System: Non-naversity, single-channel, dual antenna system
- • Image Rejection: 50 dB minimum
- • RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- • Audio Output: Nominal Output Level, XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), 1/4' (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load
- • Power Supply: 100-240V AC (50/60 Hz) to 12V DC.5A (center positive) switched mode external power supply
- • Dimensions: Receiver - 7.48' (190.0 mm) W x 1.82' (46.2 mm) H x 5.06' (128.5 mm) D, Transmitter - 2.76' (70.2 mm) W x 4.08' (103.7 mm) H x 0.98' (24.9 mm) D
- • Net Weight: Receiver - 12.0 oz (337 grams), Transmitter - 2.8 oz (80.0 grams) without batteries
- • Accessory Included: Power supply
- • RF Power Output: 10 mW
- • Spurious Emissions: Follow federal and national regulations
- • Input Connections: Four-pin Locking Connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
- • Batteries: Two 1.5V AA, not included, Battery Life: 8 hours (alkaline)
The Audio Technica ATW-901a/G Guitar Wireless Microphone System is perfect for guitarists looking to enhance their performances. Whether you're on stage or in the studio, this system offers easy operation and clear, natural sound. It comes with the ATW-R900a receiver and ATW-T901a body-pack transmitter along with an input cable. The receiver has an advanced dipole antenna for an extended range. The system features 4 selectable VHF channels, balanced XLR and unbalanced 1/4' output jacks for compatibility with various audio gear. It's reliable and durable. The receiver is 7.48' (190.0 mm) wide, 1.82' (46.2 mm) high, and 5.06' (128.5 mm) deep, weighing 12.0 oz (337 grams). The transmitter without batteries is 2.76' (70.2 mm) wide, 4.08' (103.7 mm) high, and 0.98' (24.9 mm) deep, weighing 2.8 oz (80.0 grams). An external power supply is included.
