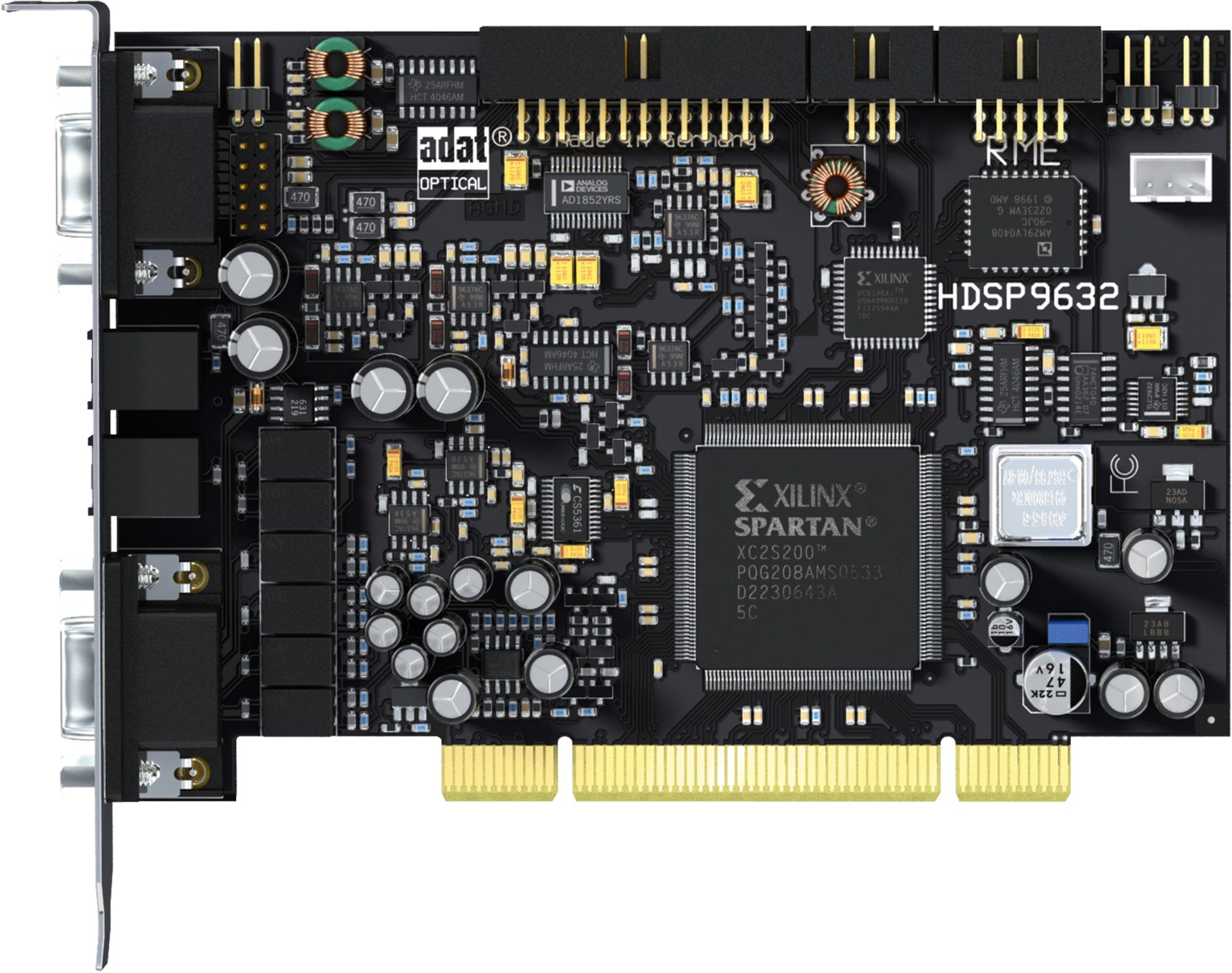

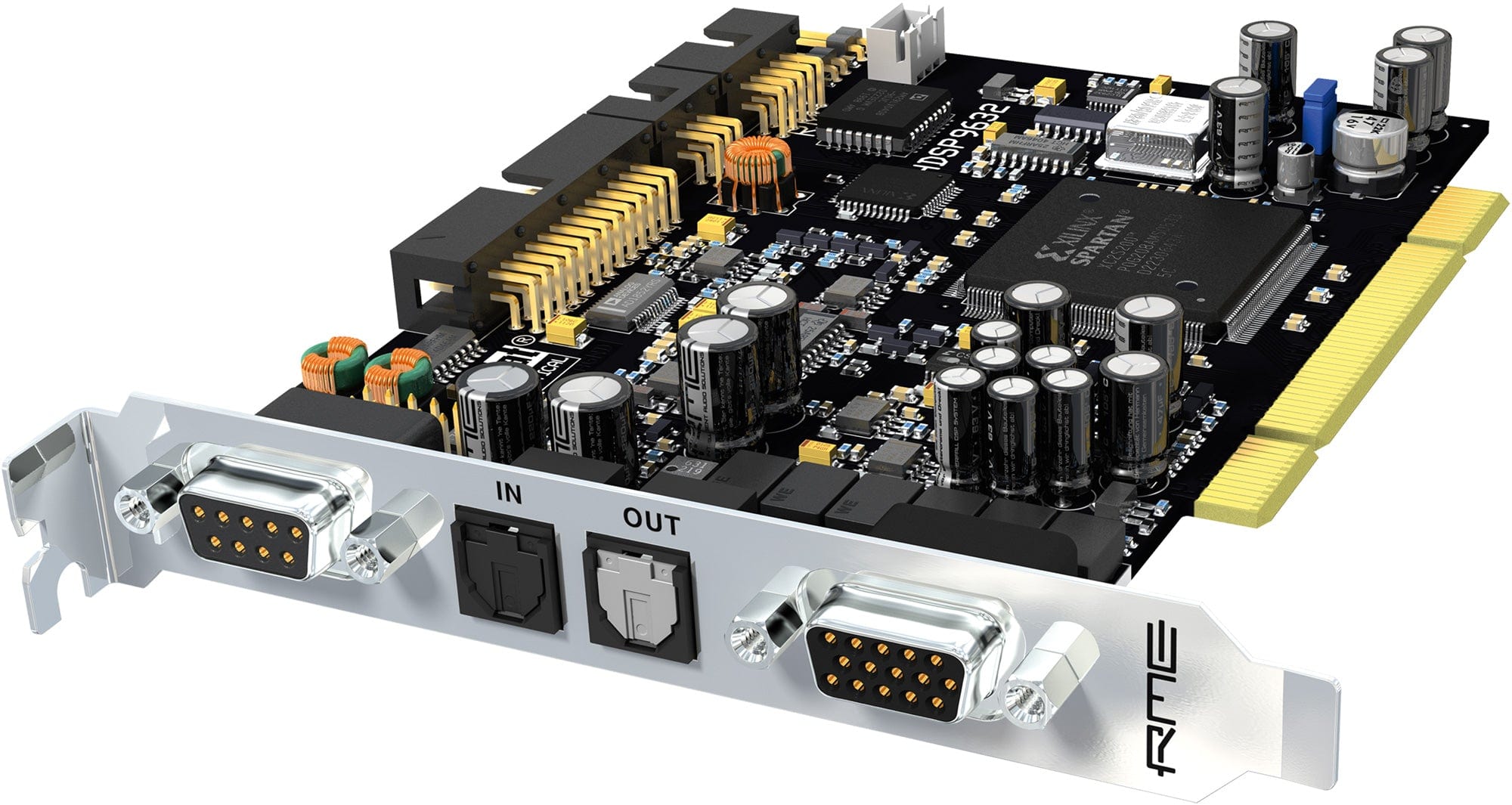

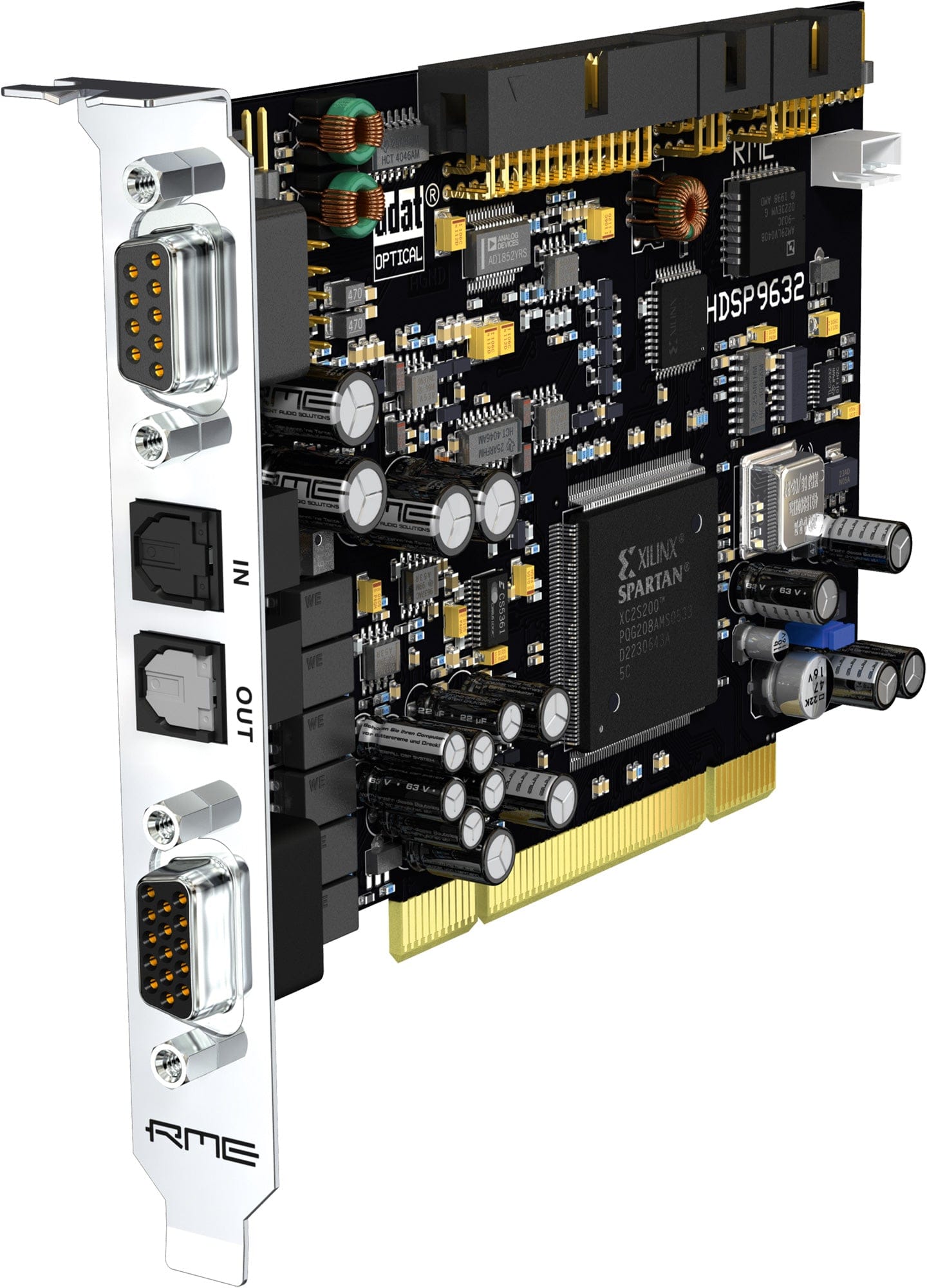

RME HDSP9632 All-in-One PCI Audio Interface
RME presents the world's most versatile PCI Audio Interface - the Hammerfall DSP 9632. This card makes the dream of an All-In-One solution for every possible application come true. It's a must-have for audiophiles and professionals alike! • Latest 192 kHz AD- and DA-converters with over 110 dB signal to noise ratio for crystal-clear audio. • All inputs and outputs can work simultaneously, giving you maximum flexibility. • The famous TotalMix and newly developed clock section ensure top-notch performance. An easy-to-handle ribbon cable connects the optional AI4S-192 and AO4S-192. These analog expansion boards with 4 stereo TRS jacks offer the same great performance as the on-board stereo analog I/O. HDSP 9632 also supports existing Expansion Boards (EXB). With an internal ADAT input and output, you can have up to 14 analog inputs, 14 analog outputs, or use a TDIF interface right inside your computer.
Features:
- Balanced stereo analog in- and output, 192 kHz/24bit, > 110 dB SNR
- Optional analog expansion boards with 4 balanced in-or outputs
- All analog I/Os capable of 192 kHz, constant number of available channels
- 1 ADAT digital I/O, supporting 96 kHz S/MUX operation
- 1 SPDIF digital I/O, 192 kHz-capable
- 1 Breakout cable for coaxial SPDIF
- Up to 16 I/Os can be used simultaneously!
- 1 Stereo headphone output, parallel to the analog-out, additional level settings
- 1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
- Total Mix: 512-channel mixer with 40 bit internal resolution
Specifications:
- Supported sample frequencies: Internal 32, 44.1, 48,64, 88.2, 96, 176.4, 192 kHz; External 28 kHz-200 kHz
- 8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms
- All settings changeable in realtime
- Automatic and intelligent master/slave clock control
- Enhanced Mixed mode: All inputs and outputs simultaneously operational
- TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
- Unique status windows for record and playback, showing mode and sample rate
- Digital inputs and outputs ground-free transformer coupled
- 3-stage hardware level control for analog inputs and outputs
- Servo-balanced analog input and output, DC-coupled signal path
- 192 kHz / 24 bit converters. SNR 110 dB RMS unweighted, 113 dBA
- Maximum input and output level (0 dBFS @ HiGain): +19dBu
- Low impedance headphone output (75 ohm), stepless output level through software faders
- Headphone Speaker Protection minimizes noise during power on/off
- Super low jitter design: less than 1 ns in all clock modes
The RME HDSP9632 All-in-One PCI Audio Interface is perfect for audiophiles, musicians, and audio professionals. Whether you're recording music, mixing audio, or working on sound design, this interface has you covered. It offers high-quality audio conversion, flexible connectivity, and advanced features to meet your needs. The interface is designed to fit into a standard PCI slot in your computer. It's compact and easy to install, making it a great choice for both desktop and laptop setups. With its versatile inputs and outputs, you can connect a variety of audio devices, including microphones, guitars, keyboards, and monitors. The RME HDSP9632 also offers low latency and high sample rates, ensuring smooth and accurate audio processing.
