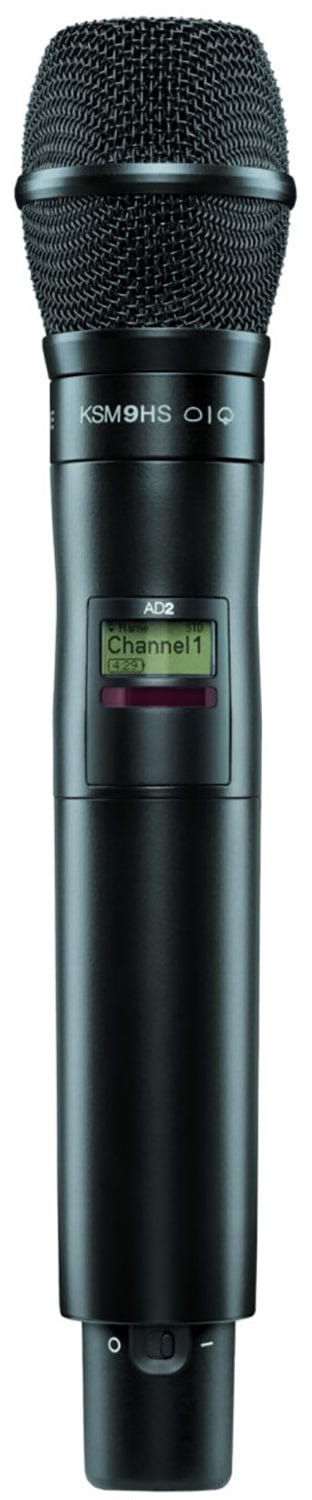

Shure Axient AD2/KSM9HS Handheld Wireless Microphone Transmitter - G57 Band

Shure Axient AD2/KSM9HS Handheld Wireless Microphone Transmitter - G57 Band

The sleek Shure AD2/KSM9HSB is a digital handheld wireless microphone transmitter that pairs seamlessly with Axient Digital series receivers.

• Superior Sonic Detail: The AD2/KSM9HSB features a dual-diaphragm KSM9HS condenser capsule, capturing every nuance for crystal-clear vocal reproduction in high-end live shows.
• Versatile Polar Patterns: With two switchable polar patterns, it gives FOH engineers flexibility in various environments or for different performers.
• Extended Battery Life: Enjoy up to 9 hours of power with the SB900A rechargeable battery, keeping you going through long performances.

Features:

• For Axient Digital Systems
• KSM9HS Condenser Mic Capsule
• Hypercardioid/Subcardioid Polar Pattern
• Automatic Gain Adjustment
• 2/10/35mW RF Output Power
• Mute Mode, Backlit LCD
• Secure AES-256 Encryption
• Networked Intelligent Charging
• Interchangeable Capsule Design
• 9 Hours with SB900A Rechargeable Battery

Specifications:

• RF Frequency Band: 470 to 616 MHz
• RF Bandwidth: 146 MHz
• Frequency Step Size: 25 kHz
• Max Operating Range: 328.1' / 100 m (Line of Sight)
• Latency: 2 to 2.9 ms (Selectable)
• Encryption: AES 256
• Modulation: Proprietary
• Transmitter:
  • Transmitter Type: Handheld
  • RF Output Power: 2 / 10 / 35 mW
  • Audio I/O: None
  • Muting: Mute Switch
  • Audio Input Level: 145 dB
  • Gain Range: -12 to +21 dB (3 dB Steps)
  • Sync Method: IR
  • Antenna: 1 x Internal Single-Band Helical (Handheld)
  • Power Requirements: Battery
  • Battery Type:
    • 2 x AA (Included)
    • 1 x Shure SB900A (Not Included, Replaceable)
  • Approx. Battery Life:
    • Med.: 8 Hours (Alkaline)
    • Med.:: 9 Hours (Lithium Shure SB900A)
  • Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
  • Housing: Aluminum
  • Operating Temperature: 0 to 122°F / -17 to 50°C
  • Storage Temperature: -20 to 165°F / -28 to 73°C
  • Dimensions: 2 x 10.1' / 51 x 256 mm
  • Weight: 12 oz / 340 g (without Batteries)
• Microphone:
  • Microphone Type: Handheld Capsule
  • Sound Field: Mono
  • Capsule: Electret Condenser
  • Polar Pattern: Cardioid, Supercardioid
  • Frequency Range: 50 Hz to 20 kHz
  • Maximum SPL: Hypercardioid: 150.8 dB SPL
  • Sensitivity: Hypercardioid: -50.5 dBV/Pa at 1 kHz


This Shure Axient AD2/KSM9HS handheld wireless microphone transmitter is perfect for high-end live performances. It's ideal for professional musicians, singers, and sound engineers. With its aluminum housing, it's durable and lightweight, weighing only 12 oz (340 g without batteries) and measuring 2 x 10.1' (51 x 256 mm). It operates within a temperature range of 0 to 122°F (-17 to 50°C) for storage and -20 to 165°F (-28 to 73°C). The RF frequency band is 470 to 616 MHz with a bandwidth of 146 MHz and a frequency step size of 25 kHz. It has a max operating range of 328.1' / 100 m (line of sight) and latency of 2 to 2.9 ms (selectable).
