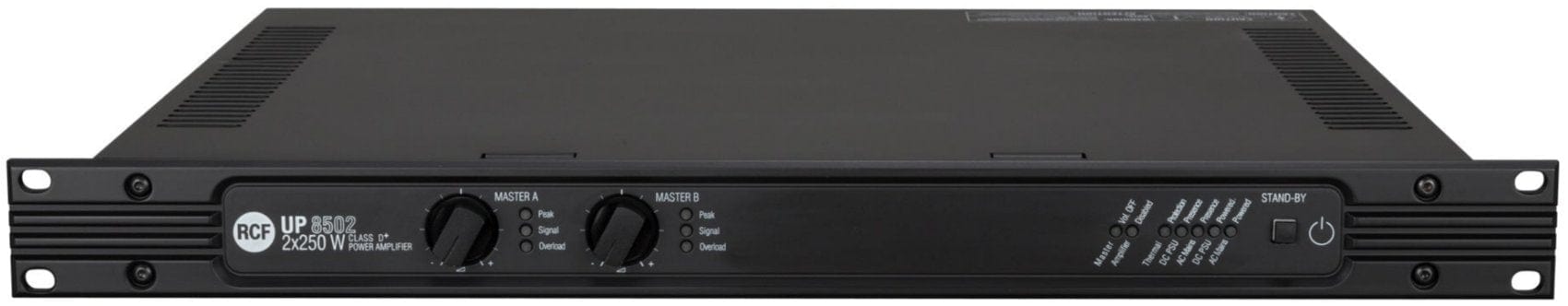

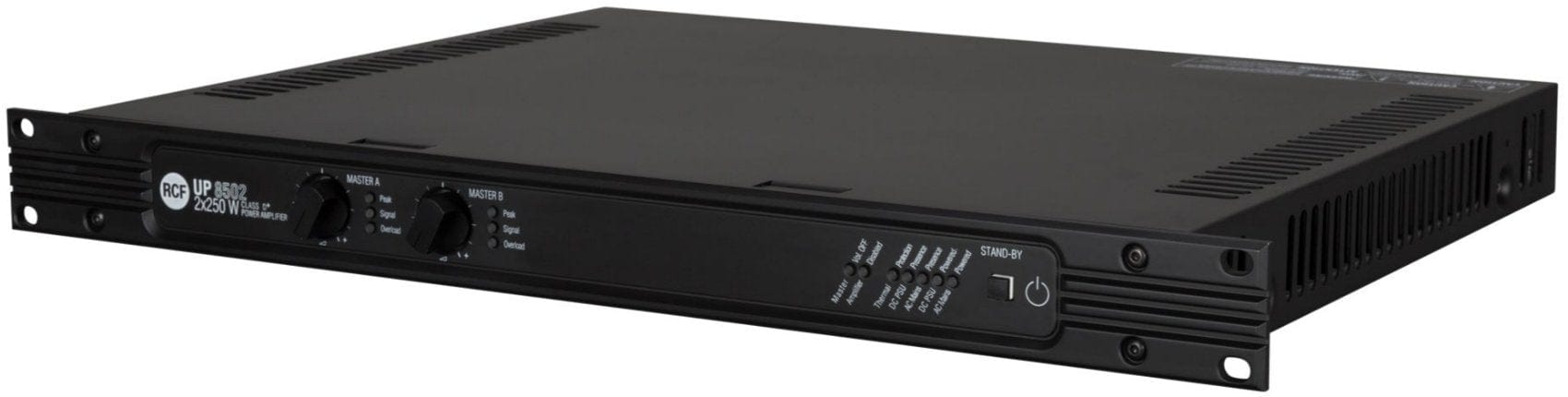

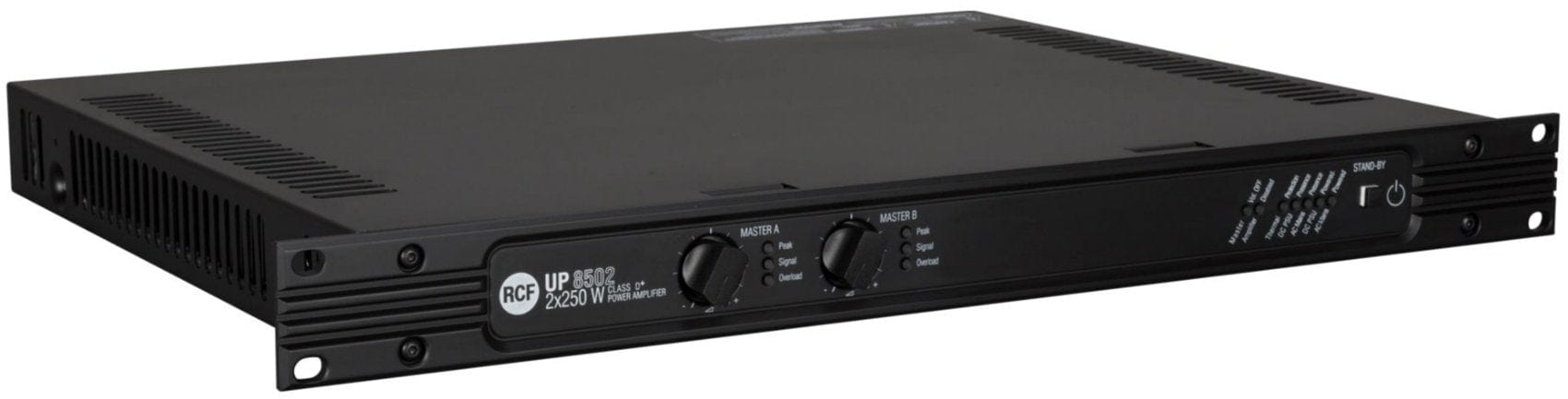

RCF UP-8502 Power Amplifier - 2x 250 Watt - Class D (70V/ 4 Ohm/ 2 Inputs Per Channel)

RCF UP-8502 High-Power Class D Power Amplifier - 2x250W with Versatile Inputs

The RCF UP 8502 series power amplifiers are a game-changer! They feature an innovative power supply and amplification technology. With full digital tech, they offer high efficiency with both AC and DC power, top-notch pro audio quality, and a compact design. These amplifiers are EN 54-16 certified for use with the DXT 7000 Voice Alarm system.

Features:

• • High-power 2x250W output for amazing sound
• • 2 inputs per channel for versatile connections
• • Dual power supply options for added flexibility

Specifications:

• Amplifier:
  • Amplifier Class: D
  • Number of channels: 2
  • Power output (@ 100V): 500W RMS
  • Frequency Response (-3dB): 40Hz - 16kHz
  • Signal/noise rate (”A” weighted) >86dB
• Input section:
  • Total number of inputs: 4
  • Balanced: 4
  • Mono: 2
  • Stereo: 2
  • Line inputs: 4
  • Line connectors: Euroblock
  • General Purpose Inputs (GPI): 4

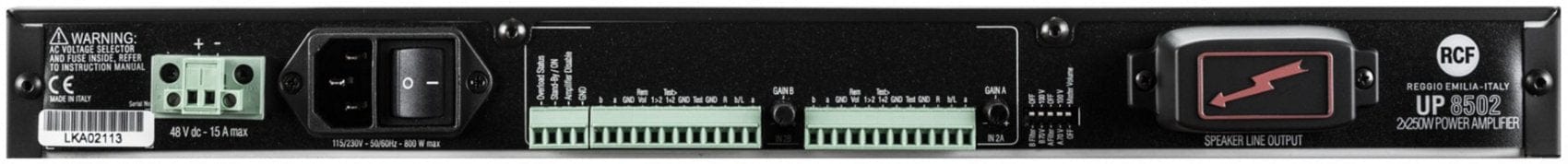

• Output section:
  • Power output connectors: Euroblock
  • General Purpose Outputs (GPO): 1
  • Controls Configuration: DIP switch, Front panel
  • Priority: Yes
• Protections:
  • Cooling: Forced
  • Short circuit: Yes
  • Thermal: Yes
  • DC: Yes
  • Fuses: Yes
• Power requirement:
  • Operating voltage: 220-240/115V~ 50/60Hz V ~ Hz
  • Voltage selection: Internal
  • DC power: Yes
  • DC power value: 48V
  • Power consumption: 800W
  • Standard compliance EN54-16 certified: Yes
  • CE marking: Yes
  • CPR number: 1438-CPR-0241
• Physical specifications:
  • Cabinet/Case Material: Metal
  • Color: Black
  • Rack mounting: 19', 1U
  • Size:
    • Height: 44mm / 1.73 inches
    • Width: 482mm / 18.98 inches
    • Depth: 375mm / 14.76 inches
    • Weight: 5.2kg / 11.46lbs
• Shipping information:
  • Package Height: 180mm / 7.09 inches
  • Package Width: 550mm / 21.65 inches
  • Package Depth: 480mm / 18.9 inches
  • Package Weight: 7.2kg / 15.87lbs

The RCF UP-8502 power amplifier is perfect for professional audio setups. Ideal for sound engineers and venue owners. With a power output of 2x250W, it delivers great sound. It has a metal cabinet, black color, and is 19' 1U rack mountable. The height is 44mm (1.73 inches), width is 482mm (18.98 inches), depth is 375mm (14.76 inches), and weighs 5.2kg (11.46lbs). It's suitable for use in places like clubs, theaters, and conference halls where high-quality sound is needed.
