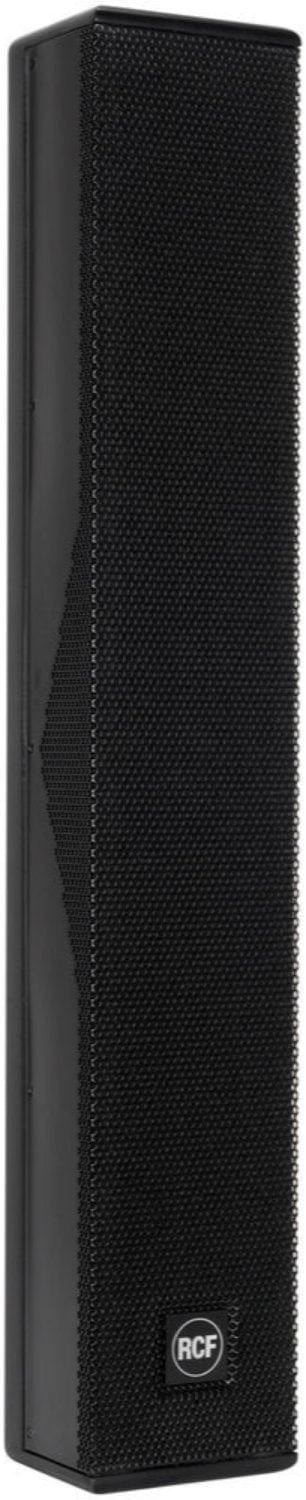

RCF L 2406T Black 5-Inch 3-Way Passive Column Array Speaker - Your Sound Solution for Medium to Large Spaces
Upgrade your sound experience with the RCF L 2406T! This compact 3-way column speaker array is perfect for medium to large installations. With its vertical controlled directivity, it delivers high intelligibility sound everywhere.
• Six 5' woofers and four 1' dome tweeters ensure rich, clear sound.• The unique design minimizes sound lobing for a more focused audio experience.• A speech filter enhances voice frequencies for improved speech intelligibility.
It features a wide horizontal coverage angle and controlled vertical dispersion, reducing feedback and reverberation. Mounting is a breeze with provided accessories that allow for wall mounting and tilting. It can be connected to a low impedance amplifier for 200 W RMS power or used with a 60 W line transformer for 100 V systems. The crossover protects the four 1' dome tweeters.
Features:
- 200 W RMS power handling for a powerful sound output
- 126 dB max SPL for a loud and clear audio experience
- 100 - 20000 Hz frequency range for a wide range of sound reproduction
- 150° x 30° constant directivity coverage angle for targeted sound projection

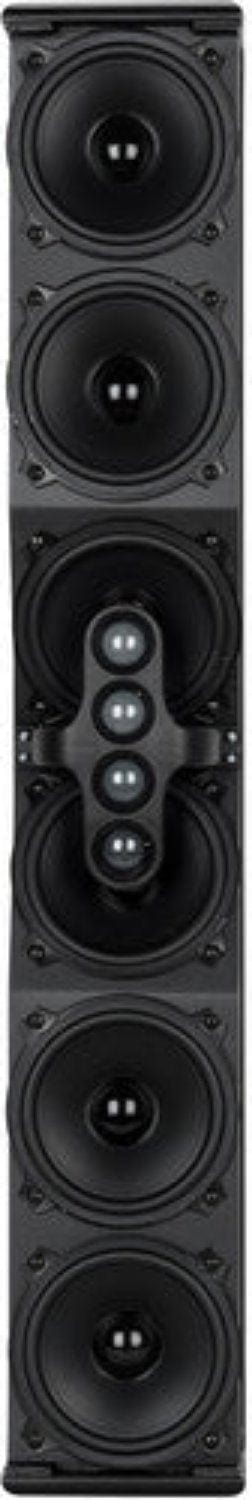

- 6 x 5' woofers and 4 x 1' dome tweeters for rich, balanced sound
- Baltic birch plywood cabinet for durability
- Speech enhancer filter for crystal-clear speech

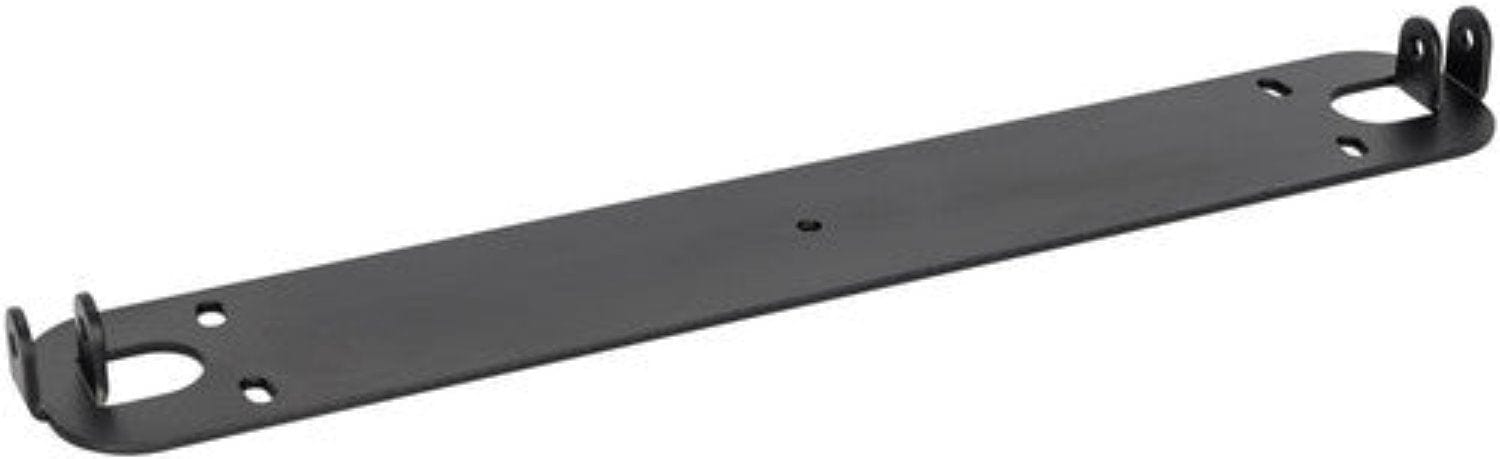

- Built-in wall mounting accessories for easy installation
Specifications:
- Acoustical:
- Frequency Response (-10dB): 100 Hz - 20000 Hz
- Max SPL @ 1m: 126 dB
- Horizontal Coverage Angle: 150°
- Vertical Coverage Angle: 30°
- Directivity Index Q: 9
- System Sensitivity: 97 dB
- Power Section:
- Amplification: Full Range
- Nominal Impedance: 8 ohm
- Power Handling: 200 W
- Peak Power Handling: 800 W PEAK
- Protections: Dynamic active mosfet
- Crossover Frequencies: 2000 Hz
- Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, DMA 82, IPS 1.5K, IPS 2.5K, QPS 6.0K
- Transducers:
- Dome Tweeter: 4 x 1.0'', 1.0'' v.c
- Woofer: 6 x 5.0'', 1.0'' v.c
- Input/Output Section:
- Input Connectors: Euroblock
- Constant Voltage Transformer: 100 V
- Power Selection 1: 60 W - 167 ohm
- Power Selection 2: 30 W - 333 ohm
- Power Selection 3: 15 W - 667 ohm
- Power Selection 4: 10 W - 1000 ohm
- Standard Compliance:
- Safety Agency: CE compliant
- Physical:
- Cabinet/Case Material: Baltic birch plywood
- Hardware: 4 x M5 inserts
- Grille: Steel
- Color: Black
- Size:
- Height: 826 mm / 32.52 inches
- Width: 135 mm / 5.31 inches
- Depth: 140 mm / 5.51 inches
- Weight: 12.8 kg / 28.22 lbs
The RCF L 2406T is a great choice for medium to large spaces like auditoriums, conference rooms, and classrooms. Ideal for installers and event planners. It has a height of 826 mm (32.52 inches), width of 135 mm (5.31 inches), depth of 140 mm (5.51 inches), and weighs 12.8 kg (28.22 lbs). With its features, it delivers high-quality sound in these spaces, making it perfect for anyone looking to enhance their audio setup in such areas.
