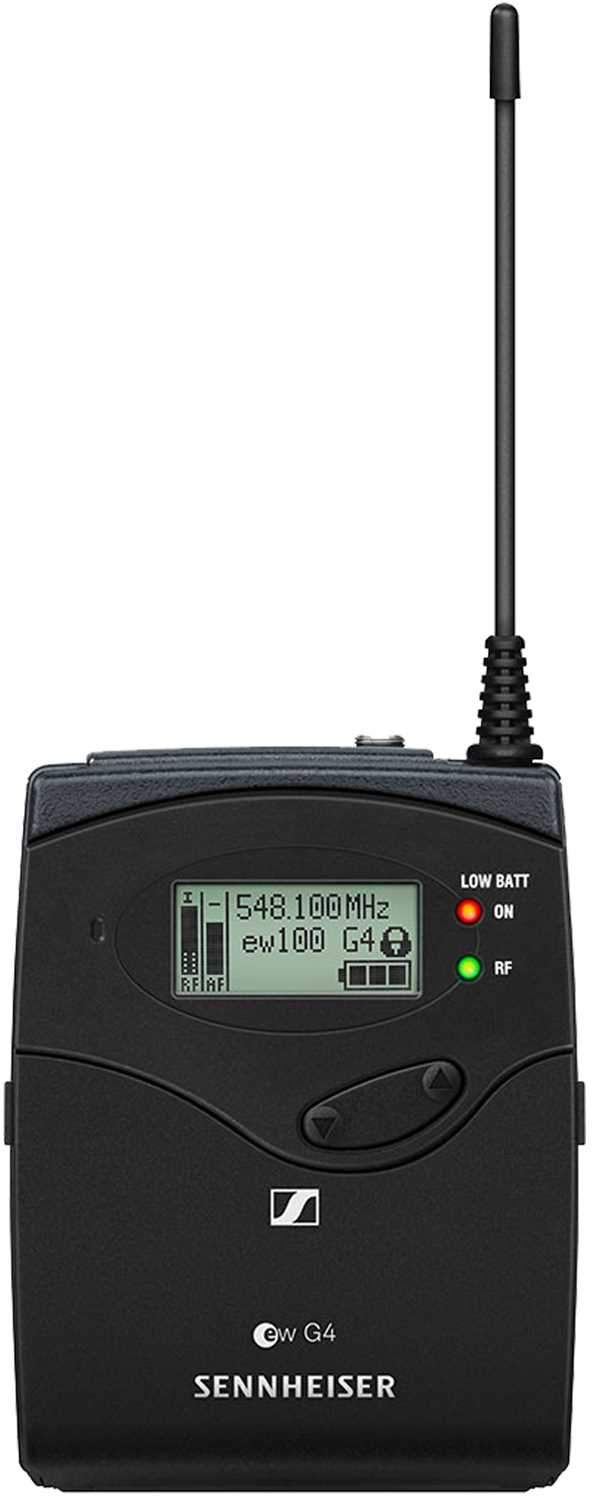

Sennheiser EK 100 G4 Portable Camera Receiver - Revolutionize Your Filming
EK 100 G4-A (Assembled in USA)
• A powerful camera receiver that can be easily mounted on any camera.• Offers excellent sound and construction quality.• Features easy setup and fast operation.
What's in the box - EK 100 G4 camera receiver
- 2 AA batteries
- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 100 XLR to 3.5 mm jack adapter cable
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Effortlessly attach it to any camera for seamless shooting.• Enjoy top-notch sound and build quality.• Set it up quickly and start capturing with ease.
- Powerful and reliable wireless transmission for up to 100 meters / 330 feet.• Up to 8 hours of operation time, keeping you shooting longer.• Wideband FM modulation for crystal-clear audio.
Specifications:
- Frequency range: A: 516 - 558 MHz
- Dimensions Approx.: 82 x 64 x 24 mm
- Compander Sennheiser: HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
- Signal-to-noise ratio: 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with receiver switched off: 25 ¦ÌA
- Adjacent channel rejection: 65 dB
- Intermodulation attenuation: 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity: < 1.6 V for 52 dBA eff S/N
- Squelch low: 5 dB¦ÌV, middle: 15 dB¦ÌV, high: 25 dB V
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive naversity
- Blocking: 70 dB
This Sennheiser EK 100 G4 Evolution Wireless Portable Camera Receiver is perfect for documentary filmmakers, mobile journalists, and videographers. It has a lightweight aluminum housing and is easily mounted on any camera. With a range of up to 100 meters (330 feet) and up to 8 hours of operation time, you can capture great audio wherever you are. It measures approximately 82 x 64 x 24 mm and weighs about 160 g (including batteries).
