Radial ProAV2 Passive 2-Channel Multimedia DI - Your Ultimate Audio Connectivity Solution
Stereo Passive Multimedia Direct BoxThe ProAV2 is a must-have stereo passive direct box for audio-video integrators and technicians. It offers a wide range of input connector options to effortlessly connect with various audio equipment.
Connect any device to the PA system with easeThis device is a game-changer for live sound engineers and audio-video technicians. It can seamlessly link nearly any device to a pro audio system. The 3.5mm stereo input jack, dual 1/4' and RCA connectors mean you'll never search for adaptor cables again. Its ultra-quiet performance with transformer isolation gets rid of hum and buzz from ground loops. The ProAV2 keeps stereo separation and has a linear frequency response from 20Hz to 20kHz. Its balanced mic-level XLR outputs let you send signals through a multichannel audio snake on stage or into two channels of a mixing console.
True stereo operation for multimediaThe ProAV2 operates in true stereo (dual mono), making it perfect for stereo devices like laptops and DVD players. Just like the ProAV1, you can connect quickly and without adapters using phone, RCA, and 3.5mm jacks.
Versatile stereo direct box for multimedia applications.
Easy to use, ultra-quiet passive design.
Transformer isolation eliminates hum and buzz.
Handles huge transients without distortion.
Features:

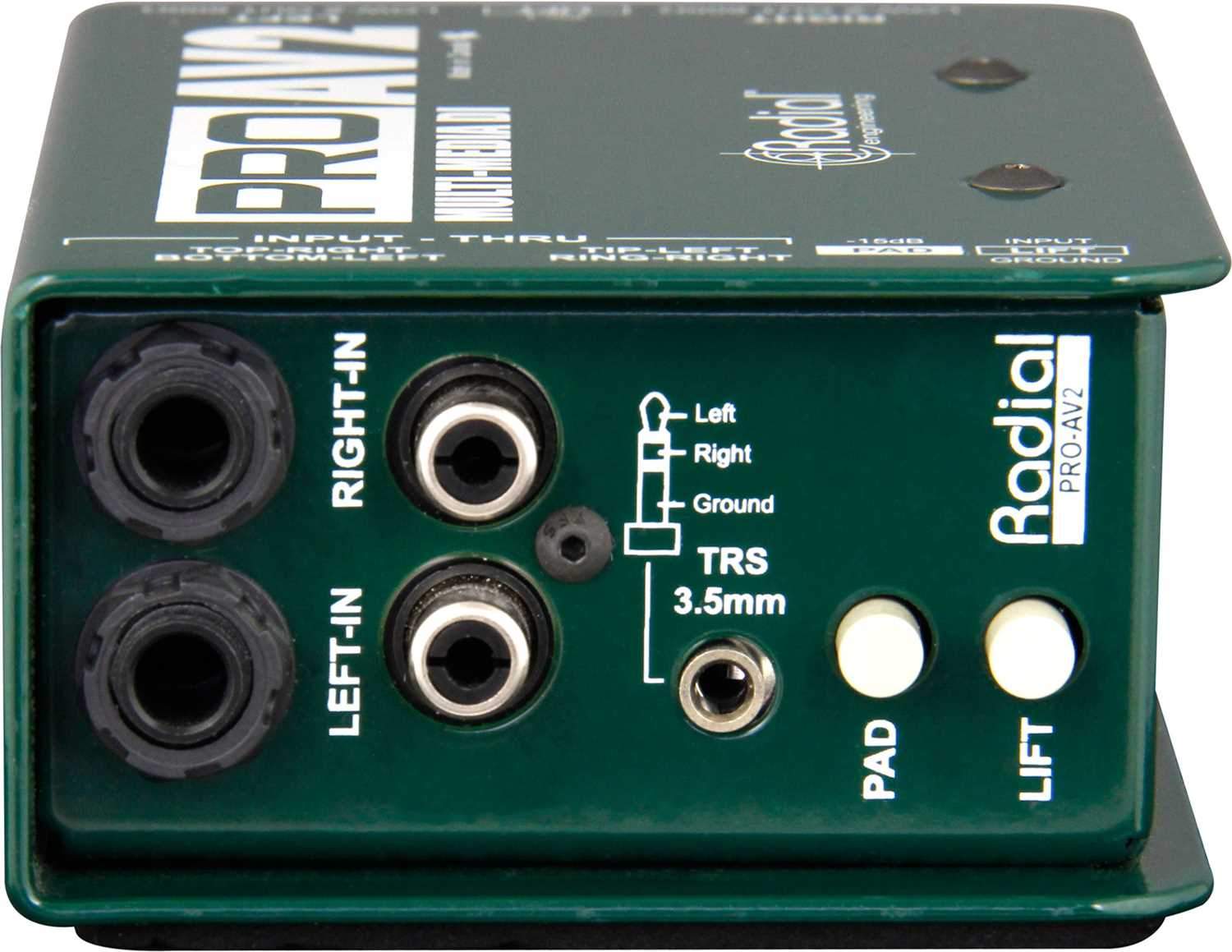

- 1/4' Input: Connect your instrument to the ProAV2 easily.
- RCA Input: Use for stereo input with CD players, tape decks, VCRs, etc. A second set of RCA jacks can be used as a thru-put.
- 3.5mm TRS: -10dB stereo input for connecting PC sound cards and headphone jacks.
- -10dB Pad: Reduces input level from high output devices like CD Players and headphone outputs.
- Ground Lift: Disconnects the ground path at the input.

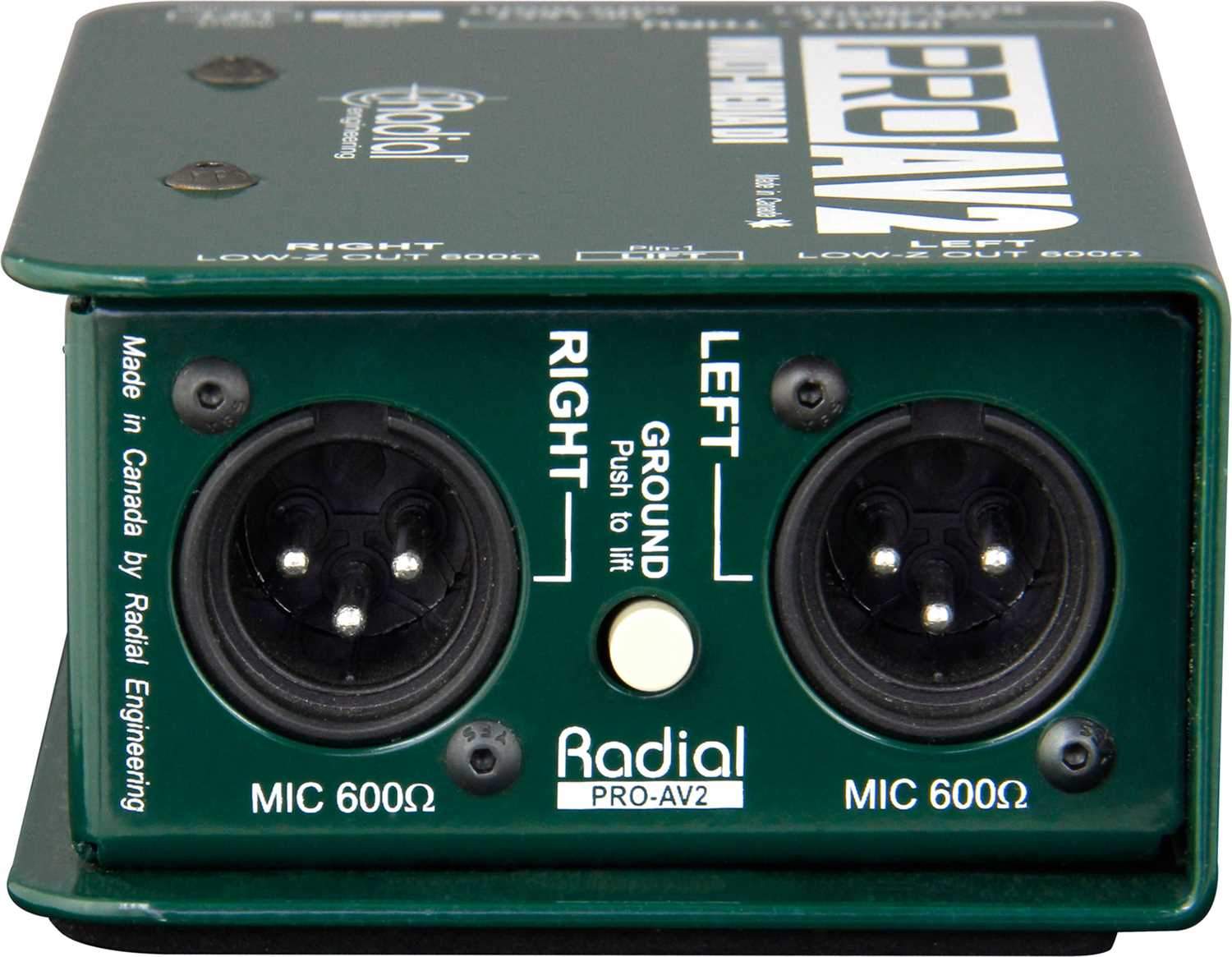

- XLR Outoput: Balanced 600O mic level output to feed mixer or mic preamp.
- Ground Lift: Disconnects the ground path at the XLR output.
Specifications:
- Audio circuit type: Passive, transformer based
- Transformer: Eclipse ET-DB2, 12:1 ratio
- Number of channels: Dual channel (stereo)
- Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic range: 128dB
- Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
- Phase Deviation: 1 @ 100Hz; 8 @ 20Hz
- Input Impedance: 140k Ohms, unbalanced
- Output Impedance: 150 Ohms, balanced
- Maximum Input: +18dB @ 20Hz
- Ground lift
- Input Connectors: 1/4', RCA, 3.5mm TRS
- Output Connectors: XLR
- Construction: 14-gauge steel chassis & sshell
- Size (L x W x D): 3.25 x 5 x 1.875
- Weight:0.82kg / (1.8lbs)
- Shipping size (L x W x D): 102 x 76 x 165mm (4.00' x 3.00' x 6.50')
- Shipping weight: 1.2 kg (2.60 lbs)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5 C and 40 C
- Warranty: Radial 3-year, transferable
The Radial ProAV2 Passive 2-Channel Multimedia DI is a great tool for audio-video integrators, technicians, and live sound engineers. It's easy to use and has an ultra-quiet passive design. With its transformer isolation, it gets rid of hum and buzz. It can connect various devices like laptops and DVD players to a pro audio system. It has a 3.5mm stereo input jack, dual 1/4' and RCA connectors. Its size is 3.25 x 5 x 1.875 inches and weighs 0.82kg (1.8lbs). It operates in true stereo and has a linear frequency response from 20Hz to 20kHz. It's suitable for dry locations between 5 C and 40 C and comes with a 3-year transferable warranty.
