Q-SYS MP-A80V Flexamp Technology Amplifier - 1600 Watts with 8x 200-Watt Channels
The MP-A Series music and paging amplifiers are a legacy of 50 years of dependability and quality. They're perfect for business music and paging needs, offering flexibility, high efficiency, and low cost of ownership.
The QSC MP-A80V is an 8-channel amplifier for background music and paging. It has Class-D output circuitry, a switch-mode power supply, and active PFC. The FlexAmp circuit topology allows each pair of channels to deliver up to 400 Watts of total power in any ratio. This, combined with the ability to drive any output load (4/8 ohms or 70/100V), makes it incredibly flexible.
Features:
- • FlexAmp Technology: Each pair of channels can deliver up to 400 W total power in any ratio
- • Class-D output circuitry and switchmode power supply for high efficiency and low cost
- • 1RU design saves rack space
Specifications:
- Channels: 8
- Power (all channels driven):
- 8 : 200W
- 4 : 200W
- 70V: 200W
- 100V: 200W
- FlexAmp Technology: Each pair of channels can deliver up to 400 W total power in any ratio
- Frequency response at 8Ω: 20 Hz – 20 kHz +/- 0.5 dB
- Signal to Noise: > 103 dB
- Input sensitivity: 1.23V (+4 dBu)
- Gain at 8 : 30.0 dB
- Output circuitry: Class D
- Input impedance: >10k, balanced or unbalanced
- Maximum input level: 12.3V (+24 dBu)
- Cooling:
- Type: Forced air cooling, thermally regulated fan speed, side/rear-to-front airflow
- Operating temperature range:
- Maximum: -10° - 50°C
- Recommended: 0° - 35°C
- Reduced performance above 40°C
- Connectors:
- Input connectors: Eight 3.5mm Euro, 3-pin (green)
- Remote connectors: One 3.5mm Euro, 5-pin (black)
- Output connectors: Four 5.0mm Euro, 4-pin (green)

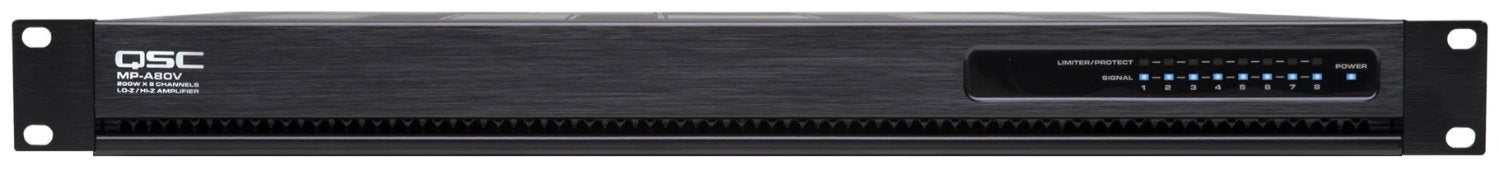

- Front panel indicators: Power, signal (per channel), limit / mute / protect (per channel)

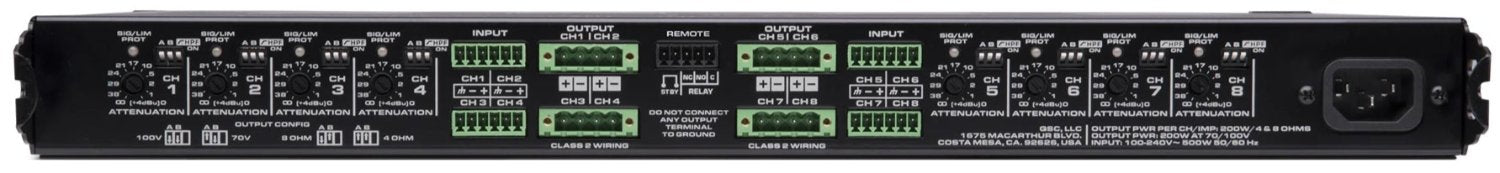

- Rear panel indicators: Bi-Color LED signal / limit / mute / protect
- User-configurable operating modes (per channel): DIP switch selectable, low impedance 4 or 8 , high impedance direct drive 70V or 100V
- Remote I/O: Remote standby, amplifier status enunciation on 3.5 mm connectors
- Highpass filter: 80 Hz DIP switch engaged per channel
- Dimensions: 1.75x19x14.8' (44x483x377 mm)
- Net Weight: 12.8 lbs (5.8 kg)
- Shipping Weight: 17.4 lbs (7.9 kg)
- Power Requirements: Universal power supply (with active power factor correction), 100 – 240 VAC, 50 - 60 Hz
- Agency approvals: UL, CE, RoHS/WEEE compliant, FCC class B (conducted and radiated emissions)
The Q-SYS MP-A80V Flexamp Technology Amplifier is great for businesses looking to enhance their music and paging systems. With its 8 channels, it can power various audio setups. Ideal for background music in stores, restaurants, or offices, it offers reliable audio amplification. The amplifier comes in a compact 1RU design, measuring 1.75x19x14.8' (44x483x377 mm) and weighing 12.8 lbs (5.8 kg). It has a universal power supply, operating on 100 – 240 VAC, 50 - 60 Hz, making it suitable for different locations. Whether you need to play music softly in the background or make announcements clearly, this amplifier is a great choice.
