Q-SYS PL-DC26 2-Way Passive Dual 6-Inch Point Source Loudspeaker with Directivity Control - The Ultimate Sound Solution for Your Venue
The Q-SYS PL-DC26 is a must-have for venues of all types! Whether it's entertainment, hospitality, corporate, or higher ed, this two-way, passive point source loudspeaker with directivity control delivers premium sound. Here's why:
- • Reconfigurable Horn: The dual-6-inch model offers a reconfigurable and rotatable horn, allowing for symmetrical or asymmetrical coverage. This gives you better control over where the sound needs to be heard, making it perfect for stage fills, delays, or filling in lost coverage under balconies.
- • Weatherized Design: With a weatherized (IP54) wooden enclosure, this loudspeaker is suitable for both indoor and protected outdoor environments. You can count on it to withstand various weather conditions.
- • Easy Pairing: Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance.
Specifications:
- Transducers:
- LF: 2x 6 in (170 mm), 1.7 in (44 mm) voice coil, neodymium
- HF: Compression driver, 1.75 in (44 mm) voice coil
- Enclosure Configuration: Two-way, passive point source loudspeaker in bass reflex enclosure
- Coverage (Horizontal x Vertical)
- Symmetrical: 120° x 50°, 90° x 50°
- Asymmetrical: 105° x 50°
- (Reconfigurable half horn assemblies included)
- System Sensitivity: 102.2 dB @ 1 W/1 m
- Max SPL(Continuous): 121 dB
- Enclosure Material: Exterior plywood
- Enclosure Color: Black (RAL 9011)
- Weatherization:
- IP54
- External plywood
- Stainless screws
- Treated grille vs. UV and corrosion
- Hydrophobic stainless steel mesh behind grille
- Polyurea Paint

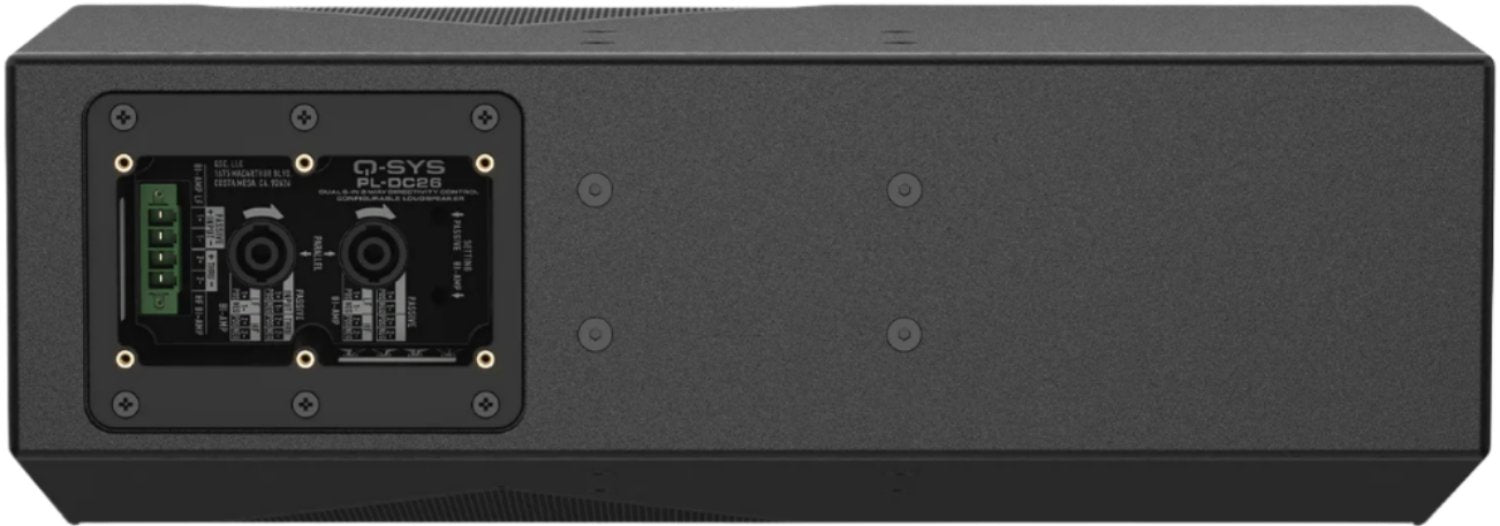

- Input cup (IP65) sealing with gland
- Recommended Amplifiers:
- Q-SYS CX-Q 8K4 (up to 4 per channel)
- Q-SYS CX-Q 4K4 (up to 2 per channel)
- Q-SYS CX-Q 2K4 (up to 1 per channel)
The Q-SYS PL-DC26 is a two-way, passive point source loudspeaker. It's great for entertainment, hospitality, corporate, and higher ed venues. With a dual-6-inch design, it offers a reconfigurable and rotatable horn for sound coverage control. The weatherized (IP54) wooden enclosure is suitable for indoor and protected outdoor use. It pairs well with Q-SYS CX-Q 4ch network amplifiers. Transducers include 2x 6 in LF and a HF compression driver. Enclosure is a two-way, passive point source in bass reflex. Coverage options are available. System sensitivity is 102.2 dB @ 1 W/1 m and max SPL is 121 dB. Enclosure material is exterior plywood in black. Weatherization features IP54, external plywood, stainless screws, treated grille, hydrophobic mesh, polyurea paint, and IP65 input cup. Recommended amplifiers are Q-SYS CX-Q 8K4, 4K4, and 2K4.
