Sennheiser ew 300 G4-865-S Wireless Vocal Mic AW+
Effortless to use and quick to set up.
Ideal for your business and top-notch in education. The G4 300 Series offers increased switching bandwidth up to 88 MHz. New frequency ranges enable multi-channel setups with dozens of channels for reliable operation. Moderators and presenters love it. The handheld transmitter's aluminum housing is robust yet lightweight for long speeches, and the noiseless mute switch gives full control.
What's in the box:- EM 300-500 G4 true naversity receiver
- SKM 300 G4-S handheld transmitter
- MME 865-1 microphone head
- GA 3 rackmount set
- MZQ 1 microphone clamp
- power supply
- 2 AA batteries
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Easy Setup: Effortlessly get started with quick setup times.
- • Versatile Control: Integrated network port allows control, monitoring, and setup via Sennheiser Control Cockpit and WSM Software.
- • Wide Compatibility: Works with a broad range of products and existing accessories, suitable for any environment.
- • High Bandwidth: Up to 88 MHz bandwidth, up to 32 channels.
- • Adjustable Power: Increased RF output power (10/30/50 mW) for flexible use.
- • Long Range: Transmission Range up to 100 meters / 330 feet.
- • Compatible with LSP 500 PRO: Seamlessly integrates with the wireless speaker system LSP 500 PRO.
- • RC Switch Option: RC (remote control) switch available for the bodypack transmitter.
Specifications:

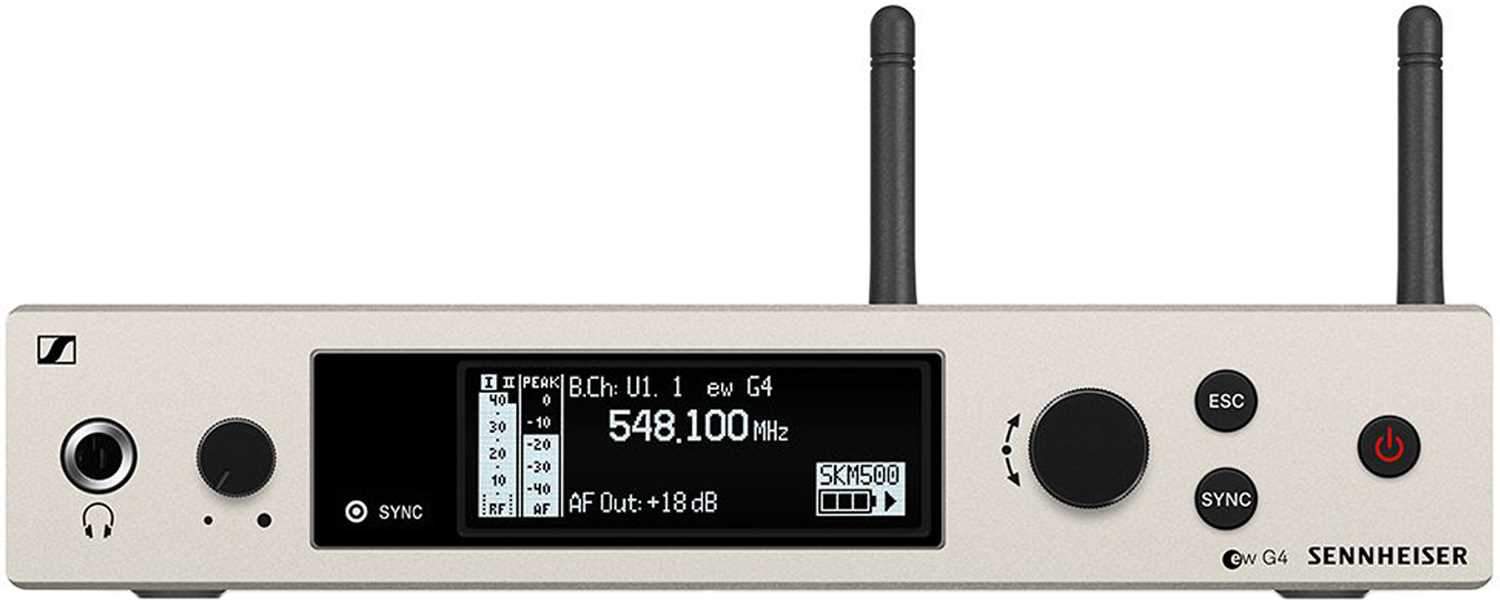

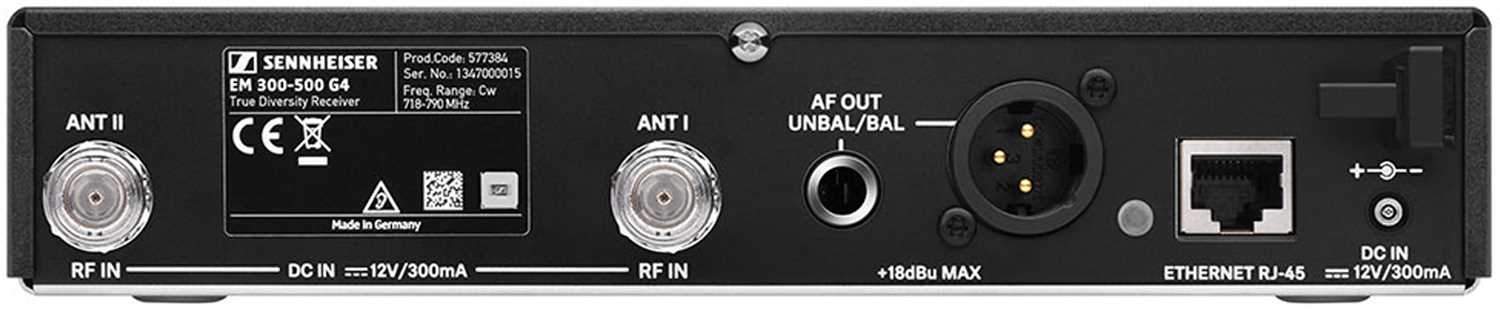

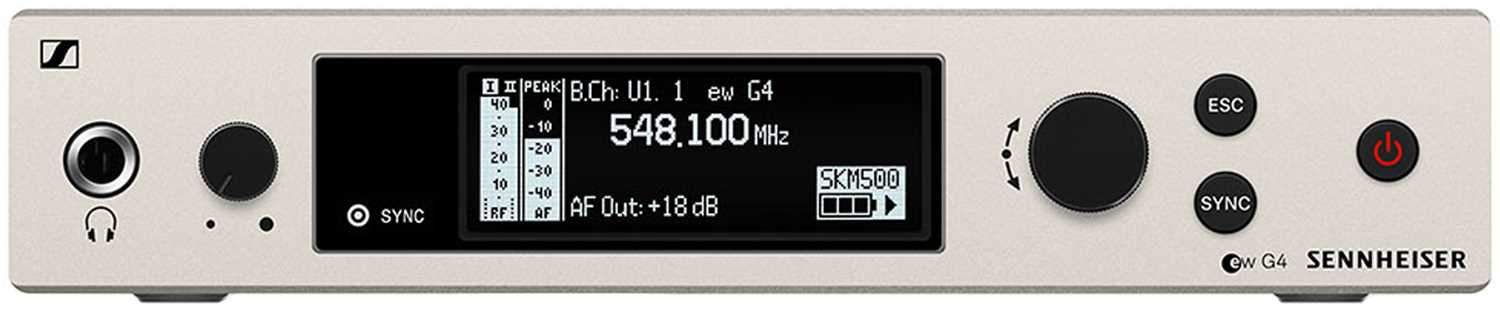

EM 300-500 G4
- Frequency range: 470 - 558 MHz
- Dimensions: Approx. 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: Approx. 980 g
- Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: 115 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 350 mA
- Adjacent channel rejection: Typically 75 dB
- Intermodulation attenuation: Typically 70 dB
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 2.5 V for 52 dBA eff S/N
- Squelch: 5 to 25 dB V in steps of 2 dB
- Equalizer
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range -10 °C to +55 °C
- Receiver Principle True naversity
- Blocking 75 dB
SKM 300 G4-S
- Dimensions: Approx. 50 x 265 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 450 g
- Signal-to-noise ratio: 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 ¦ÌA
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 transmission frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm
This Sennheiser ew 300 G4-865-S wireless vocal microphone is perfect for business presentations and educational settings. The handheld transmitter has a robust yet lightweight aluminum housing for long speeches. Inside the box, you'll find a receiver, transmitter, microphone head, rackmount set, and more. Key features include easy setup, versatile control via software, wide compatibility, high bandwidth, adjustable power, long transmission range, and compatibility with the LSP 500 PRO wireless speaker system. The EM 300-500 G4 receiver has dimensions of approximately 202 x 212 x 43 mm and weighs around 980 g. The SKM 300 G4-S handheld transmitter is about 50 x 265 mm and weighs approximately 450 g with batteries.
