Q-SYS DTH1620 Axon 16-Channel Dante/AES67 Network Amplifier
The DTH1620 is a powerful multi-channel, low-power (16-channel x 20 watts) Dante/AES67 network amplifier. It's perfect for themed entertainment and other specialized audio needs. Optimized for seamless integration into Q-SYS, it's a must-have for creating immersive audio experiences.
This amazing amplifier supports high-channel, low power output audio applications, like individual theme park rides, attractions, or parade floats. With 16-channels at 20 watts per channel, it comes in a ruggedized and compact form. It can support both traditional passive transducers and haptic transducers, opening up a world of specialized audio possibilities beyond the theme park.
Features:
- • Ideal for themed entertainment and specialized audio applications - 16-ch, 20 W network amplifier
- • Ruggedized and tested for mobile attractions - built to withstand vibrations
- • Seamless Dante/AES67 connectivity with remote control and monitoring
Specifications:
- Audio:
- Frequency response @ 1 W into 8 : 20 Hz - 20 kHz
- Signal-to-noise: 97 dB (20 W into 8 )
- Output circuitry: Class D

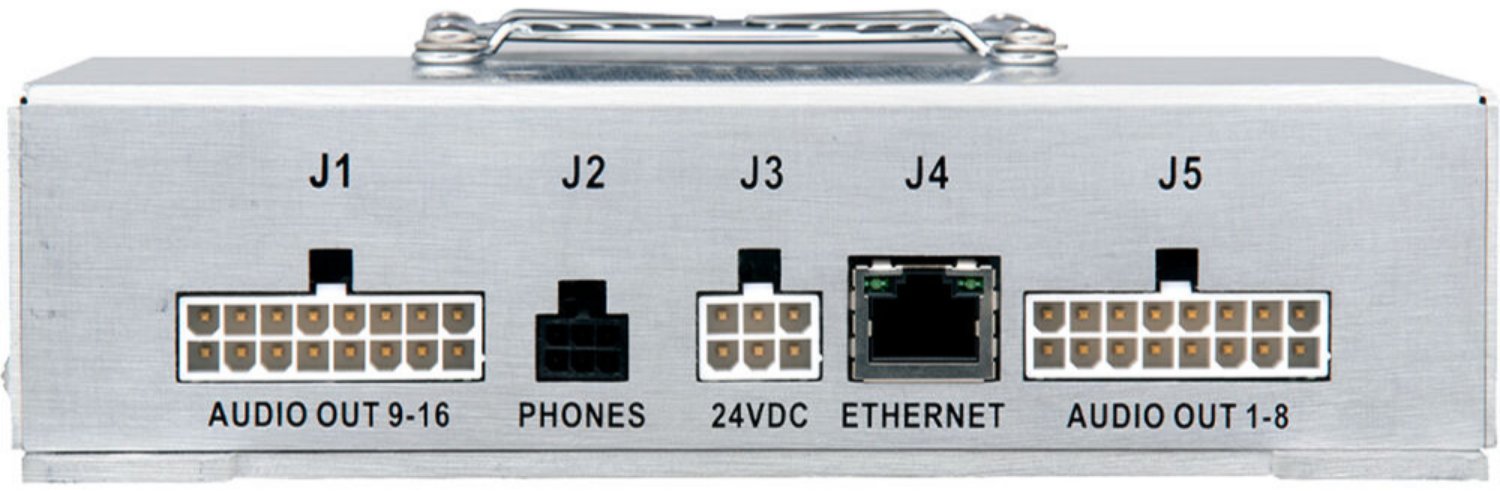

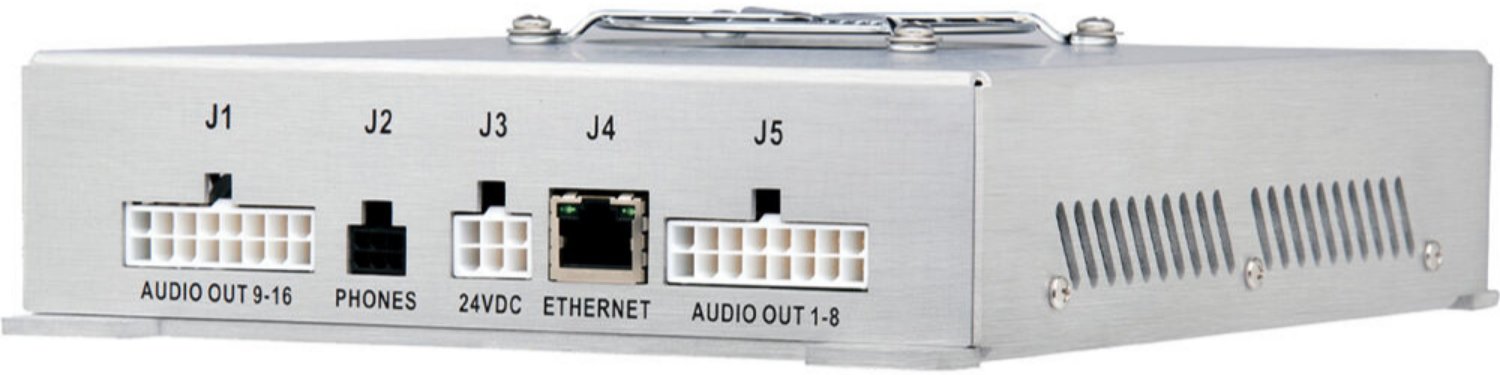

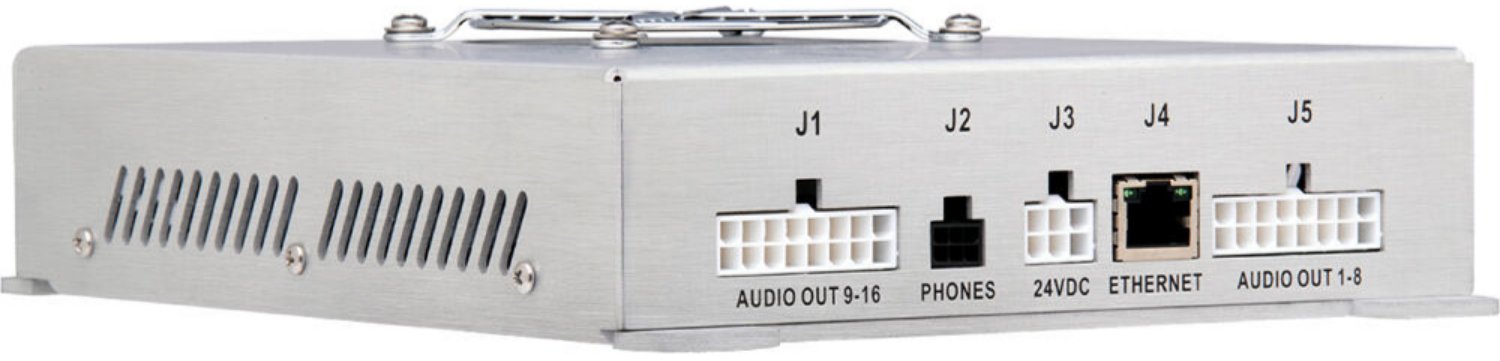

- Connectors:
- Mic/line inputs: Molex 6-pin, +24 V DC
- Speaker outputs: Molex 16-pin
- Headphone/volume control: Molex 6-pin
- Ethernet: RJ-45 with link and activity LED indicators
- Power:
- Power Requirements:
- +24 V DC @ 3 A, all channels 1/8 power
- +24 V DC @ 17.5 A, all channels full power

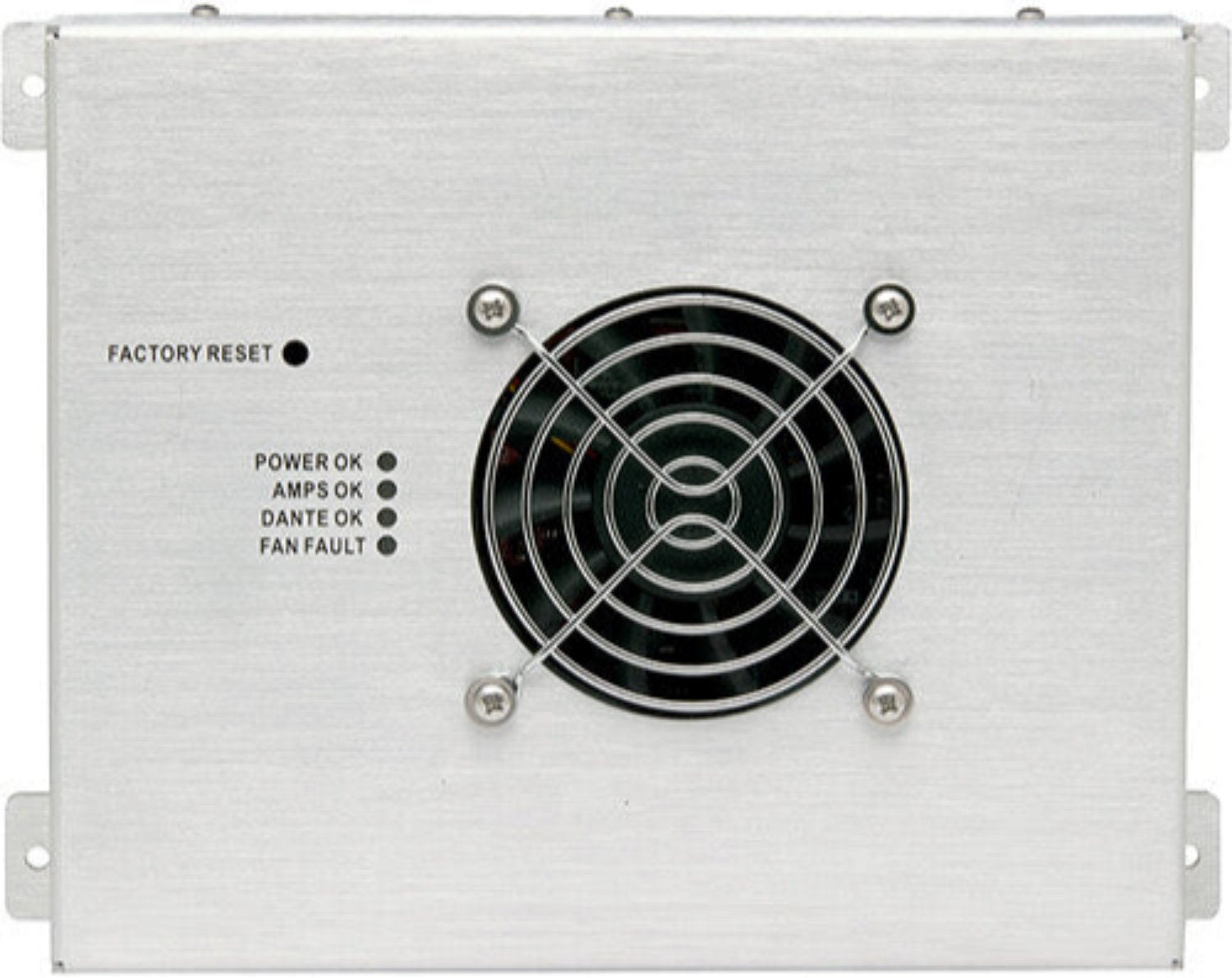

- Cooling: Fan with thermal speed control
- General:
- Dimensions: 9 x 6.7 x 2.0 in (229 x 169 x 51 mm)
- Weight: 2.4 lbs (1.1 kg)
The Q-SYS DTH1620 Axon 16-Channel Dante/AES67 Network Amplifier is designed for themed entertainment usage and other specialized audio applications. It's great for theme park rides, attractions, or parade floats. With a compact size of 9 x 6.7 x 2.0 in (229 x 169 x 51 mm) and weighing 2.4 lbs (1.1 kg), it's easy to install and use. It features 16 channels at 20 watts per channel, along with Dante/AES67 connectivity and various input/output connectors for a seamless audio experience.
