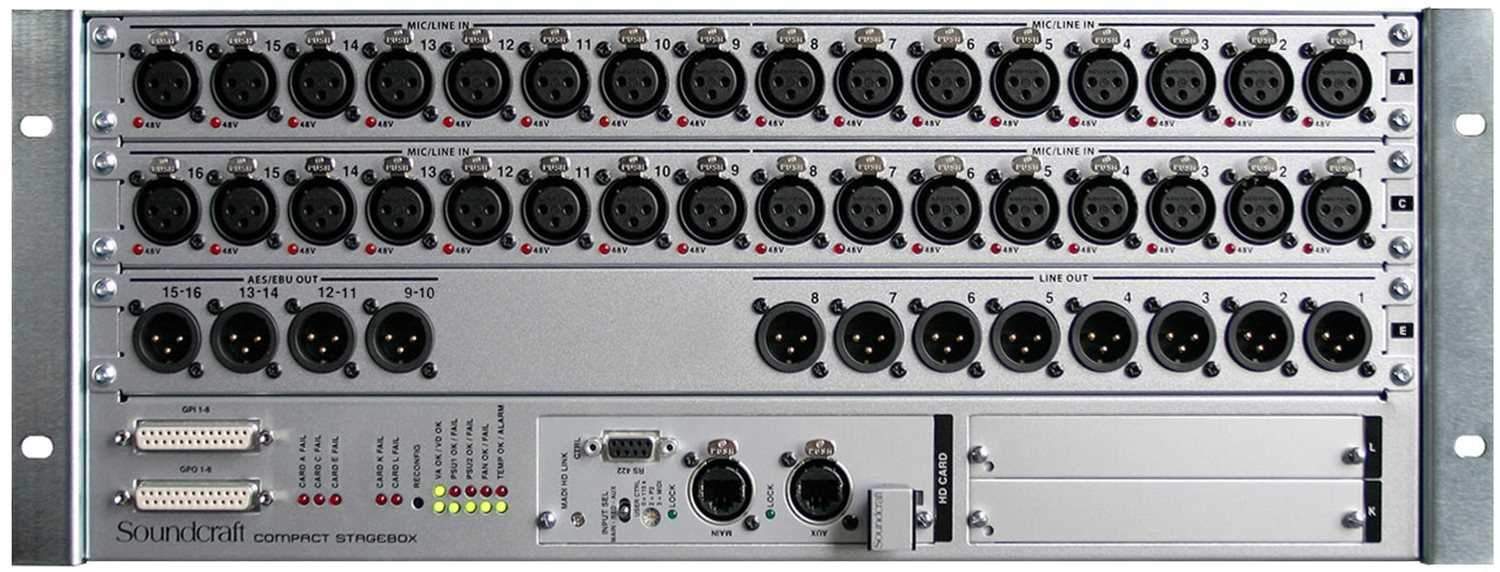

Soundcraft Compact Stagebox: Your Gateway to Enhanced Sound Expansion
Unleash the full potential of your Soundcraft digital live sound consoles with the Compact Stagebox! This remarkable expansion module offers a cost-effective solution for expanding the input capabilities of your Soundcraft Vi Series, Soundcraft Si Series, Soundcraft Vi1, and Soundcraft SI Compact consoles.
• High-Density I/O: Packed with 32 mic/line inputs, 8 line outputs, 8 channels of AES/EBU outputs, and 2 expansion slots in just 4U of rack space, the Compact Stagebox delivers exceptional connectivity in a compact footprint.
• Flexible Configuration: The modular design allows for easy customization. Equip it with an additional 16 mic/line input XLR module for 48 inputs, or configure it with different D21m I/O cards to connect to popular digital formats like CobraNet, AVIOM A-Net16, Ethersound, ADAT, and RockNet.
• Versatile Compatibility: Share Mic/line I/O modules between the console and stagebox for seamless integration. Connect to the host console via Optical-fibre MADI, just like the larger Vi6 Stagebox, and enjoy redundant MADI cable capability.
The Compact Stagebox is perfect for live sound engineers, musicians, and audio professionals looking to expand their setup without breaking the bank. Whether you need to add more inputs for a larger venue or want to create a flexible remote I/O solution, this stagebox has you covered.
Specifications:
- Analogue/Digital: Digital
- Frame Sizes: 16
- Stereo Channels: 0
- Digital I/O: No
- FX Processors: 0
- Groups: 0
- EQ Bands: 0
- Aux Sends: 0
- Returns: 0
- Direct Outputs: No
- Matrix Outputs: 0
- Main Bus Out: Mono
The Soundcraft Compact Stagebox is designed for live sound applications. It's perfect for existing owners of Vi Series consoles, musicians, and audio professionals. With a compact 4U rack space, it offers high-density I/O connections. It features 32 mic/line inputs, 8 line outputs, 8 channels of AES/EBU outputs, and 2 expansion slots. The modular unit is fully configurable. It comes with twin redundant power supplies, fan cooling, and LED status monitoring. Connects to the host console via Optical-fibre MADI.
