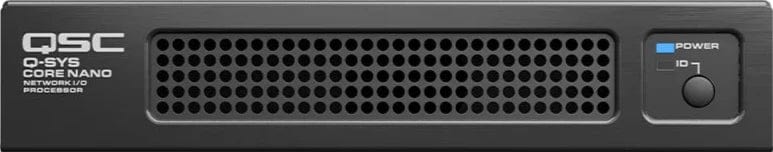

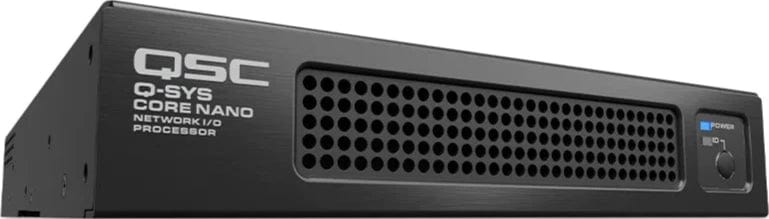

Q-SYS CORE NANO Q-SYS Network I/O Processor

Q-SYS Core Nano: Your Compact Network I/O Powerhouse

Revolutionize your audio, video, and control setups with the Q-SYS Core Nano! This remarkable processor extends the Q-SYS Platform's reach to a plethora of smaller-scale installations across corporate, higher education, healthcare, and more. It's built on the same rock-solid technologies and driven by the same Q-SYS OS as the rest of the Q-SYS processor family, including the top-notch Q-SYS Core 110f. Specifically designed for applications with lower network channel capacity and/or targeted processing needs, Core Nano is a game-changer.

Network I/O Only - Cost-Effective Excellence

Core Nano offers pure networked AV&C processing without any on-board analog connections. This means significant cost savings for installations using modern networked endpoints and those requiring shared/centralized processing scenarios. Say goodbye to unnecessary expenses!

Rightsized. Uncompromised. - Compact Yet Powerful

Skip the bulky AV&C processors with unused analog I/O taking up a full rack space. Core Nano provides a smaller, more versatile solution with multiple mounting options. Despite its smaller size, it doesn't skimp on functionality. It comes with a full-featured control engine for third-party device control, full paging, BGM capabilities, automation, monitoring, and so much more.

Optimized for the Meeting Space - Seamless Web Conferencing

The Core Nano is your go-to for full room web conference integration, especially in larger, more challenging spaces. It features USB integration with major web conferencing apps, eight channels of acoustic echo cancellation (AEC), two VoIP softphones, Software-based Dante for modern microphones, and a comprehensive control engine for third-party device integration.

Reduce Complexity and Improve Scalability with the Q-SYS Platform

The Q-SYS Core Nano is part of an expanding lineup of AV&C processors built on a flexible software foundation. Like all Q-SYS Core processors, it allows integrators to leverage the same Q-SYS software suite for system design and configuration. End users can enjoy all native Q-SYS peripherals, scale the system without reconfiguring, and receive the latest platform upgrades and security updates via a simple firmware update.

Expand Functionality at the Software Level

Q-SYS Scaling Licenses let you tailor the software-based Q-SYS to specific application needs. The Collaboration Bundle license boosts processing power, adds AEC channels, and expands microphone support for larger spaces. The Commercial AV Bundle license increases processing, network capacity, and peripheral count for areas previously served by higher-tier Core processors.

Features & Benefits

• • 64 x 64 networked audio channels (Q-LAN / AES67)
• • 8x AEC processors
• • Up to 32 x 32 Dante audio channels (8 x 8 included)
• • USB AV bridging (8 x 8 audio + Q-SYS camera support)
• • Full-featured Q-SYS Control engine (with optional feature license)
• • External USB audio device host
• • Up to 2x VoIP instances
• • 1U half-width, includes mounting hardware

Specifications

Channel Capacity

• Q-LAN / AES67 channels: 61 x 64
• Dante channels: 8 x 8 (included); licensable up to 32 x 32
• AEC processors: 8
• VoIP instances: 2
• Audio recording / playback: 4 ch recording / 16 ch playback (expandable to 32 ch with optional license)
• Q-SYS NM-T1 capacity: 3 (base capacity); 6 (with Collaboration Bundle scaling license)
• Network peripherals: Up to 32

Control

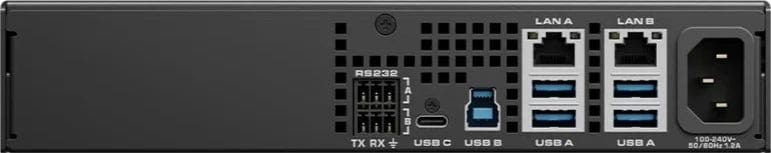

• RS-232: 2 Ports

USB Inputs & Outputs

• Channel count: 8 x 8
• Bit depth: 16 bit
• Sample rate: 48 kHz
• USB audio device hosting: Support for standard USB headset, speakerphone

Environmental

• Power consumption: 40 W typical

Physical

• Device dimensions (H x W x D): 1.72 x 8.66 x 11.28 in (43.6 x 220 x 286.6 mm)
• Weight: 4.0 lbs (1.8 kg)

The Q-SYS Core Nano is perfect for corporate, higher education, and healthcare settings. It's designed for smaller-scale AV&C installations with lower network channel capacity. This compact device, measuring 1.72 x 8.66 x 11.28 in (43.6 x 220 x 286.6 mm) and weighing 4.0 lbs (1.8 kg), offers features like networked audio channels, AEC processors, and USB AV bridging. It's great for full room web conference integration in larger spaces and comes with multiple mounting options.
