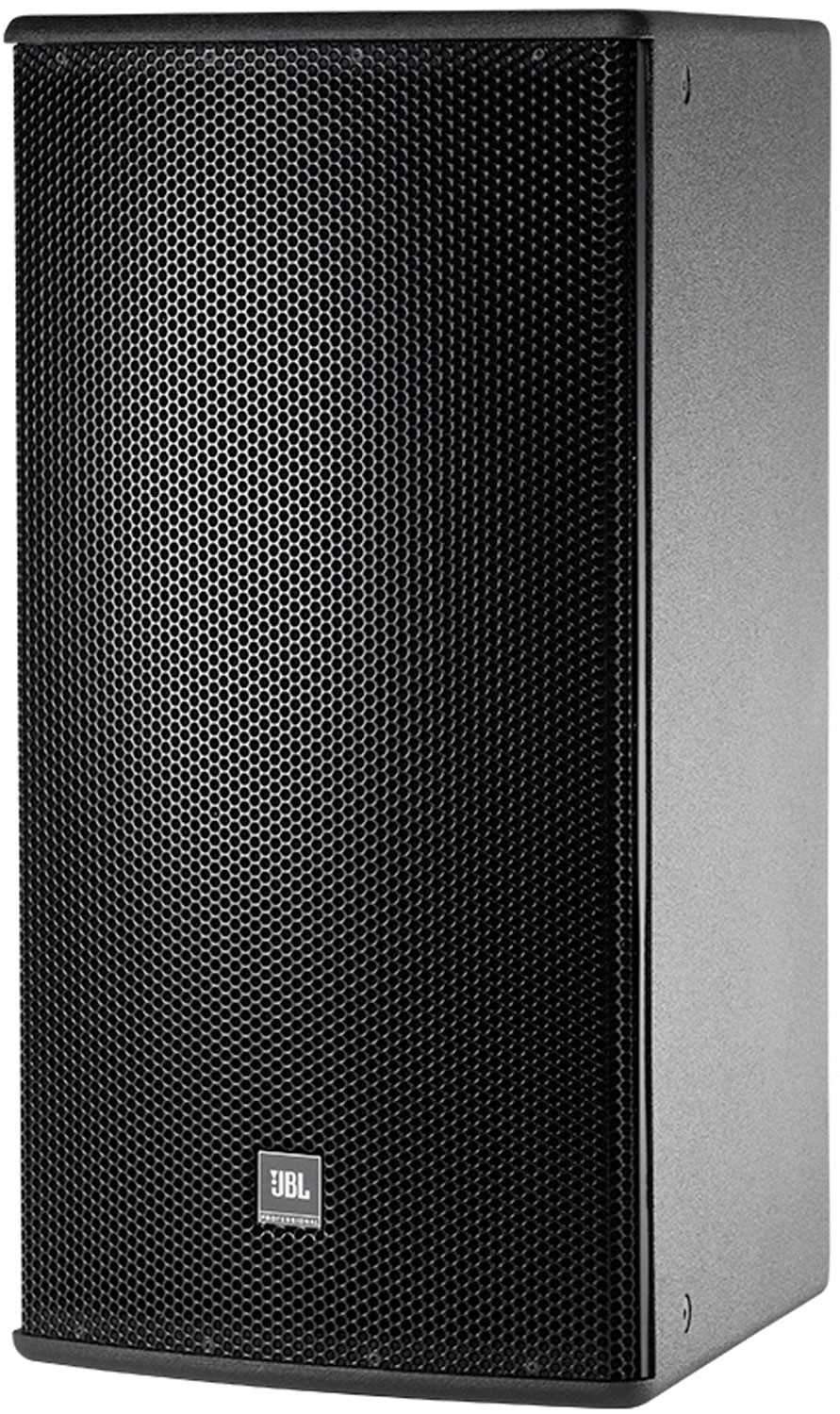

JBL AM7215/26 High - Power 15 - Inch Rotatable Loudspeaker for Unbeatable Sound
• High - power and lightweight
• 15 - inch LF & rotatable horn
• Excellent coverage with rotatable waveguide
The AM7215 speakers are high - power, lightweight, 2 - way, full - range loudspeaker systems. They feature a JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low - frequency driver and 2432H high - frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice - coil compression driver. The large format Progressive Transition waveguide offers great coverage and can be rotated for vertical or horizontal use. High - slope passive networks reduce band overlap, and the well - controlled off - axis response improves arrayability.
Features:
- Powerful 2265H Differential Drive Low - Frequency Driver
- 2432H High - Frequency Compression Driver
- Large PT Progressive Transition waveguide for great pattern control and low distortion
- Rotatable waveguide for flexible orientation
- Bi - Amp/Passive Switchable
- Available in stylish Black, White and WRC/WRX finishes
Applications:
- Perfect for Performing Arts Facilities, Theatrical Sound Design
- Great for Auditoriums, Worship Facilities
- Suitable for Live Clubs, Dance Clubs, Sports Facilities, Themed Entertainment Venues
Specifications:
- Frequency Range ( –10 dB): 34 Hz - 20 kHz
- Frequency Response ( ± 3 dB): 40 Hz - 18 kHz
- Coverage: 120° x 60°
- LF Driver: 2265H
- HF Driver: 2432H
- System Type: 15' Two - Way, High Power, Full - Range
- Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
- Weight: 27.2 kg (60 lb)
- Crossover Modes: Bi - amp/Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- Transducer Power Rating (AES):
- LF: 1000 W (4000 W peak), 2 hr
- 750 W (3000 W peak), 100 hrs
- HF: 100 W (400 W peak), 2 hrs
- Long - Term System Power Rating (IEC):
- Passive mode: 600 W (2400 W peak), 100 hrs
- Maximum SPL:
- Bi - amp Mode:
- LF: 128 dB - SPL cont avg (134 dB peak):
- HF: 135 dB - SPL cont avg (141 dB peak):
- Passive mode:
- 124 dB - SPL cont avg (130 dB peak)
- System Sensitivity (1W @ 1m): Passive mode: 96 dB SPL
- Nominal Impedance: 8 ohms
This JBL AM7215/26 loudspeaker is perfect for a variety of venues. It's great for performing arts facilities, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues. The system has a 15 - inch LF driver and a rotatable horn for excellent coverage. It's lightweight and high - power. The dimensions are 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in) and it weighs 27.2 kg (60 lb). It offers features like a rotatable waveguide, bi - amp/passive switchable options, and comes in stylish finishes. The frequency range is 34 Hz - 20 kHz ( –10 dB) and 40 Hz - 18 kHz ( ± 3 dB), with a coverage of 120° x 60°.
