Midas PRO Series' Powerhouse: 8 XLR I/O Card - MIDASDL 442
Unleash the full potential of your audio setup with the MIDASDL 442! This modular 8 - analogue line level output card is a must - have for MIDAS PRO Series control centers and modular I/O boxes. It offers:
- Exceptional Output Performance: With servo - balanced electronic outputs and high output current drive capability, it's perfect for long cable runs, ensuring your audio reaches every corner without compromise.
- Premium Audio Quality: Equipped with low latency 24 bit 96 kHz DAC converters, it minimizes distortion and noise, delivering crystal - clear sound.
- Convenient Muting Feature: If the audio signal path is muted via the PRO Series control center, the DL442 automatically mutes its output, adding an extra layer of convenience.
Features:

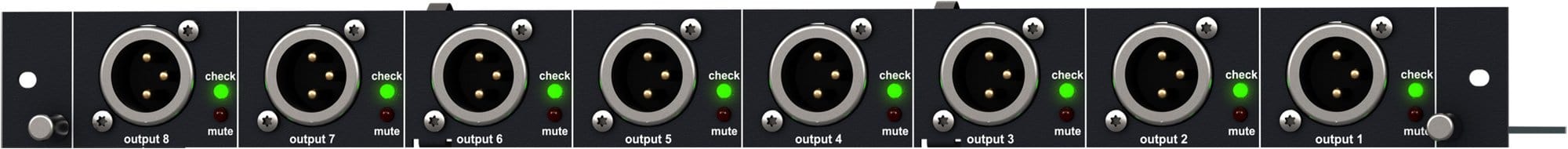

- 8 electronically balanced outputs on Neutrik* XLR connectors
- Low latency 24 bit 96 kHz DAC converters
- High output current drive for long cable runs
- Output mute and channel check LEDs per channel
- Compatible with Midas PRO3, PRO6, PRO9, PRO X, DL351 and DL451
- Designed and engineered in the U.K.
Specifications:
- Sample rate: 96 kHz
- Dynamic range: >110 dB unweighted (20 Hz - 20 kHz)
- Maximum output level: +21 dBu
- Noise (Unity gain): <-89 dBu unweighted (20 Hz - 20 kHz)
- Frequency response: ±0.5 dB (20 Hz - 20 kHz, relative to 1 kHz)
- THD+N (Unity Gain): <0.01%
- Crosstalk @ 1 kHz: <-90 dB
- Output impedance: 50 O
- Connectors: 3 - pin Male XLR Balanced
The MIDASDL 442 8 XLR I/O Card is designed for professional audio setups. It's ideal for audio engineers and enthusiasts who use Midas PRO Series control centers and modular I/O boxes. In terms of technical specs, it has 8 outputs on Neutrik XLR connectors. The card is engineered in the UK and offers top - notch audio quality with features like high - current drive for long cables and low - latency DAC converters.
