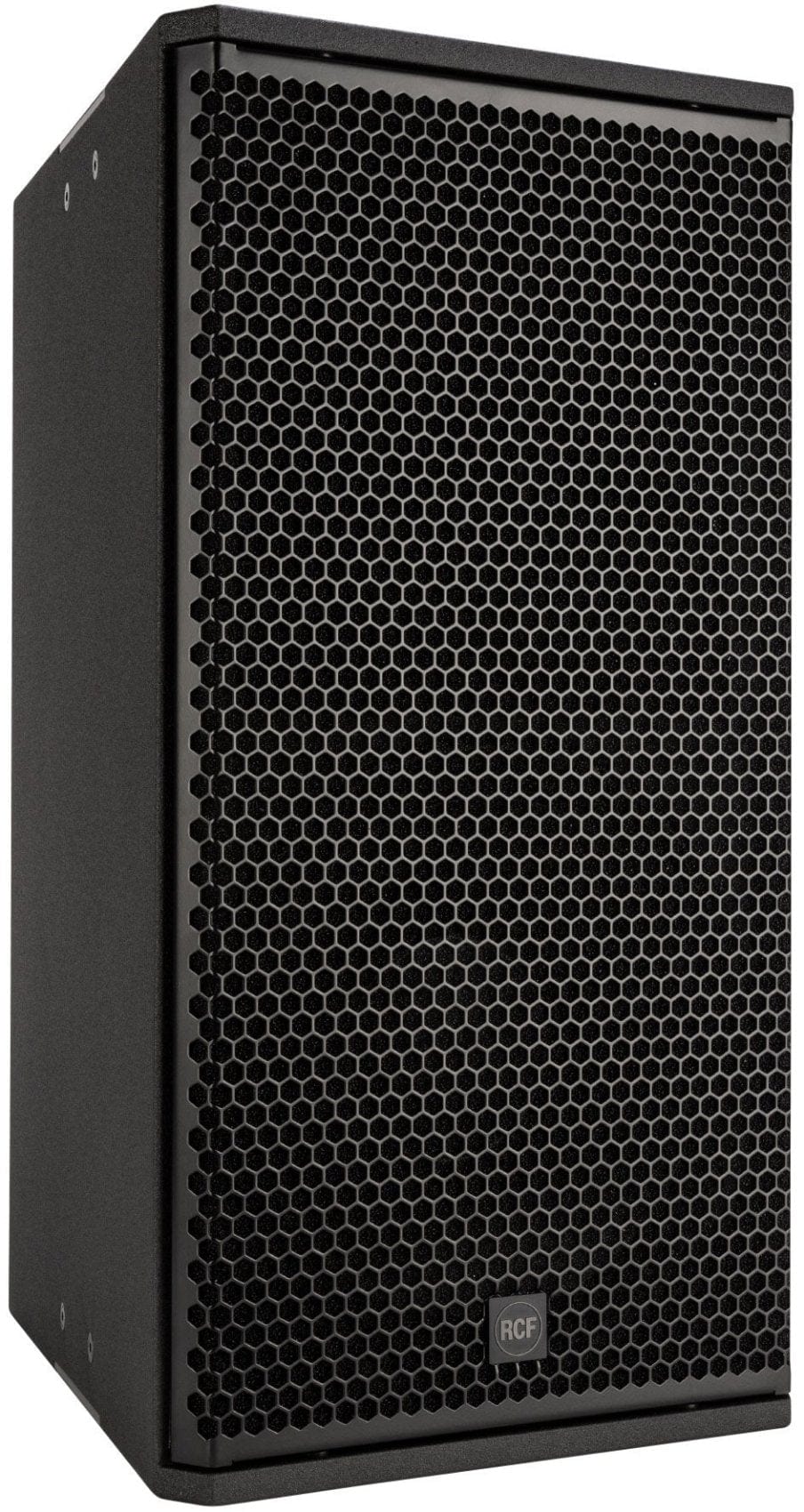

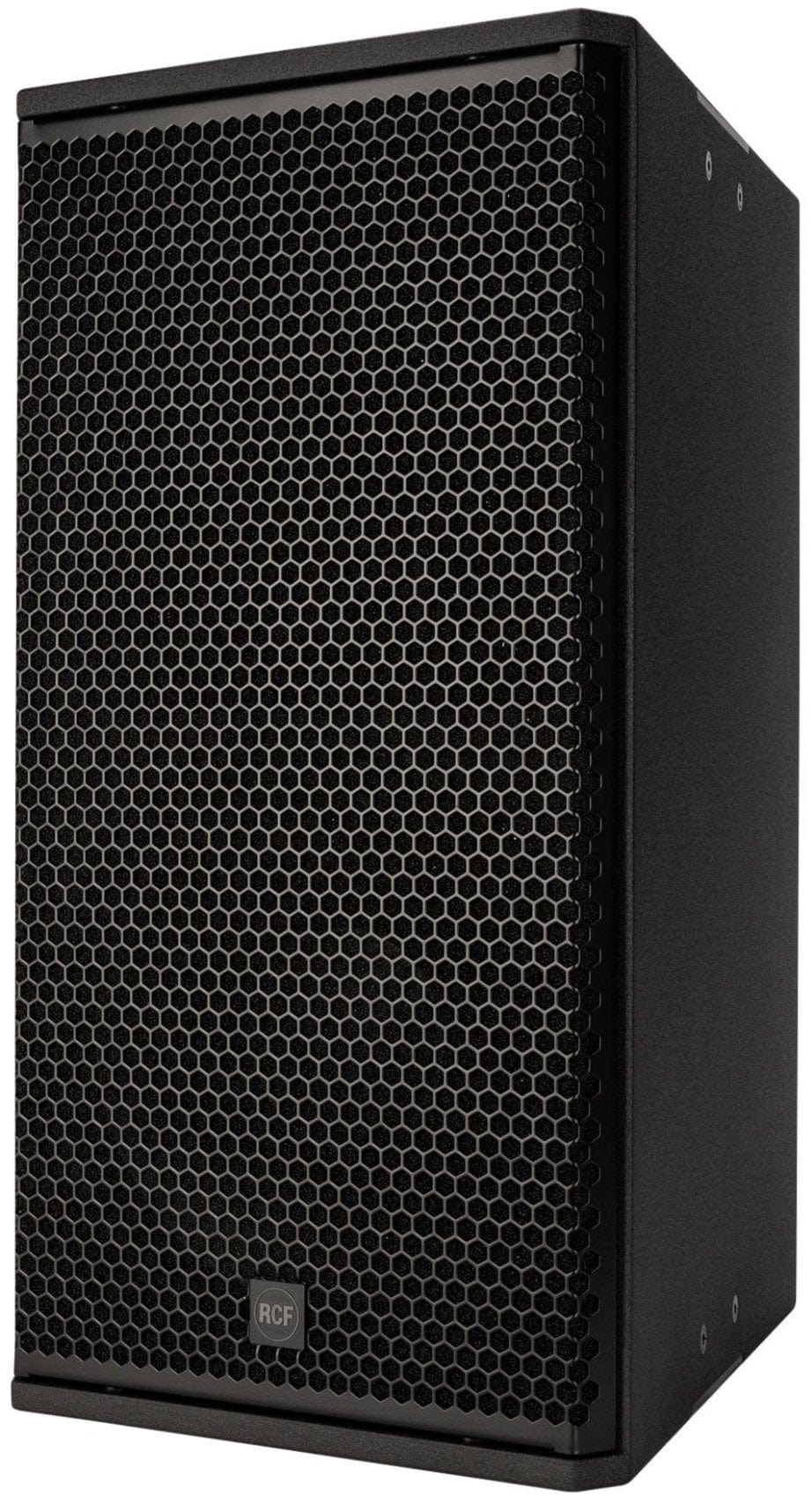

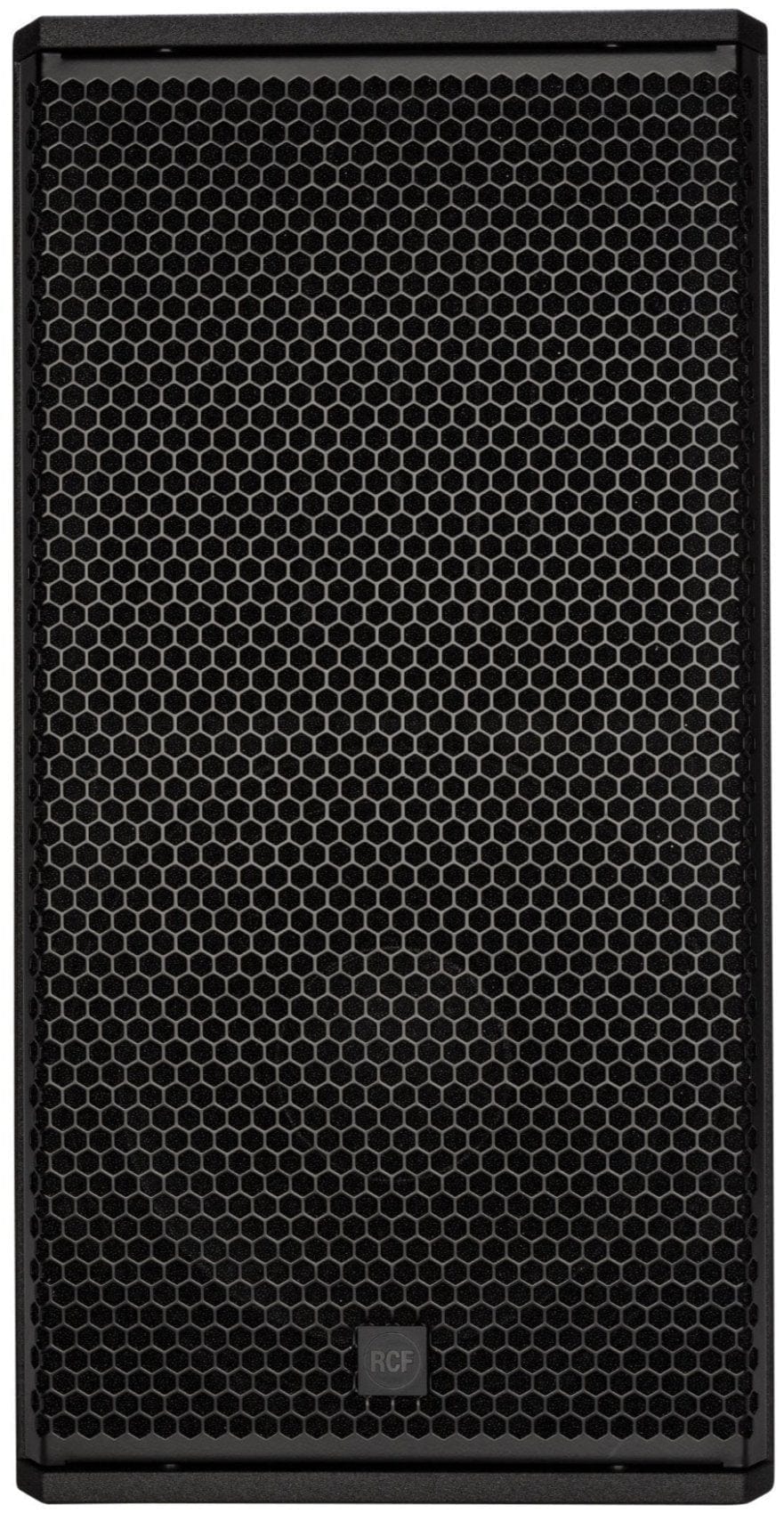

RCF Q 15-L Passive 15 Inch 2-Way Point Source Speaker - 90x22.5 Degree Directivity Coverage - Black

RCF Q 15-L Passive 15-Inch 2-Way Point Source Speaker - High-Output, Accurate Sound - Black

The RCF Q 15-L is a two-way, bi-amp point source module for mid-distance and long-throw applications. It combines a compact size with very high output and accurate speech and music reproduction. Here's what makes it great:

• • High Output: Delivers a powerful 138 dB Max SPL for impactful sound.
• • Accurate Reproduction: With a 1500 W AES power handling, it reproduces speech and music with precision.
• • Wide Coverage: Offers 90° (vertical) and 22.5° (horizontal) directivity for broad sound dispersion.

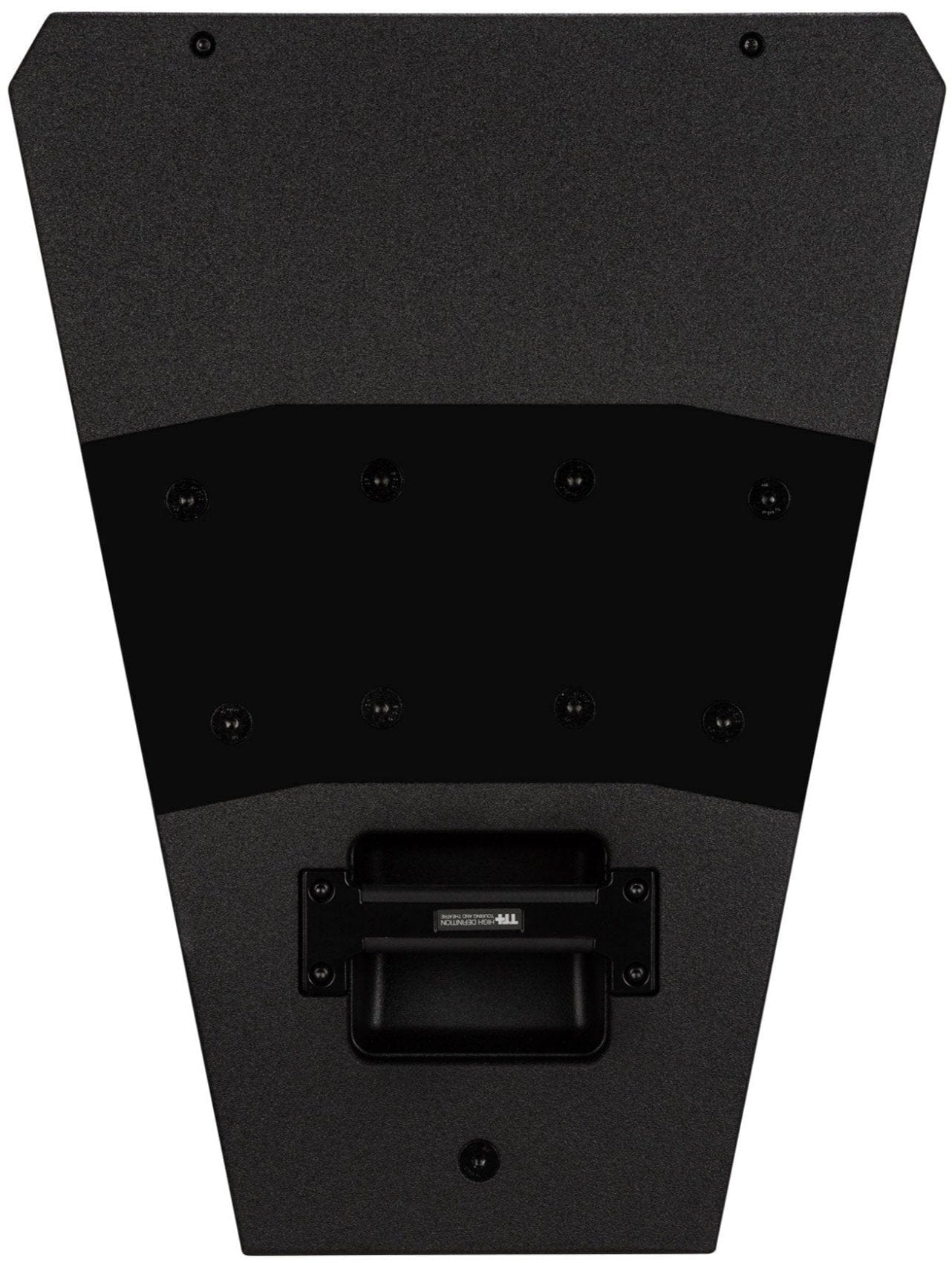

The system features the latest generation of RCF precision transducers, including one 15' neodymium woofer and a 4' titanium-neodymium compression driver. The enclosure is trapezoidal with a 22.5° coupling angle on each side. The grille is epoxy-coated with a woven fabric backing for dust protection. The cabinet is made of multi-ply Baltic birch plywood with a highly resistant, textured, black polyurea finishing and has two rear-panel Neutrik Speakon NL4 connections for bi-amplification.

Features:

• 138 dB Max SPL
• 1500 W AES power handling
• Frequency Response: 45 – 20000 Hz
• 90° x 22.5° constant directivity coverage
• 1 x 15' neodymium woofer, 4.0' v.c.
• 4' neodymium compression driver
• Baltic birch plywood cabinet
• Steel front grille with clothing
• Integrated array mechanics
• Multi-pole Speakon connectors

Specifications:

• Acoustic:
  • Frequency Response (-10 dB): 45 Hz – 20000 Hz
  • Max SPL @ 1m: 138 dB
  • Horizontal Coverage Angle: 22.5°
  • Vertical Coverage Angle: 90°
  • Directivity Index (Q): 20
• Transducers:
  • Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
  • Woofer: 1 x 15'' neo, 4.0'' v.c
• Input/Output Section:
  • Input Connectors: Speakon NL4
  • Output Connectors: Speakon NL4
• Physical:
  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: Side and rear array rigging point
  • Handles: 2
  • Grille: Steel
  • Color: Black - RAL 9005
  • Size:
    • Height: 860 mm / 33.86 inches
    • Width: 446 mm / 17.56 inches
    • Depth: 590 mm / 23.23 inches
    • Weight: 55 kg / 121.25 lbs

The RCF Q 15-L Passive 15-Inch 2-Way Point Source Speaker is perfect for mid-distance and long-throw applications. It's great for venues like auditoriums, concert halls, and large event spaces. Ideal for sound engineers, event organizers, and anyone looking for high-quality sound. With a height of 860 mm (33.86 inches), width of 446 mm (17.56 inches), depth of 590 mm (23.23 inches), and weight of 55 kg (121.25 lbs), it's easy to set up and move around.
