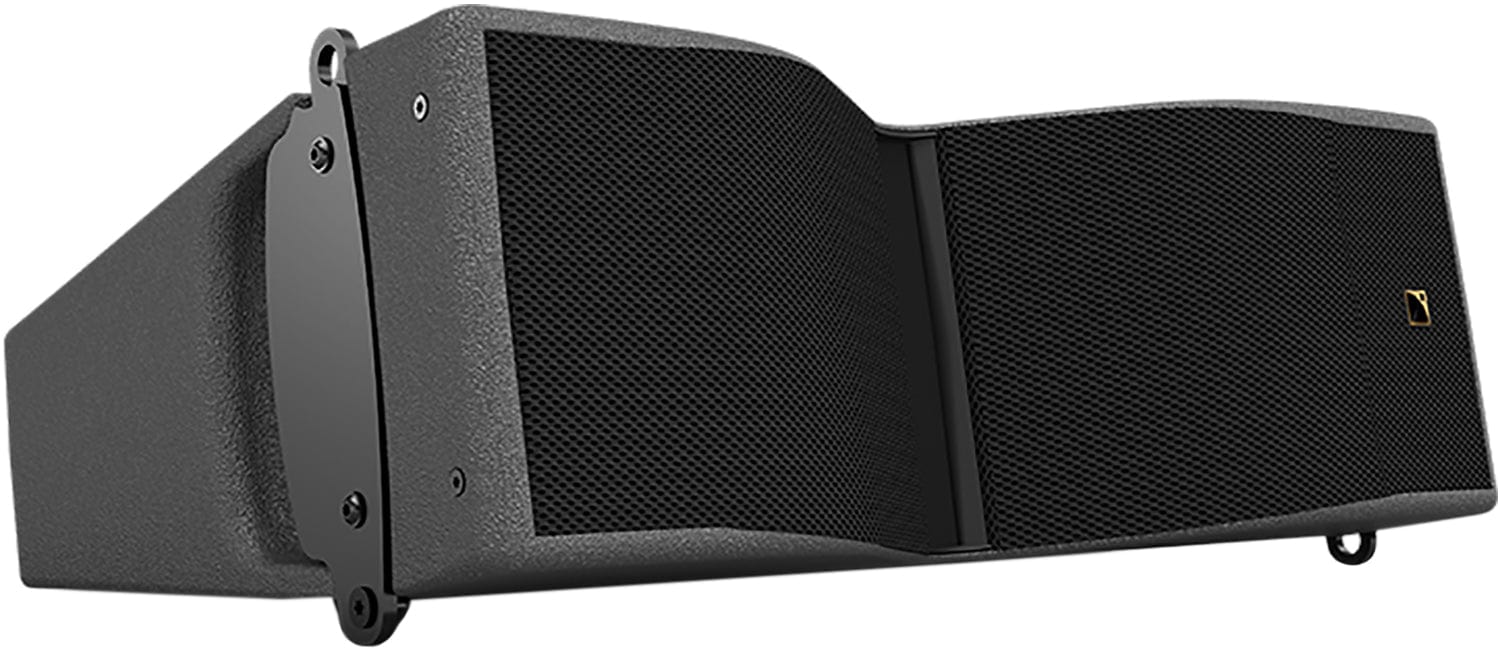

L-Acoustics KIVA-II RAL Color 6.5 Inch 2-Way Passive Speaker with 1.75 Inch HF Diaphragm - Your Ultimate Sound Solution
This amazing 2-way passive speaker is perfect for various sound applications. It features two weather-resistant premium 6.5 in transducers and a high output 1.75 in diaphragm compression driver coupled to a cylindrical waveguide for great coverage. • Exceptional Sound Quality: Delivers clear vocals and a smooth horizontal polar pattern with L-FINS. • Easy Integration: Has minimalist dimensions for hassle-free setup. • Reliable Rigging: Can be flown even under the most stringent conditions. The enclosure cabinet is made of moisture-resistant composite material, with the front protected by a composite grill and an acoustically transparent fabric. It also has two handles and a three-point captive hardware for rigging and combining with other speakers. The line source directivity can be adjusted according to the audience geometry. It's exclusively driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- Flown even under the most stringent rigging conditions
- Minimalist dimensions for easy integration
- Clear vocals and smooth horizontal polar pattern with L-FINS
- 16 ohms for maximized enclosure density per amplified controller
Specifications:
- Coverage (-6 dB):
- Enclosure directivity: 15° (single), depending on the number of elements and array curvature
- Waveguide directivity: 100° symmetrical
- Transducers:
- LF transducer: 6.5' cone driver
- HF transducer: 1.75' diaphragm compression driver
- Acoustics:
- Nominal impedance: 16
- Usable bandwidth: 70 Hz - 20 kHz (-10 dB), 75 Hz - 20 kHz (-6 dB), 84 Hz - 20 kHz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 186 W
- Maximum SPL: 138 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: composite sandwich structure
- Finish: custom RAL code on special order
- Dimensions (W, H, D): 525 mm, 202 mm, 357 mm / 20.7 in, 8 in, 14 in
- Weight (net): 14 kg / 31 lb
- Connectors: 2 ¡Á 4-point speakON
- IP: IP55
This L-Acoustics KIVA-II speaker is great for events like concerts, parties, and conferences. Ideal for sound engineers and event planners. It has a width of 525 mm (20.7 in), height of 202 mm (8 in), depth of 357 mm (14 in), and weighs 14 kg (31 lb).
