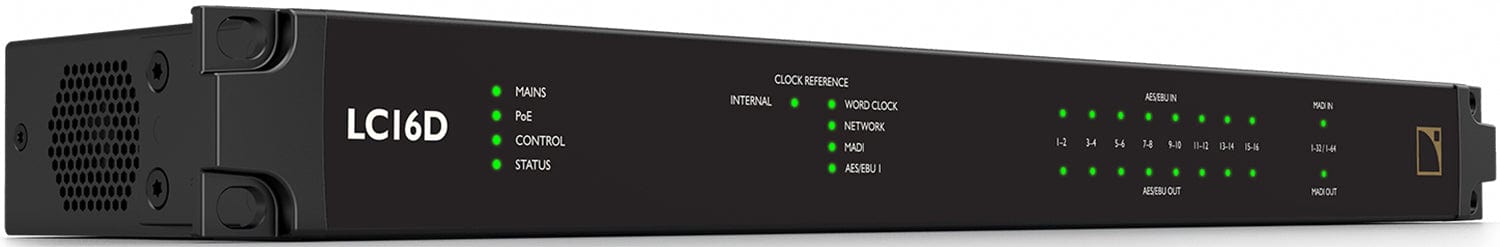

L-Acoustics LC16D Digital Audio Converter: The Ultimate Solution for Seamless Audio Connectivity
Upgrade your audio setup with the L-Acoustics LC16D Digital Audio Converter. This powerful device bridges AES/EBU and MADI digital formats bidirectionally, ensuring crystal-clear sound quality. With its redundant Milan-AVB network, you can enjoy seamless connectivity and reliable performance.
Key Features:
- • 16 AES/EBU Input Channels with ASRCs: Ensure accurate audio conversion and compatibility with a wide range of devices.
- • 64@48 kHz or 32@96 kHz MADI Input/Output Channels: Choose the sampling rate that suits your needs for high-quality audio transmission.
- • Embedded Web Interface for Control and Monitoring: Easily manage and monitor your audio setup from any device with a web browser.
Technical Specifications:

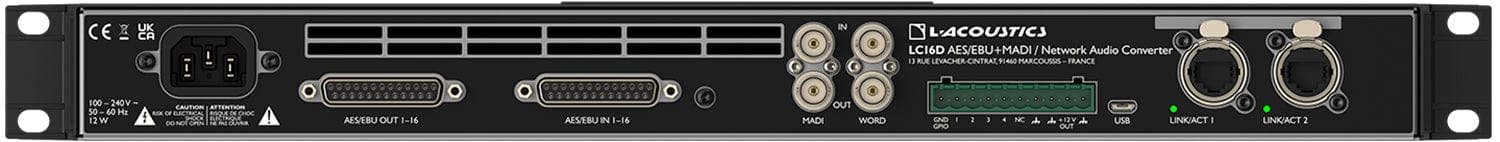

- • Rear Connections: 2 x DB25 for AES/EBU input/output, 2 x BNC for MADI input/output, 2 x 1Gb/s Ethernet connectors for Milan-AVB audio, control, and PoE, 2 x BNC for Word clock input/output, and a 10-point terminal block connector for GPIO interface and 12V DC output.

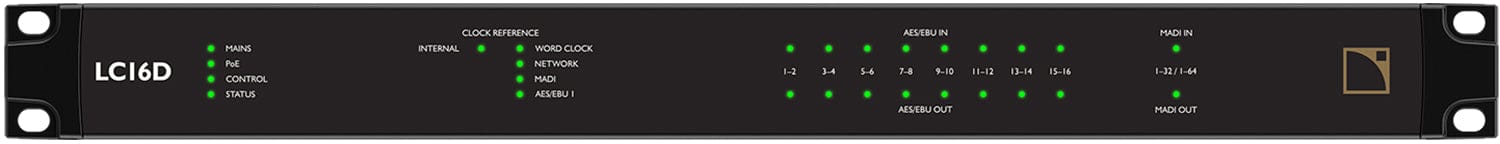

- • Operation/Display: Control via an embedded web interface, with connection status LEDs and clock reference LEDs for easy monitoring.
- • Working Conditions: Room temperature between -5 °C and +50 °C, cooled by a low noise temperature-controlled fan.
- • Physical Data: Dimensions (W, H, D): 483 mm, 44.45 mm, 135.9 mm / 19 in, 1.75 in, 5.35 in; rack mounting: 1U; weight (net): 2 kg / 4.41 lb; IP: IP3x; finish: black.
The L-Acoustics LC16D Digital Audio Converter is designed for professional audio setups. It's perfect for sound engineers, musicians, and anyone who needs high-quality audio conversion. With its compact 1U rack mount design and lightweight construction, it's easy to install and transport. The device offers 16 AES/EBU input channels, 16 AES/EBU output channels, and 64 MADI input/output channels at 48kHz or 32 at 96kHz. It features a redundant Milan-AVB network for seamless connectivity and an embedded web interface for easy control and monitoring. The converter is powered by an internal universal power supply unit and has 2 PoE ports for power redundancy. It operates in a temperature range of -5 °C to +50 °C and is cooled by a low noise temperature-controlled fan.
