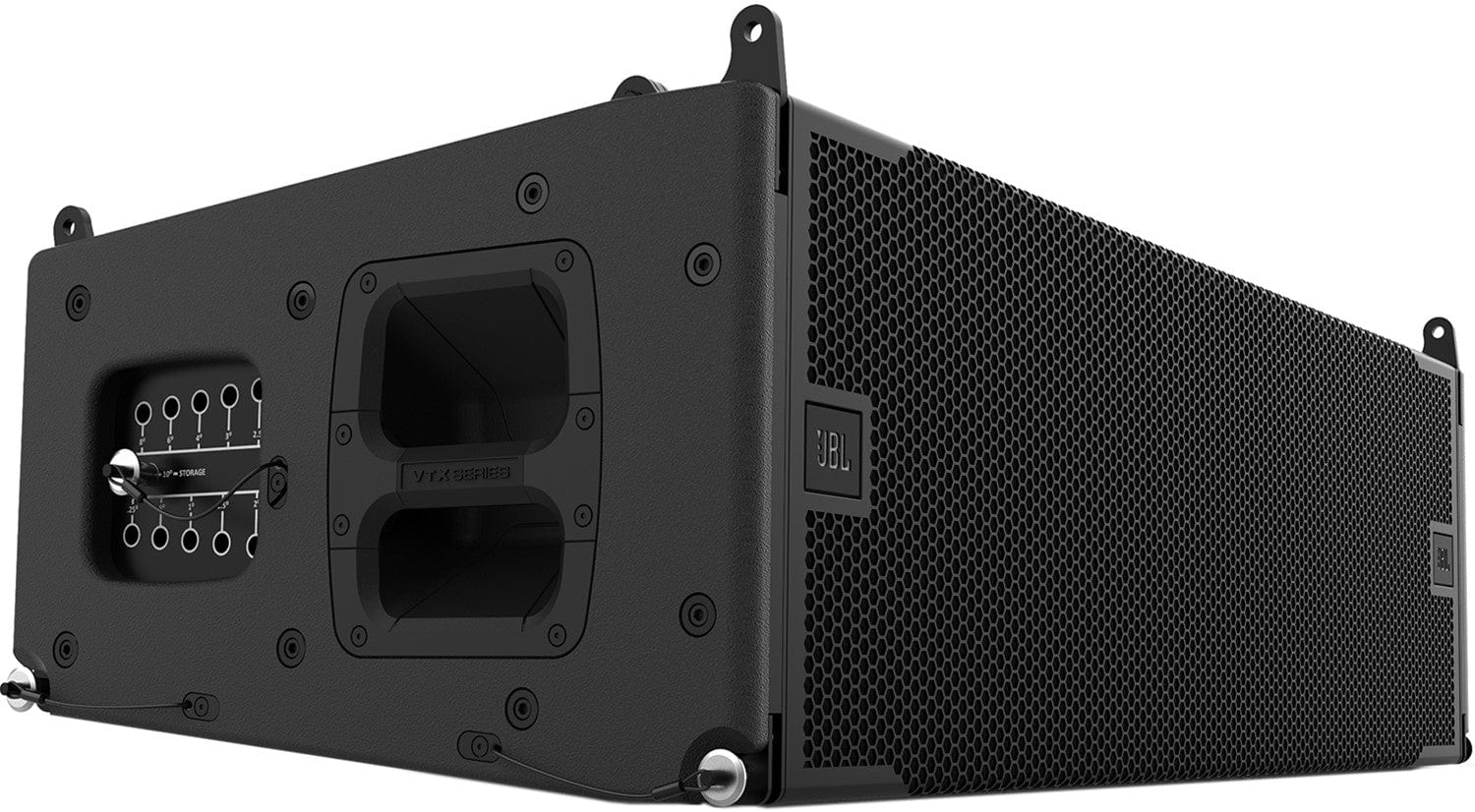

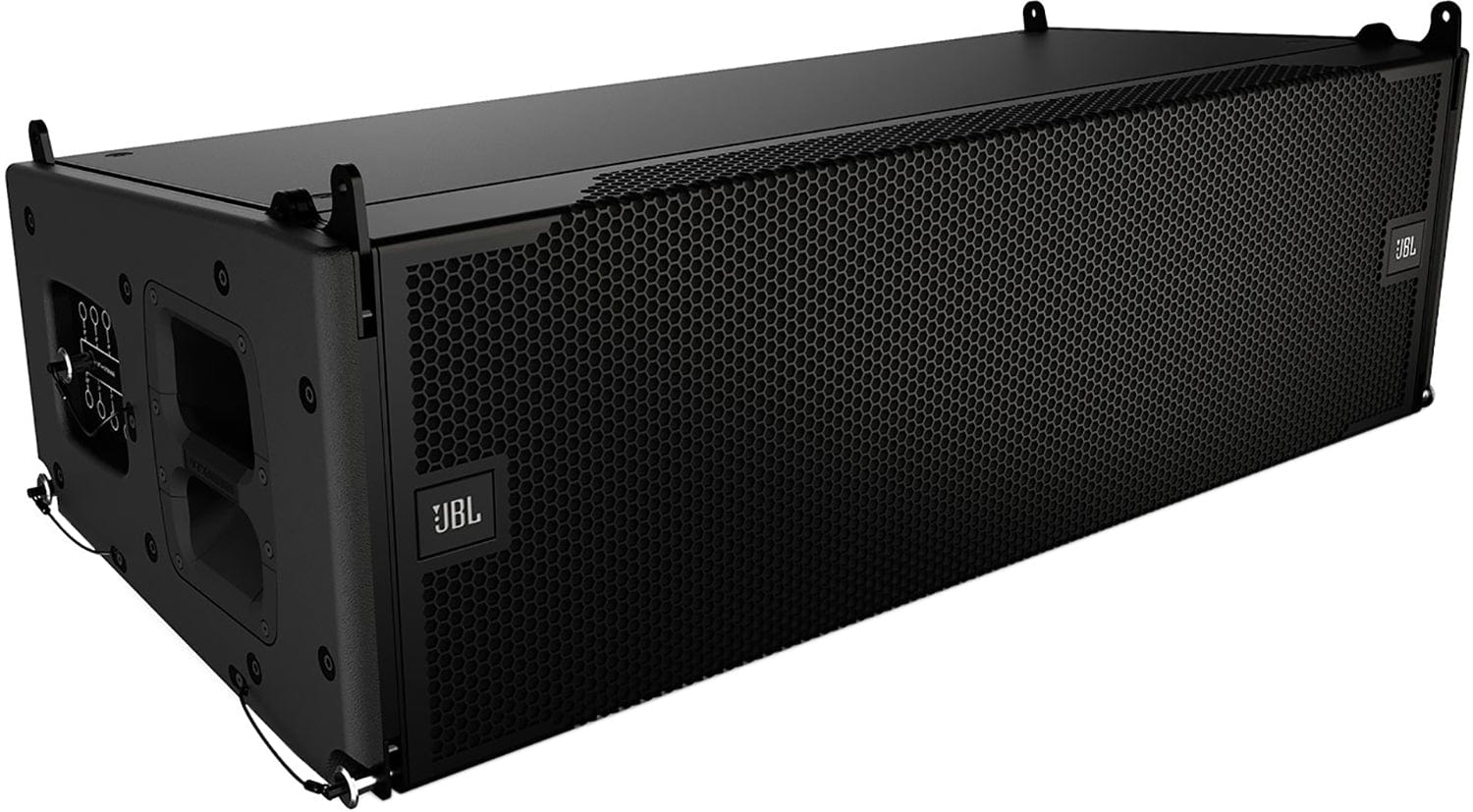

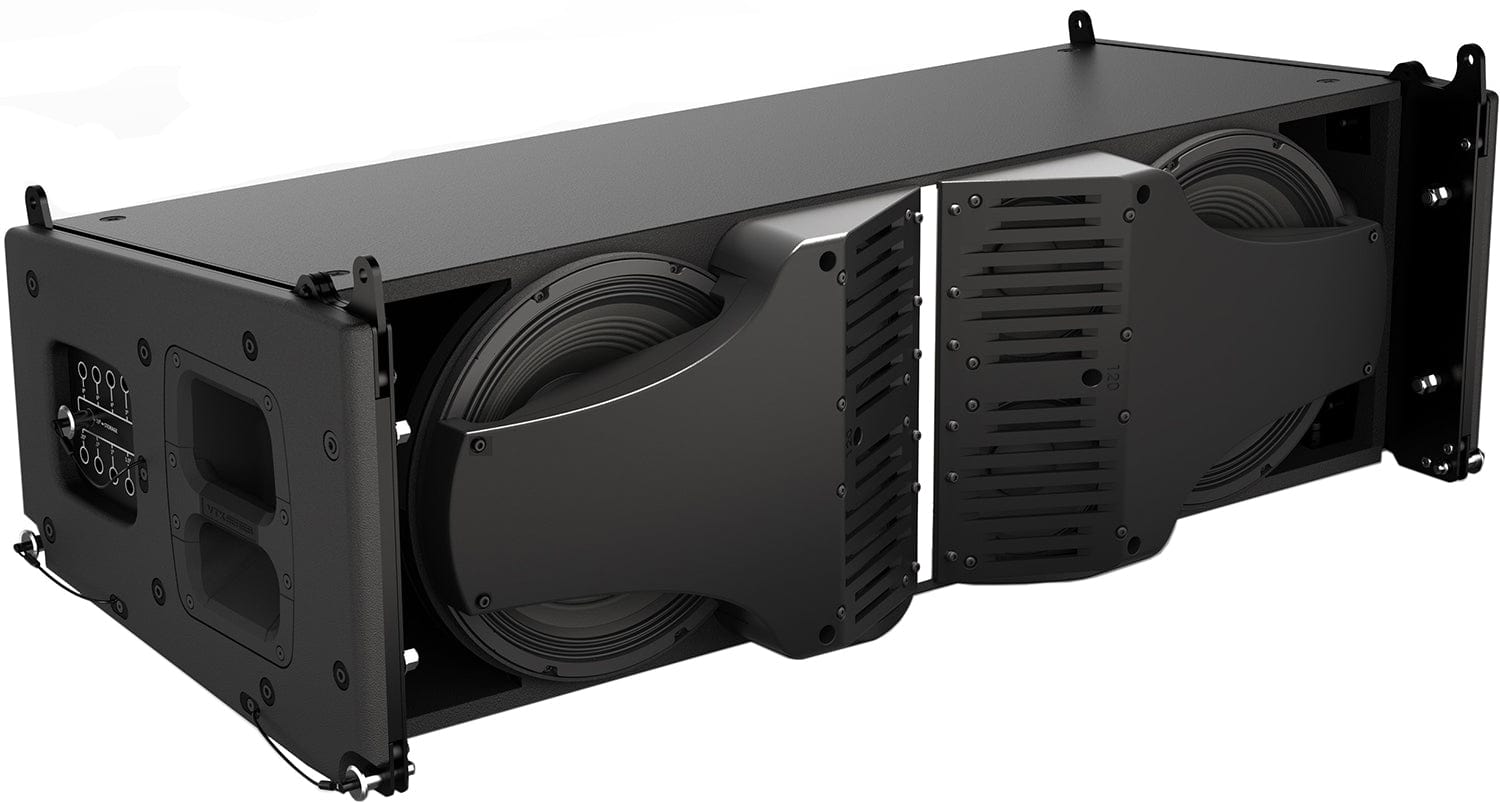

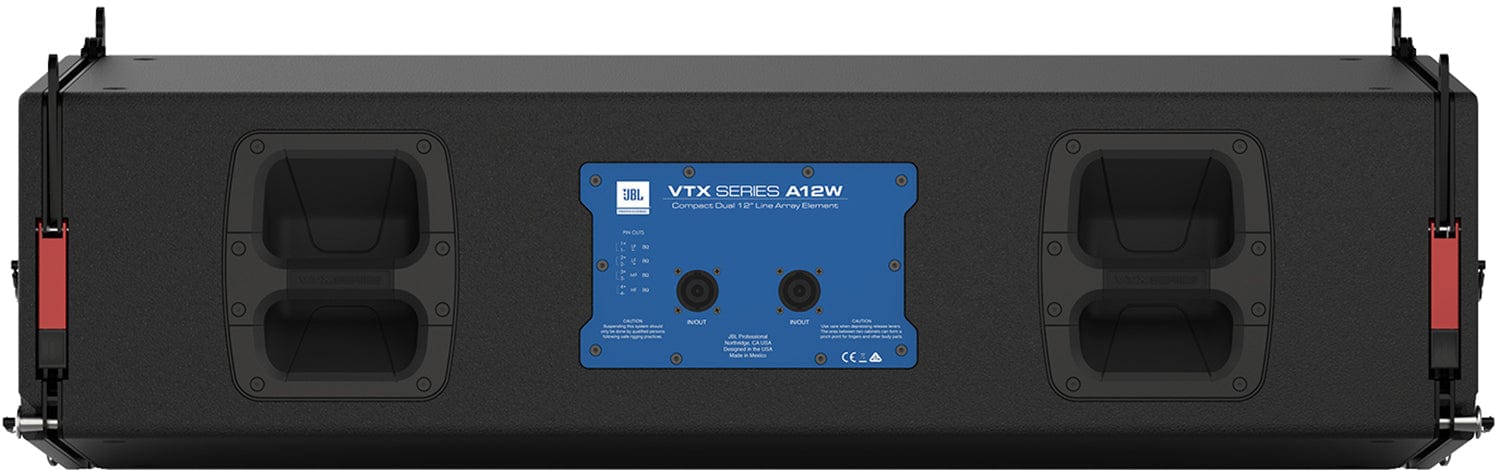

JBL VTX-A12W: The Ultimate 12-Inch 3-Way Line Array Speaker for Stunning Sound
The JBL A Series is a game-changer for mid- to large-size touring and high-end fixed installations. The VTX A12W was crafted to meet the demands of rental companies, FOH engineers, and tour sound crews. It offers wider horizontal coverage while delivering unmatched performance. Here's why it's a must-have:
Key Features:
- • 120-degree dispersion for broad coverage
- • Next-gen JBL transducers for top-notch output
- • Innovative HF section for high sensitivity
Plus, it has a redesigned RBI for reduced diffraction, a great rigging system, and a sleek design. It's lightweight and fully compatible with VTX A12.
Specifications:
- Frequency Range (-10dB): 46 Hz - 19k Hz (Preset: VTX A12W)

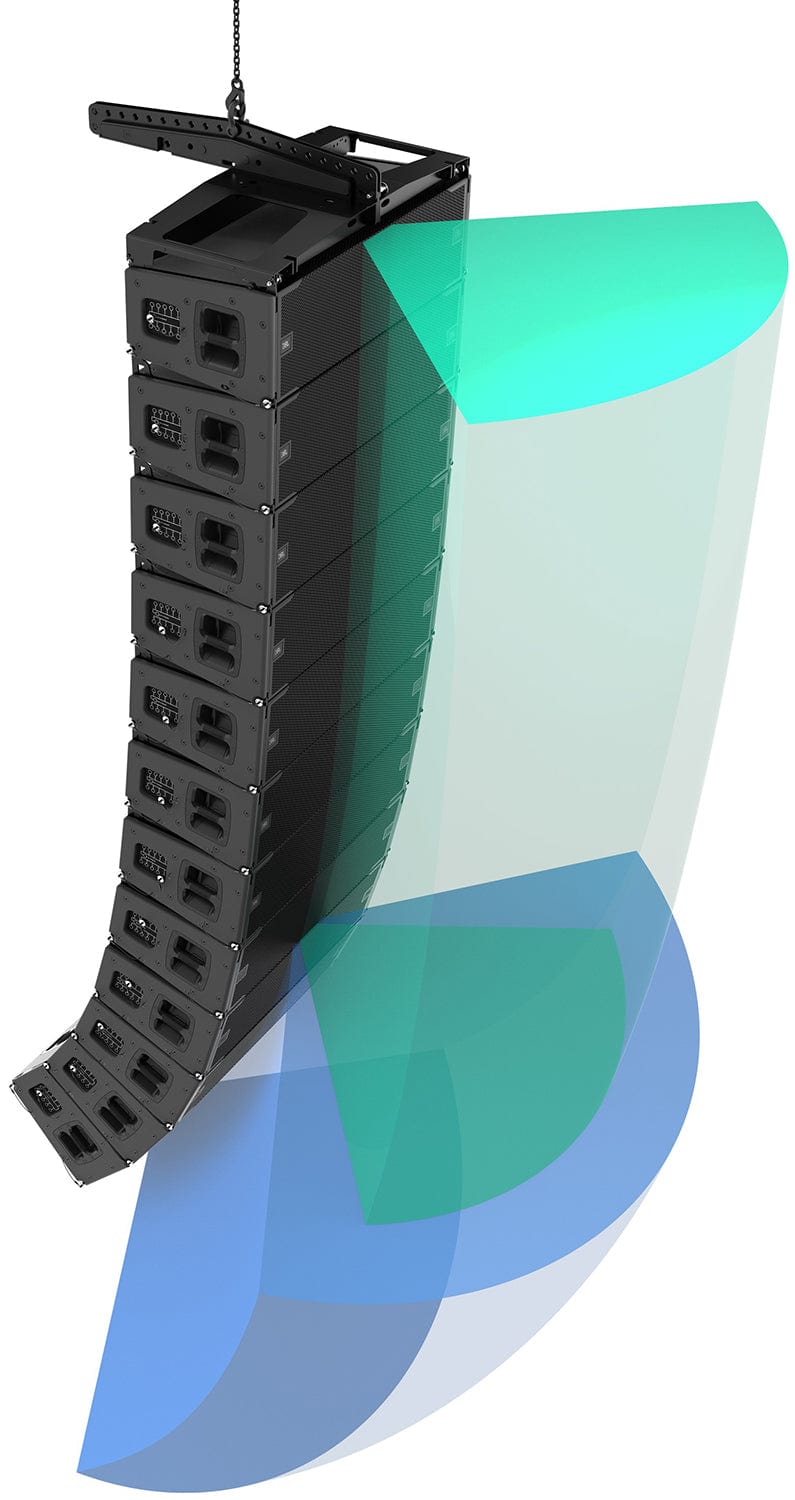

- Horizontal Coverage (-6 dB): 120 degrees nominal (250 Hz - 18k Hz)
- Max. SPL: 146 dB (Preset: VTX A12W)
- System Amplification: Crown Audio I-Tech HD
- Nominal Impedance:
- LF: 2x 8 ohms
- MF: 8 ohms
- HF: 8 ohms
- LF Driver: (2) JBL 2264H 12-inch Neodymium Differential Drive woofer
- MF Driver: (4) JBL 2165H 5.5-inch Neodymium Differential Drive woofer
- HF Driver: (3) JBL 2423K 2-inch annular diaphragm compression driver

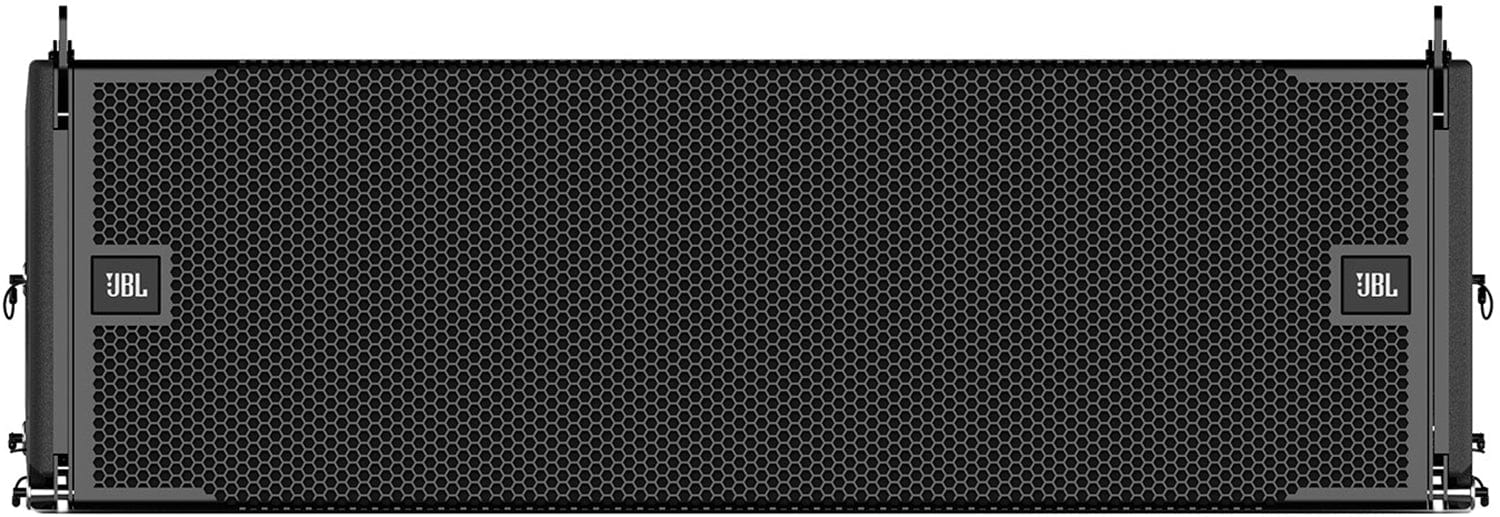

- Enclosure: Finnish birch plywood, Black DuraFlex finish, integral recessed handles
- IP Rating: IP55 EN (60529)

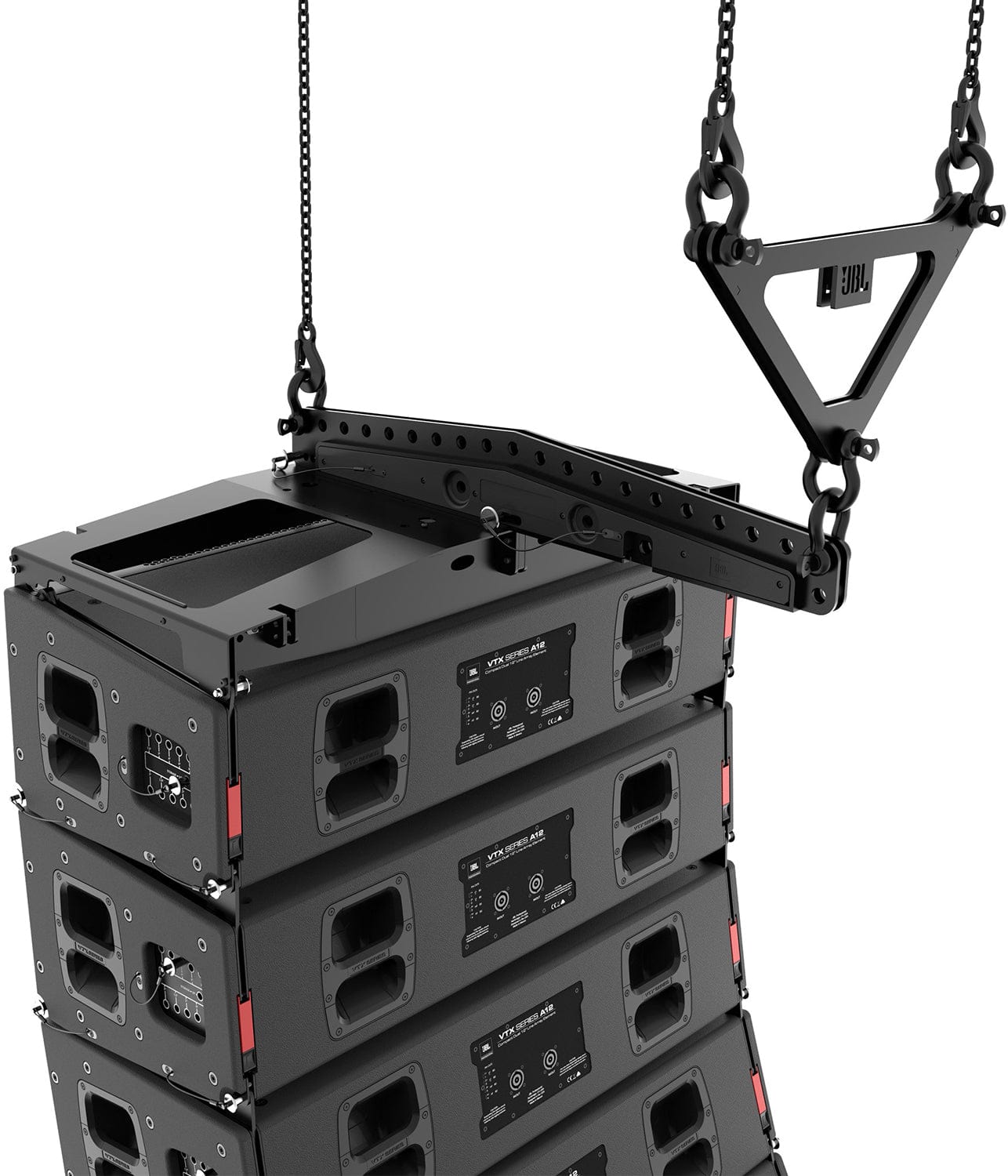

- Suspension / Mounting: High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles

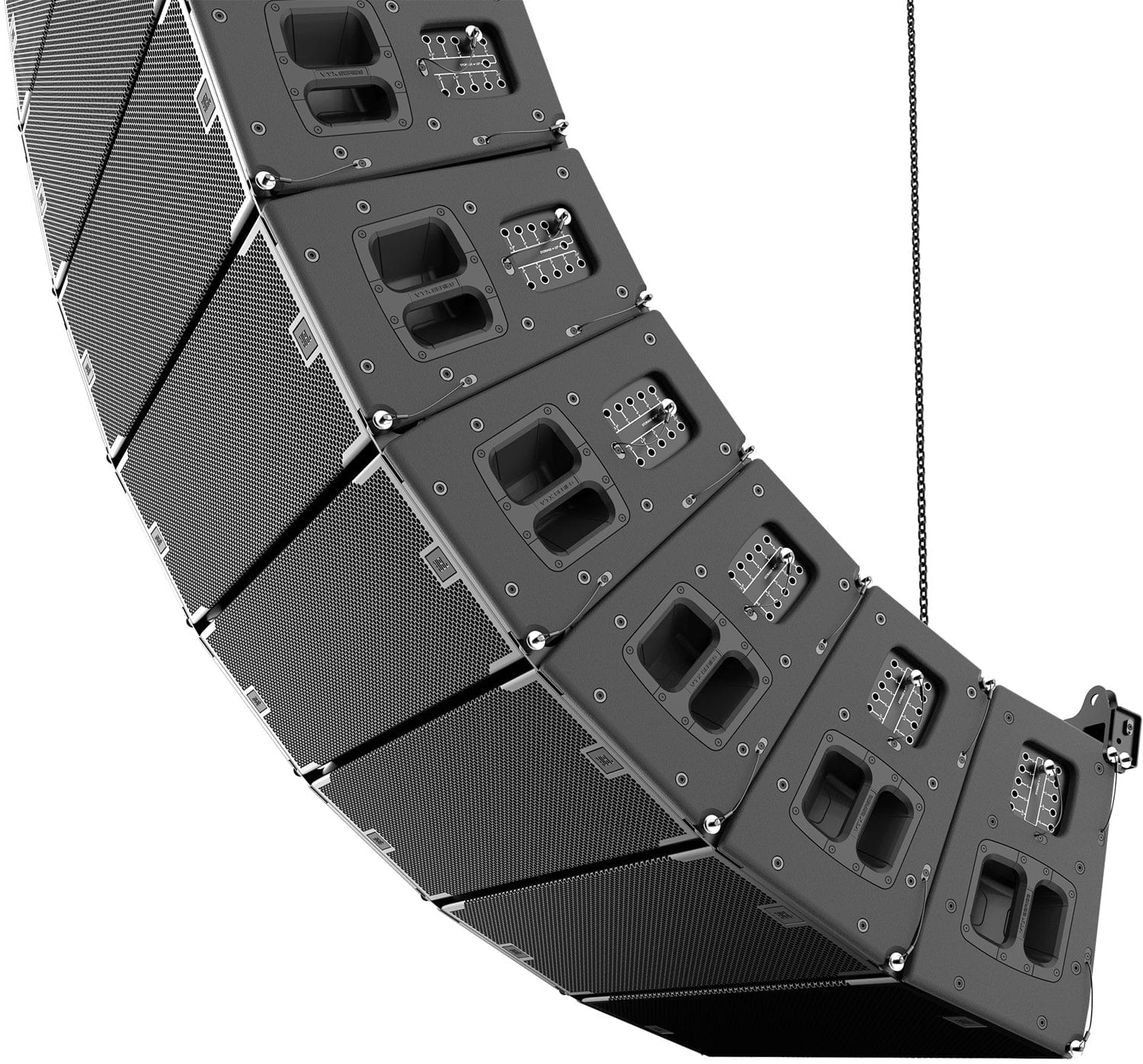

- Inter-enclosure Angle: 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10
- Dimensions (H x W x D): 330 mm x 1118 mm x 495 mm (13 in x 44 in x 19.5 in)
- Net Weight (each): 60.8 kg (134.0 lbs)
The JBL VTX-A12W is perfect for mid- to large-size touring applications and high-end fixed installations. It's designed for rental companies, FOH engineers, and tour sound production crews. With a 120-degree dispersion pattern, it offers wide horizontal coverage. The dimensions are 330 mm x 1118 mm x 495 mm (13 in x 44 in x 19.5 in) and it weighs 60.8 kg (134.0 lbs) each.
