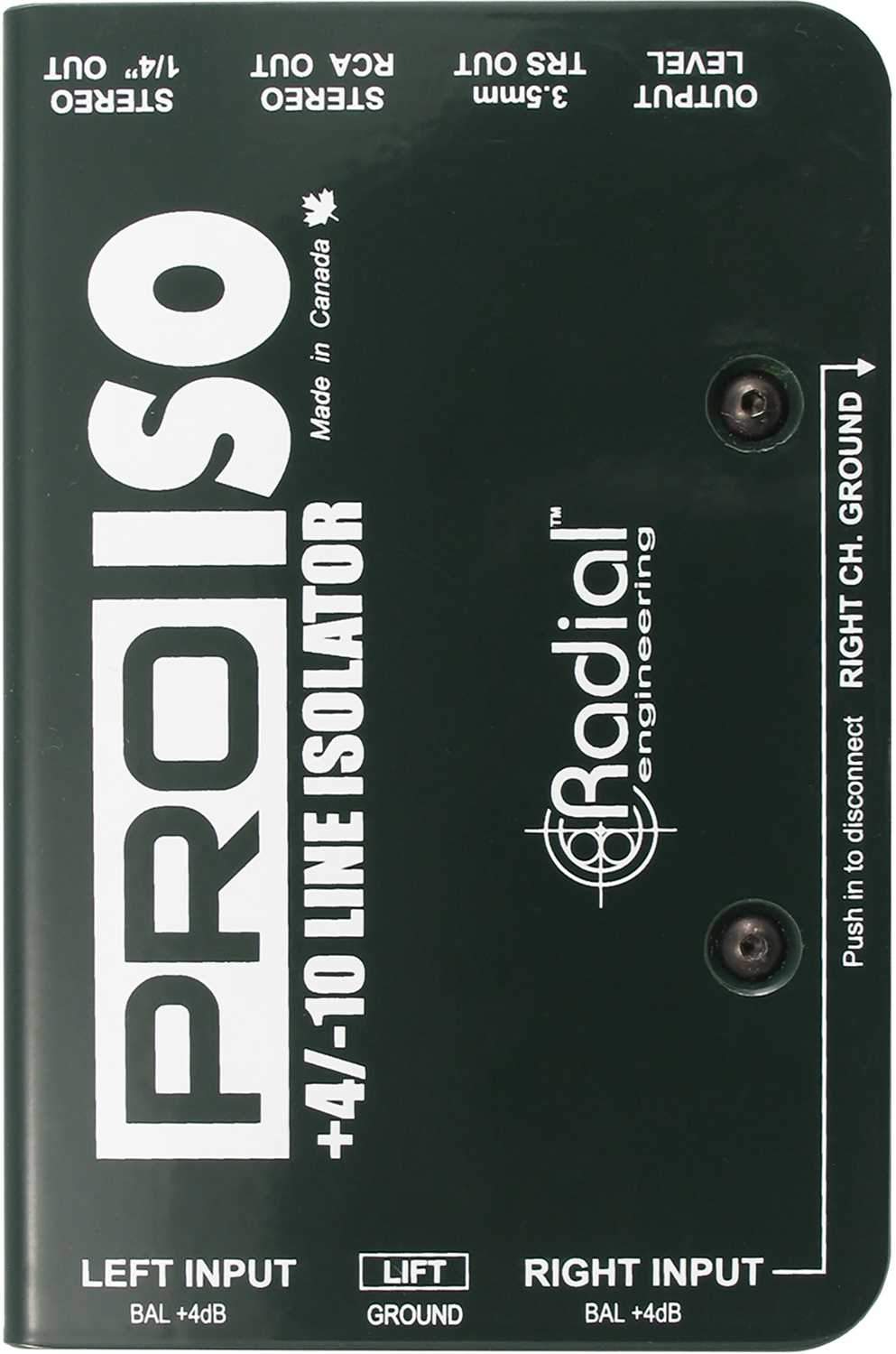

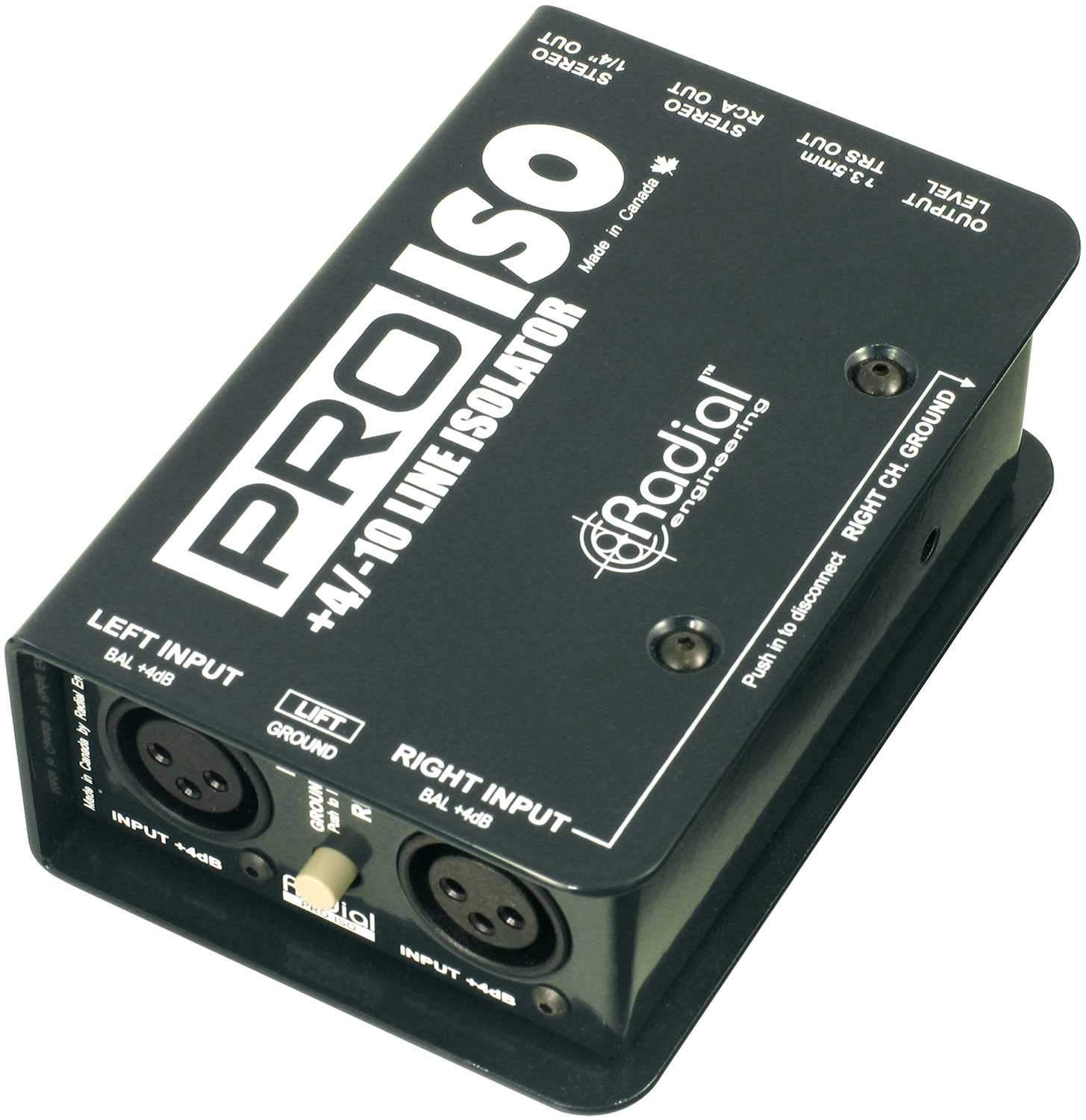

Radial ProISO Voice Range Passive Converter - The Ultimate Voice Recording Solution
Transform Your Voice Recordings with Ease
Are you tired of dealing with poor audio quality when recording sermons, news, or spoken voice? The Radial ProISO Voice Range Passive Converter is here to revolutionize your recording experience. With its cost-effective transformer and exceptional signal handling, this converter is the perfect choice for anyone looking to capture crystal-clear audio.
Key Features:
• 4dB to -10dB Converter and Isolator: The Pro-Iso is a +4dB to -10dB converter that focuses the energy in the voice range, making it ideal for sermons, news gathering, and spoken voice.
• Exceptional Signal Handling: The passive design with 100% discrete components ensures outstanding signal handling. The set & forget level control lets you attenuate the input signal to prevent overloading the destination device. Output connections include a stereo pair of o' connectors, a set of RCAs, and a mini 3.5mm (1/8') for interfacing with a mini recorder or lap-top computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.
• Versatile Connectivity: Whether you're recording a performance, converting a balanced signal, or feeding a computer, the Pro-Iso has you covered. It comes with a simple interface and all the connectivity you need to get the job done.
Benefits:
• Easy to Use: The Pro-Iso is designed for simplicity, making it easy for anyone to use. Just connect your devices and start recording.
• High-Quality Audio: With its exceptional signal handling and transformer isolation, the Pro-Iso delivers high-quality audio that sounds professional.
• Cost-Effective: The Pro-Iso offers a cost-effective solution for anyone looking to improve their audio recordings without breaking the bank.
Technical Specifications:
• Audio circuit type: Passive, transformer based
• Transformer: Radial transformer
• Number of channels: Stereo (dual mono)
• Frequency response: 20Hz ~ 18KHz (+0dB/ -3dB)
• Dynamic range: 130dB
• Total harmonic distortion: 0.005% @ 1kHz
• Phase Deviation: 1.5 @ 100Hz; 3 @ 20Hz
• Input Impedance: 1.3k Ohms
• Output Impedance: 1.9k Ohms
• Common Mode Rejection Ratio: -76dB
• Maximum Input: +20dBu @ 1kHz/1% THD+N
• Ground lift, Level Control

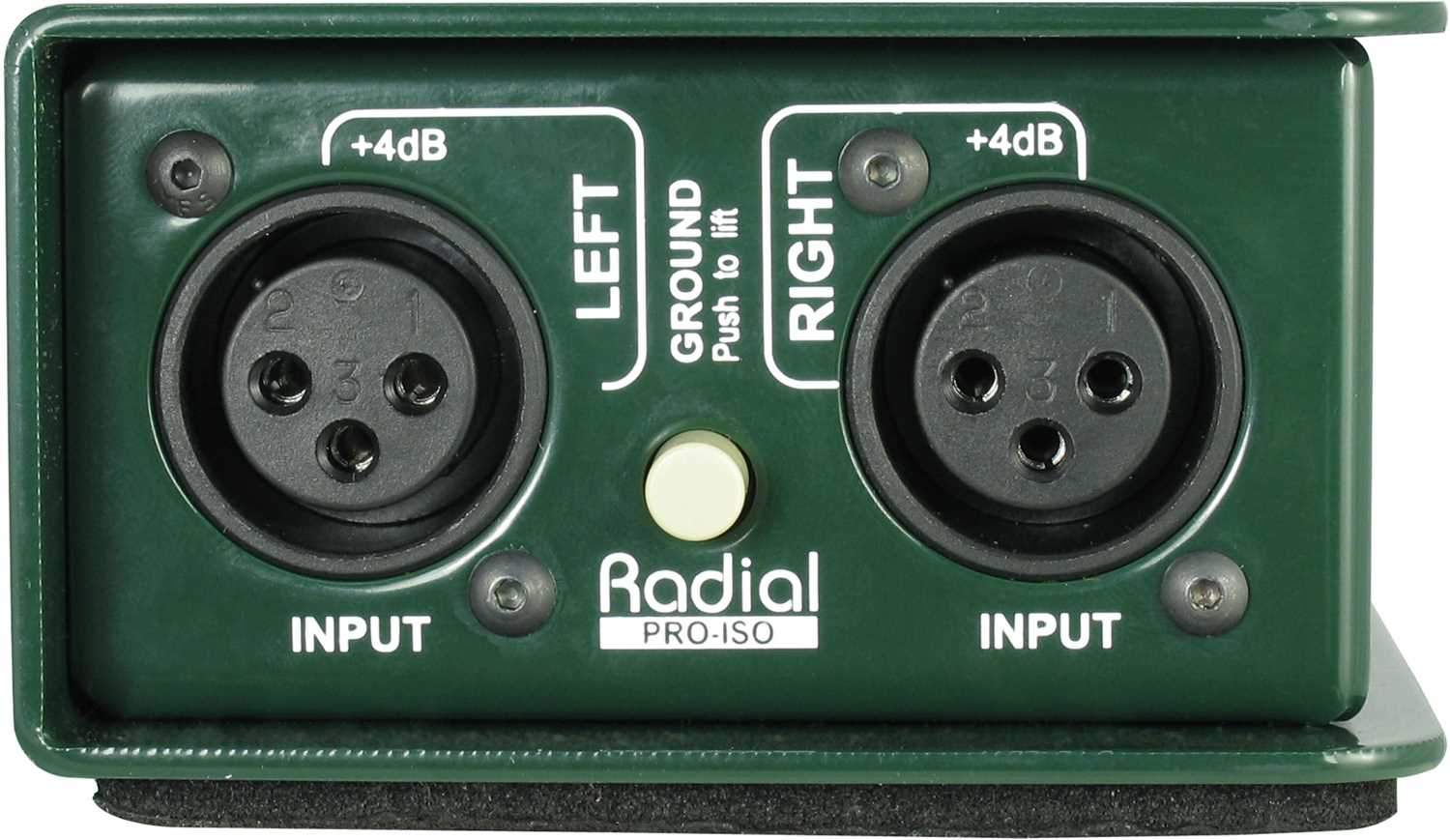

• Input Connectors: Balanced XLR

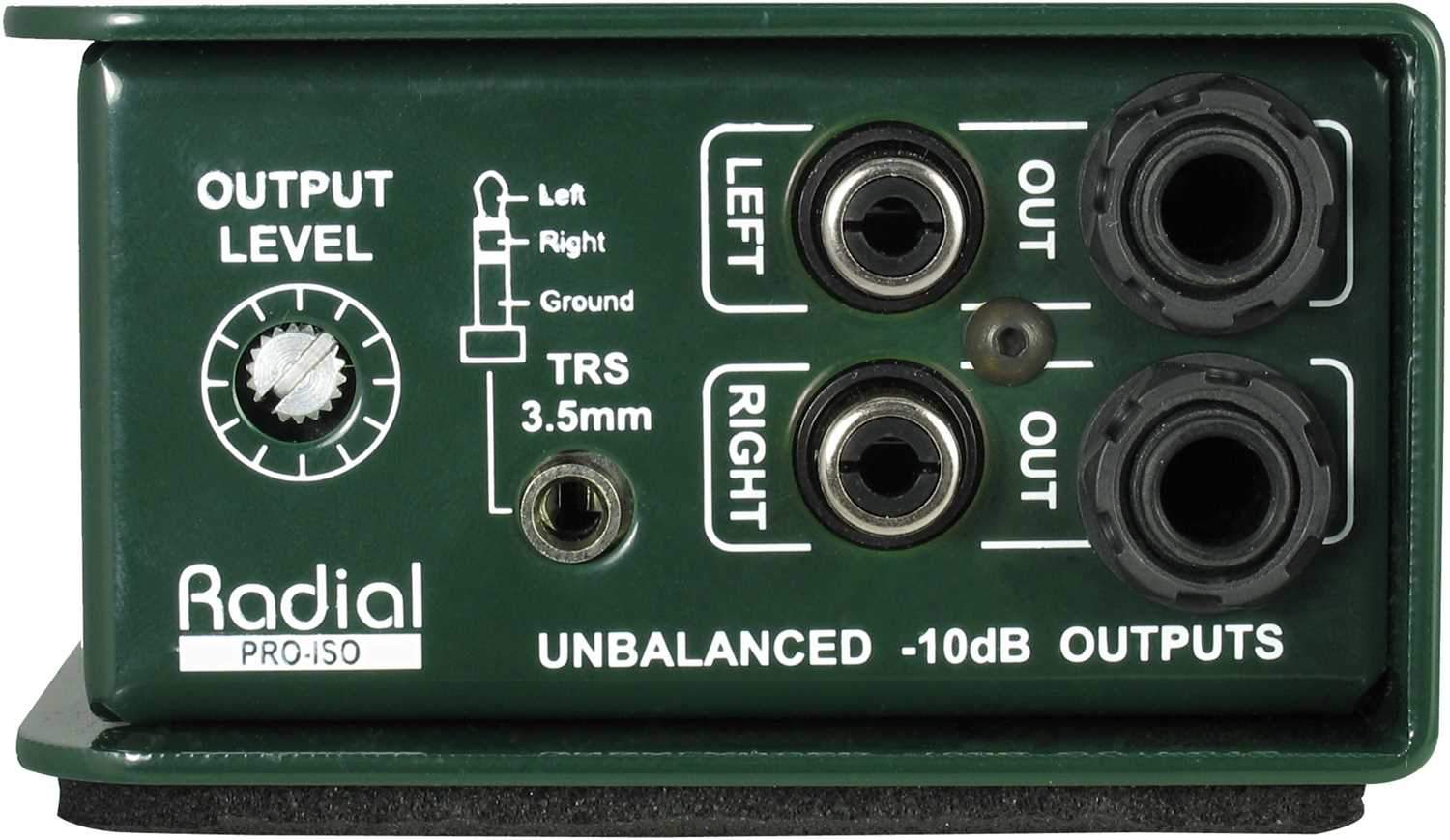

• Output Connectors: 1/4', RCA and 3.5mm TRS unbalanced output
• Construction: 14 gauge steel chassis
• Size (L x W x D): 8.4cm x 12.7cm x 4.8cm (3.3' x 5' x 2')
• Weight: 0.7 kg (1.55 lbs)
• Shipping size (L x W x D): 10.2cm x 7.6cm x 16.5cm (4' x 3' x 6.5')
• Shipping weight: 0.87 kg (1.92 lbs)
• Power: Passive, no power required
• Conditions: For use in dry locations only between 5 C and 40 C
• Warranty: Radial 3-year, transferable
The Radial ProISO Voice Range Passive Converter is a must-have for anyone looking to capture high-quality audio. Whether you're a preacher recording sermons, a journalist gathering news, or simply someone who wants to record clear spoken voice, this converter is perfect for you. With its compact size (8.4cm x 12.7cm x 4.8cm) and lightweight design (0.7 kg), it's easy to take with you on the go. The ProISO offers versatile connectivity options, including XLR inputs, unbalanced outputs, and a ground lift feature. It's designed to handle a wide range of audio signals, from professional consoles to portable recorders and laptops. With its exceptional signal handling and transformer isolation, you can expect crystal-clear audio every time. The ProISO is powered passively, so you don't need to worry about any external power sources. It's also built to last, with a 14 gauge steel chassis and a 3-year transferable warranty. Whether you're recording in the studio or on location, the Radial ProISO Voice Range Passive Converter is the ultimate solution for all your voice recording needs.
