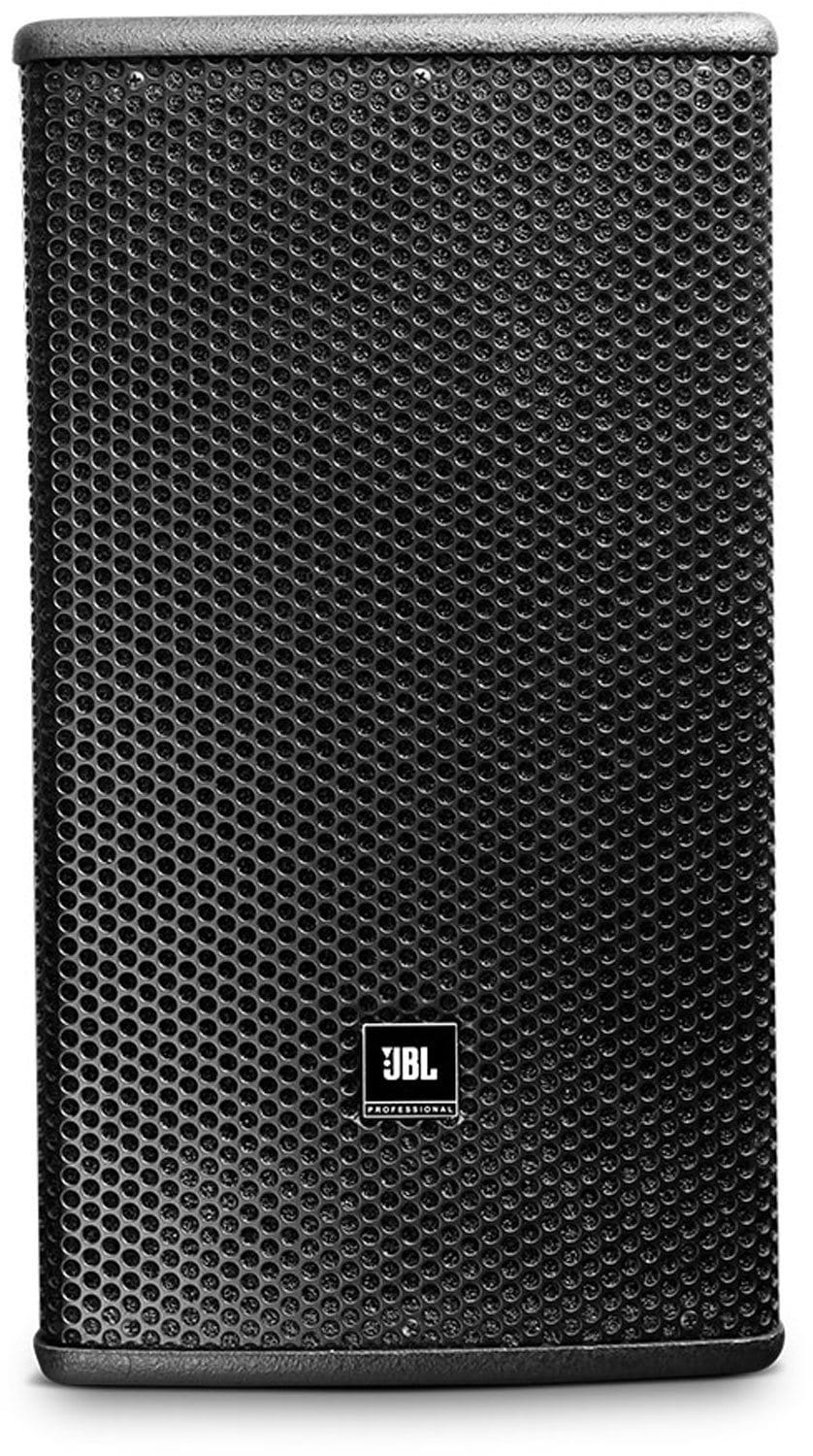

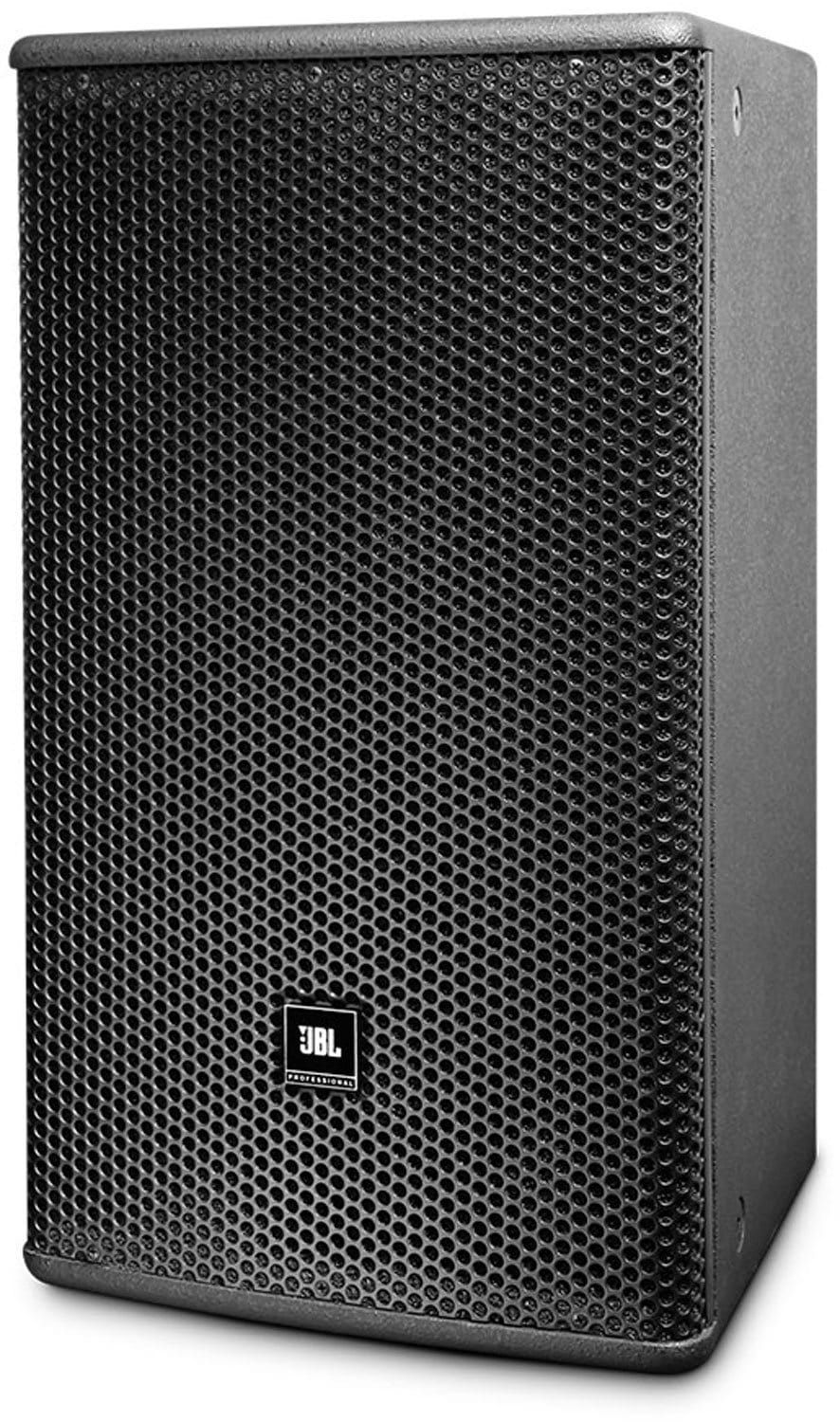

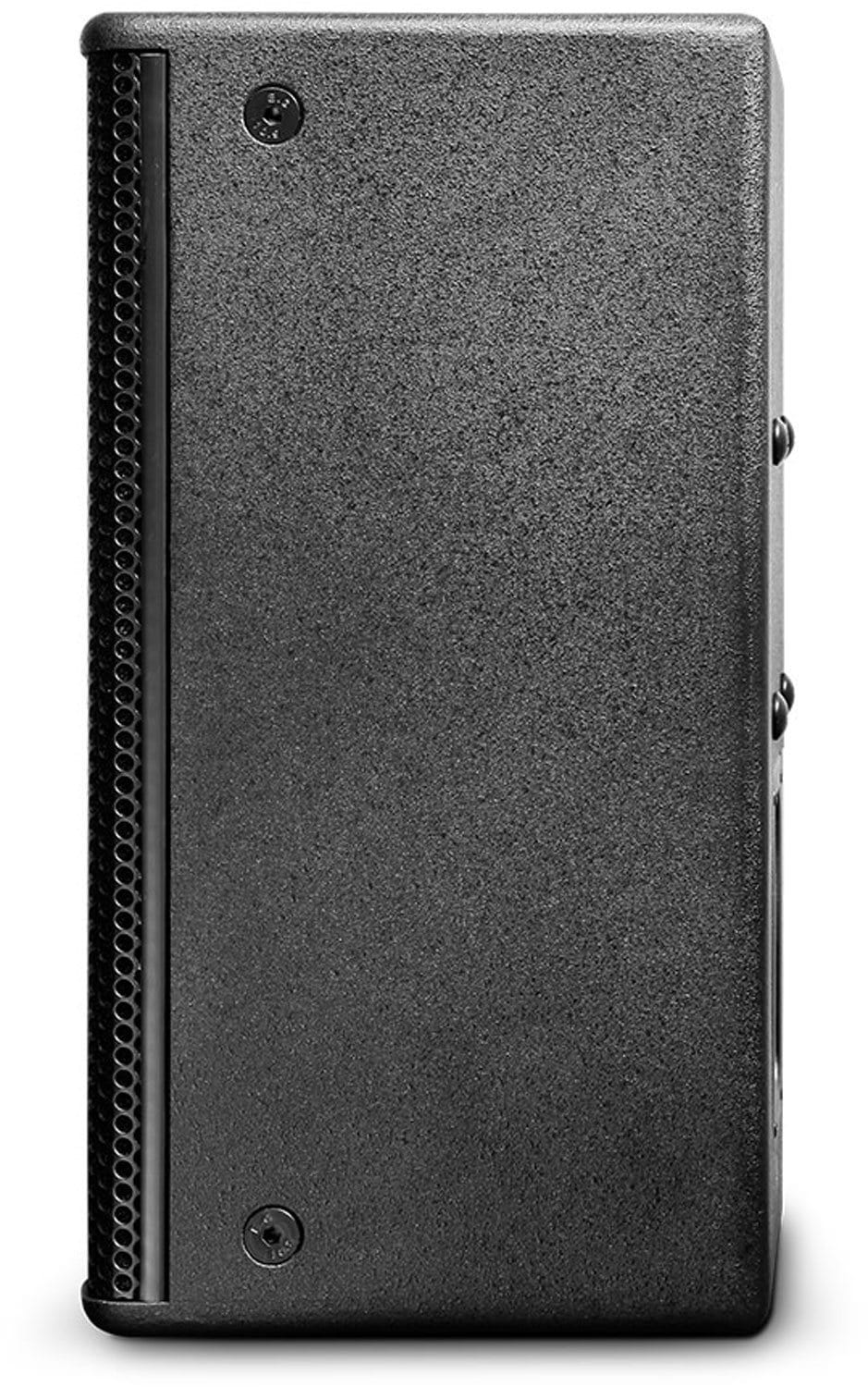

JBL AC195 Compact 10-Inch 2-Way Full-Range Speaker
• Compact Design: This speaker is designed to fit seamlessly into any space, whether it's a small club, a cozy worship house, or a multi-media room. Its compact enclosure makes it easy to install and integrate into your existing setup.

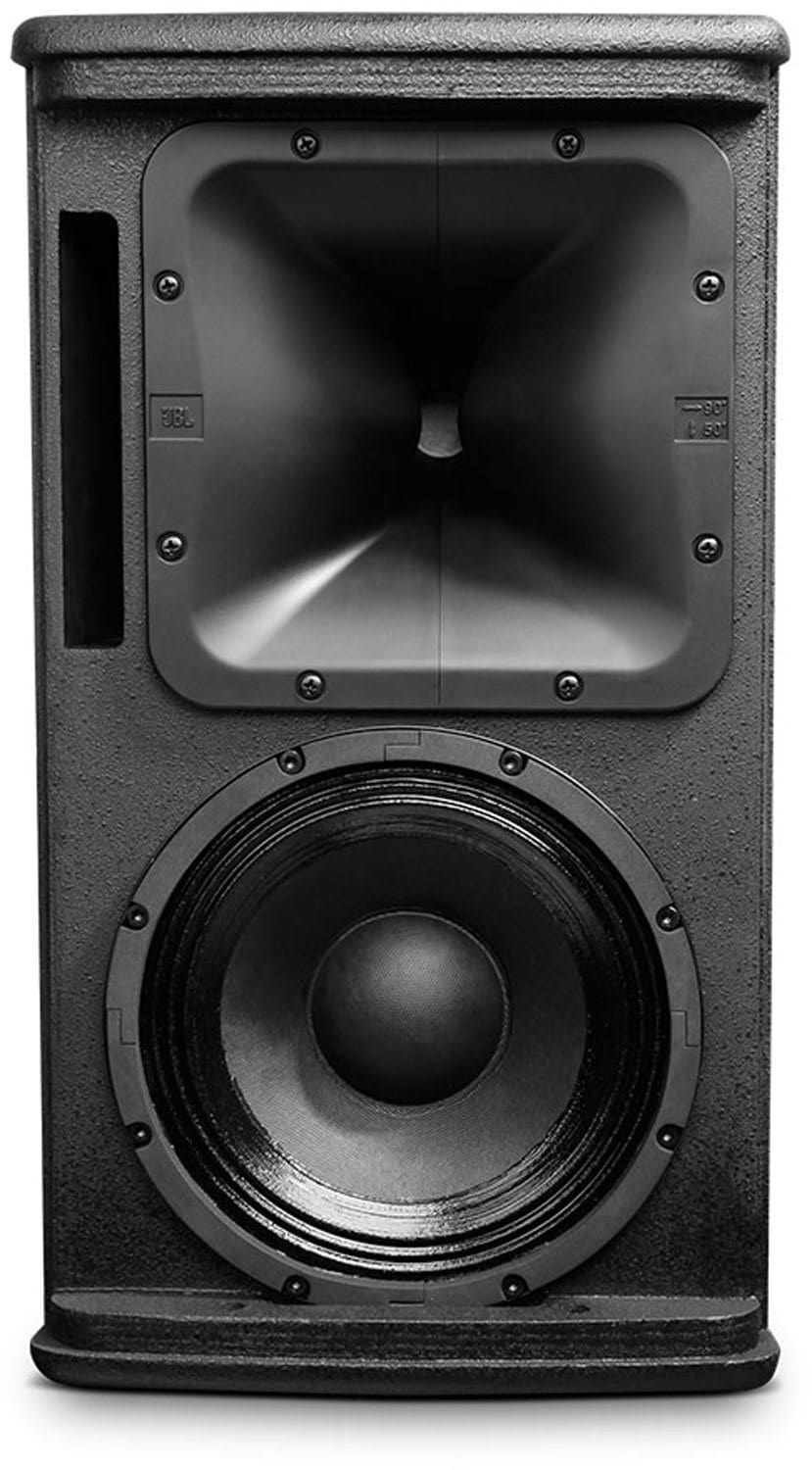

• High-Quality Sound: With a 258 mm (10 in) LF transducer and a 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver, the JBL AC195 delivers exceptional sound quality. The rotatable PT Progressive Transition waveguide provides 90° by 50° coverage, ensuring that every corner of the room gets great sound.
• Versatile Connectivity: Equipped with dual Neutrik NL4 connectors plus screw terminals, the JBL AC195 offers multiple attachment points for ultimate flexibility. You can easily connect it to your audio system and start enjoying great sound right away.
The JBL AC195 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Features:
- Compact enclosure
- 258 mm (10 in) LF transducer
- 90° x 50° Progressive Transition Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5') voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications:
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
Specifications:
- Frequency Range (-10 dB): 68 Hz - 20 kHz
- Frequency Response (±3 dB): 85 Hz - 18kHz
- System Sensitivity (1w @ 1m): 95 dB
- Nominal Impedance: 8 ohms
- Maximum SPL(1m): 118 dB (124 dB peak)
- Power Rating (Continuous/Program/Peak): 200 W/400 W/800 W
- Coverage Pattern: 90° x 50° (H x V)
- Crossover: 1.8 kHz
- Low Frequency Driver: 1 x 10' woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
- High Frequency Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
- Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Enclosure: 15 mm multi-ply hardwood plywood
- Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension / Mounting: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
- Dimensions (H x W x D): 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in
- Net Weight: 13.1 kg (28.8 lbs)
The JBL AC195 is a compact 2-way full-range speaker perfect for various spaces. It's great for clubs, bars, houses of worship, and multimedia rooms. The speaker is easy to install with its compact design. It has a 258 mm (10 in) LF transducer and a 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver for high-quality sound. With dual Neutrik NL4 connectors and screw terminals, it offers versatile connectivity. Dimensions are 535 mm x 310 mm x 329 mm (21.0 in x 12.2 in x 12.9 in) and it weighs 13.1 kg (28.8 lbs). Ideal for those looking to enhance their audio experience in different settings.
