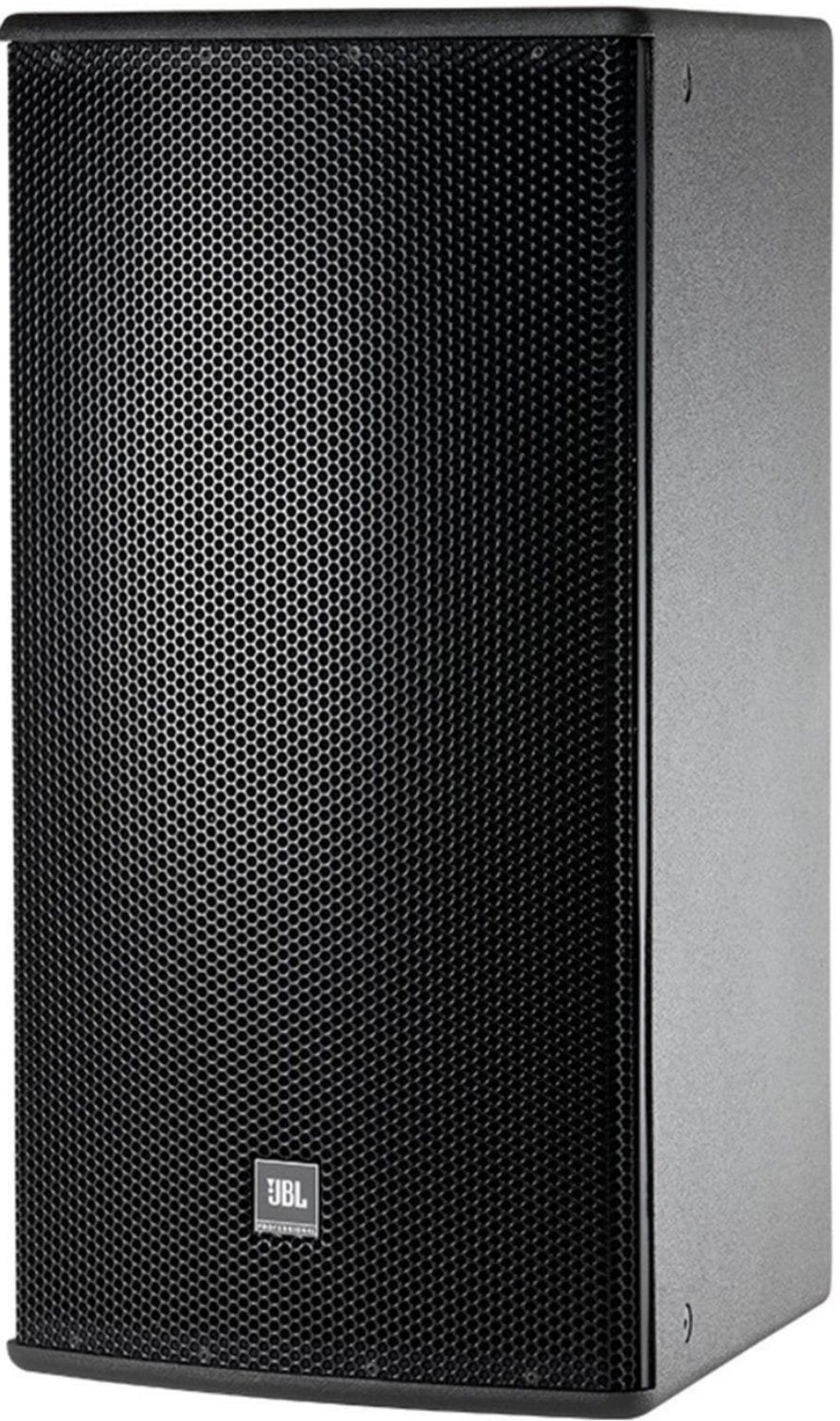

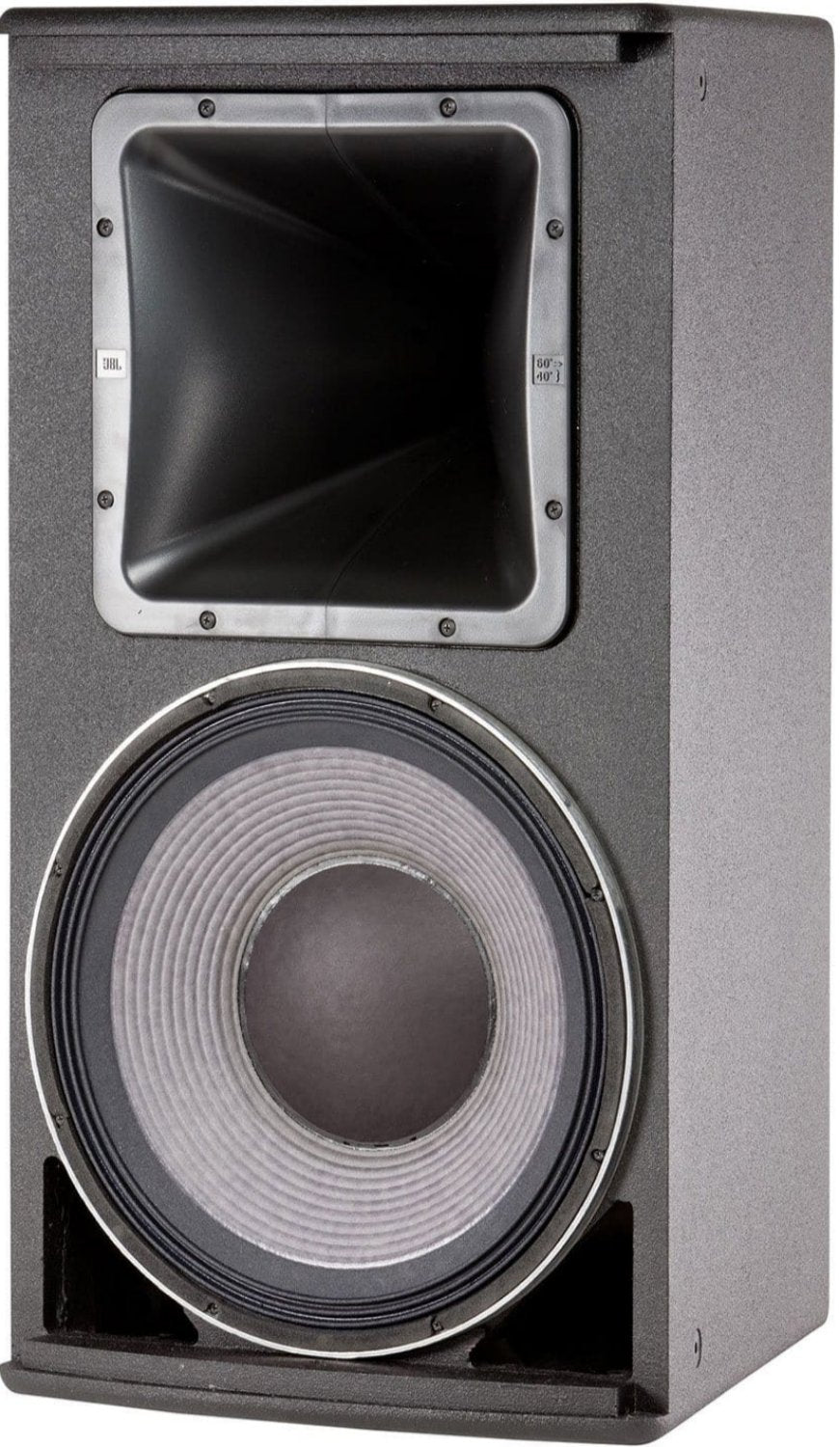

JBL AM7215/64 High-Power 15-Inch Rotatable Loudspeaker for Immersive Sound
Get ready to experience sound like never before with the JBL AM7215/64. This high-power, lightweight loudspeaker system is a game-changer for various venues. • High Power: Delivers outstanding audio performance. • Rotatable Design: Allows for vertical or horizontal orientation, adapting to your space. • Wide Coverage: The 60 x 40 Degree rotatable waveguide provides excellent coverage.
Features:
- 2265H Differential Drive Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Applications: Ideal for performing arts facilities, theaters, auditoriums, worship places, live clubs, dance clubs, sports facilities, and themed entertainment venues
Specifications:
- Frequency Range ( –10 dB): 34 Hz - 20 kHz
- Frequency Response ( ± 3 dB): 40 Hz - 18 kHz
- Coverage: 60° x 40°
- LF Driver: 2265H
- HF Driver: 2432H
- System Type: 15' Two - Way, High Power, Full - Range
- Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
- Weight: 27.2 kg (60 lb)
- Crossover Modes: Bi-amp/Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- Transducer Power Rating (AES): LF - 1000 W (4000 W peak) 2 hr 750 W (3000 W peak), 100 hrs, HF - 100 W (400 W peak), 2 hrs
- Long-Term System Power Rating (IEC): Passive mode 600 W (2400 W peak), 100 hrs
- Maximum SPL (dB-SPL, 1W @ 1m): Bi-amp mode LF: 128 dB-SPL cont avg (134 dB peak); HF: 135 dB-SPL cont avg (141 dB peak); Passive mode 124 dB-SPL cont avg (130 dB peak)
- System Sensitivity (1W @ 1m): Passive mode 96 dB SPL
- Nominal Impedance: 8 ohms
The JBL AM7215/64 is a high-power 15-inch rotatable loudspeaker. It's perfect for venues like performing arts facilities, theaters, and auditoriums. With dimensions of 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in) and weighing 27.2 kg (60 lb), it's easy to set up. Ideal for sound engineers and venue owners looking to enhance their audio experience.
