Electro-Voice EVOLVE 50: The Ultimate Portable Column Array Speaker System Kit
Get ready to elevate your sound experience with the EVOLVE 50! This portable column array speaker system kit is designed to deliver an unbeatable combination of lightweight design, sleek looks, and superior audio quality. It's the perfect choice for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high-output portable sound is needed.

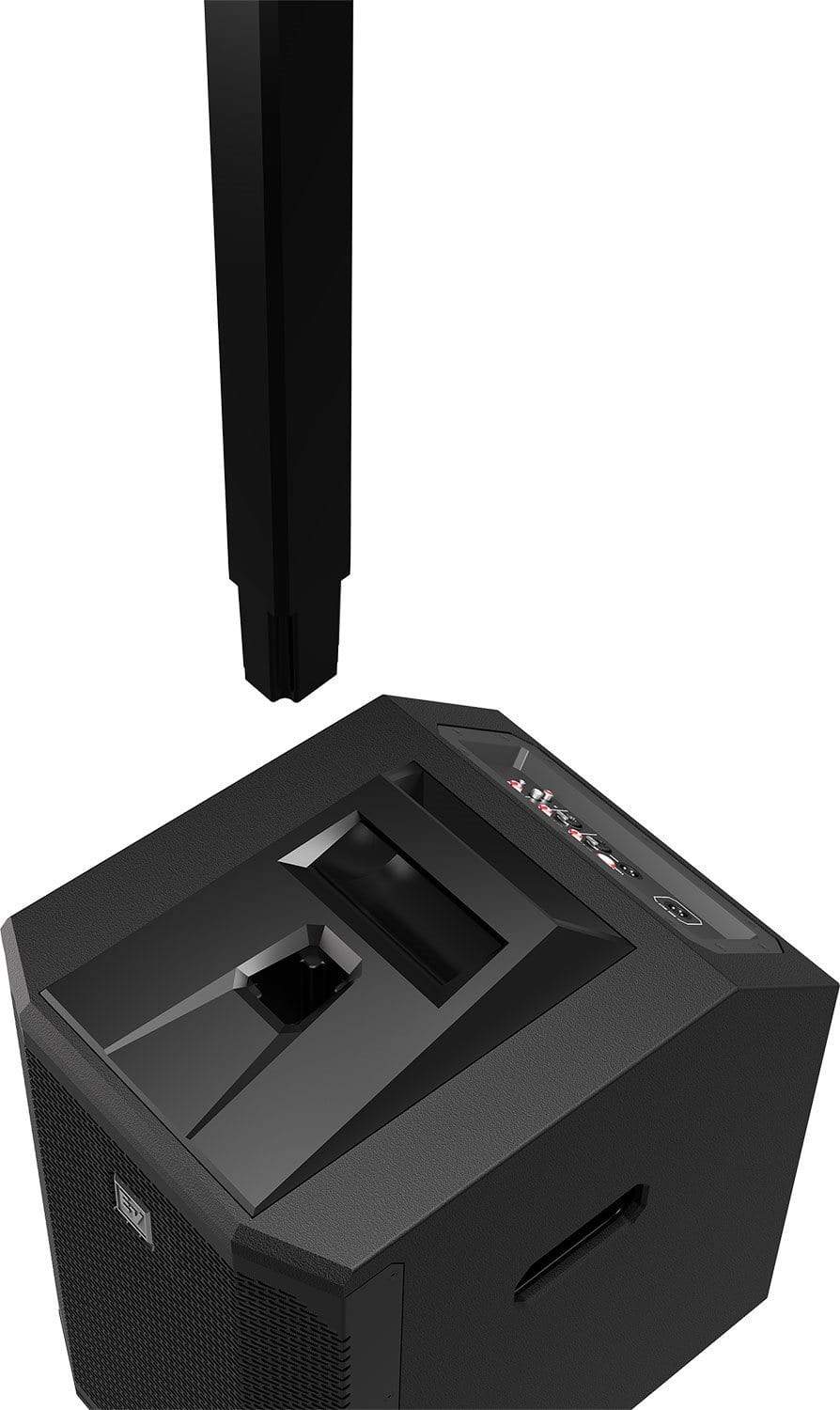

• Lightweight and Compact: The EVOLVE 50 features a clean, compact design that's easy to transport and setup. Its lightweight column speaker array with cable-free connection quickly secures the pole to the sub, making it a breeze to move around.
• High-Quality Sound: With eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp, the EVOLVE 50 delivers real PA performance. Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format.
• Wide Coverage: Custom waveguides provide ultra-wide 120° horizontal coverage and array-formed 40° asymmetrical vertical pattern control, ensuring exceptional audience coverage and clarity from front to back.
• Bluetooth Connectivity: Enjoy convenient streaming of background music or musical accompaniment direct from any mobile device with high-quality Bluetooth audio. Plus, wireless control and monitoring via the new Bluetooth QuickSmartMobile app allows you to quickly configure up to six EVOLVE 50 systems simultaneously and receive immediate notification during critical performance conditions.

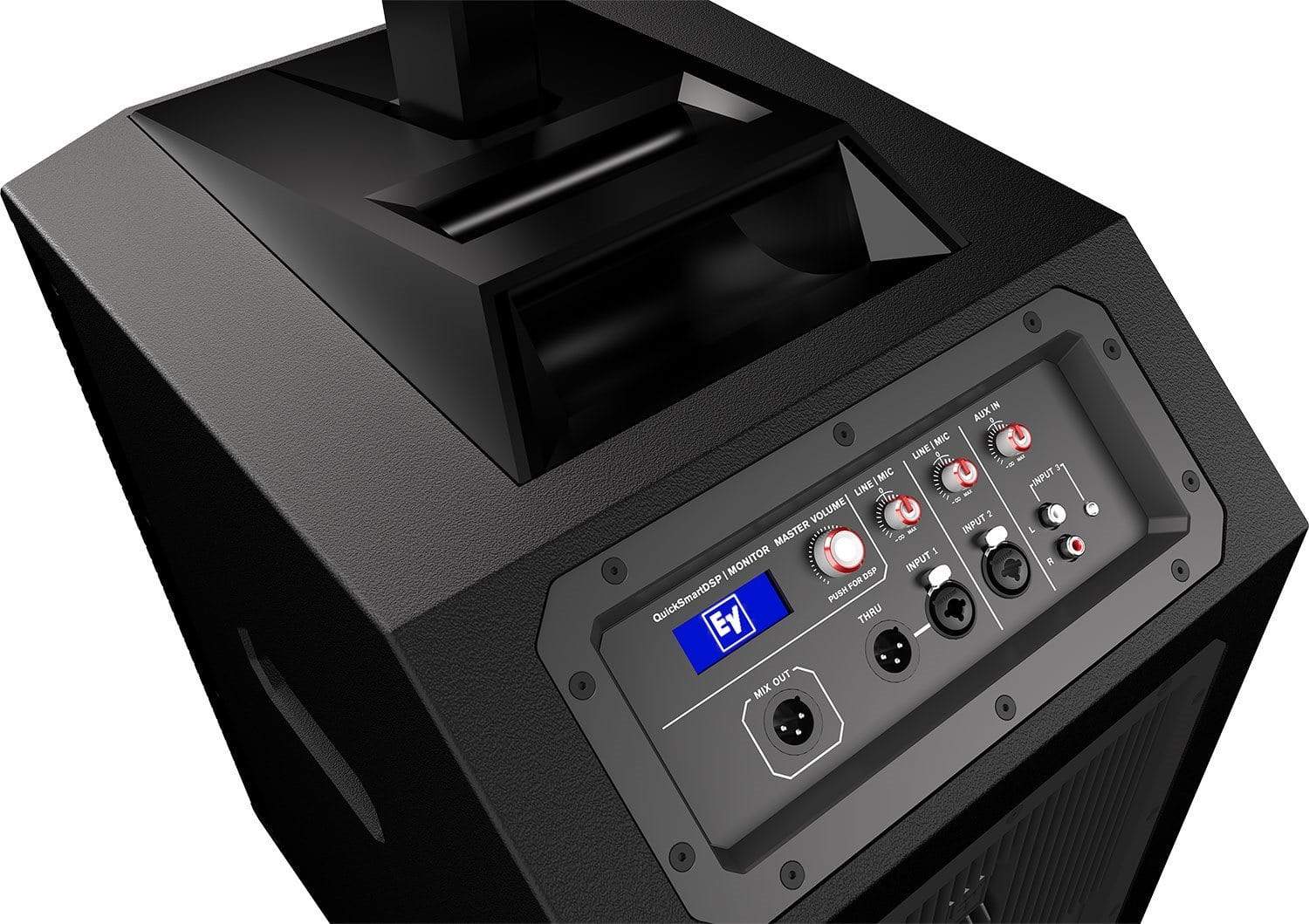

• QuickSmartDSP: The EVOLVE 50 features QuickSmartDSP, which provides best-in-class processing via EV's signature single-knob user interface with LCD. Easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.
Specifications:
- Available Color: Black
- Connector Type:
- 2x XLR/TRS combo jack input
- 1x 3.5 mm Input
- 1x Stereo RCA input
- 1x Wireless Bluetooth audio input
- 1x XLR THRU output
- 1x XLR MIX OUT output
- Coverage (Nominal -6 dB) H: 120 °
- Coverage (Nominal -6 dB) V: 40 °
- Crossover Frequency: 200 Hz
- Depth:
- Sub: 471mm (18.5 in)
- Column: 172mm (6.9 in)
- Pole: 55mm (2.2 in) mm
- Enclosure Material: Wood
- Family: EVOLVE 50
- Frequency Range (-10 dB): 37 Hz - 20
- Frequency Response (-3 dB): 43 Hz - 20 Hz
- Grill: Steel with black powder coat
- HF Power Handling: 500 Watts
- LF Power Handling: 500 Watts
- Max. SPL/1m (calc): 127 dB
- Maximum SPL (1% THD):
- Sub: 230mm (20.9 in)
- Column: 825mm (32.5 in)
- Pole: 929mm (36.6 in) dB
- Power Consumption: 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
- Power Rating: 1000 W
- Powered or Passive: Powered
- Shipping Weight: 31.3 kg
- Speaker Type: Full-Range
- Weight Net: 26.25 kg
- Width:
- Sub: 345mm (13.6 in)
- Column: 102mm (4.0 in)
- Pole: 48.5mm (1.9 in) mm
- Woofer Size: 12 inch
The EVOLVE 50 is a portable column array speaker system kit designed for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high-output portable sound is needed. It features a lightweight and compact design, high-quality sound, wide coverage, Bluetooth connectivity, and QuickSmartDSP. The system has the following technical specifications: available color is black, connector type includes 2x XLR/TRS combo jack input, 1x 3.5 mm Input, 1x Stereo RCA input, 1x Wireless Bluetooth audio input, 1x XLR THRU output, and 1x XLR MIX OUT output; coverage (nominal -6 dB) is 120° horizontal and 40° vertical; crossover frequency is 200 Hz; depth of sub is 471mm (18.5 in), column is 172mm (6.9 in), and pole is 55mm (2.2 in); enclosure material is wood; frequency range (-10 dB) is 37 Hz - 20 kHz, frequency response (-3 dB) is 43 Hz - 20 kHz; grill is steel with black powder coat; HF power handling is 500 Watts, LF power handling is 500 Watts; max. SPL/1m (calc) is 127 dB; power consumption is 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A; power rating is 1000 W; powered or passive is powered; shipping weight is 31.3 kg; speaker type is full-range; weight net is 26.25 kg; width of sub is 345mm (13.6 in), column is 102mm (4.0 in), and pole is 48.5mm (1.9 in); woofer size is 12 inch.
