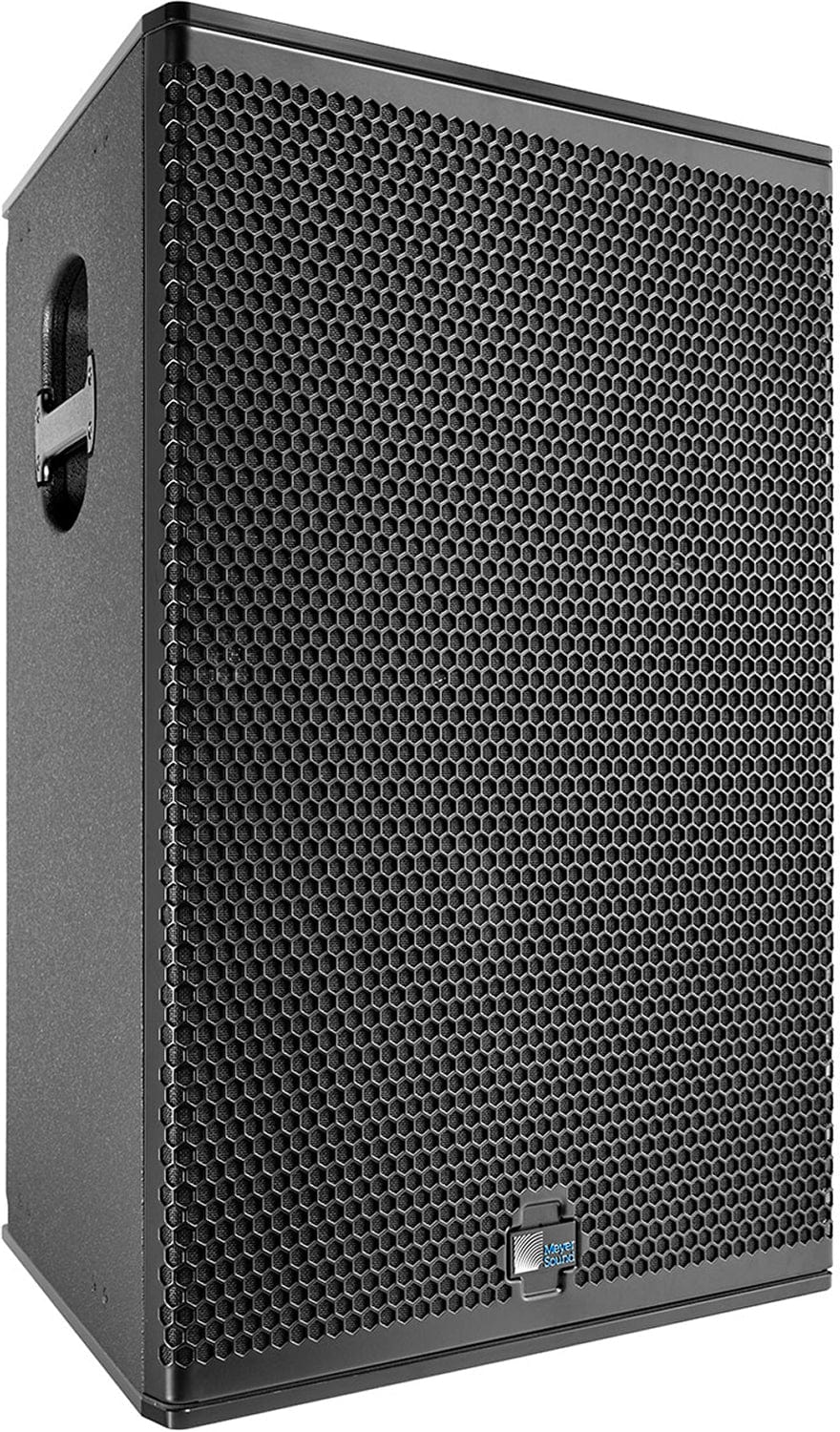

Meyer Sound UPQ-D1 Weather-Protected Large Point-Source Loudspeaker with 3-Pin XLR

The UPQ-D1 delivers an incredibly consistent polar response and a gentle coverage rolloff that evenly extends out to its 10 dB points of 100° by 60°. Thanks to meticulous research in Meyer Sound's anechoic chamber, the horn offers smooth and consistent performance, with a remarkably consistent beamwidth in both horizontal and vertical planes. It also provides uniform attenuation for all frequencies outside the specified beamwidth.

Standard Weather Protection
Meyer Sound aims for an IP rating of IPX4 (see “IP Ratings” on page 37) for Standard Weather Protection, which includes the following components:

• Wood treatment: Before cabinet manufacturing, the raw wood gets a special treatment to penetrate and stabilize the wood fibers, enduring various temperatures and extreme humidity.
• Cabinet finishing: The assembled cabinets receive a highly impervious finish with a sealing primer and a finishing topcoat. Coatings are applied on both surfaces, one on the interior and two on the exterior. The final step is a two-part modified acrylic urethane similar to military applications.
• Driver treatment: All cone drivers are coated with a water-resistant sealant.
• Exterior protection: Grille frames are coated against corrosion, and all components mounting to the cabinet use custom gaskets and stainless steel fasteners.
• Removable rain hood: The rain hood shields connectors even in windy rain.

Features:

• • Wide horizontal pattern for broad listening areas and focused vertical pattern for precise coverage
• • Highly energy-efficient amplifier with advanced digital signal processing for flat amplitude and phase response, ensuring tonal accuracy and precise imaging
• • Integral stand mount and QuickFly mounting options for easy rigging
• • Constant-Q horn for uniform response across the coverage area
• • Exceptional size-to-power ratio for application flexibility
• • Consistent and predictable performance for accurate system design

Specifications:

• Acoustical:
  • Operating Frequency Range: 55 Hz – 18 kHz
  • Frequency Response: 58 Hz – 18 kHz ±4 dB
  • Phase Response: 80 Hz – 18 kHz ±45°
  • Linear Peak SPL: 135.5 dB with crest factor >17 dB (M-noise), 132 dB (Pink noise), 135 dB (B-noise)
• Coverage:
  • Horizontal Coverage: 80° horizontal x 50° vertical (-6 dB)
  • Vertical Coverage: 100° horizontal x 60° vertical (-10 dB)
• Transducers:
  • Low Frequency: One high-power 15-inch cone driver with neodymium magnet; 2 Ω nominal impedance
  • High Frequency: One 4-inch diaphragm compression driver; 8 Ω nominal impedance
• Audio Input:
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
  • Connectors: XLR 3-pin female input with male loop output
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 220 k, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal -
    • Case: Earth ground and chassis
  • Nominal Input Sensitivity: 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
  • Input Level: Audio source must be capable of producing of +20 dBV (10 V rms) into 600 to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
• Amplifier:
  • Type: Two-channel, Class-D
  • Total Output Power: 2250 W peak
  • THD, IM, TIM: < 0.02%
  • Cooling: Convection
• AC Power:
  • Connectors: PowerCON 20 input with loop output
  • Automatic Voltage Selection: 90–265 V AC, 50–60 Hz
  • Safety Rated Voltage Range: 100–240 V AC, 50–60 Hz
  • Turn-on and Turn-off Points: 90 V AC turn-on; no turn-off; internal fuse-protection above 265 V AC
• Current Draw:
  • Idle Current: 0.27 A rms (115 V AC); 0.25 A rms (230 V AC); 0.29 A rms (100 V AC)
  • Maximum Long-Term Continuous Current (>10 sec): 2.0 A rms (115 V AC); 1.0 A rms (230 V AC); 2.3 A rms (100 V AC)
  • Burst Current (<1 sec): 3.7 A rms (115 V AC); 1.9 A rms (230 V AC); 4.3 A rms (100 V AC)
  • Maximum Instantaneous Peak Current: 8.2 A pk (115 V AC); 4.2 A pk (230 V AC); 9.3 A pk (100 V AC)
  • Inrush Current: < 20 A peak
• Physical:
  • Dimensions: W: 19.00 in (483 mm) x H: 28.15 in (715 mm) x D: 18.18 in (462 mm)
  • Weight: 95 lb (43 kg)
  • Enclosure: Premium multi-ply birch with slightly textured black finish
  • Protective Grille: Powder-coated, hex-stamped steel with black mesh
  • Rigging: Aluminum end plates on top and bottom with metric M10 threaded points; integral 1.5-inch (38 mm) pole mount receptacle on bottom

The Meyer Sound UPQ-D1 is a great choice for event organizers, venue managers, and anyone in need of high-quality sound reinforcement. Its wide horizontal pattern and focused vertical pattern make it perfect for covering large areas with precise sound. With features like an energy-efficient amplifier and multiple mounting options, it's easy to set up and use. Measuring 19.00 in (483 mm) wide, 28.15 in (715 mm) high, and 18.18 in (462 mm) deep, weighing 95 lb (43 kg), it's a reliable and powerful option for any sound system.
