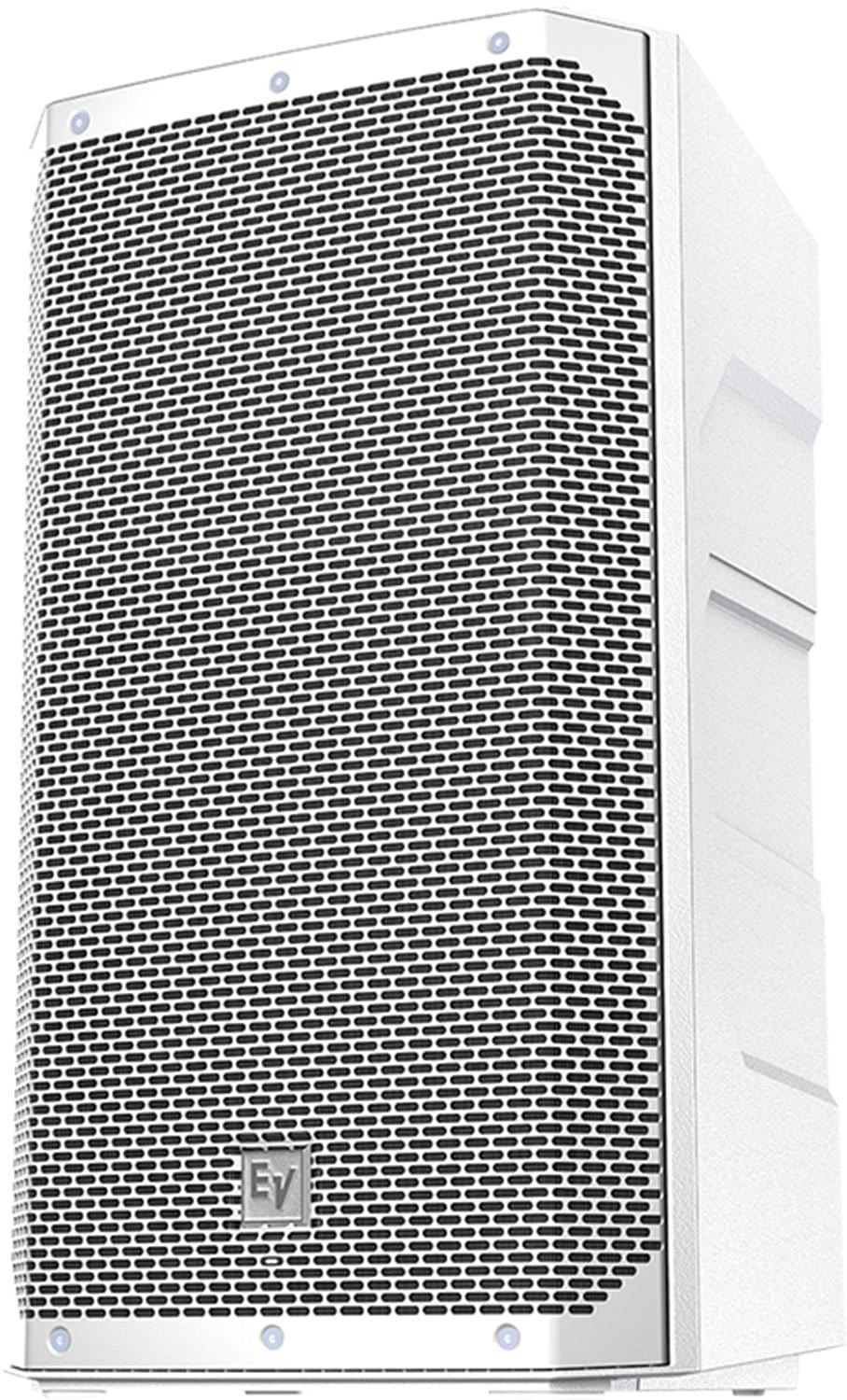

Electro-Voice ELX200 12P 12-Inch Powerhouse Speaker in White
• High-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP for a powerful sound experience. • Four presets (Music, Live, Speech, Club) for easy setup. • Five user-programmable presets for personalized sound.
The ELX200-12P is perfect for both portable and installed applications. Its lightweight and durable polypropylene enclosures, three M10 threaded mounting points, and proven ZLX handle design make it easy to lift and install. With a frequency response of 57 Hz - 16 kHz (-3 dB) and a maximum SPL of 130 dB, it delivers excellent sound quality. The dimensions are 629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in), and it weighs 15.6 kg (34.4 lb).
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows you to easily control and monitor up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and take control right in front of your speakers. Bluetooth is available in select countries.
Features:
- EV QuickSmart Mobile application: wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and get immediate notification during critical performance. Bluetooth available in select countries
- QuickSmartDSP for best-in-class processing. Four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual limiter status monitoring, input level control and meters, and master volume control via LCD for optimal gain structure
- 1200 W Class-D power amplifier for up to 130 dB peak SPL with EV-designed transducers
- EV-patented Signal Synchronized Transducers (SST) waveguide design for precise coverage, minimal distortion, and maximized acoustical loading
- Professional-grade hardware: three M10 threaded mounting points, integrated pole-mounts, and ZLX two-handle design for easy lifting
Specifications:
- Frequency response (-3 dB): 57 Hz - 16 kHz
- Frequency range (-10 dB): 51 Hz - 20 kHz
- Maximum SPL: 130 dB
- Coverage (H x V): 90° x 60°
- Power rating: 1200 W
- LF transducer: EVS-12M 300 mm (12 in)
- HF transducer: DH-1C 1-inch titanium compression driver
- Crossover Frequency: 1700 Hz

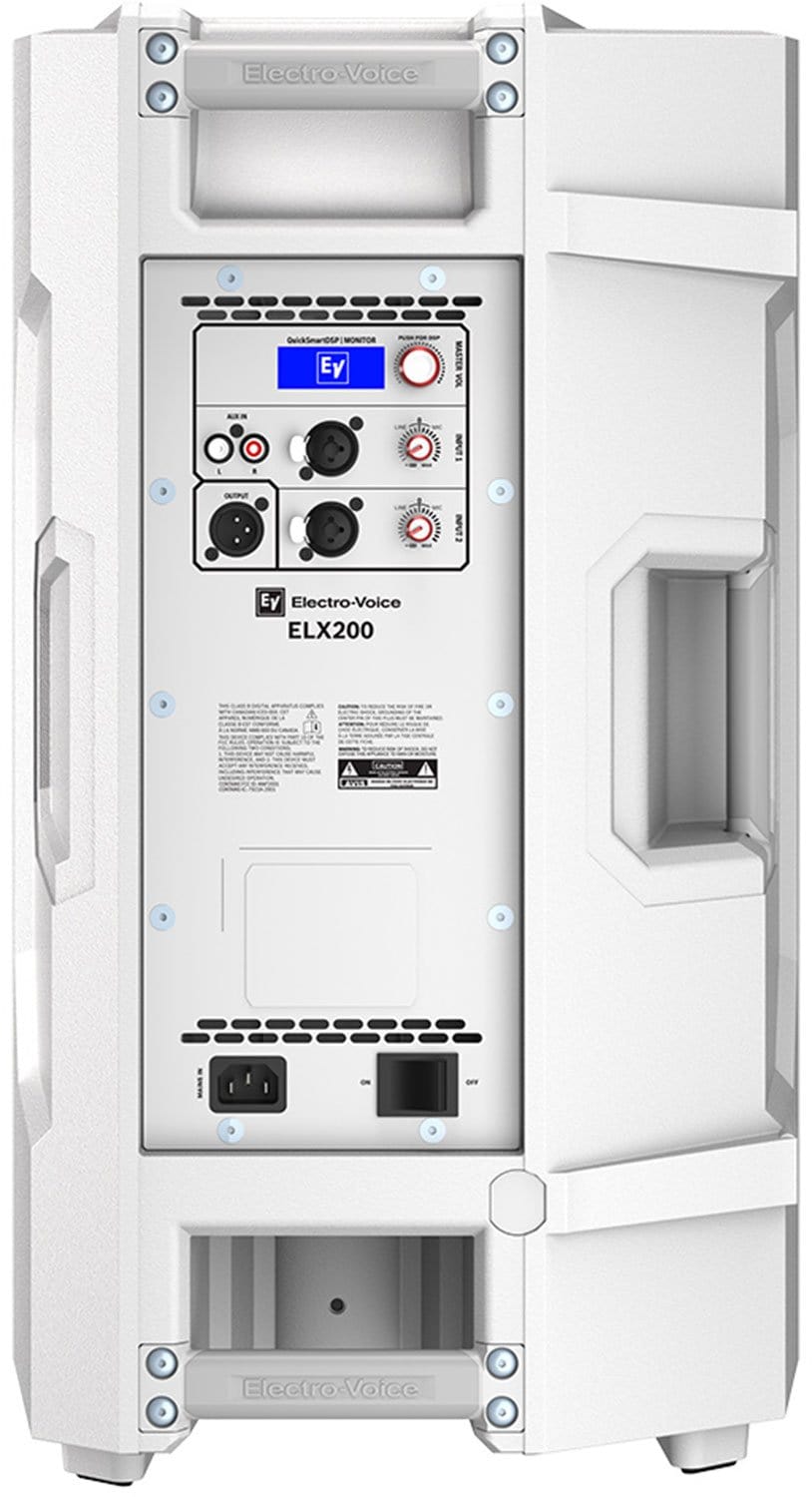

- Connectors: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
- Enclosure: Polypropylene
- Grille: 18 AWG steel with powdercoat
- Suspension: (3) M10 suspension points
- Dimensions (H x W x D): 629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in)
- Net Weight: 15.6 kg (34.4 lb)
- Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
This Electro-Voice ELX200 12P speaker is a great choice for both portable and installed sound setups. Musicians, DJs, and event organizers will love its powerful sound and easy setup. With its high-efficiency Class-D power amplifiers and integrated QuickSmartDSP, it delivers up to 130 dB SPL. The lightweight polypropylene enclosures, three M10 threaded mounting points, and ZLX handle design make it easy to move and install. It has a frequency response of 57 Hz - 16 kHz (-3 dB), dimensions of 629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in), and weighs 15.6 kg (34.4 lb). The QuickSmart Mobile app allows for wireless control and monitoring of up to six speakers.
