Shure BLX14R Wireless Rack-mount Presenter System - The Ultimate Solution for Crystal Clear Audio
Unleash your presentation potential with the Shure BLX14R Wireless Rack-mount Presenter System. Combining professional-grade sound, easy setup, and up to 14 hours of battery life, this system delivers legendary audio performance right out of the box.
Key Features:
- • Superior Audio: Perform with confidence knowing your voice will be heard loud and clear.
- • Reliable Signal: Enjoy extended range and a stable connection for seamless presentations.
- • Easy Setup: Spend less time fumbling with wires and more time on stage captivating your audience.
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: J11 (596-616 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA

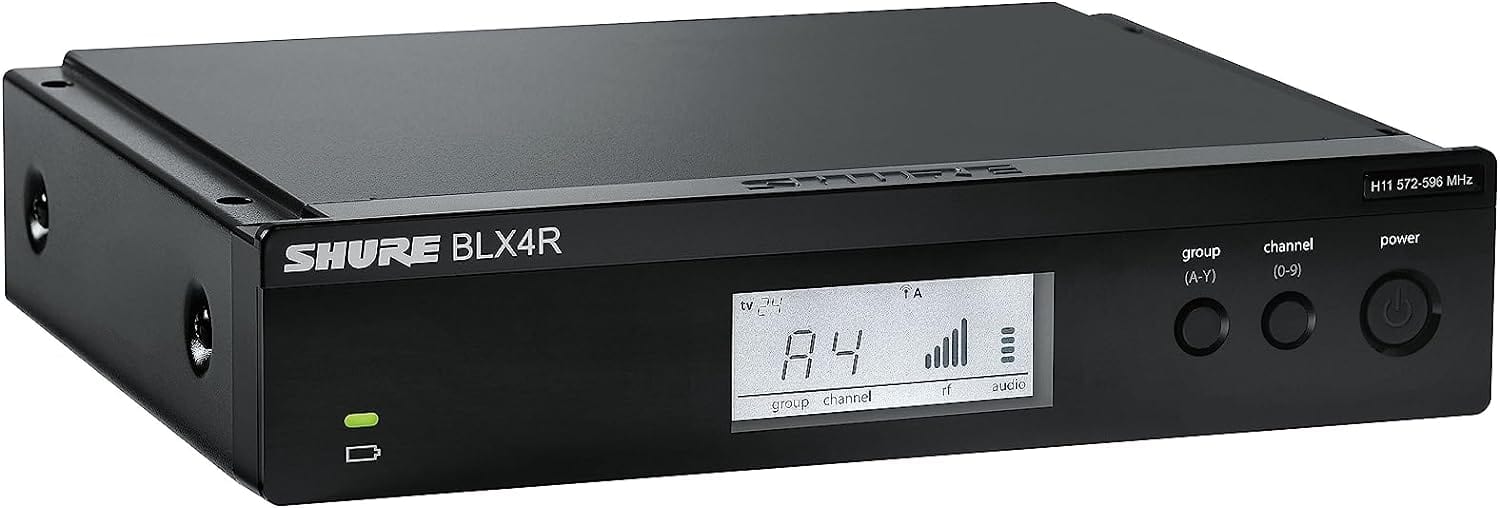

- Receiver:
- Receiver Type: Tabletop / Rackmount
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Number of Audio Channels: 1

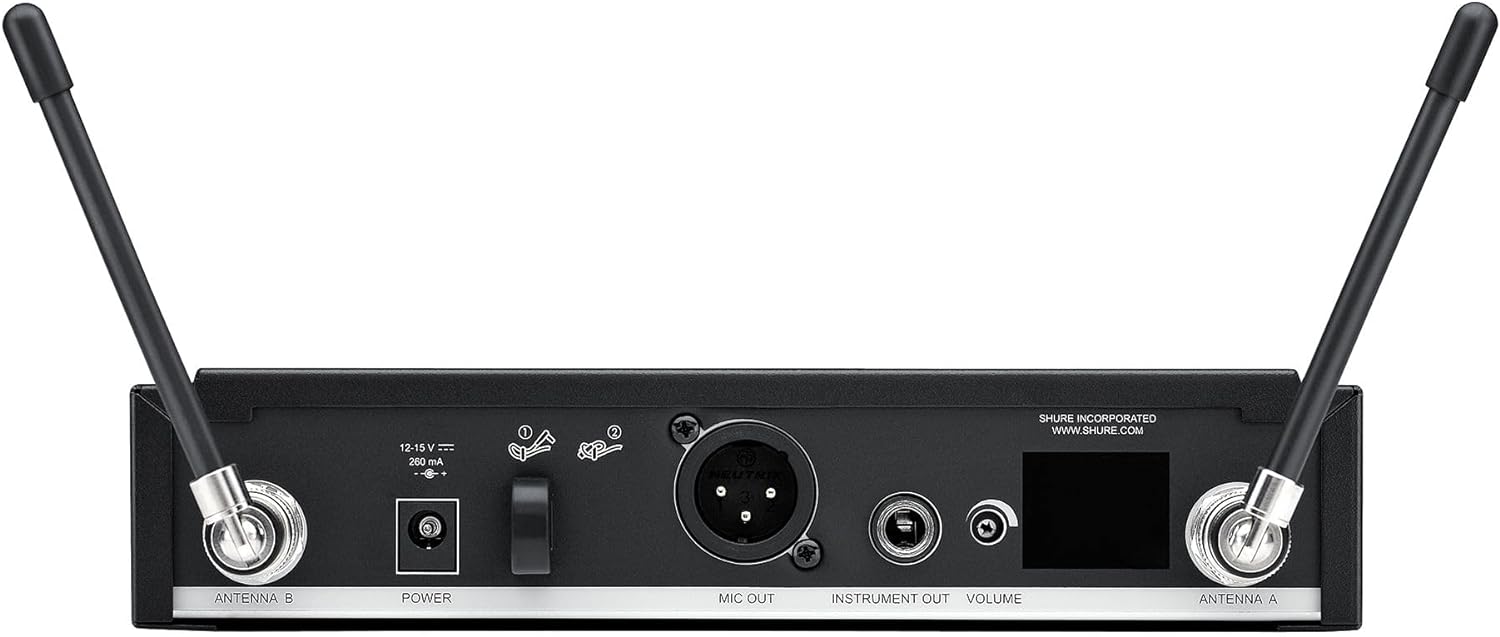

- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4' TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4' Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4' Outputs: 50 Ohms
- Adjacent Channel Isolation: >50 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)

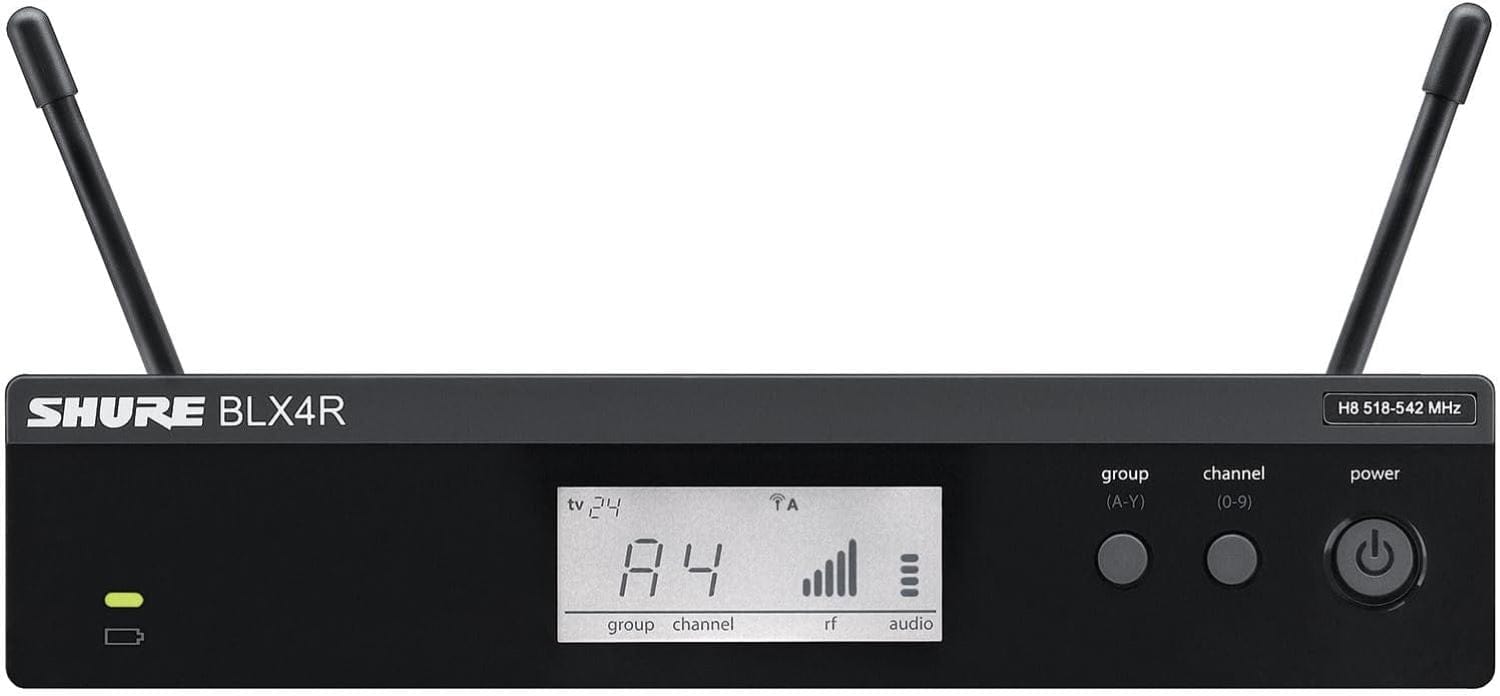

- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Housing: Steel
- Dimensions: 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight: 35.2 oz / 998 g

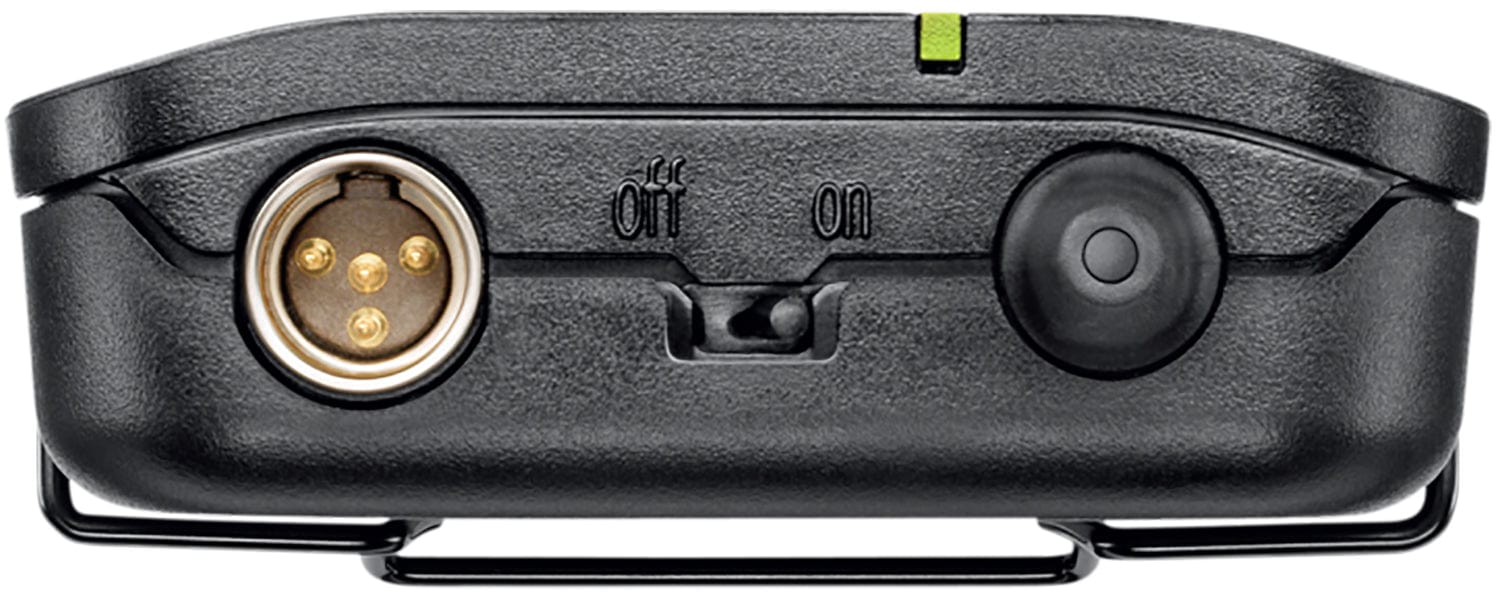

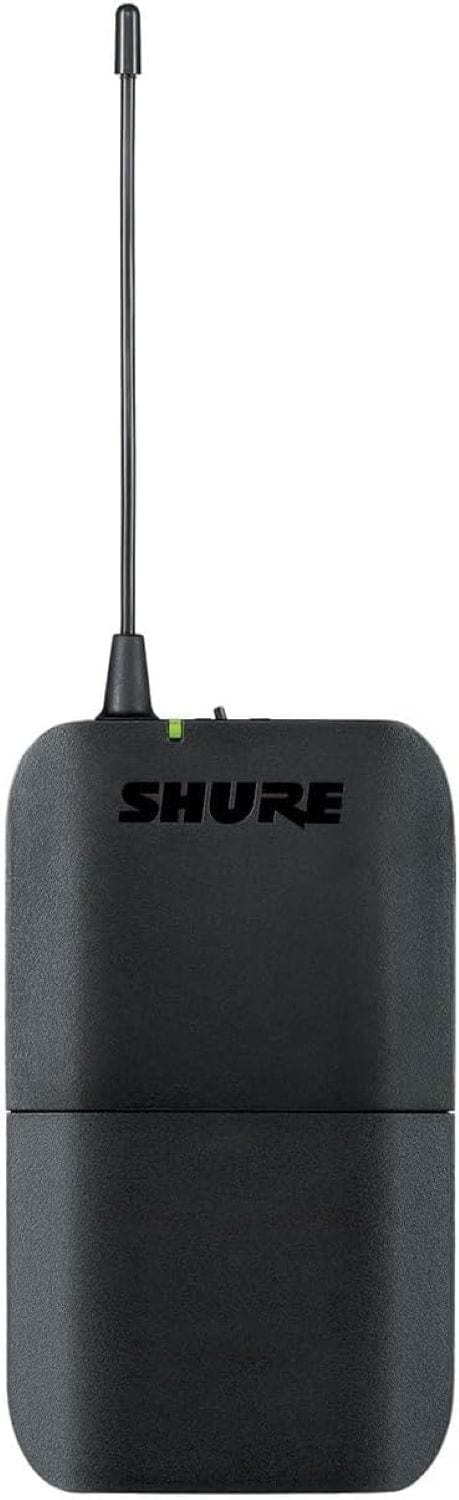

- Transmitter:
- Transmitter Type: Bodypack
- RF Output Power: 10 mW
- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Included Cable Connector: 1/4' TS
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -16 to +10 dB
- Sync Method: Manual
- Antenna: 1 x Flexible Whip, Fixed (Beltpack)
- Power Requirements: Battery

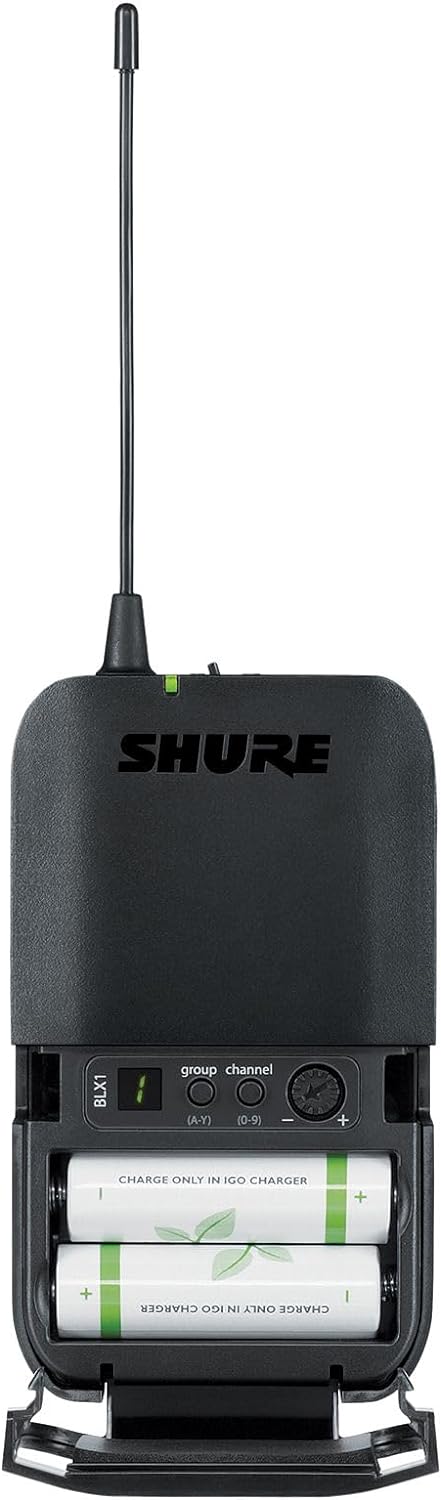

- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
- Weight: 2.6 oz / 75 g (without Batteries)

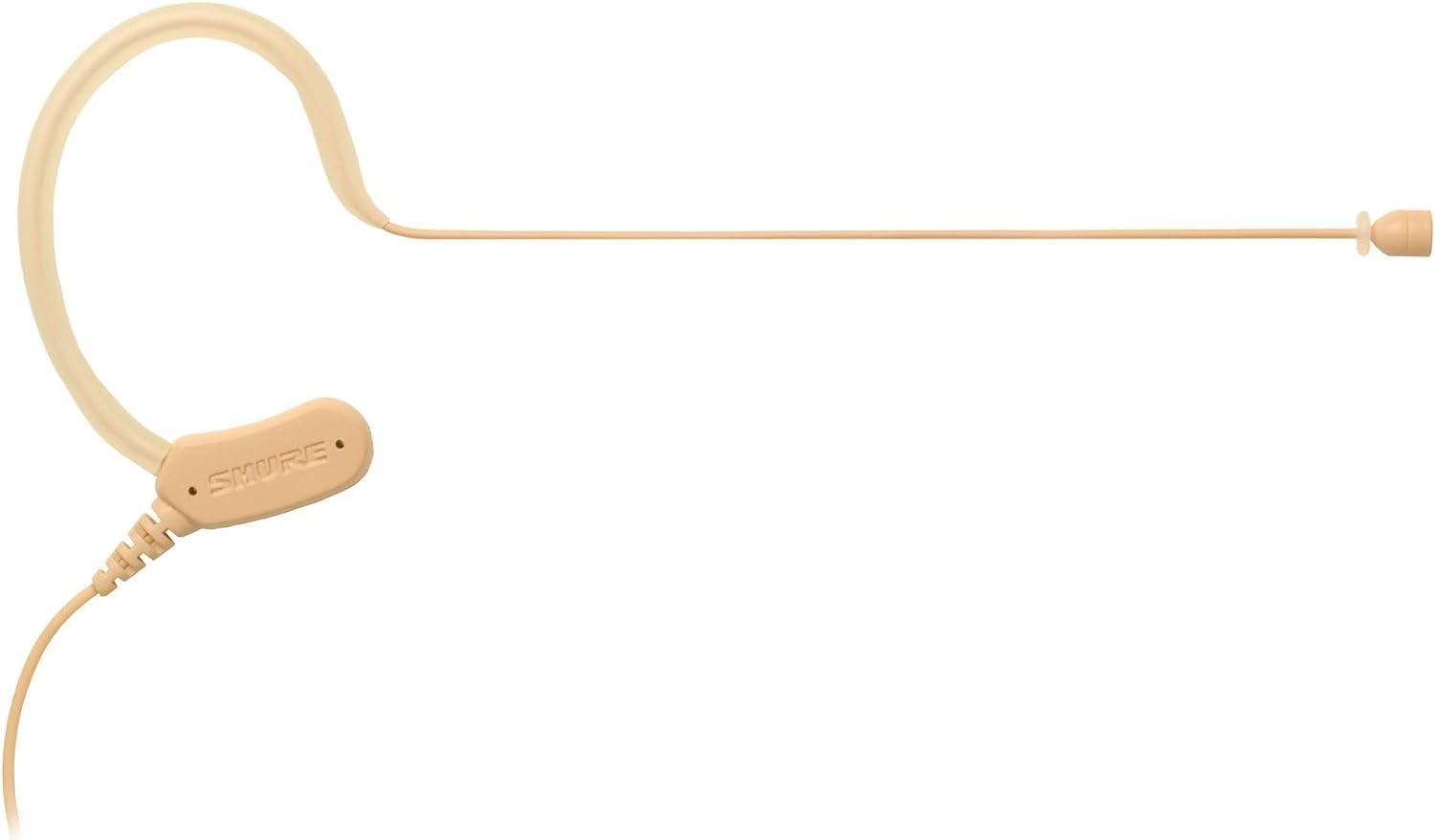

- Microphone:
- Microphone Type: Earset
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Omnidirectional
- Frequency Range: 20 Hz to 20 kHz
- SNR: 60 dB
- Equivalent Noise Level: 34 dB
- Maximum SPL: 107 dB SPL
- Sensitivity: -41 dBV/Pa
- Dynamic Range: 73 dB
- Output Connector: 1 x TA4F/Mini XLR 4-Pin Female (Lockable)
- Cable Length: 4' / 1.22 m
- Operating Voltage: 1 to 5 V
- Weight: 0.7 oz / 19.76 g
- Packaging Info:
- Package Weight: 7.11 lb
- Box Dimensions (LxWxH): 18.5 x 14.8 x 4'

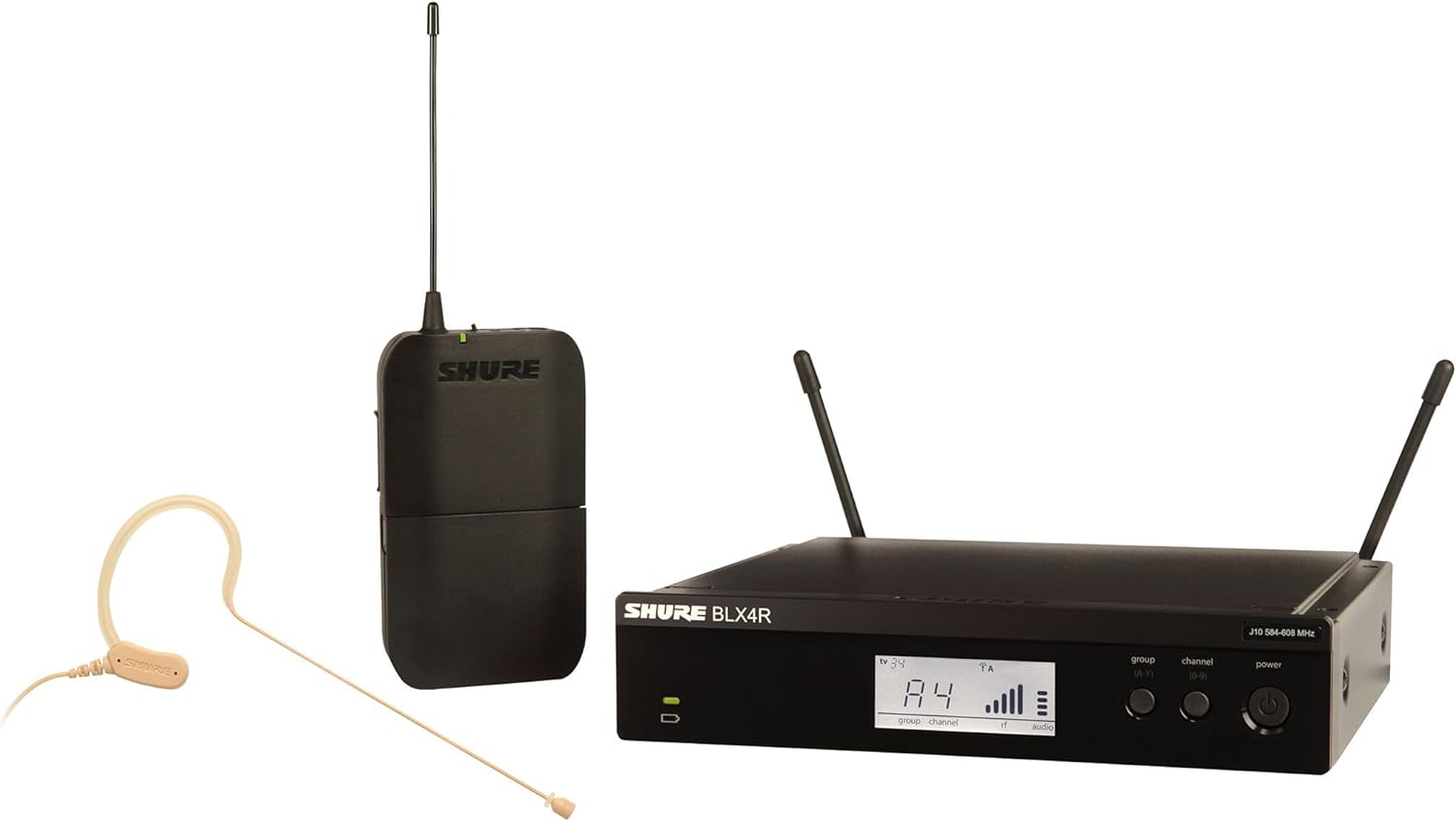

The Shure BLX14R Wireless Rack-mount Presenter System is perfect for presenters, event organizers, and anyone who needs crystal clear audio on the go. With its easy setup and long battery life, you can focus on delivering your message without worrying about technical issues. The system includes a half-rack single-channel receiver, an earset microphone, a bodypack transmitter, and all the necessary accessories. It has a range of up to 300 feet and can run for up to 14 hours on a single battery charge. The receiver is rackmountable and has a compact design, making it easy to install and use in any setup. The microphone is lightweight and comfortable to wear, ensuring that you can move freely while presenting. Overall, the Shure BLX14R Wireless Rack-mount Presenter System is a reliable and high-quality solution for all your audio needs.
