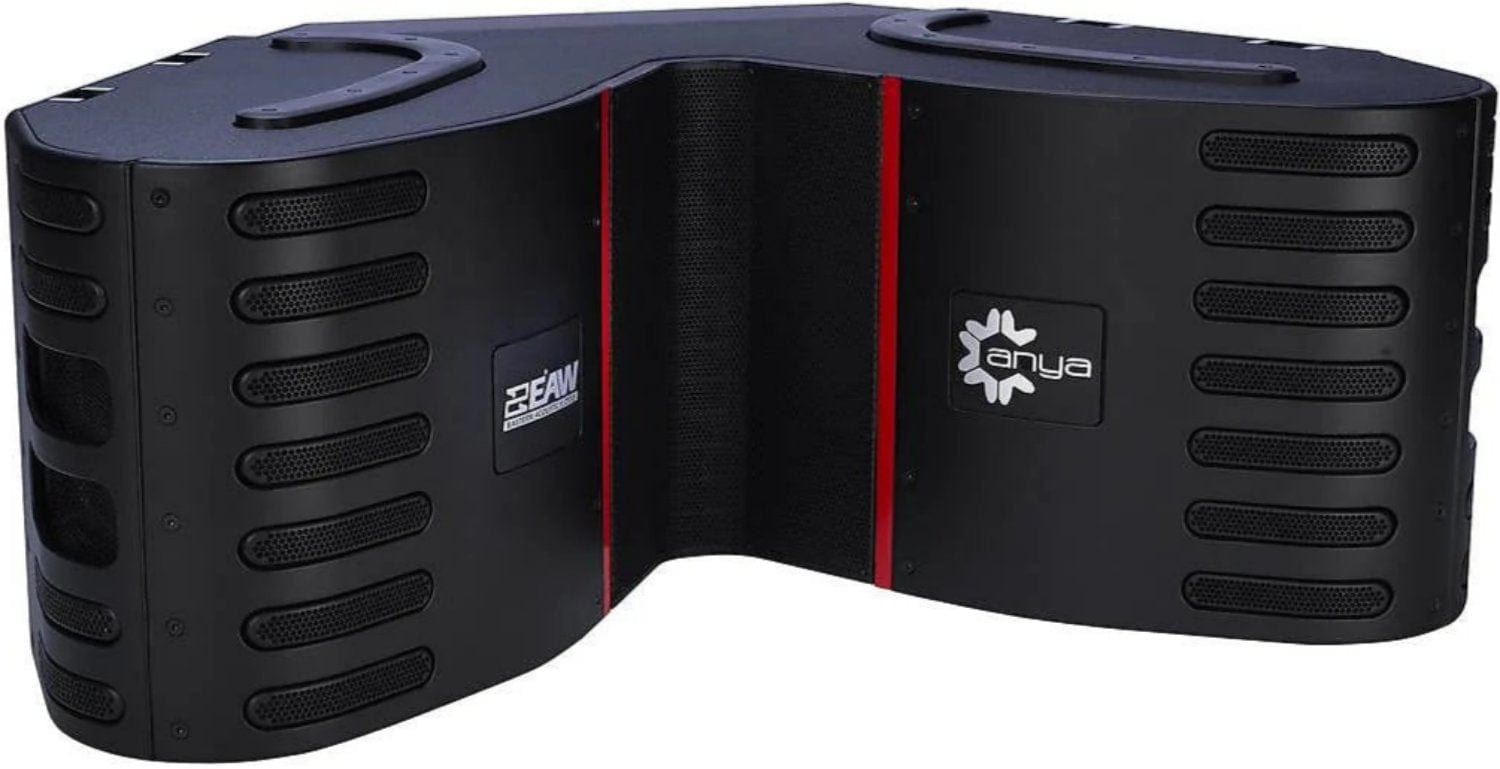

EAW Anya V2 3-Way Full-Range Array Speaker Module - The Ultimate Sound Solution
EAW Anya is an amazing high-power sound reinforcement system. It electronically adapts all performance parameters, making it perfect for any application! • Adaptive performance for diverse use • Proprietary HF horn, Radial Phase Plugs, and Offset Aperture loading for precise pattern control • Multiple powerful drivers for great sound. This system is extremely powerful and highly scalable, suitable for small venues to large stadiums. It's a must-have for anyone seeking top-notch sound quality.
Features:
- Adapative performance
- Design + Build: Proprietary HF horn, Radial Phase Plugs, and Offset Aperture loading for precise pattern control
- HF Drivers: 14x 1-in exit / 35mm voice coil HF compression drivers
- MF Drivers: 6x 5-in MF cone transducers arranged in two columns for coherent summation
- LF Drivers: Dual 15-in LF cone transducers with extended horizontal pattern control
Specifications:
- Frequency Response: 35 Hz to 18 kHz
- Max SPL: 152 dB
- Operating Mode: Amplifier Channels (2x LF; 6x MF; 14x HF)
- Subsystem:
- LF: 2¡Á 15-in cone, 4 in voice coil
- MF: 6¡Á 5-in cone, 38mm voice coil
- HF: 14¡Á1-in exit, 35mm voice coil
- Nominal Beamwidth:
- Horizontal: 70° (for single column; scalable up to 360° using multiple columns)
- Vertical: Adaptive
- Power Handling:
- LF: 2 x 1,700W
- MF: 6 x 350W
- HF: 14 x 350W
- Connections:
- Neutrik powerCON TRUE1
- Analog & AES In/Loop
- 2x Neutrik etherCON (DANTE enabled)
- Dimensions:
- Height: 17.1 in
- Width: 45.2 in
- Depth: 30 in
- Weight: 285 lbs (129.3 kg)
The EAW Anya V2 3-Way Full-Range Array Speaker Module is a great choice for sound reinforcement. It can be used in various places like small venues, large stadiums, etc. It's suitable for anyone who needs high-quality sound. The speaker module is 17.1 inches high, 45.2 inches wide, 30 inches deep and weighs 285 lbs (129.3 kg).
