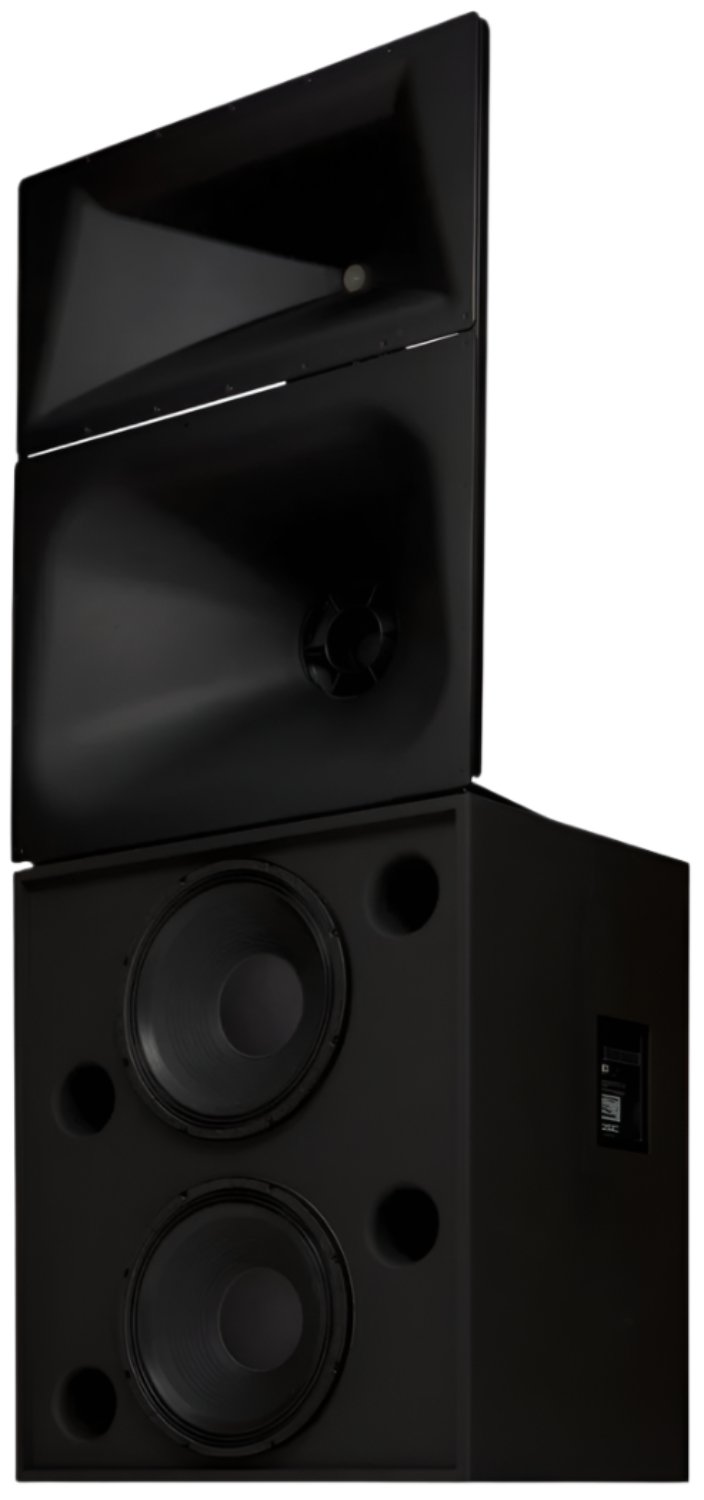

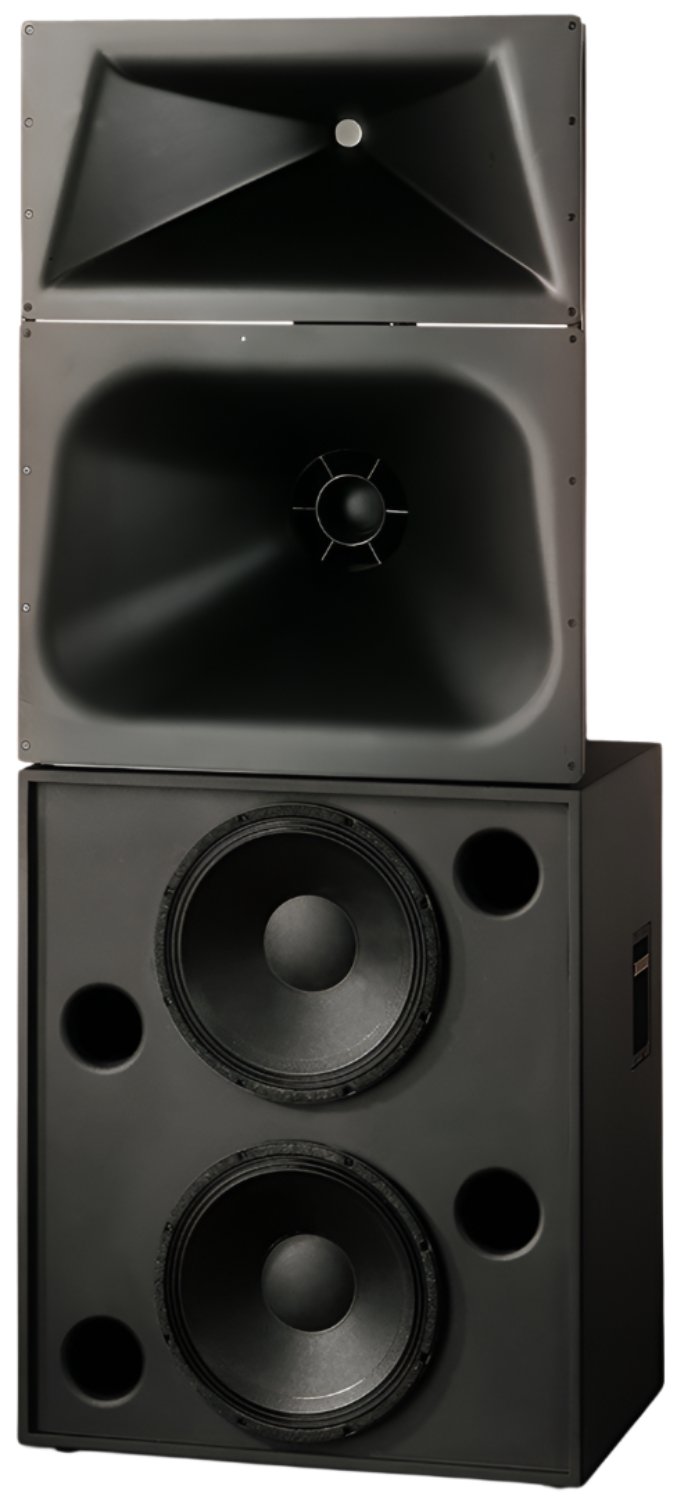

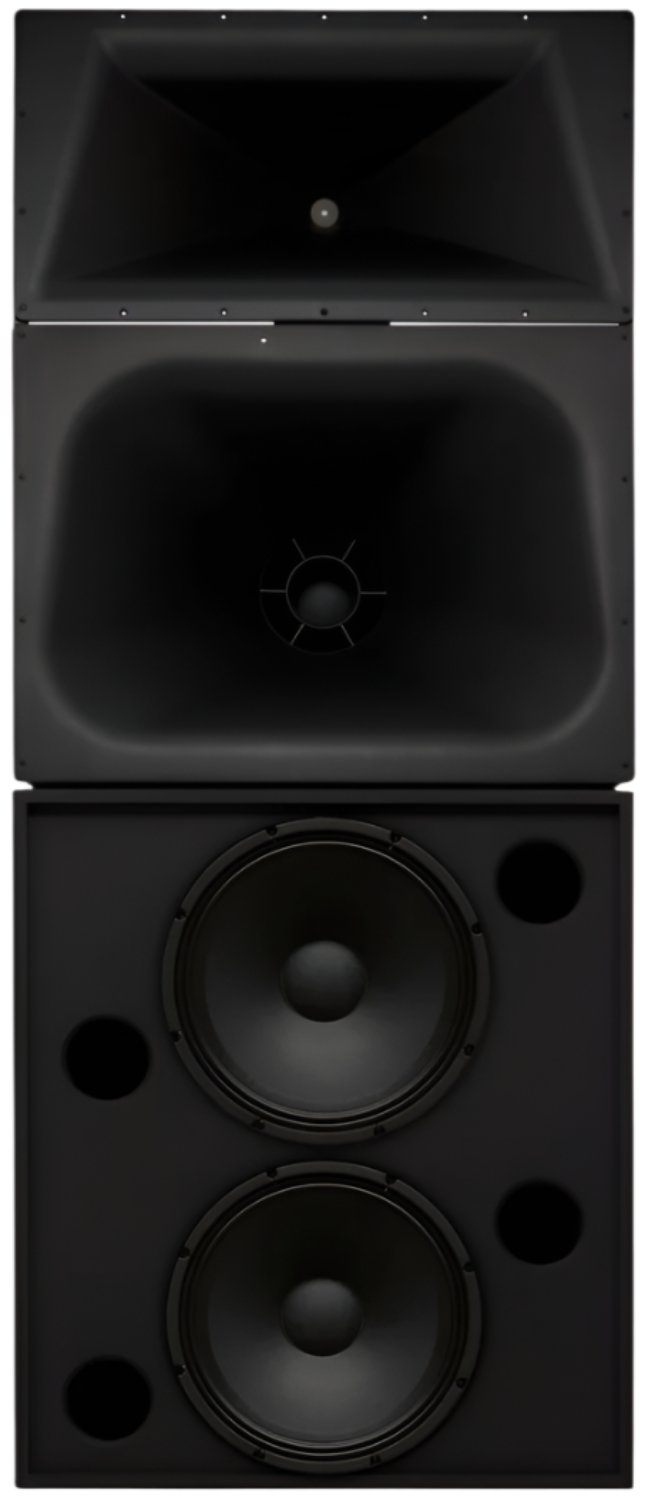

Q-SYS SC-223X 3-Way Cinema Loudspeaker System: Immerse in Stunning Sound

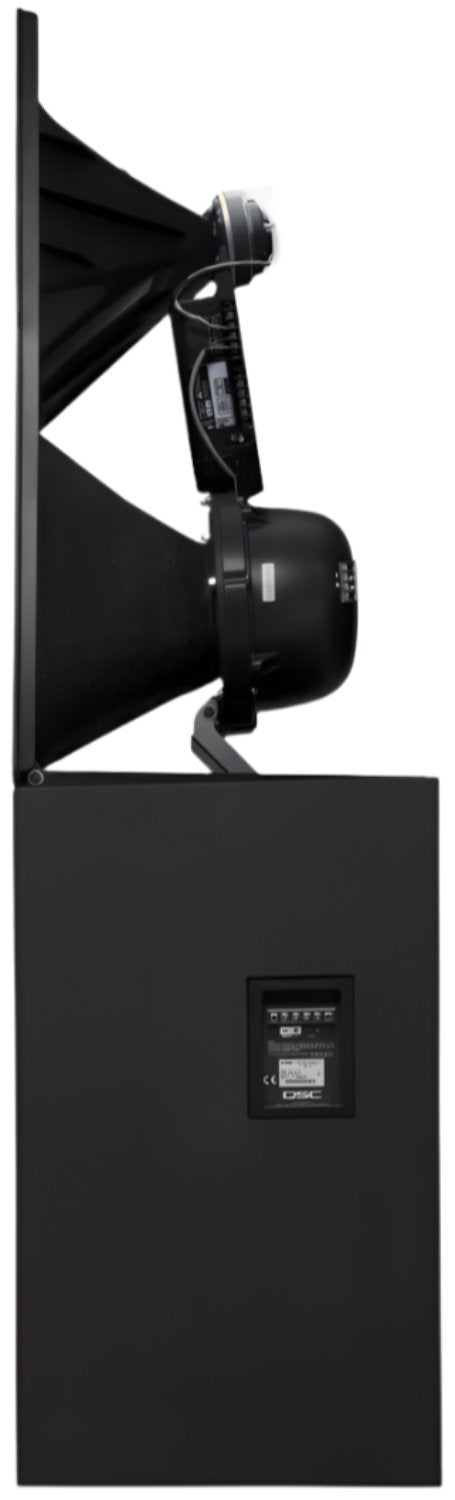

Designed for professional motion picture playback, the SC-223X takes QSC's cinema commitment to the next level. As part of the DCS Digital Cinema Speaker Series, it's a 3-way system with two main units. • MH-1060X Mid-High: High output with a horn-loaded 10' midrange cone and 2.4' titanium diaphragm compression driver on an adjustable bracket. It has a switchable passive crossover for different modes and ensures great midrange coverage. • LF-2215 Low-Frequency: Dual 15' enclosure for extended low-frequency response, covering 35 Hz - 500 Hz. Close Coupled Woofers improve coupling. • Easy Installation: MH-1060X components are pre-assembled. Just use three bolts to attach it to the LF-2215.
Features:
- 3-way bi-amplified or passive screen channel system for a versatile audio experience
- MH-1060X offers 90° horizontal by +20° to -30° vertical coverage for optimal sound projection
- LF-2215 is made of MDF and heavily braced for durability
- Low-distortion waveguides ensure highly articulate dialogue for crystal-clear audio
- Shallow depth (20”) makes installation a breeze
Specifications:
- SC-223X:
- Nominal Coverage: 90° horizontal x +20 to -30° vertical
- Frequency Range: 37 Hz – 16 kHz (-6 dB)
- Crossover Frequency: 300Hz, 24 dB per octave in bi-amp mode

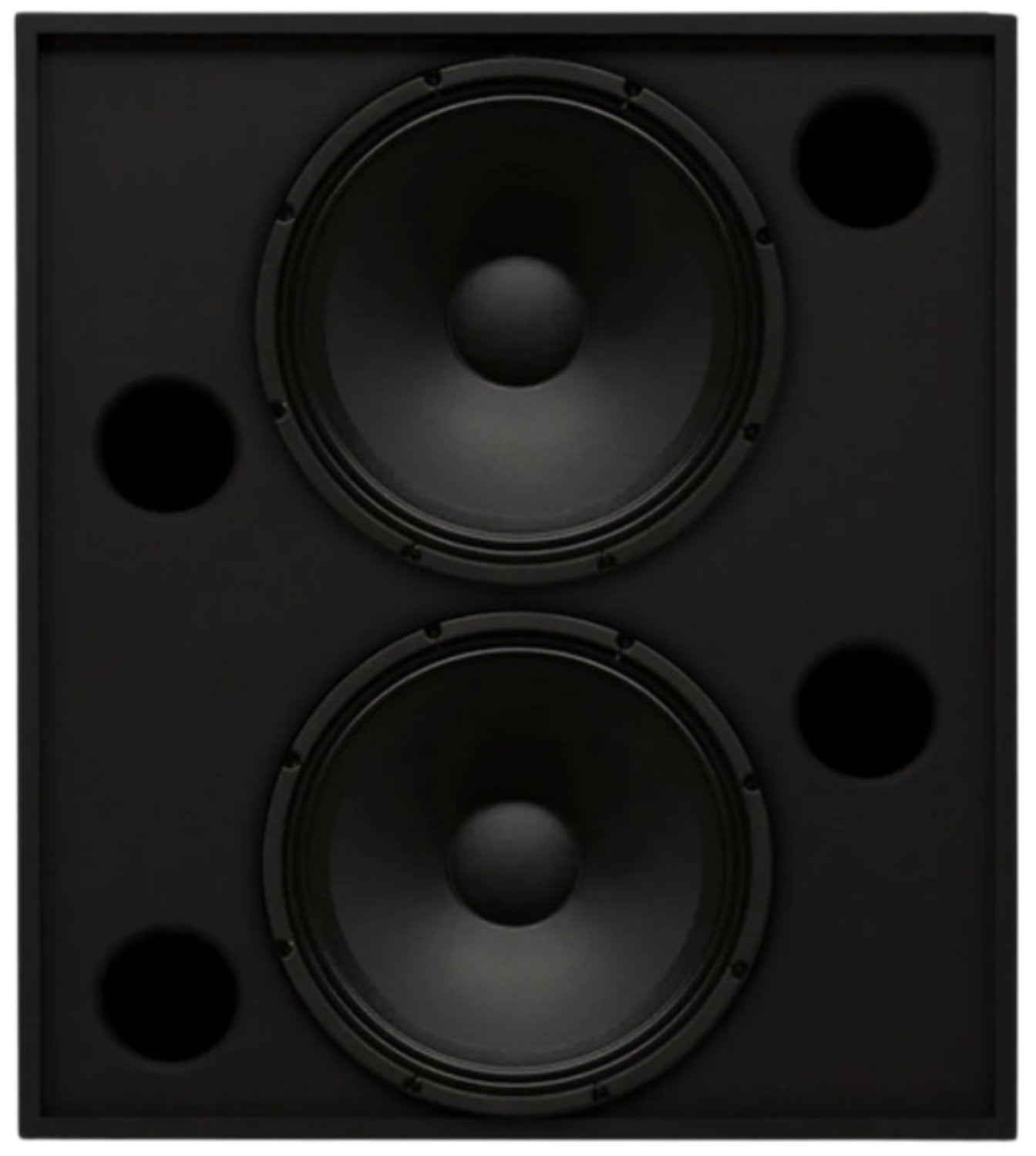

- LF-2215:
- Impedance: 4 ohms
- Sensitivity 1 watt/1 meter, half space: 98 dB
- Rated Noise Power:
- 2 hours of 6 dB crest factor pink noise: 600 W1
- Recommended Amplifier Power: 450 W to 1200 W
- Recommended Processing: Subsonic filter below 30 Hz, > 18 dB per octave
- Connectors and Controls: Barrier strip screw terminals accept up to #10 AWG stranded wire
- Transducers: Two 15-inch (381 mm) high efficiency, extended bass woofers featuring 3-inch copper voice coils
- Enclosure: Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, tuned to 36 Hz, constructed of MDF and heavily braced. Features vandal resistant woofer mounting bolts
- Dimensions (HWD): 908 mm x 762 mm x 516 mm (35.75 in x 30 in x 20.3 in)
- Weight – Net: 78 kg (172 lb)
- System Weight: 115 kg (254 lb)

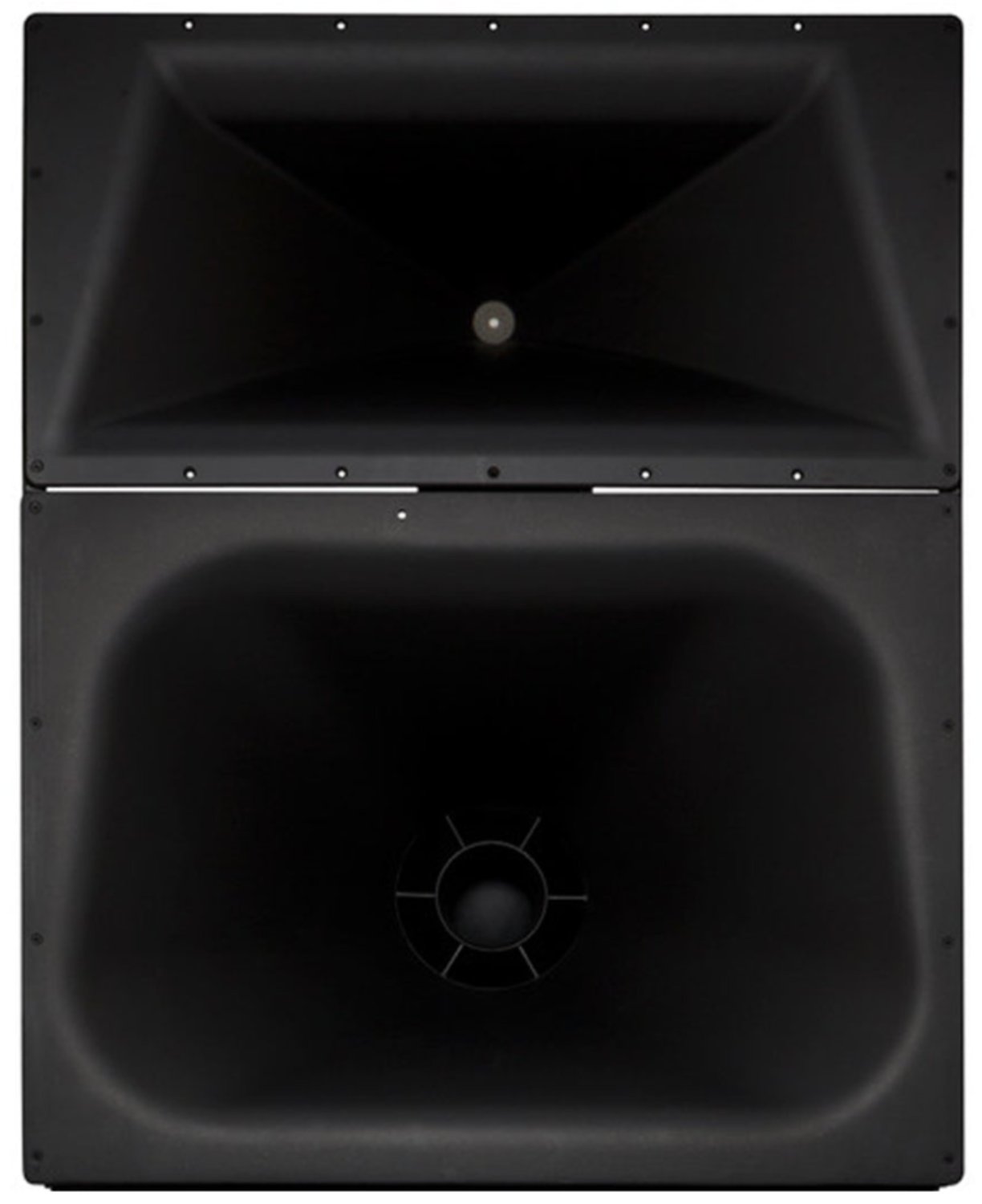

- MH-1060X:
- Impedance: 8 ohms
- Sensitivity 1 watt/1 meter, half space:
- 103.5 dB (bi-amp)
- 98 dB (passive)
- Rated Noise Power:
- 2 hours of 6 dB crest factor pink noise:
- 200 W2(bi-amp)
- 600 W3(passive)
- Recommended Amplifier Power:
- 150 W to 400 W (bi-amp)
- 500 W to 1200 W, with subsonic filter in passive mode (passive)
- Recommended Processing: 4th order LR crossover at 300Hz via QSC processor in bi-amp mode
- Connectors and Controls: Barrier strip screw terminals accept up to #10 AWG stranded wire and passive/bi-amp selector switch
- Transducers: 10-inch high efficiency mid range, 1.4-inch (36mm) exit, 2.4-inch titanium diaphragm compression driver
- Enclosure:
- Tilt/Pan Bracket
- ±10° vertical tilt
- ±10° horizontal pan
- Dimensions (HWD): 990 mm x 762 mm x 508 mm (39 in x 30 in x 20 in)
- Weight – Net: 78 kg (172 lb)
The Q-SYS SC-223X 3-Way Cinema Loudspeaker System is perfect for professional movie theaters. It's designed to deliver outstanding sound quality for an immersive viewing experience. The system includes the MH-1060X mid-high and LF-2215 low-frequency units. The MH-1060X has a horn-loaded midrange and a titanium diaphragm compression driver for great midrange sound. The LF-2215 provides extended low-frequency response. Installation is easy as the MH-1060X components are pre-assembled. The system features a 3-way design, offering flexibility. The LF-2215 is made of MDF and heavily braced for durability. It has a shallow depth of 20 inches, making it convenient to install. The SC-223X has a nominal coverage of 90° horizontal by +20° to -30° vertical. The LF-2215 has an impedance of 4 ohms and a sensitivity of 98 dB. The MH-1060X has an impedance of 8 ohms and different sensitivities depending on the mode. Overall, it's a great choice for enhancing the audio in your cinema space.
