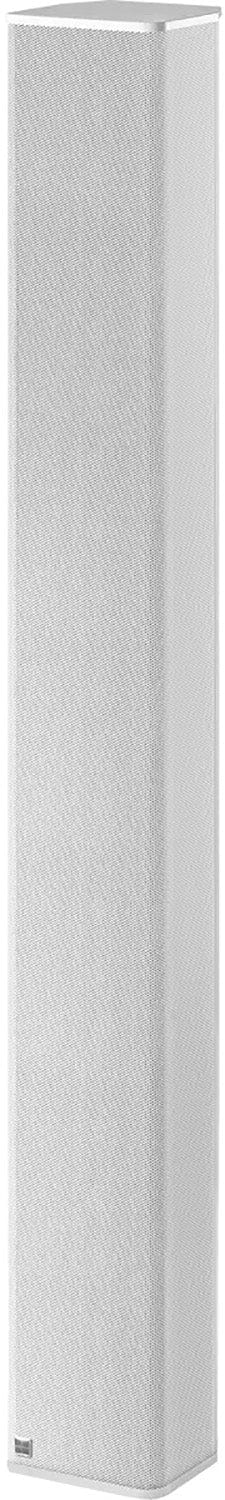

Weather-Resistant D&B Audiotechnik Z1700.100 24C Column Passive Loudspeaker Extension
Upgrade your audio setup with this amazing 24C two-way passive column loudspeaker! It's perfect for both indoor and outdoor events. Here's why:
- • High-Quality Sound: With six 4” neodymium drivers and six 1.1” dome tweeters, it delivers crystal-clear sound with a 90° horizontal dispersion and adjustable 20° vertical dispersion.
- • Weather-Resistant Design: Built to withstand the elements, so you can use it rain or shine.

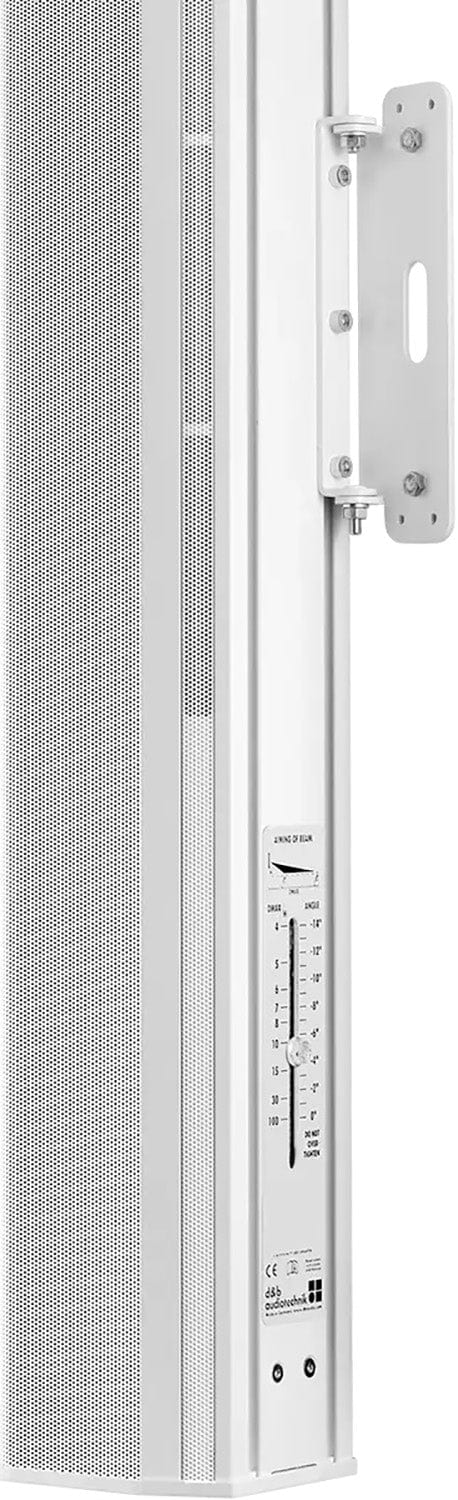

- • Easy Installation: The continuous T-slot rails and 4-pole Phoenix combicon terminal connector make setup a breeze.

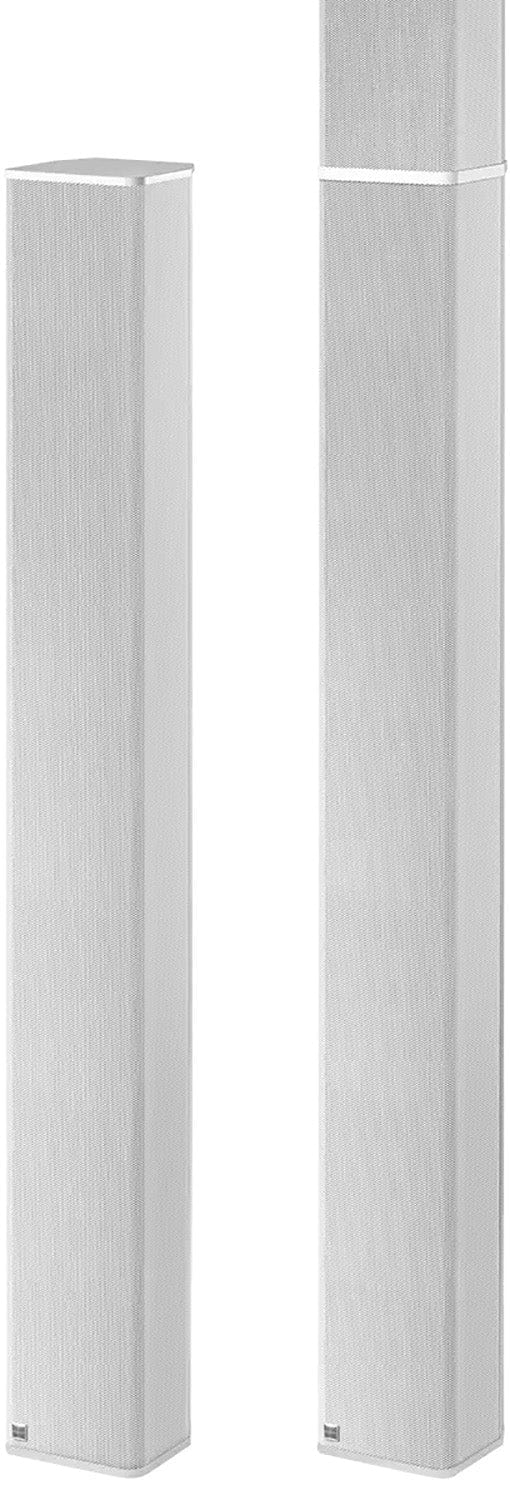

The HF array's vertical dispersion can be adjusted from 0° to -14°, targeting audience listening areas. The low/mid drivers' beam tilts downwards by 5°, providing great directivity down to 370 Hz. The unique cardioid setup reduces rear reflections and gives balanced sound across the listening area. It's available in white or black, or you can choose any RAL colour with the Special Colour option. Combine it with the 24C-E passive extension for even better vertical pattern control down to 190 Hz.
Features:
- Components 6 x 4'/6 x 1.1'
- Dispersion 90° x 20°
- SPLmax 126 dB
- Weight 9 kg / 19.8 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 110 Hz - 17 kHz
- Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
- Max. sound pressure: 1126 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Installation specific cardioid column loudspeaker
- Power handling capacity (RMS/peak 10 ms): 125/600 W
- Vertical downtilt of low-mid beam: 5°
- Vertical adjustment of HF section: 0° -14°
- Nominal dispersion angle (h x v): 90° x 20°
- Components:
- 6 x 4' driver with neodymium magnet
- 6 x 1.1' dome tweeter mounted in vertical horn array
- Passive crossover network
- Connections:
- 4-pole Phoenix terminal
- NL4
- Dimensions / weight:
- Dimensions (H x W x D): 1000 x 124.5 x 124 mm (39.4 x 4.9 x 4.88')
- Weight: 9 kg (19.8 lb)
This D&B Audiotechnik Z1700.100 24C Column Passive Loudspeaker Extension is great for both indoor and outdoor events. It's suitable for anyone looking to enhance their audio experience. The enclosure is 1000 x 124.5 x 124 mm (39.4 x 4.9 x 4.88') and weighs 9 kg (19.8 lb). It has six 4” neodymium drivers and six 1.1” dome tweeters for high-quality sound with 90° horizontal and adjustable 20° vertical dispersion. The HF array can be adjusted from 0° to -14°, and the low/mid drivers' beam tilts down 5°. It's weather-resistant and easy to install with T-slot rails and a 4-pole Phoenix combicon terminal connector.
