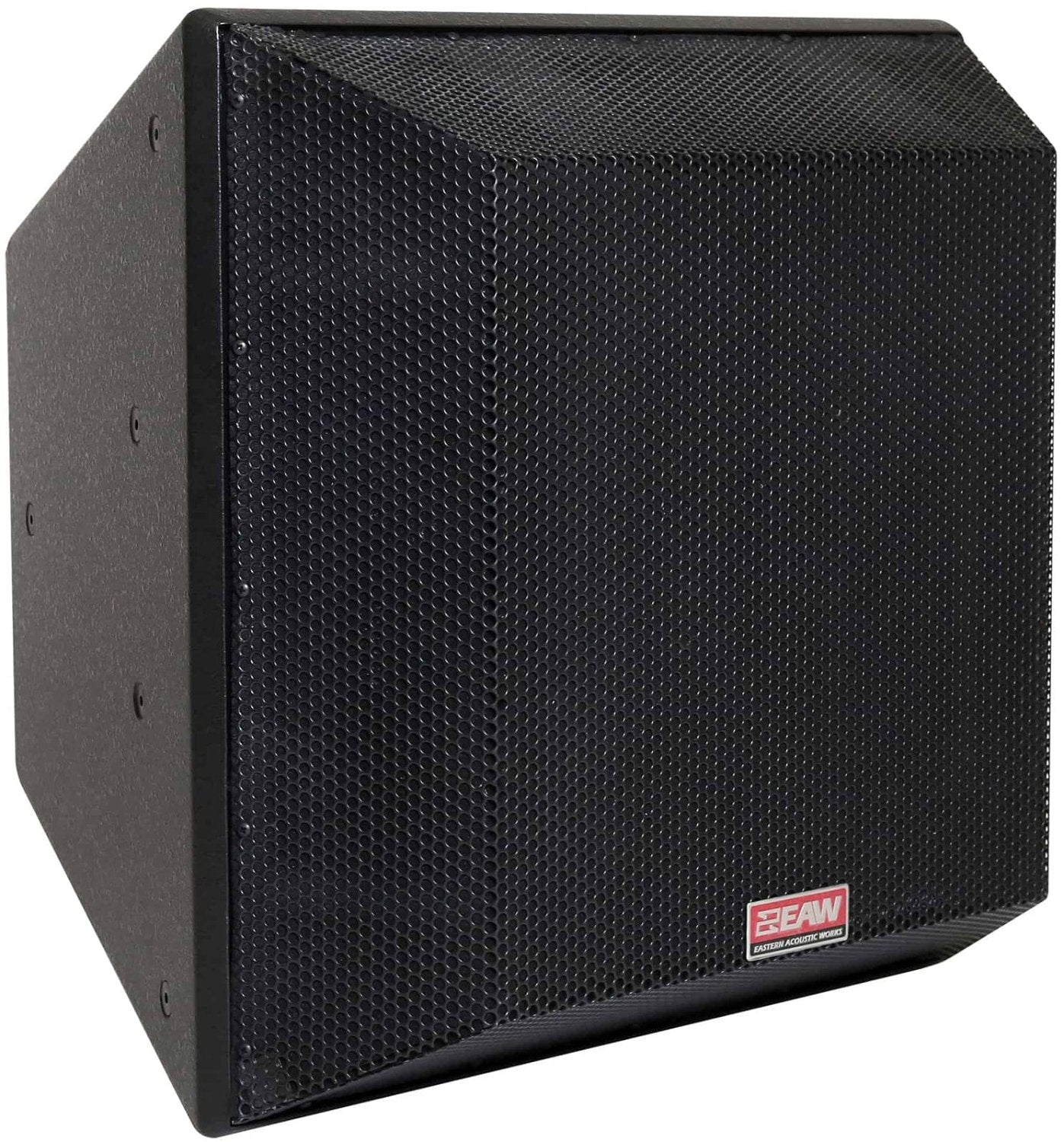

EAW QX366-WP 2-Way Trapezoidal Weather Protected Loudspeaker - Black - The Ultimate Sound Solution
• Ultra-efficient high compression driver for powerful sound. • Four Phase Aligned 10-in low frequency transducers for extended pattern control. • Choose between single-amp and bi-amp operating modes for maximum flexibility.
The QX366 features a unique 60° x 60° constant directivity horn, one of six available horn patterns. The four low frequency transducers surround the high compression driver symmetrically, creating a single point source for a consistent sound across the frequency spectrum. And with independent woofer pairs and multiple wiring options, installation is a breeze.
Features:
- High output, single or bi-amplified, two-way performance
- Broadband pattern control
- Ultra-efficient HF compression driver
- Four Phase Aligned 10-in cone transducers (vertical and horizontal pairs)
- Installation flexibility, compact size
Specifications:
- Frequency Response: 66hz – 20khz
- Max SPL: 143 dB
- Operating Mode: Single-amp LF/HF; Bi-amp LF,HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4. 10-in cone
- HF: 1. 1.4-in. exit, 4-in. voice coil compression driver
- Nominal Beamwidth:
- Horizontal: 60
- Vertical: 60
- Power Handling:
- LF: 1800W @ 2ohms (single amp), 800W @ 4ohms (2x pairs)
- HF: 150W @ 8ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 23.7 in (602 mm)
- Width: 23.7 in (602 mm)
- Depth: 19.9 in (505 mm)
- Weight: 94 lbs (43 kg)
- Color: Black
This EAW QX366-WP 2-Way Trapezoidal Weather Protected Loudspeaker is perfect for outdoor events and venues where high-quality sound is essential. It's ideal for musicians, DJs, and event organizers who want to deliver a powerful and clear sound to their audience. With its compact size and easy installation, it's also a great choice for smaller spaces. Technical specifications include a height of 23.7 in (602 mm), width of 23.7 in (602 mm), depth of 19.9 in (505 mm), and weight of 94 lbs (43 kg).
