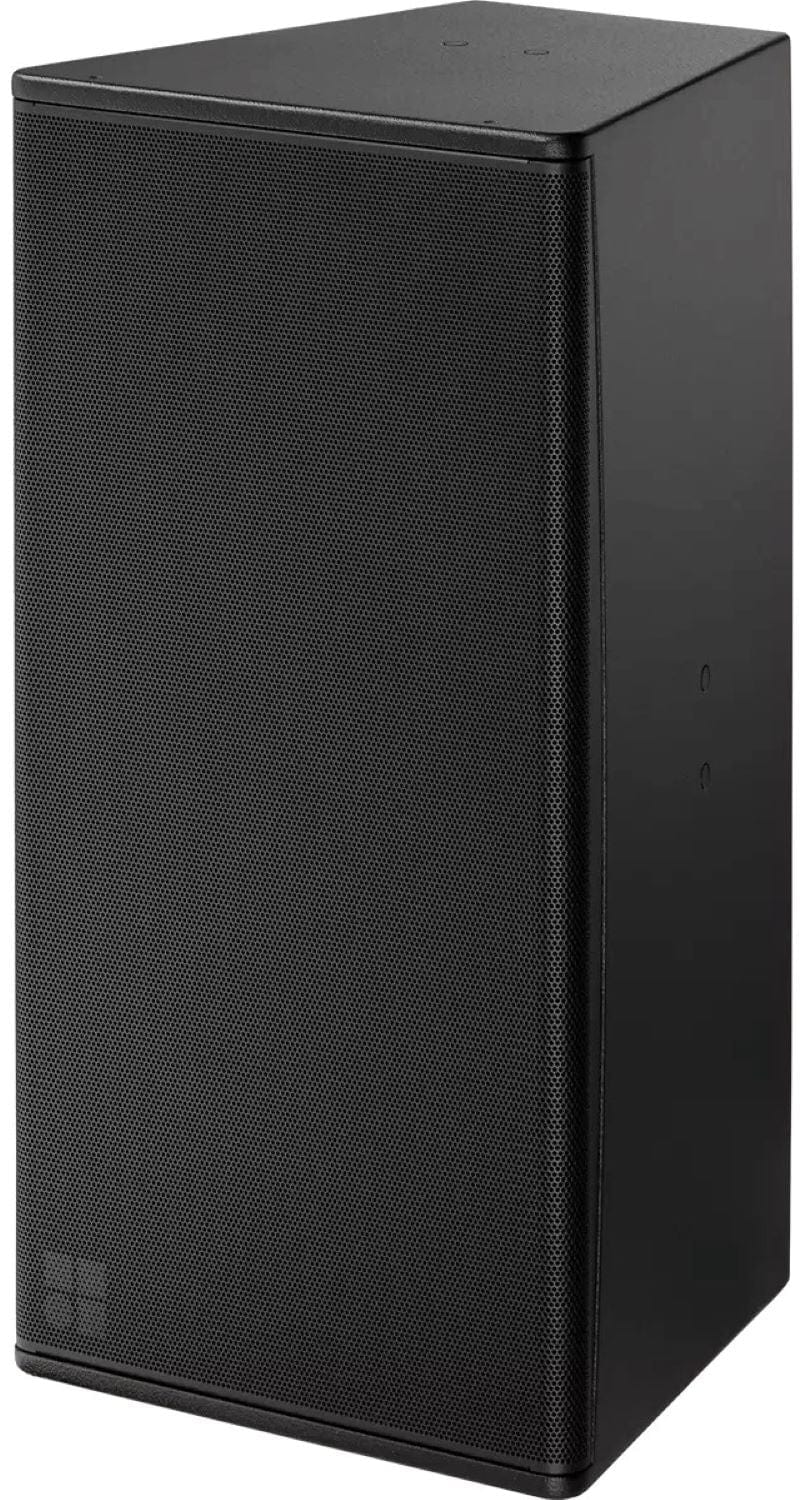

D&B Audiotechnik Z1610.100 24S 2x 12-Inch Passive Loudspeaker - Weather-Resistant

D&B Audiotechnik Z1610.100 24S 2x 12-Inch Passive Loudspeaker - Weather-Resistant

Discover the 24S, a high-performance full-range 2-way passive loudspeaker. It's perfect for a wide range of permanently installed applications. Here's why:

• • Exceptional Sound Quality: With a frequency response from 55 Hz to 18 kHz, it delivers rich, clear sound.
• • Weather-Resistant Design: IP55 rating means it can handle changing conditions with a fixed cable.
• • Versatile Installation: Can be ground stacked or flown, and the HF horn rotates 90° for horizontal orientation.

The 24S houses two 12” drivers in a bass-reflex enclosure and a 1.4” exit compression driver on a large rotatable CD horn. The dipolar 12” drivers control directivity down to 500 Hz. Optimized ports and a large cabinet volume ensure great low-frequency reproduction. It can be used alone or with D&B subwoofers. The cabinet is made of marine plywood with an impact-resistant finish and a metal grill for protection. It has M10 threaded inserts for rigging. It's ball impact resistant for sports and multipurpose halls.

WR cabinets have a recessed connector panel with a Faston type connector and a cover plate for PG cable glands.

Features:

• Components 2 x 12'/1.4'
• Dispersion 75° x 45°
• SPLmax 138 dB
• Weight 33 kg / 73 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 55 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 90 Hz - 18 kHz
  • Max. sound pressure:
    • with D20/30D: 138 dB
    • with D40/D80/40D: 138 dB
  • Cabinets per amplifier channel: 1
• Loudspeaker data:
  • Configuration: Installation specific high performance full range 2-way loudspeaker
  • Nominal impedance: 4 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Nominal dispersion angle (h x v): 75° x 45° rotatable
  • Components:
    • 2 x 12” driver with neodymium magnet
    • 1.4” exit compression driver
    • Passive crossover network
  • Connections:
    • Faston connector type 2
• Dimensions / weight:
  • Dimensions (H x W x D): 800 x 410 x 420 mm / 31.5 x 16 x 16.5”
  • Weight: 33 kg / 73 lb

The D&B Audiotechnik Z1610.100 24S is a weather-resistant 2x 12-inch passive loudspeaker. It's great for permanent installations like sports halls, multipurpose venues. With dimensions of 800 x 410 x 420 mm (H x W x D) and weighing 33 kg (73 lb), it offers high-quality sound. The frequency response ranges from 55 Hz to 18 kHz, suitable for a wide range of audio needs.
