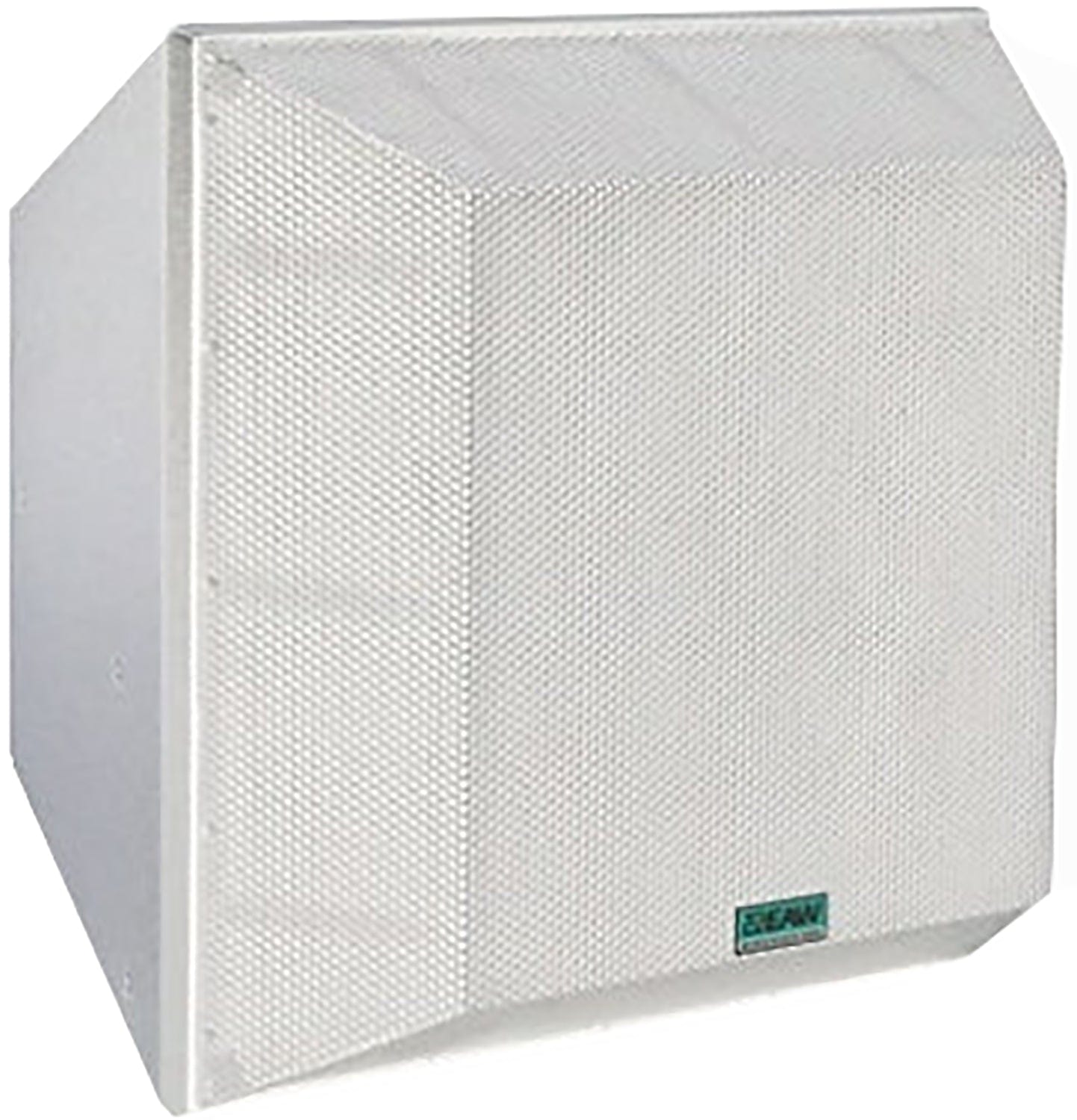

EAW QX594i-WP 90x45° Trapezoid Weather-Protected Speaker - White
The QX594i features an ultra-efficient mid/high compression driver paired with a 90° (h) x 45° (v) constant directivity horn. Four Phase Aligned 12-in low frequency transducers, arranged in vertical and horizontal pairs, work together to extend pattern control deep into the low frequency range.
Thanks to the symmetrical arrangement of the four low frequency transducers around the coaxial mid/high compression driver in both horizontal and vertical planes, the full frequency spectrum appears to originate from a single point in space. This design enables seamless integration of the three frequency sections, eliminating anomalies found in offset designs.
Features:
- • High-output, bi-amplified performance for powerful sound
- • Broadband pattern control for wide coverage
- • Ultra-efficient, coaxial MF/HF compression driver for clear audio
Specifications:
- • Frequency Response: 55 Hz – 20 kHz
- • Max SPL: 145 dB
- • Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- • External Signal Processing: DSP with EAW Focusing
- • Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit, 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in. compression driver
- • Nominal Beamwidth:
- Horizontal: 90°
- Vertical: 45°
- • Power Handling:
- LF: 2000W @ 2 ohms (single amp), 1000W @ 4 ohms (2x pairs)
- Passive MF/HF: 175W @ 8 ohms
- • Connections: Barrier Strip
- • Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- • Weight: 149 lbs (68 kg)
- • Color: White
This weather-protected speaker is perfect for outdoor installations. Ideal for events like concerts, festivals, or any outdoor venue where great sound is needed. It's designed to be user-friendly for sound engineers and installers. With dimensions of 28 in (710 mm) height, 28 in (710 mm) width, and 23.8 in (605 mm) depth, weighing 149 lbs (68 kg), it's easy to handle and install in various locations.
