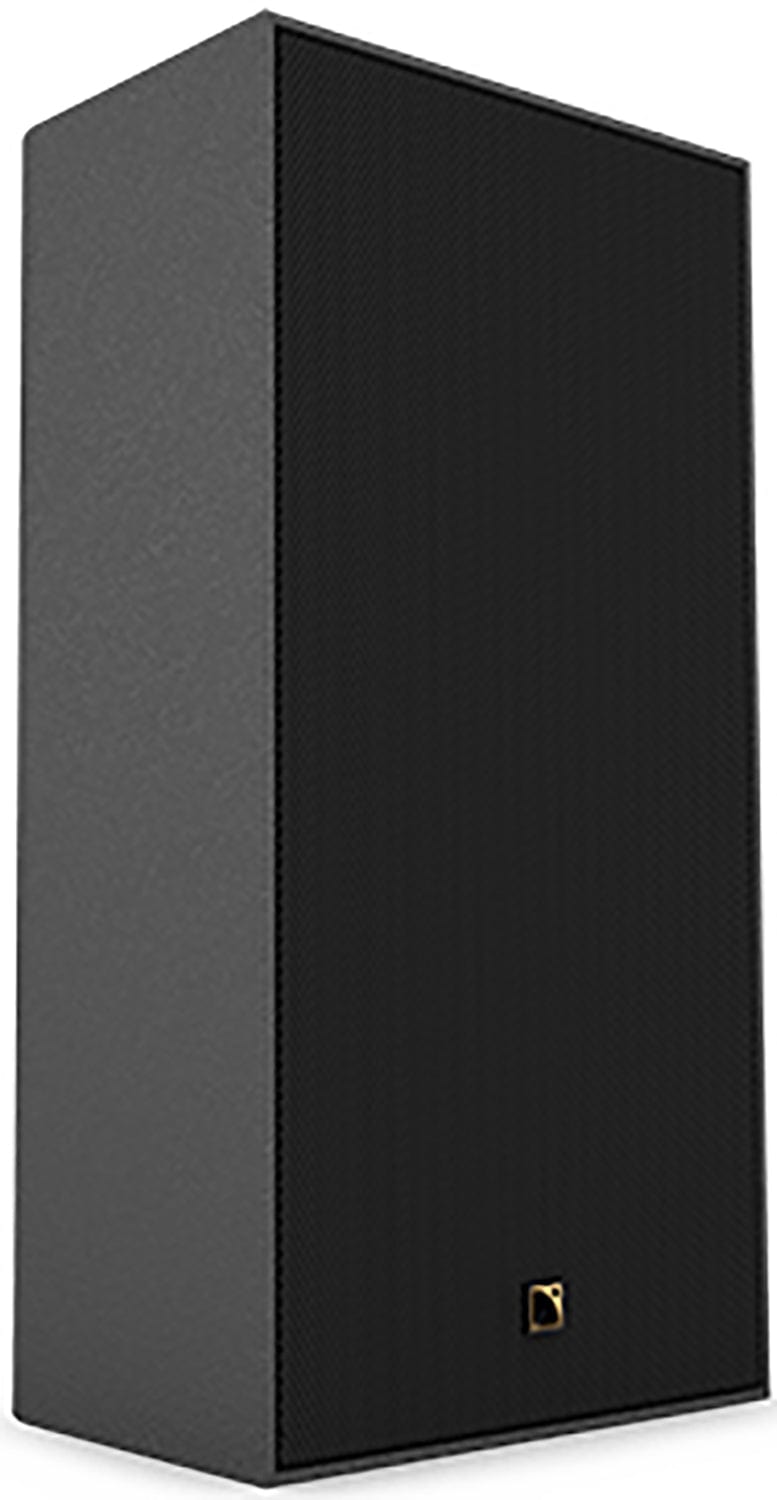

L-Acoustics X8i RAL Passive 2-Way Coaxial Speaker - Stunning Sound for Every Venue
Get ready to experience exceptional sound quality! This 2-way passive speaker features a premium 1.5 in diaphragm compression driver coaxially loaded by an 8 in low-mid frequency transducer in a bass-reflex cabinet. The cabinet is made of premium grade Baltic beech and birch plywood, and the front is protected by a coated steel grill and an acoustically transparent fabric. It offers two angle settings of 35 and 55 degrees for stage monitoring, and dedicated accessories ensure various mounting configurations. It also has eight M6 threaded inserts for external rigging elements.
Features:
- • Delivers L-Acoustics' signature concert sound output and bandwidth for an immersive experience
- • Offers smooth off-axis response with COAXIAL technology
- • Provides clear low-frequency power with L-VENTS
- • Has a streamline install-focus design for easy integration
Specifications:
- Coverage (-6 dB):
- Nominal directivity: 90° axisymmetric
- Monitoring angle: 35° / 55°
- Transducers:
- LF transducer: 8' cone driver
- HF transducer: 1.5' diaphragm compression driver
- Acoustics:
- Nominal impedance: 8
- Usable bandwidth:
- Preset 1: 67 Hz - 20 kHz (-10 dB), 75 Hz - 20 kHz (-6 dB), 83 Hz - 20 kHz (-3 dB)
- Preset 2: 43 Hz - 20 kHz (-10 dB), 48 Hz - 20 kHz (-6 dB), 54 Hz - 20 kHz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 197 W
- Maximum SPL: (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
- Preset 1: 129 dB
- Preset 2: 123 dB
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: premium grade Baltic beech and birch plywood
- Finish: custom RAL code on special order
- Dimensions (W, H, D): 240 mm, 490 mm, 217 mm / 9.4 in, 18.9 in, 8.5 in
- Weight (net): 11 kg / 24 lb
- Connectors: IN: 1 ¡Á 2-point terminal block + LINK: 1 ¡Á 2-point terminal block
- IP: IP55
This L-Acoustics X8i RAL Passive 2-Way Coaxial Speaker is perfect for stage monitoring in venues like concerts, clubs, and theaters. It's great for sound engineers, event organizers, and anyone who wants top-notch sound. With dimensions of 9.4 in (W), 18.9 in (H), and 8.5 in (D) and a weight of 24 lb, it's easy to handle and install.
