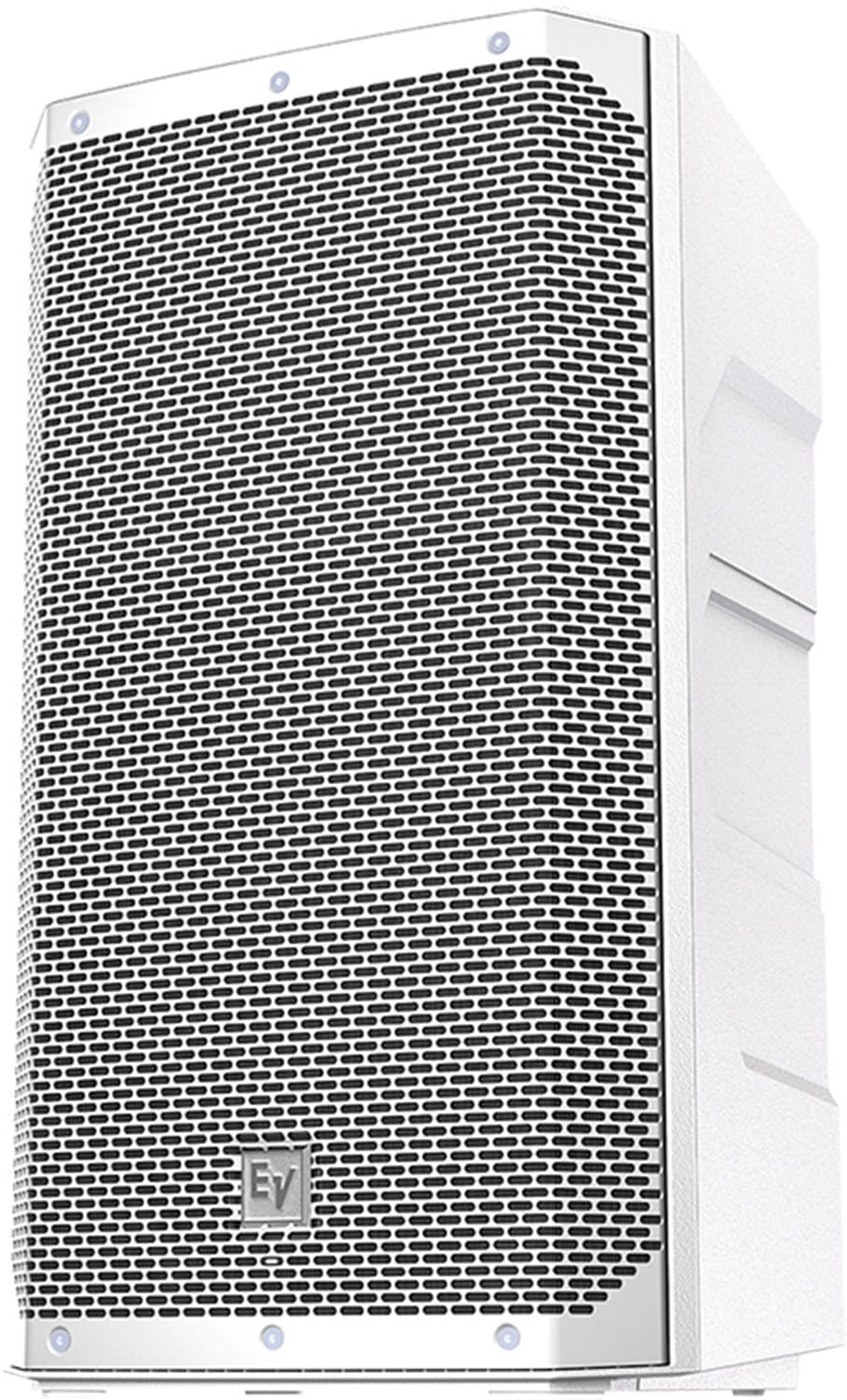

Electro-Voice ELX200 12-Inch Passive Speaker - The Ultimate Sound Solution
Get ready to experience a sonic revolution with the ELX series! Designed to deliver an unbeatable combination of sound quality, portability, and durability, the ELX200 is a game-changer in its price range. With all-new custom components tested to levels far beyond the industry norm, this speaker is a workhorse that can handle real-world abuse and professional applications with ease.
Designed for ideal results as a whole, every aspect of the ELX200 works seamlessly together. The full-range models feature a low profile form factor with a high-spec composite enclosure for balanced weight, manageability, and structural integrity. The proprietary Signal Synchronized Transducers (SST) waveguide concept, which has made the other members of the EV portable speaker family a top choice for best-in-class performance, is also included.
EV's industry-leading quality and testing procedures result in efficient transducer design and meaningful specs, delivering accurate, linear response at the system's highest output levels. The ELX200 is built in one of the strongest full-range composite enclosures ever made by EV, setting a new benchmark for toughness - both acoustically and physically. It offers maximum efficiency with maximum toughness.
Key Features:
- • Powerful 1200 W (Peak), 127 dB peak SPL system, reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices
- • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response
- • High-output EVS-10M woofer designed for superior durability and exceptional low-frequency reproduction
- • EV-patented Signal Synchronized Transducers (SST) waveguide design for precise and consistent coverage, minimal distortion, and maximized acoustical loading
- • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts, and the proven ZLX two-handle design for easy lifting
Technical Specifications:
- • Axial Sensitivity (SPL, 1 W @ 1 m): 93dB
- • Connector Type: Dual NL4
- • Coverage (Nominal -6 dB) H: 90°
- • Coverage (Nominal -6 dB) V: 60°
- • Crossover Frequency: 1.7 kHz
- • Enclosure Material: Polypropylene composite
- • Family: ELX200
- • Frequency Range (-10 dB): 51 Hz - 20 kHz
- • Frequency Response (-3 dB): 77 Hz - 17 kHz
- • Grille: 18 AWG steel with powdercoat
- • HF Transducer: DH-1C 1-inch titanium compression driver
- • LF Transducer: EVS-12M 300 (12 in)
- • Max. SPL/1m (calc): 128dB
- • Minimum Impedance: 7.5Ω
- • Nominal Impedance: 8Ω
- • Power Handling (Continuous / Peak): 300W/1200W
- • Power Rating: 1200W
- • Recommended High-Pass Frequency: 50 Hz
- • Speaker Type: Full-Range
- • Suspension: (3) M10 suspension points
- • Woofer Size: 12 inch
The Electro-Voice ELX200 12-Inch Passive Speaker is perfect for live events, concerts, and mobile DJ setups. It's designed for professionals and enthusiasts who demand top-notch sound quality. With a 12-inch woofer and 1.4-inch titanium compression driver, it delivers powerful and clear sound. The speaker features a polypropylene composite enclosure and weighs [weight] pounds. Its dimensions are [length] x [width] x [height] inches, making it easy to transport and set up.
