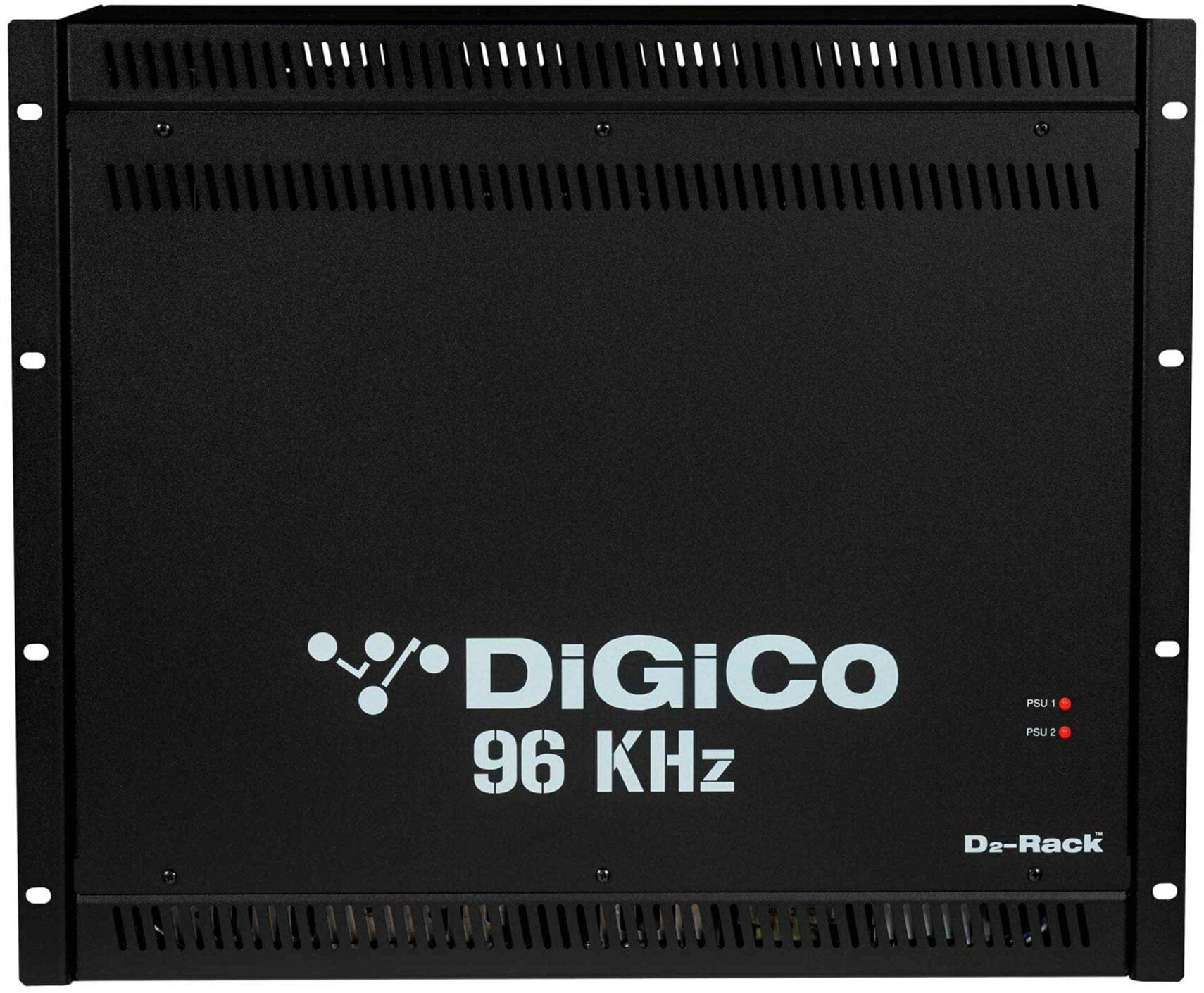

DiGiCo X-D2-AN-C D2-Rack: The Ultimate Solution for High-Performance Connectivity
Unleash Your Audio Potential with 96KHz on CAT6
• Expandable channel count and high sample rates for ambitious projects
• Compact 9U rack with 48 inputs and 16 outputs (expandable to 32)
• Dual MADI ports for rack sharing or digital splits at 48kHz (up to 96kHz combined)
The D2-Rack is a game-changer in digital connectivity. Its expandable design and high sample rates provide the firepower you need for even the most challenging projects. The compact 9U rack is packed with features, including 48 inputs and 16 outputs as standard, which can be expanded to 32 outputs. Dual MADI ports offer flexibility for rack sharing or digital splits, ensuring seamless integration with your setup.
With options for input configurations and output expansion, the D2-Rack adapts to your specific needs. And with dual redundant power supplies, you can rely on its ultimate reliability.
OVERVIEW
The DiGiCo D2-Rack is a powerful audio rack with 48 inputs and 16 outputs. It features two output expansion slots for increased flexibility. Choose between 48 analogue inputs or 24 analogue and 24 digital inputs.
KEY FEATURES
- • 48 Inputs (configurable as all mic in or 24 mic/24 AES)
• 16 Line Outputs
• 2 Output expansion card slots for up to 16 additional outputs
• Supports MADI BNC or MADI RJ45
• 9U Rack Mountable
• Rack sharing or digital splits at 48kHz
• Gain Tracking
• Redundant PSUs
• Flashing screen for easy system status indication
• Locked controls to prevent accidental changes
• Internal Oscillator
• Can be used as a standalone rack
TECHNICAL SPECIFICATIONS
- AUDIO SPECIFICATIONS
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz
• Crosstalk (100 - 10kHz): >90dB
• AES Input Frequency Response (10Hz - 20kHz): ±0.1dB
• Analogue Input Frequency Response (10Hz - 20kHz): ±1dB
• AES Noise: <-140dB
• Analogue EIN (150Ω): 127dB
• Dynamic Range: 113dB
• Input Impedance: 2500Ω (2650Ω with pad)
• CMRR @ 1kHz (150Ω Zin): >71dB
• AES Distortion @ -1dBFS Gain (100Hz - 10kHz): <0.00015%
• Analogue Distortion @ 30dBFS Gain (100Hz - 10kHz): <0.01%
• AES Cable Length: OK over 100m
• Phantom Power: 48.3V
• Oscillator Level: -96dB to 0dB
• Oscillator Frequency: 20Hz to 22kHz
• Gain Range: -10dB to +60dB
• System Delay: ≈2ms @ 48kHz or ≈1.1ms @ 96kHz
• Maximum Input Level: +22dBu
• Maximum Output Level: +22 dBu

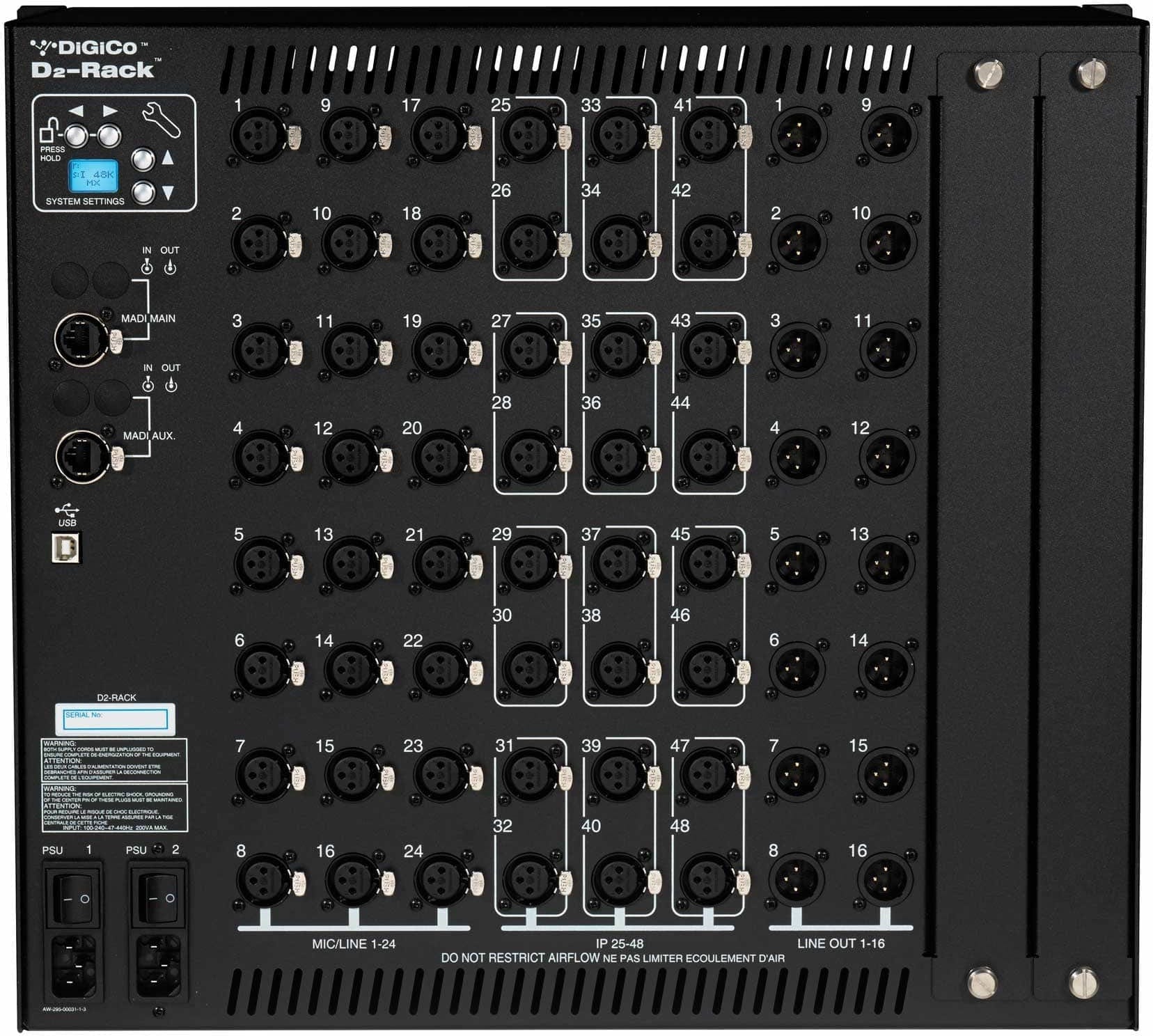

- CONNECTIONS
- 48 x XLR Mic Inputs
• 16 x XLR Outputs
• 2 x Output Expansion Slots
• 2 x Redundant PSUs
• 1 x LCD Menu Screen
• 4 x Menu Buttons
• 1 x MADI Main I/O (CAT6)
• 1 x MADI Aux I/O (CAT6)
• 1 x USB 2.0 Type B port
- SIGNAL PROCESSING
- Internal Oscillator
• Gain Tracking
- OPTIONS
- BNC or Cat5 (RJ45) MADI
• 48 in and 16 out or 24in, 24 AES/EBU in and 16 out
• Compatible Cards: 8 ch Line Output / 8 ch AES Output / 16 ch Aviom
The DiGiCo X-D2-AN-C D2-Rack is a 9U rack that's perfect for audio professionals and ambitious projects. It offers high-performance connectivity with features like expandable channels, dual MADI ports, and redundant power supplies. With a compact design and various input/output options, it's a versatile solution for your audio needs. The rack is 9U in size and can be easily mounted. Whether you're recording, mixing, or performing live, this rack provides the reliability and flexibility you require.
