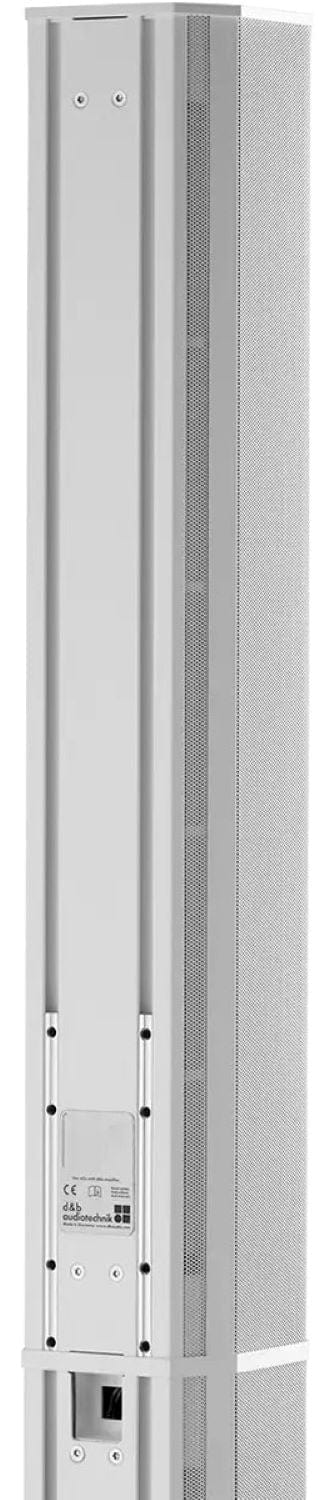

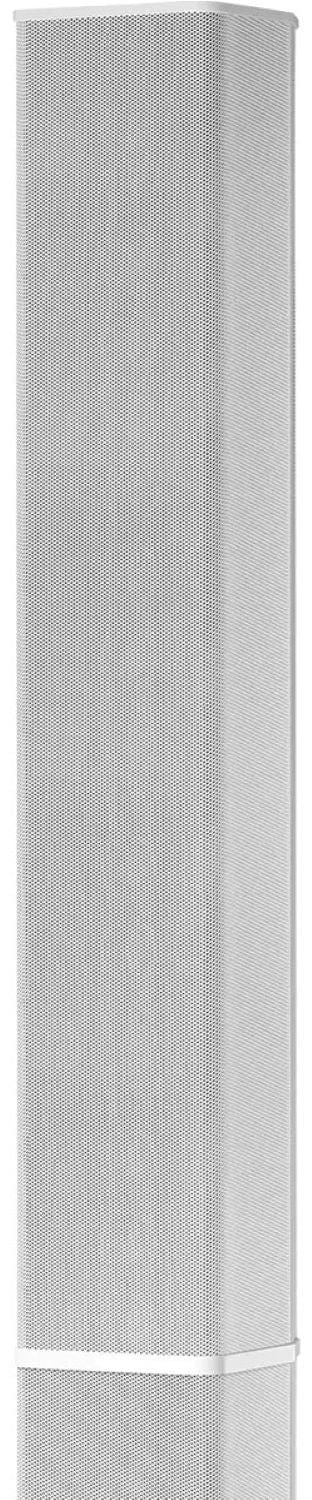

D&B Audiotechnik Z1710.100 24C-E Weather-Resistant Column Passive Loudspeaker Extension
Enhance your sound setup with the 24C-E passive extender for the 24C column loudspeaker. • Six 4” neodymium drivers for rich sound. • Unique cardioid setup for focused audio. • Weather-resistant design for outdoor use. The cabinet houses six 4” neodymium drivers, extending vertical directivity down to 190 Hz. Passive connections need only one amplifier channel. The 4' drivers are in a cardioid setup with damped ports at the rear, providing 18 dB broadband attenuation to the rear. The enclosure has an extruded aluminium back, metal baffle, and a metal grill for protection. It features extendable rails for 24C attachments and N-lok connectors. Available in white or black, or choose the Special Colour option in all RAL colours.
Features:
- Components 6 x 4'
- Dispersion 90° x 20°
- SPLmax 128 dB
- Weight 7 kg / 15.4 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 110 Hz - 17 kHz
- Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
- Max. sound pressure: 128 dB (in combination with 24C)
- Cabinets per amplifier channel: 1
- Loudspeaker data:
- Configuration: Installation specific cardioid column extender
- Power handling capacity (RMS/peak 10 ms): 250/1200 W
- Vertical downtilt of low-mid beam: 5°
- Vertical adjustment of HF section: 0° -14°
- Nominal dispersion angle (h x v): 90° x 20°
- Components: 6 x 4' driver with neodymium magnet
- Connections: fixed cable gland with 2-pole Mate-N-Lok mini through 24C
- Dimensions / Weight:
- Dimensions (H x W x D): 701 x 124.5 x 124 mm / 27.6 x 4.9 x 4.88'
- Weight: 7 kg / 15.4 lb
The D&B Audiotechnik Z1710.100 24C-E is a weather-resistant column passive loudspeaker extension. Ideal for outdoor events and public spaces. It's easy to install with its extendable rails and N-lok connectors. Dimensions are 701 x 124.5 x 124 mm and it weighs 7 kg. With six 4” neodymium drivers, it delivers great sound quality. The unique cardioid setup provides focused audio. Whether you're setting up a concert or a public announcement system, this product is a great choice for achieving high-quality sound in various outdoor scenarios.
