DiGiCo SD9 Digital Mixing Console - All-in-One Connectivity & Performance Powerhouse

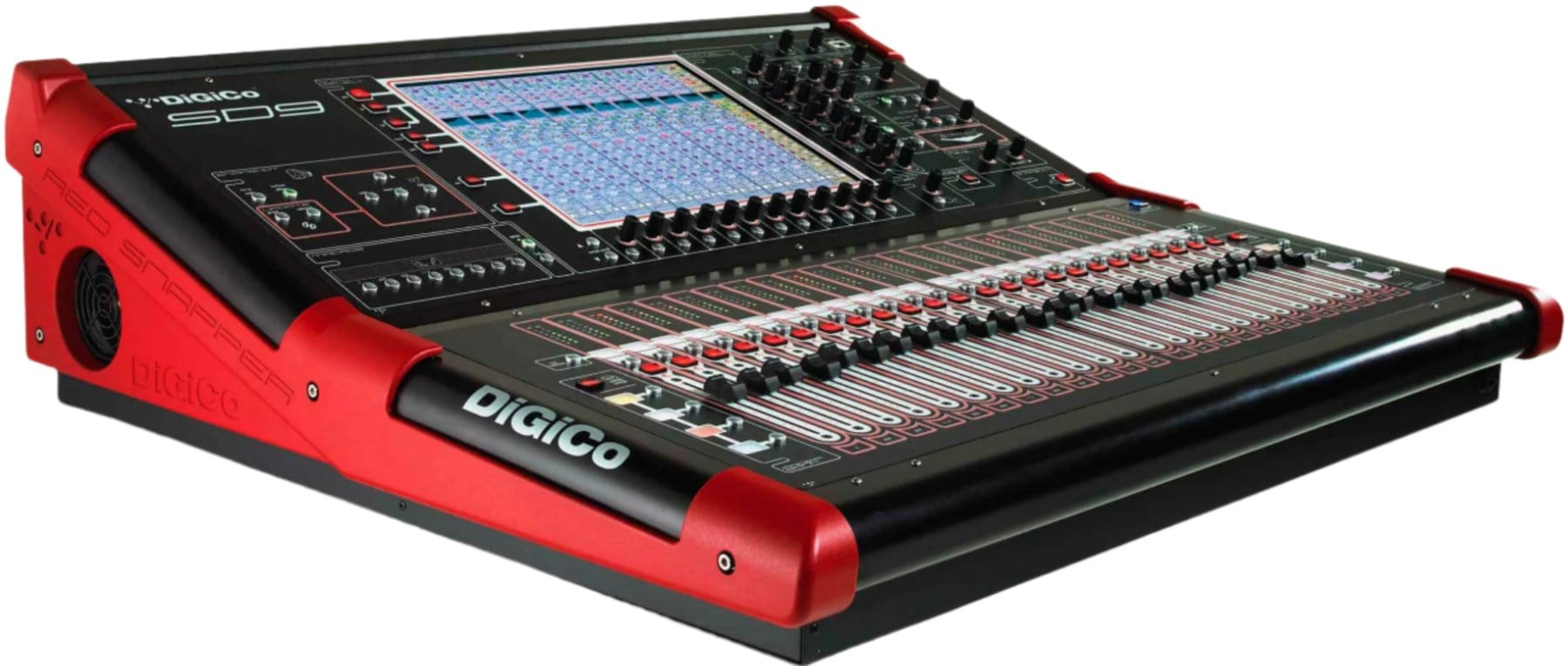

Compact yet feature-rich, the DiGiCo SD9 Digital Mixing Console offers top-notch Stealth Digital Processing and floating point Super FPGA technology at an amazing price. It combines DiGiCo's renowned workflow speed and efficiency with a lightweight, small-footprint design perfect for any application. Whether on the road or in a theatre, conference centre, or house of worship, the fully integrated SD9 delivers outstanding performance.

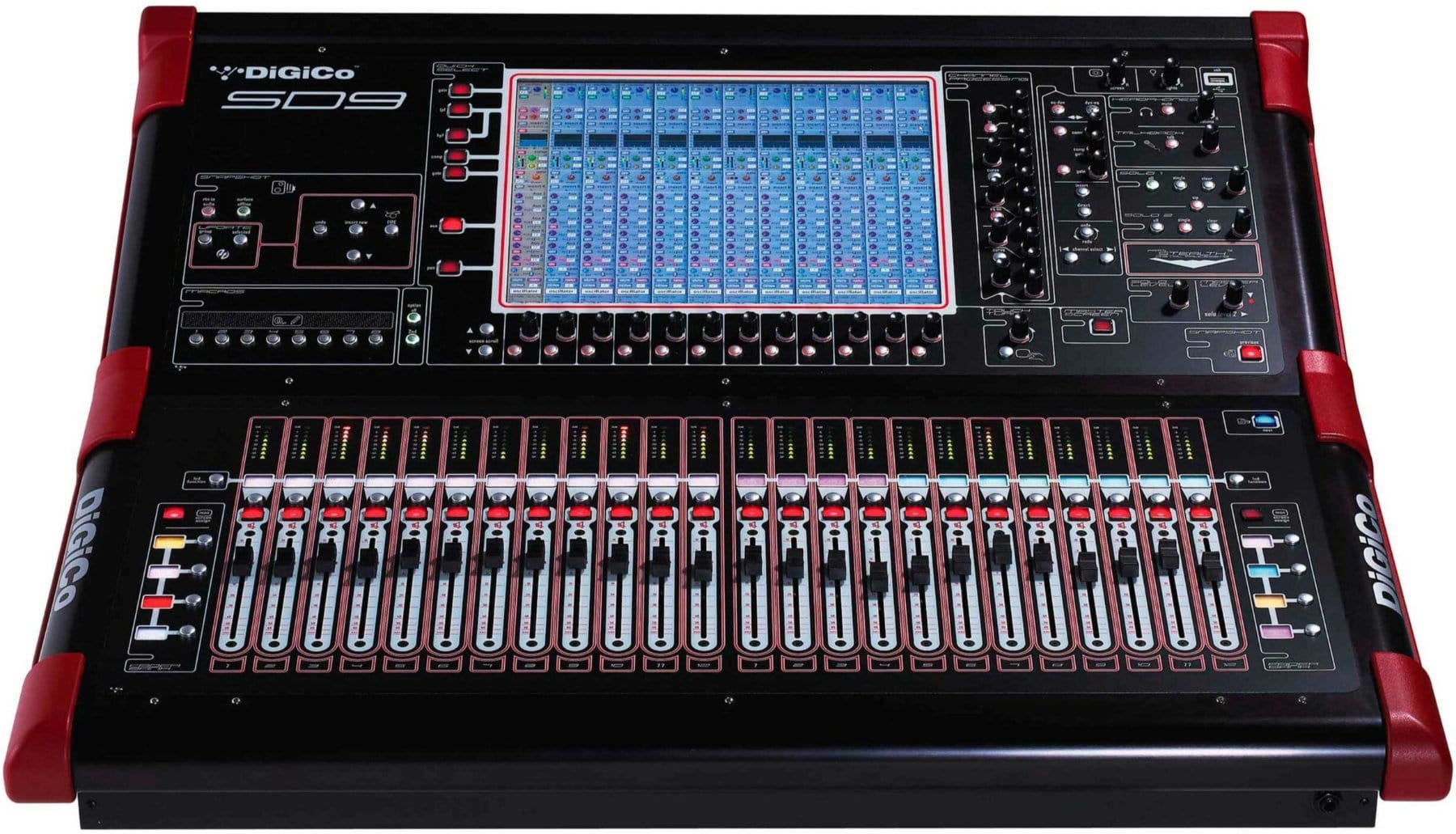

Designed for easy and familiar operation, the SD9 work surface gives you 24 touch-sensitive, motorised faders right at your fingertips, along with easily accessible quick access function buttons. A 15-inch, high resolution backlit TFT LCD touchscreen ensures hassle-free and instant operation, while dedicated multi-function control knobs and electronic labelling guarantee a successful show every time. Welcome to the SD9 - your gateway to exceptional high-end performance.
Key Features:
- • All-in-one connectivity with MADI and One Multi-Mode Optics ST
- • High-resolution 15-inch touchscreen for effortless control
- • 24 touch-sensitive, motorised faders for precise adjustments
Specifications:
- Faders: 24 x 100mm Touch-sensitive, motorised
- Screens: 1 x 15” (38cm) LCD high-resolution touch screen
- Meters: 24 x 8-Segment LED bargraph
- Input Channels: 96 Input Channels
- Busses: 48 Aux/Sub-Group Busses
- Solo Busses: 2 Stereo Busses
- Matrix: 12 x 8 Matrix (additional to busses above)
- Control Groups: 12, Selectable for VCA-style, Moving Fader, Mute Group
- Graphic EQ: 16 x 32-band, Gain +/- 12dB
- Internal FX: 12 Stereo FX Processors

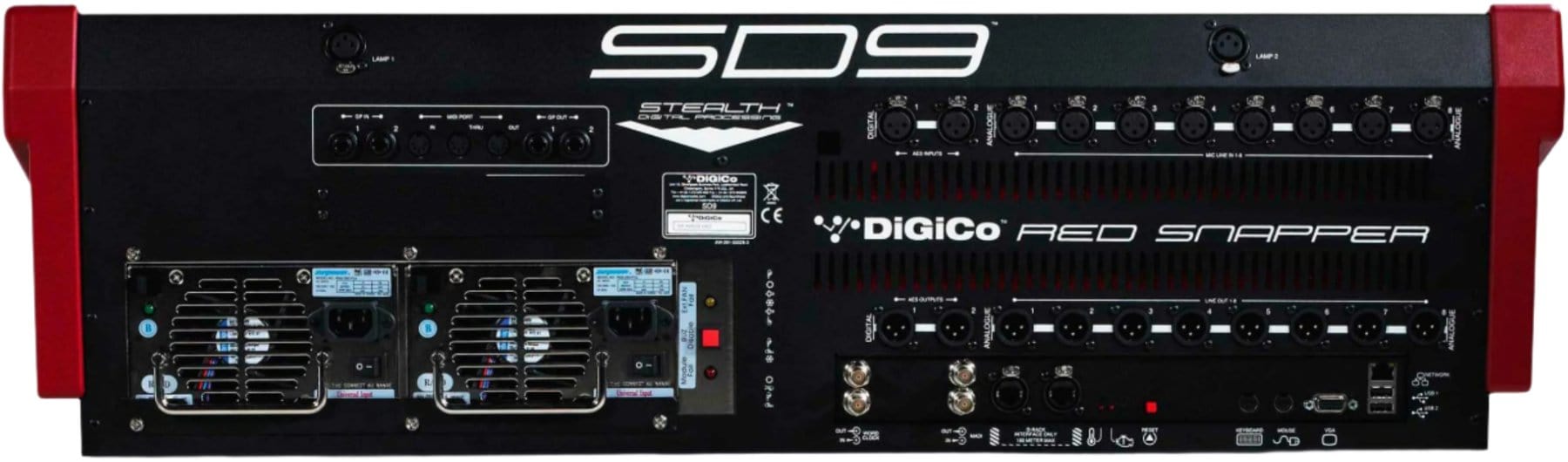

- Local I/O: 8 x Mic/Line I/O, 4 x AES/EBU: I/O (Mono)
- MADI Interface: In / Out
- Optional Optics: Optocore, HMA or ST
- MIDI Interface: In / Out / Thru
- VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
- USB Ports: 3 x USB2
- Light Connection: 2 x XLR3 1.2 – 12V
- Ext Sync: Word Clock, MADI
- Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
- GPI: 2 x 1/4” Jack
- GPO: 2 x 1/4” Jack
- SD9 Dimensions: 878mm (w) x 785mm (d) x 262mm (h)
- SD9 Weight: 36Kg (105Kg with optional flightcase)
- SD9 Flightcase: 1063mm (w) x 1131mm (h) x 472mm (d) (Optional)
- SD9 Power: 90-264 VAC, 47-63Hz Auto Sensing. 208 watts, 232VA Requirements
- Redundancy: Internal PSU x 2 (Optional)
The DiGiCo SD9 Digital Mixing Console is a versatile powerhouse suitable for live events, installations, and venues like theatres, conference centres, and houses of worship. It's designed for sound engineers and technicians who demand high performance. With a width of 878mm, depth of 785mm, and height of 262mm, weighing 36Kg (105Kg with optional flightcase), it offers a compact footprint without sacrificing functionality.
