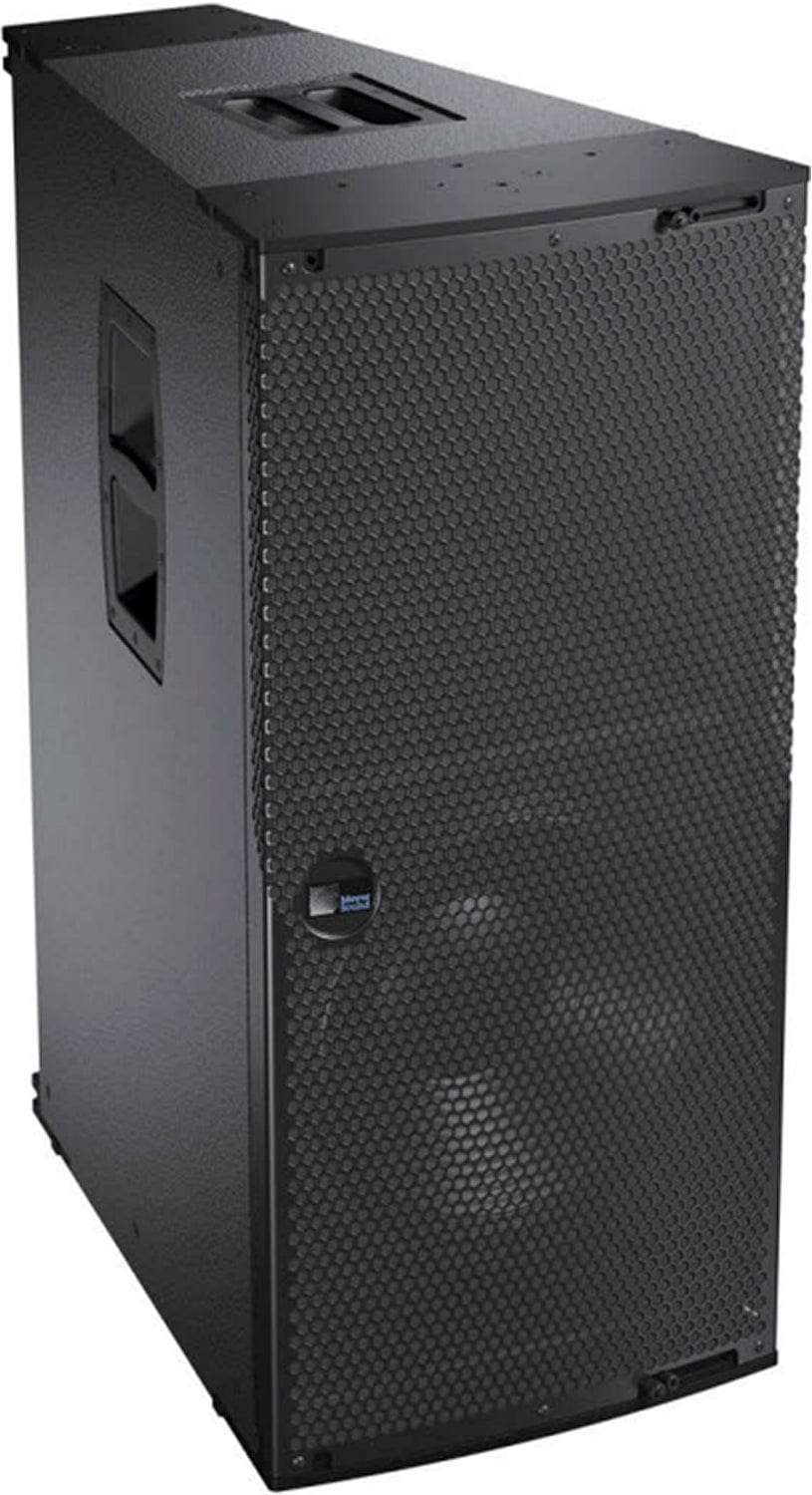

Meyer Sound JM-1P Arrayable Point-Source Loudspeaker Weather Protected with 3-Pin XLR and Loop

Meyer Sound JM-1P Weather-Protected Arrayable Point-Source Loudspeaker with 3-Pin XLR and Loop

The JM 1P self-powered loudspeaker is an amazing choice for a wide range of applications! • It offers tightly controlled coverage that scales proportionally to the number of arrayed units, ensuring you get the perfect sound everywhere. • With its exceptional size to power ratio, you get powerful sound in a compact package. • The QuickFly rigging provides flexibility for both horizontal and vertical arrays, making installation a breeze.

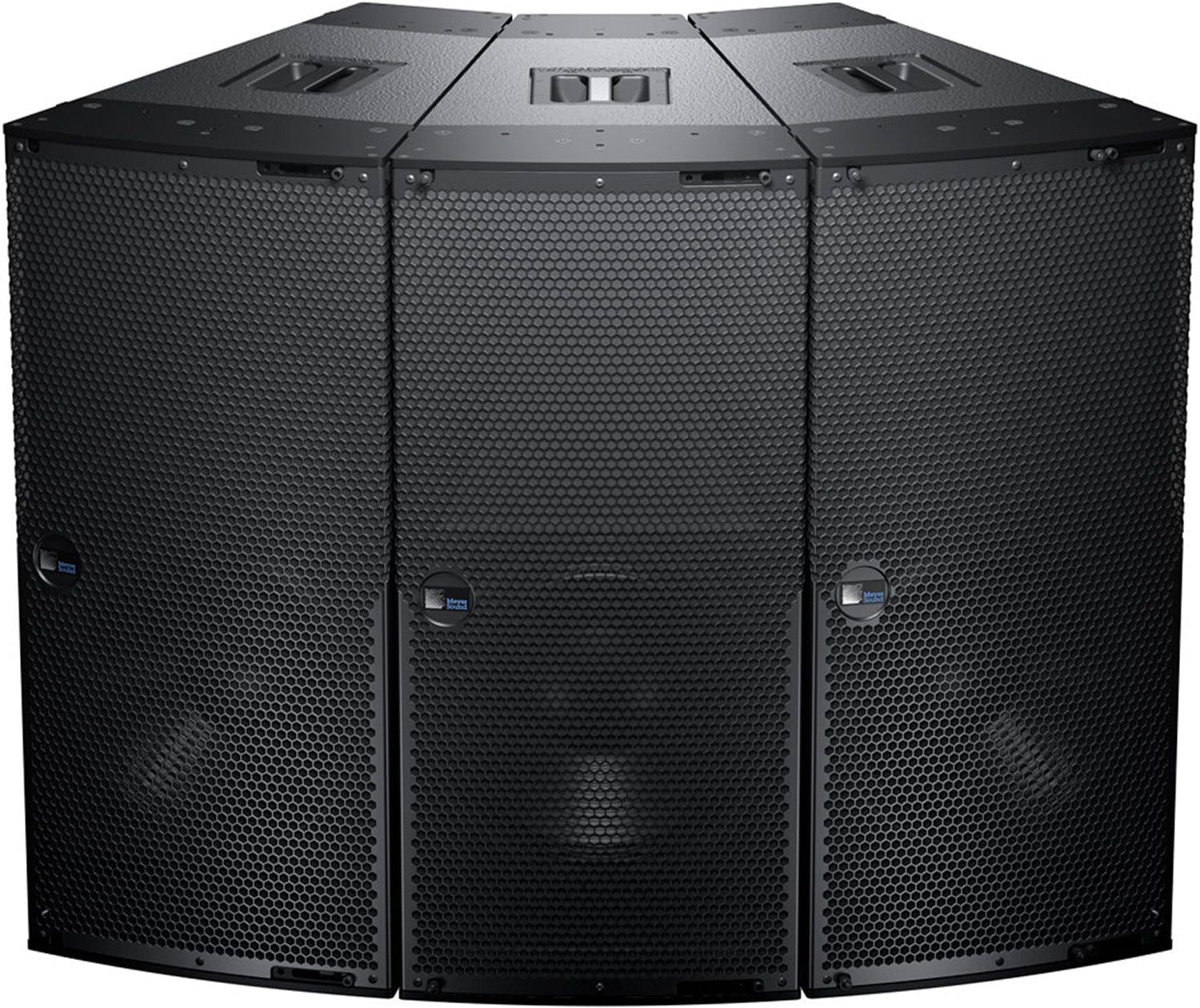

Utilizing Meyer Sound's patented REM technology and trapezoidal cabinet design, the JM 1P can be deployed in tightly-packed array clusters. Whether it's for touring, rental, or fixed installations, this loudspeaker is a great option. It's optimized for horizontal installations but can also be used vertically when needed. Its scalable coverage and versatile rigging options make it a top pick for sound professionals.

Features:

• Tightly controlled coverage is scalable proportional to the number of arrayed units
• Exceptional size to power ratio
• QuickFly rigging offers the flexibility of both horizontal and vertical arrays
• Consistent and predictable array performance ensures accurate system design

Specifications:

• Acoustical:
  • Operating Frequency Range: 53 Hz – 18 kHz
  • Frequency Response: 56 Hz – 16.5 kHz ±4 dB
  • Phase Response: 580 Hz – 16 kHz ±45°
  • Linear Peak SPL: 132 dB with crest factor >15.5 dB (M-noise), 133dB (Pink noise), 136 dB (B-noise)
• Coverage:
  • Horizontal Coverage: 20°
  • Vertical Coverage: 60°
• Transducers:
  • Low Frequency: One high-power, 15-inch cone driver with neodymium magnet; 2 Ω nominal impedance
  • High Frequency: One 4-inch compression driver; 8 Ω nominal impedance
• Audio Input:
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for transient voltage protections
  • Connectors: XLR 3-pin female input with male loop output.
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 220 k, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal -
    • Case: Earth ground and chassis
  • Nominal Input Sensitivity: 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
  • Input Level: Audio source must be capable of producing of +20 dBV (10 V rms) into 600 to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
• Amplifier:
  • Type: Two-channel, complementary MOSFET output stages (class AB/H)D
  • Total Output Power: 2550 W peak
  • THD, IM, TIM: < 0.02%
  • Cooling: QuietCool with convection cooling at low to mid audio levels; fan-assisted only at high audio levels.
• AC Power:
  • Connectors: powerCON 20 input with loop output
  • Automatic Voltage Selection: Two ranges, each with high-low voltage tap (uninterrupted)
  • Safety Agency Rated Operating Range: 95–125 V AC; 208–235 V AC, 50/60 Hz
  • Turn-on and Turn-off Points: 85–134 V AC; 165–264 V AC
• Current Draw:
  • Idle Current: 0.50 A rms (115 V AC); 0.28 A rms (230 V AC); 0.56 A rms (100 V AC)
  • Maximum Long-Term Continuous Current (>10 sec): 4.55 A rms (115 V AC); 2.50 A rms (230 V AC); 5.25 A rms (100 V AC)
  • Burst Current (<1 sec): 8.0 A rms (115 V AC); 4.1 A rms (230 V AC); 9.2 A rms (100 V AC)
  • Maximum Instantaneous Peak Current: 20.8 A peak (115 V AC); 13.0 A peak (230 V AC); 21.6 A peak (100 V AC)
  • Inrush Current: 7.1 A peak (115 V AC); 8.4 A peak (230 V AC); 7.1 A peak (100 V AC)
• Physical:
  • Dimensions: W: 16.79 in (427 mm) x H: 36.08 in (916 mm) x D: 29.30 in (744 mm)
  • Weight: 147 lb (66.68 kg)
  • Enclosure: Premium multi-ply birch with slightly textured black finish
  • Protective Grille: Powder-coated, hex-stamped steel with black mesh
  • Rigging: Aluminum end plates with side links for arraying units; threaded metric M10 points for rigging accessories; optional pickup plate and vertical grid for suspending arrays with uptilt or downtilt

The Meyer Sound JM-1P is a weather-protected, arrayable point-source loudspeaker. It's great for touring, rental, and fixed installations. For sound professionals looking for a powerful and flexible solution. Dimensions are 16.79 in (427 mm) wide, 36.08 in (916 mm) high, and 29.30 in (744 mm) deep. Weighing 147 lb (66.68 kg), it's easy to handle and install in various setups.
