D&B Audiotechnik Z0730.001 AL60: The Ultimate Loudspeaker for Medium-Scale Sound Reinforcement

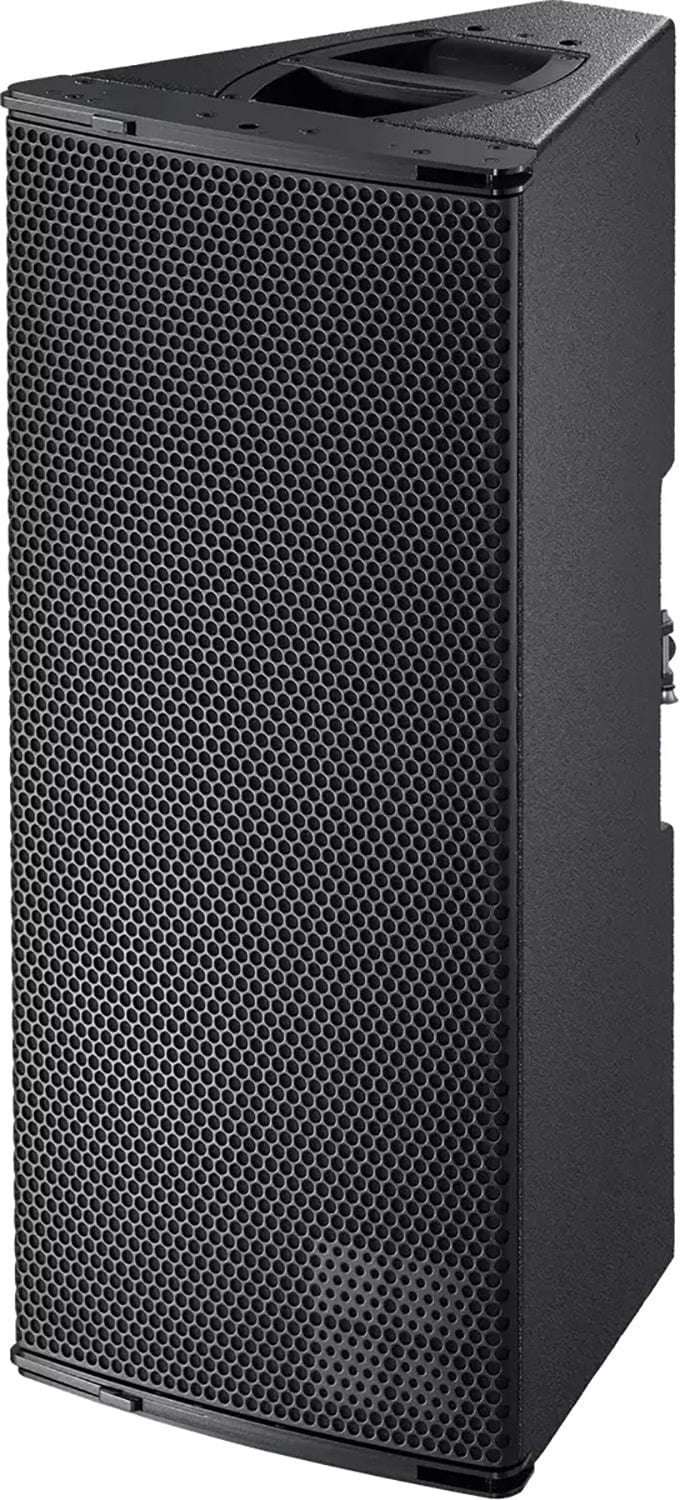

• Versatile Setup: Ideal for medium-scale sound reinforcement, the AL60 can be flown in vertical columns using the AL Flyingframe or arranged horizontally with the AL Flying adapter.
• High-Quality Sound: With its passive 2-Way design, the AL60 delivers exceptional sound quality with two 10' neodymium LF drivers and a 1.4' exit HF compression driver.

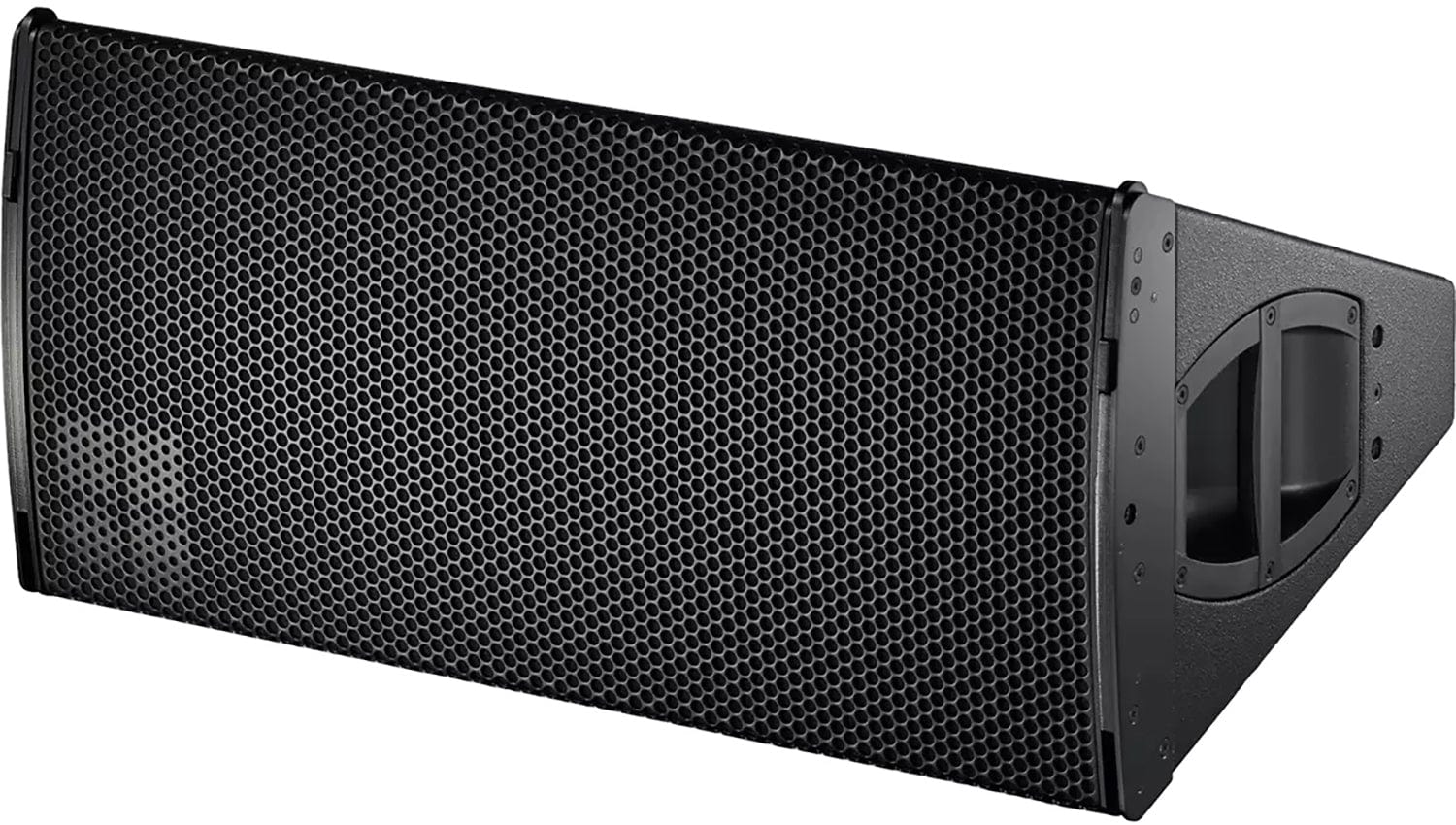

• Durable Construction: Built from marine plywood with a PCP finish and a metal grill, the AL60 is designed to withstand the rigors of any environment.
The AL60 is an augmented array loudspeaker that offers a 60° constant directivity dispersion pattern in the horizontal plane when flown in vertical columns using the AL Flyingframe. It can also be used as a horizontal array of up to four loudspeakers with the AL Flying adapter. The loudspeaker module features a passive 2-Way design with two x 10' neodymium LF drivers and one 1.4' exit HF compression driver with a 3' diaphragm mounted to a dedicated wave shaping device and a passive crossover network. The wave segments of each cabinet couple without gaps and sum up coherently, and splay angles between adjacent cabinets can be set from 20° to 40° in 5° increments for a total coverage of 50° to 70° for two cabinets and up to 150° per array. All components are arranged symmetrically around the center axis of the cabinet for a perfect symmetrical dispersion pattern, and broadband horizontal dispersion control is maintained down to approximately 550 Hz. The cabinet is constructed from marine plywood with an impact and weather protected PCP (Polyurea Cabinet Protection) finish, and the front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent fabric.
Specifications:
• System data:
- Frequency response (-5 dB standard): 60 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 95 Hz - 18 kHz
- Max. sound pressure:
- with D20/30D: 138 dB
- with D40/D80/40D: 139 dB
- Cabinets per amplifier channel: 2
• Loudspeaker data:
- Nominal dispersion angle (h x v - horizontal setup): 60 ° x 30 °
- Nominal impedance: 8 ohms
- Power handling capacity (RMS/peak 10 ms): 400/1800 W
- Splay angle settings: 20 ¡ 40° (5° increment)
- Components:
- 2 x 10' LF driver
- 1 x 1.4' exit compression driver with 3' coil
- Passive crossover network

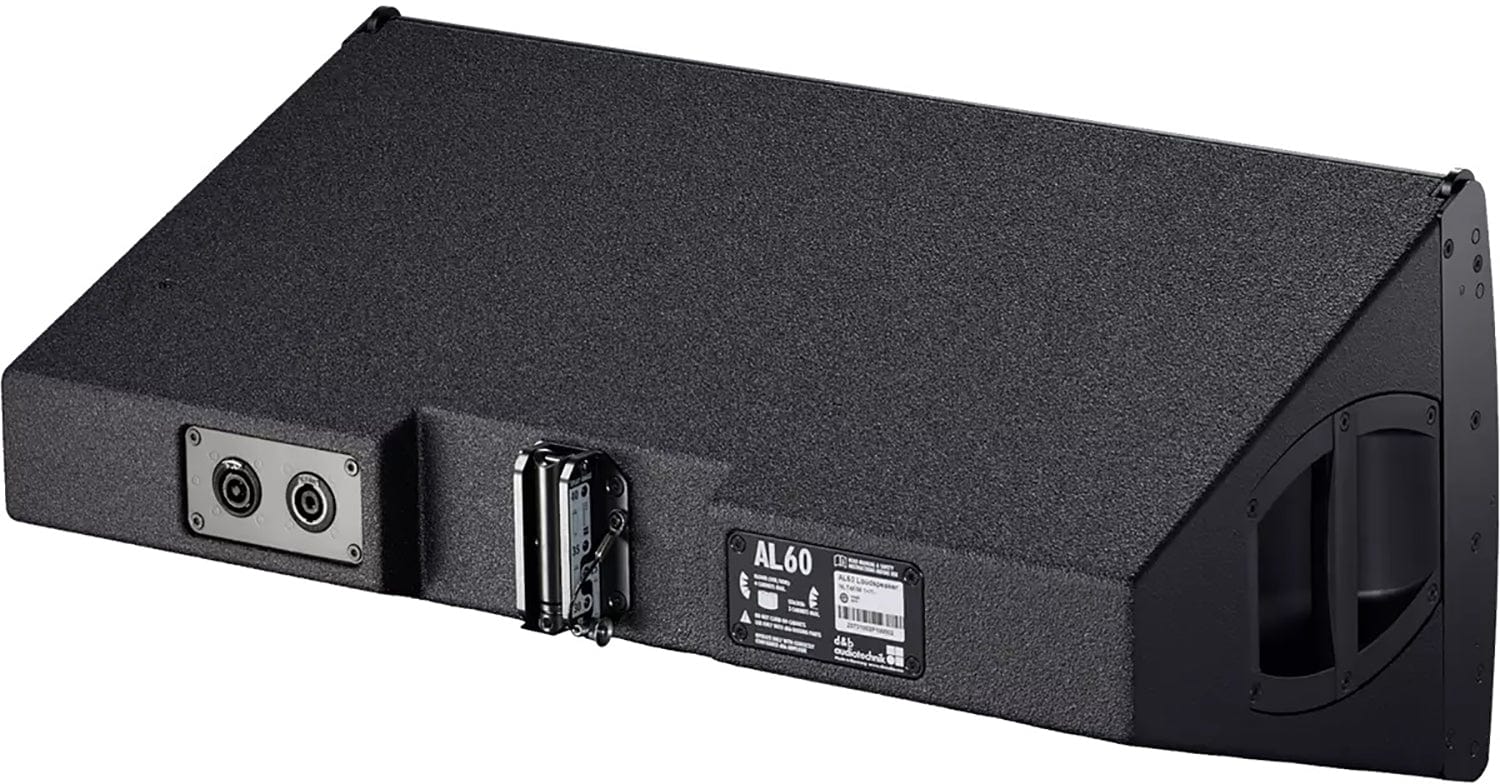

- Connections: 1 x NL4
• Dimensions / weight:
- Dimensions (H x W x D)322 x 700 x 356 mm (12.7 x 27.6 x 14')
- Weight: 23 kg (51 lb)
The D&B Audiotechnik Z0730.001 AL60 is a great choice for medium-scale sound reinforcement. It can be used in a variety of settings, such as concerts, corporate events, and live performances. The target audience for this product is anyone who needs high-quality sound reinforcement for medium-sized venues. The AL60 measures 322 x 700 x 356 mm (12.7 x 27.6 x 14') and weighs 23 kg (51 lb). It has a frequency response of 60 Hz - 18 kHz (-5 dB standard) and 95 Hz - 18 kHz (-5 dB CUT mode). The max sound pressure is 138 dB with D20/30D and 139 dB with D40/D80/40D. It has a nominal dispersion angle of 60 ° x 30 ° (horizontal setup), a nominal impedance of 8 ohms, and a power handling capacity of 400/1800 W (RMS/peak 10 ms). The splay angle can be set from 20° to 40° in 5° increments. It comes with 2 x 10' LF drivers, 1 x 1.4' exit compression driver with 3' coil, and a passive crossover network. The connection is 1 x NL4.
